Library› Engine Room› Main Engines (4-Stroke)› Main Engine 4-Stroke› Volvo Penta D13 MH
Volvo Penta

D13 MH

Main Engine 4-Stroke · Main Engines (4-Stroke)

Class-certified type (DNV register) · technical data sheet not yet verified
Volvo Penta in the SpecCodex register — view brand page →
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Engine designationD13 MH
No. of cylinders and configurationin-line 6
Method of operation4-stroke, direct-injected, turbocharged diesel engine with charge air cooler
Bore/stroke, mm (in.)131/158 (5.16/6.22)
Displacement, l (in3)12.78 (779.7)
Compression ratio18.5
Dry weight bobtail (KC), kg (lb)1480 (3263)
Dry weight bobtail (HE), kg (lb)1520 (3351)
Specific fuel consumption, g/kWh (lb/hph) @ 1400 RPM198 (0.32)
g/kWh (lb/hph) @ 1800 RPM207 (0.34)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Technical data according to ISO 3046 Fuel Stop Power and ISO 8665. Fuel with a lower calorific value of 42700 kJ/kg and density of 840 g/liter at 15 °C (60 °F). Merchant fuel may differ from this…”

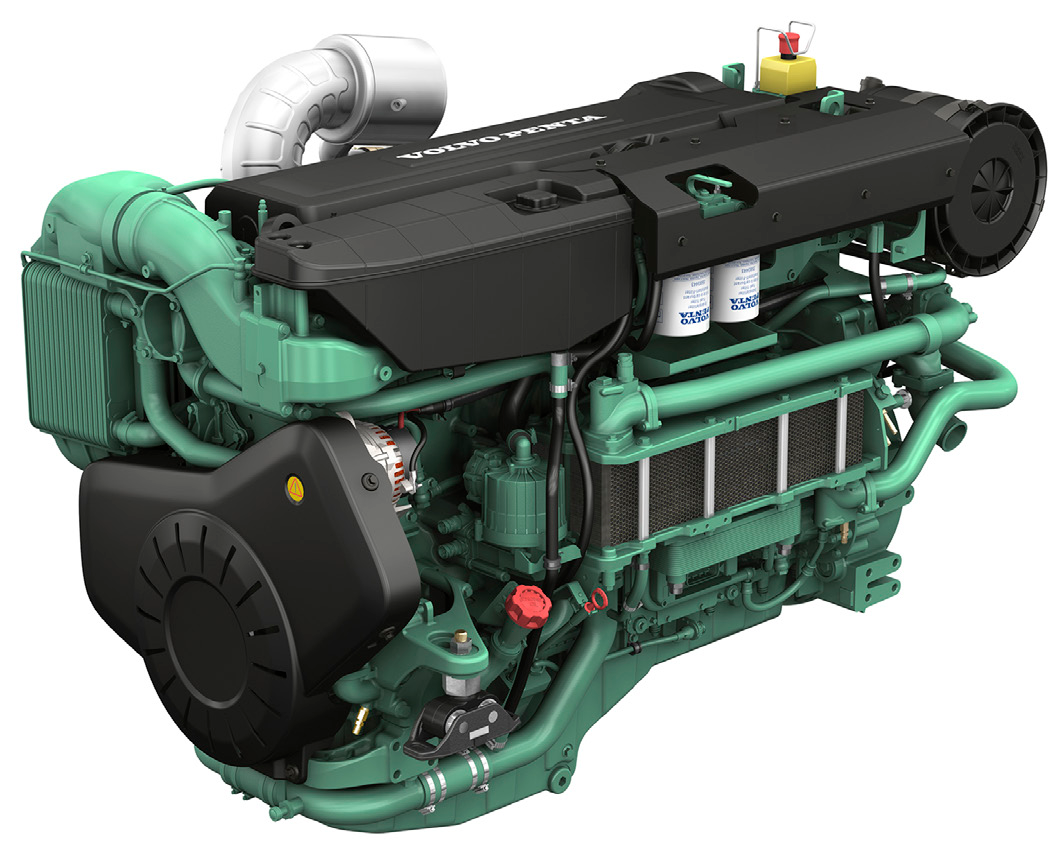

Volvo Penta D13 MH – Photo (92e60254d049_S1-1 S. 1)
Photo · 92e60254d049_S1-1 · S. 1

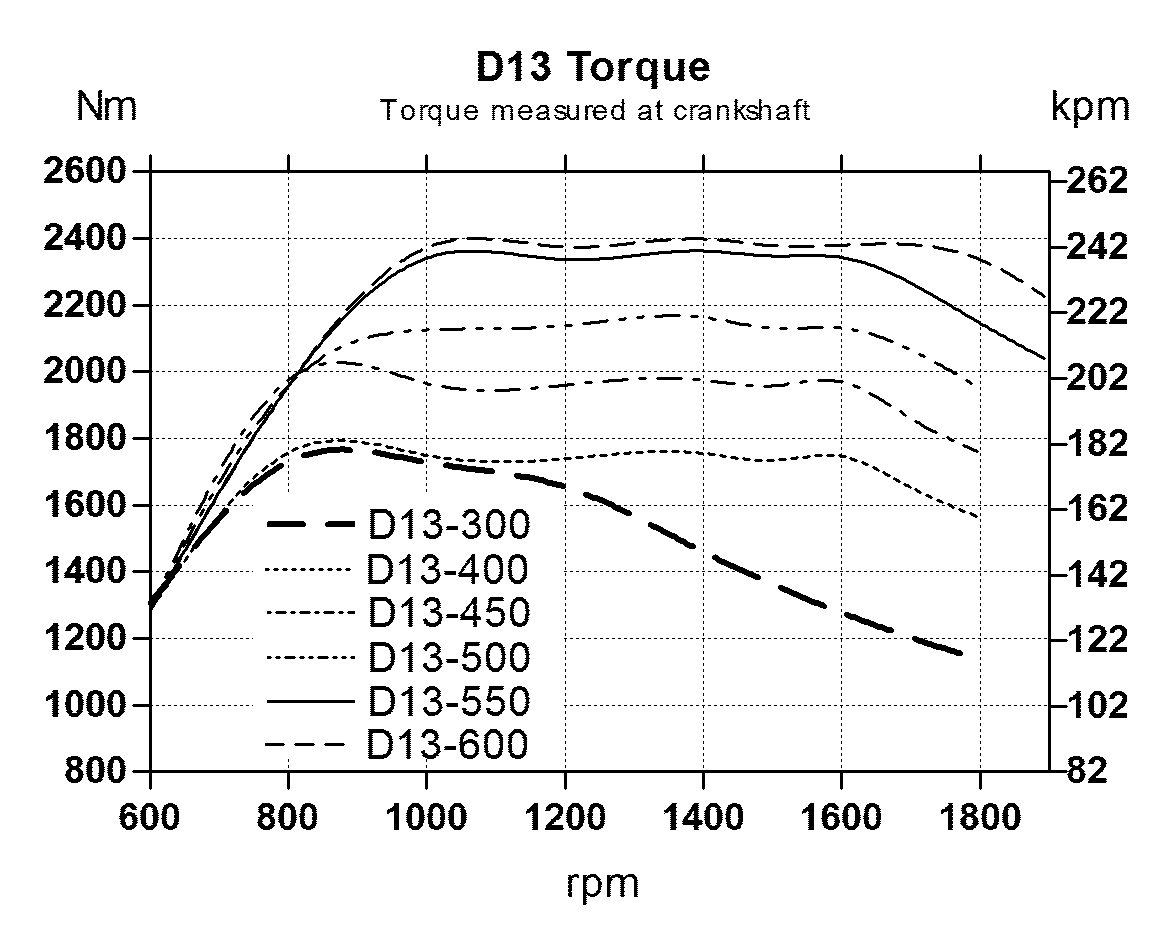

Volvo Penta D13 MH – Drawing (92e60254d049_S1-1 S. 1)
Drawing · 92e60254d049_S1-1 · S. 1

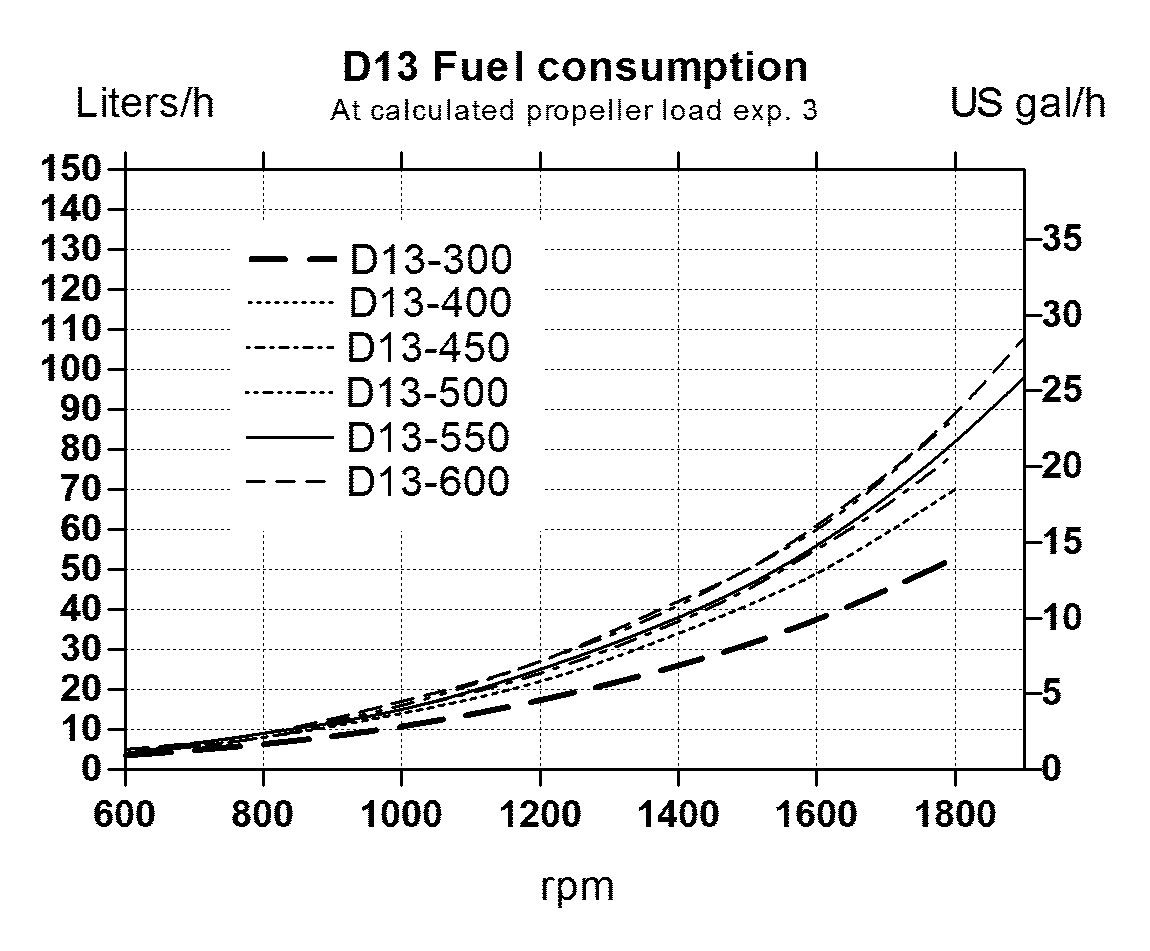

Volvo Penta D13 MH – Drawing (92e60254d049_S1-1 S. 1)
Drawing · 92e60254d049_S1-1 · S. 1
Volvo Penta D13 MH – Drawing (92e60254d049_S1-1 S. 1)
Drawing · 92e60254d049_S1-1 · S. 1

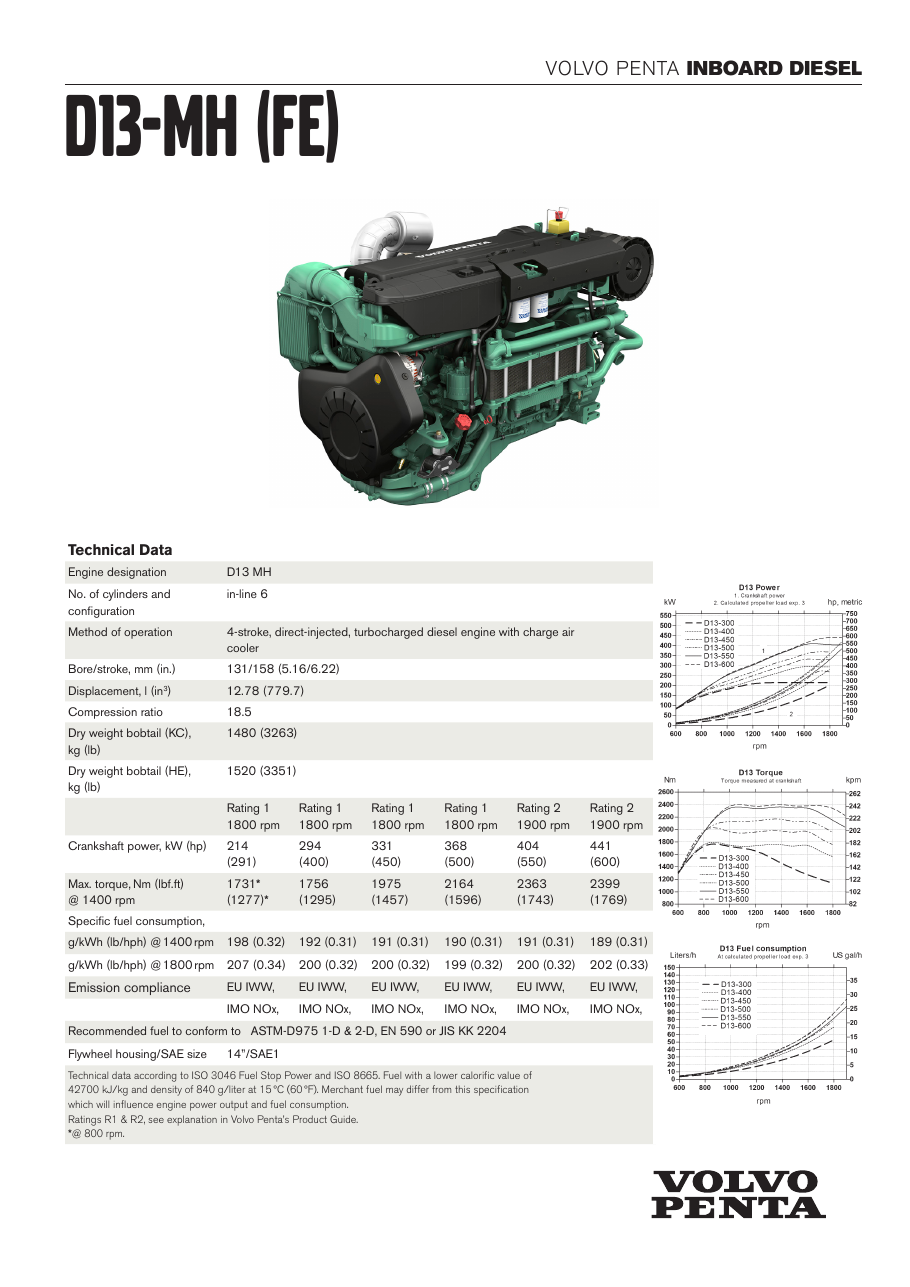

Source: Volvo Penta D13 MH datasheet, p. 1
