Alphatron

JFE-400.

Conning Display / IBS · Autopilot & Bridge Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Depth data memorizing48 hours
Display size6.5-inch
Transducer range20/30/40 m
Processing unitNQA-4327
Display unitNJA-710
WeightApprox. 1.0 kg
Dimensions327 mm
Display6.5-inch LCD
Resolution640×480 (VGA)
Frequency200 kHz/50 kHz
Depth accuracyless than 20 m: ±0.5 m 20 m or more: ±5 m or 2.5 % of depth range
Power supply100-115/200-230 VAC±15 %, 50 Hz/60 Hz±5 % 24 VDC (only use for power fail monito
Operating temperature-15℃ to +55 ℃
Storage temperature-25℃ to +70 ℃
Relative humidity93 % +40 ℃
WaterproofingNWZ-1650: IP56 NJA-710: flush mount: IP22/wall mount: IP22 NQA-4327: floor mount
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The JFE-400 and JFE-700 echo sounders are marine devices designed for accurate and reliable depth measurement.

Applications

  • marine navigation
Source: Alphatron JFE-400. datasheet, p. 3

Features

  • high visibility color touch panel LCD
  • dual frequency display
  • interference prevention function
  • history read-out

Options

  • optional printer (JFE-400)
  • built-in printer (JFE-700)

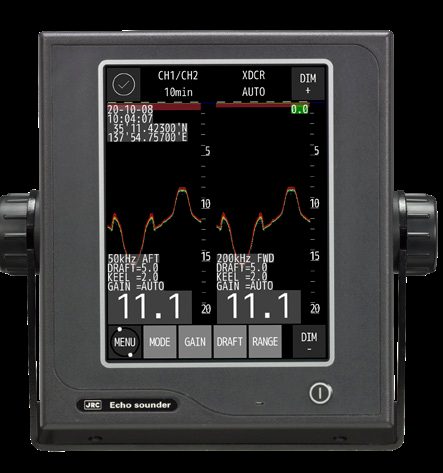

Alphatron JFE-400. – Photo (cb3cd04521b5_S1-5 S. 1)
Photo · cb3cd04521b5_S1-5 · S. 1

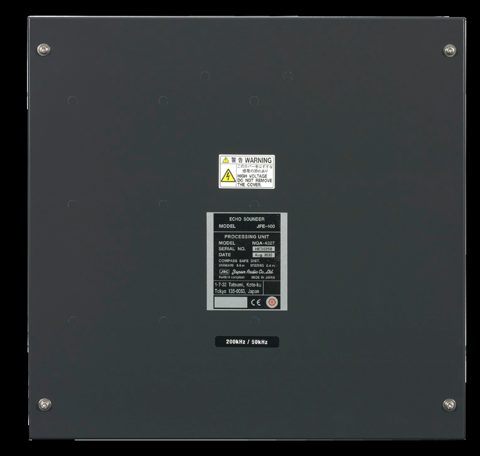

Alphatron JFE-400. – Photo (cb3cd04521b5_S1-5 S. 1)
Photo · cb3cd04521b5_S1-5 · S. 1

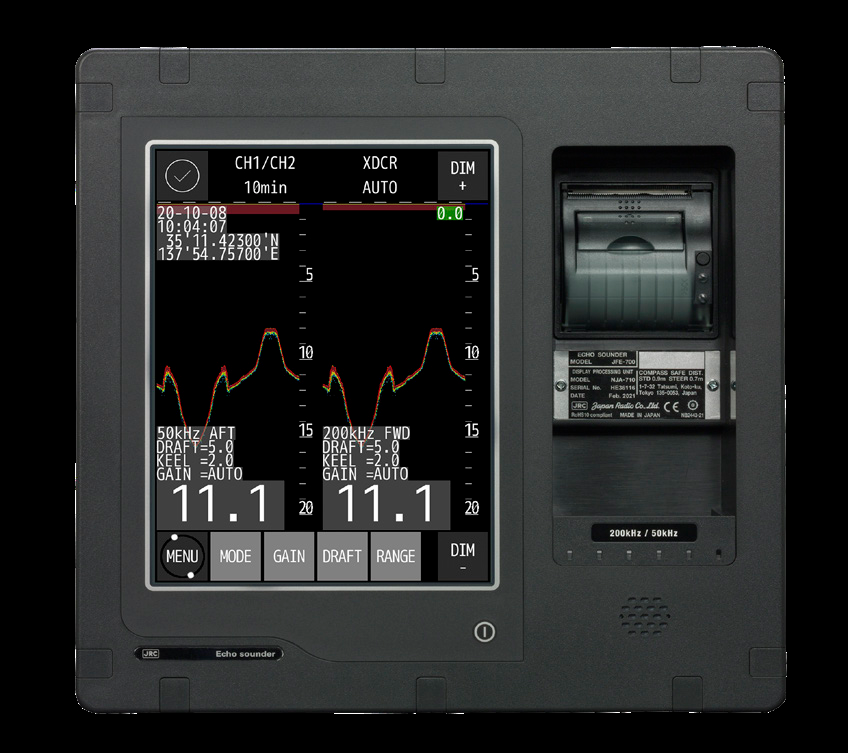

Alphatron JFE-400. – Photo (cb3cd04521b5_S1-5 S. 1)
Photo · cb3cd04521b5_S1-5 · S. 1

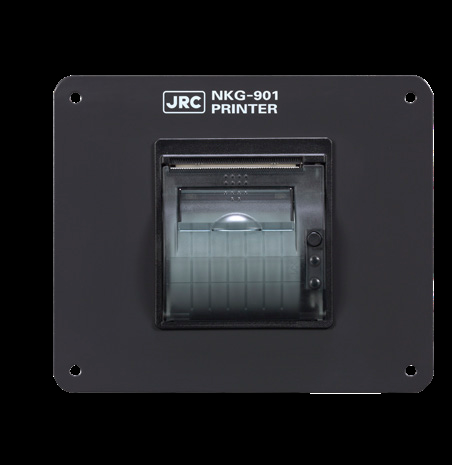

Alphatron JFE-400. – Photo (cb3cd04521b5_S1-5 S. 1)
Photo · cb3cd04521b5_S1-5 · S. 1

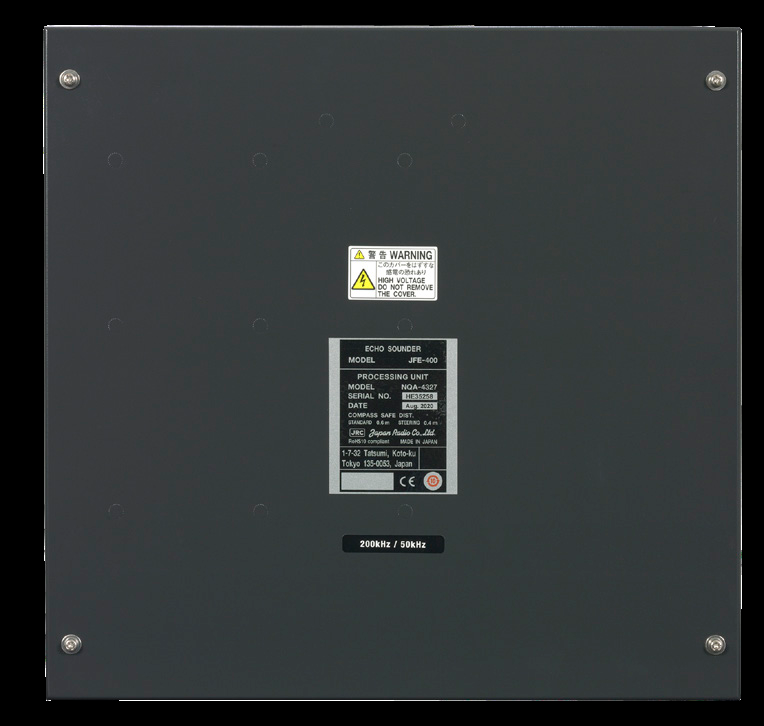

Alphatron JFE-400. – Photo (cb3cd04521b5_S1-5 S. 1)
