Library› Engine Room› Pumps› Centrifugal Pump› DESMI VAC-4001
DESMI

VAC-4001

Centrifugal Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Max. omdrejningstal3600 o/min🔖
Pipe connectionsDN 100 suction/discharge🔖
CapacityMax. 85 m3/h🔖
Total headMax. 2.0 bar🔖
Suction headUp to 92% (approx. 9.6 mLC)🔖
Max. speed3600 RPM🔖
Liquid temperature0 and 80 °C🔖
Max. working pressure35 mWC🔖
Flange sizeDN100🔖
📄
Download datasheet (PDF) (742 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The VAC-4001 is a centrifugal pump designed for various applications, including bilge pumping and vacuum creation.

Applications

  • (Emergency) bilge pump
  • Bilge-ballast pump
  • General service pump
  • Vacuum pump
  • Gland-leaking water pump
  • Chemical industries

Features

  • Enormous air capacity
  • Wear-resistant
  • Dry-running protection
  • For direct or V-belt drive
  • No diaphragms
  • Low weight
  • Compact design
  • Also operating without non-return valve

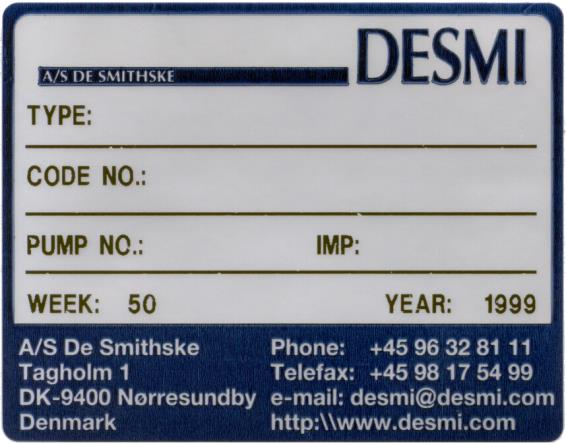

DESMI VAC-4001 – Photo (291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d S. 3)
Photo · 291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d · S. 3

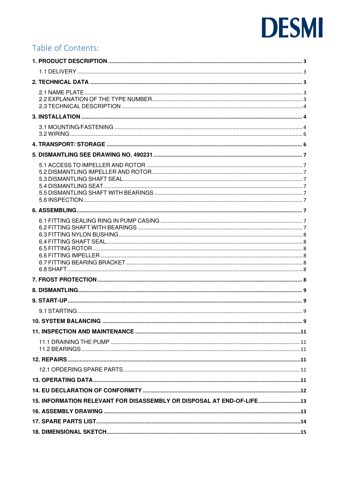

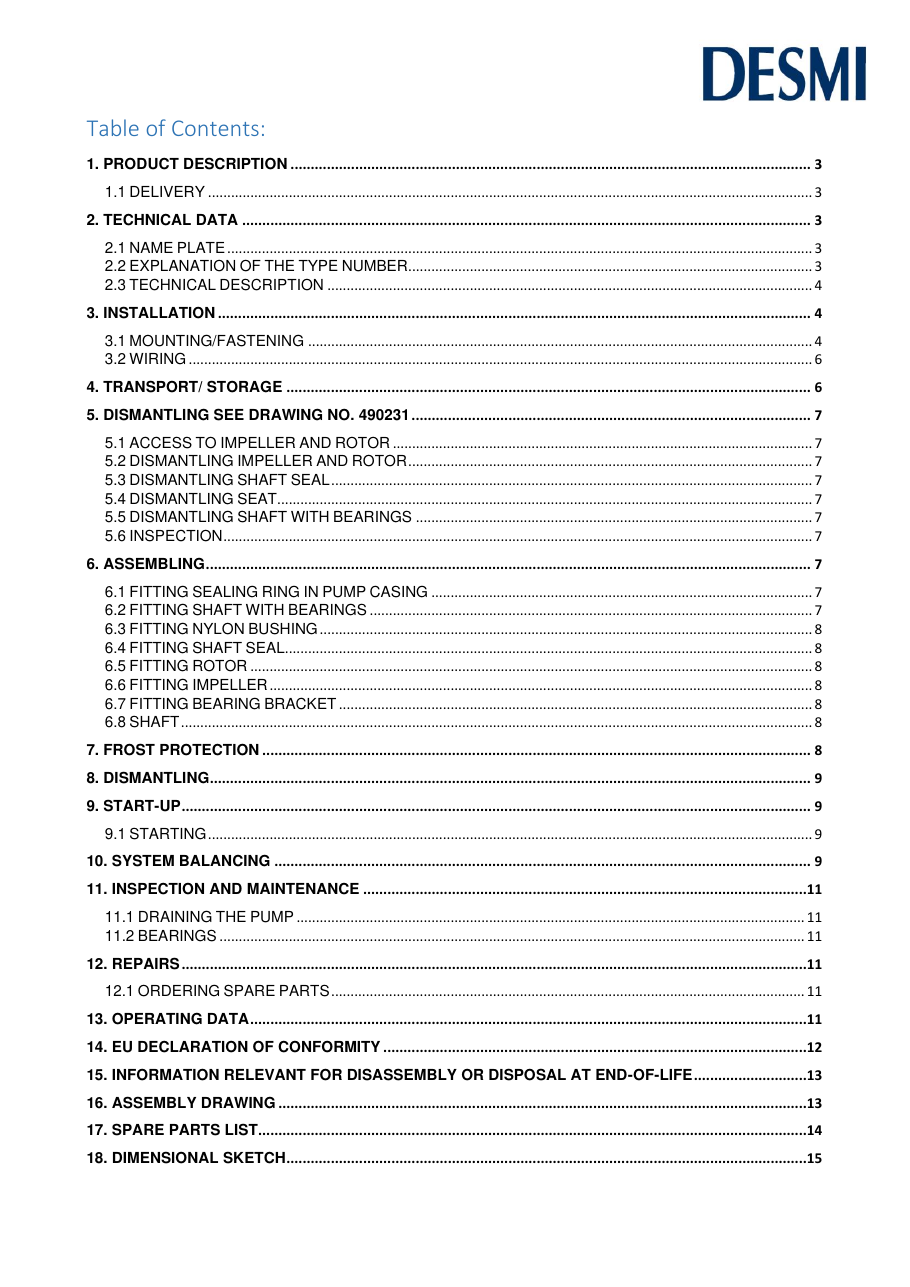

DESMI VAC-4001 – Drawing (291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d S. 2)
Drawing · 291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d · S. 2
DESMI VAC-4001 – Drawing (291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d S. 3)
Drawing · 291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d · S. 3
DESMI VAC-4001 – Drawing (291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d S. 4)
Drawing · 291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d · S. 4

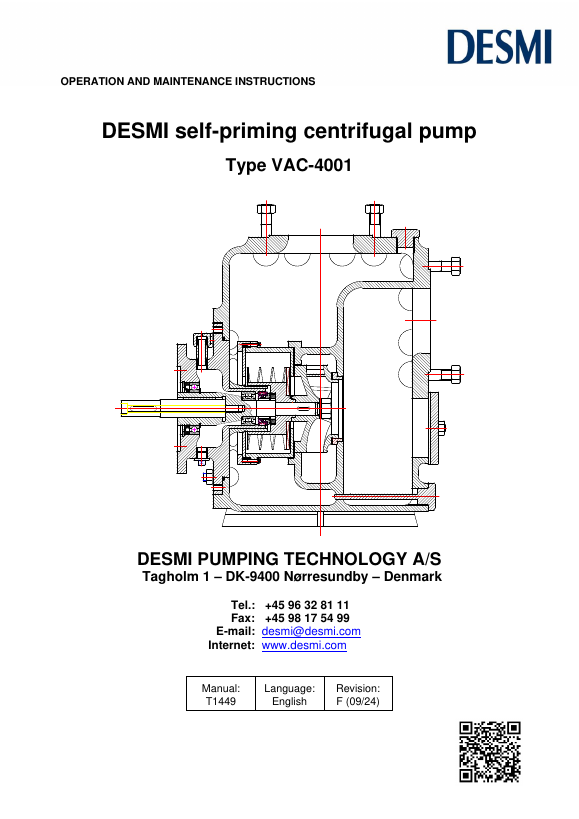

DESMI VAC-4001 – Page preview (291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d S. 1)
Page preview · 291a0a44653b0594ca4f4efa16c3a32ff91153c4bf1335888a30e4e1efe0fe8d · S. 1
Source: DESMI VAC-4001 datasheet, p. 3
