Library› Engine Room› Pumps› Centrifugal Pump› DESMI NSA 50-200/NSA 80-250
DESMI

NSA 50-200/NSA 80-250

Centrifugal Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Pipe connections2” suction/discharge🔖
Capacity10-50 m³/h🔖
Total head10-50 mWC🔖
Suction head8 mWC🔖
Range4-5,5-7,5 kW at 2950 RPM.🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

NSA pumps are close-coupled centrifugal pumps designed for various marine applications. They feature an open impeller, replaceable wear plate, and a nonleaking mechanical shaft seal.

Applications

  • Bilge pump
  • Ballast Pump
  • General service pump
  • Emergency fire pump
  • Cooling water pump

Features

  • Open impeller
  • Replaceable wear plate
  • Standard stainless steel shaft
  • Nonleaking mechanical shaft seal

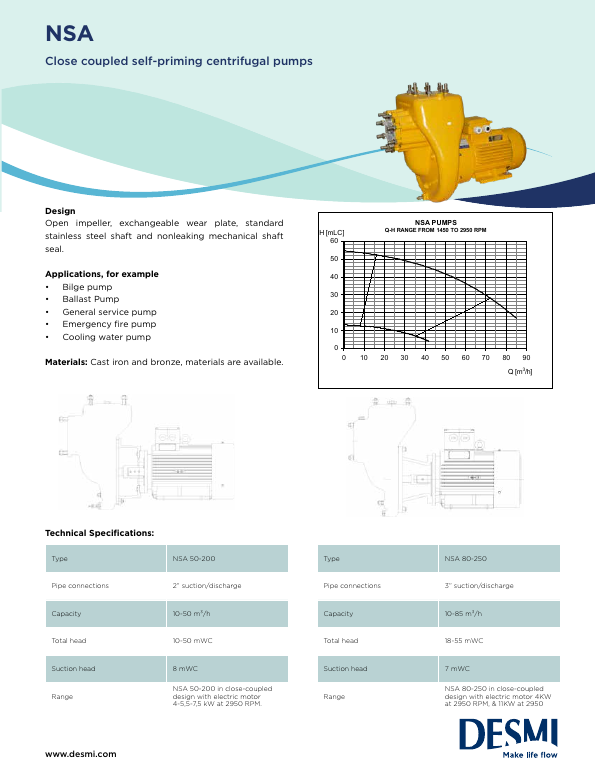

DESMI NSA 50-200/NSA 80-250 – Page preview (aad2dbedcb34_S1-1 S. 1)
Page preview · aad2dbedcb34_S1-1 · S. 1
Source: NSA 80-250 datasheet, p. 2
