Xantrex

MS2000

Battery/UPS · Battery & UPS Systems

Class-certified type (DNV register) · technical data sheet not yet verified​⁠​‌⁠‌​⁠‌⁠​‍‍⁠​⁠​⁠‍‌
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Maximum DC Cable Length (one way)10 feet (3 meters)
Length16.19 inches (411 mm)
Width14.20 inches (361 mm)
Height8.1 inches (208 mm)
Weight67 lbs (30 kg)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“The Installation Guide provides detailed information for installing the MS2000 Sine Wave Inverter/Charger, Echo Charger, and the battery temperature sensor. The MS2000 is a Xanbus®-enabled device…”

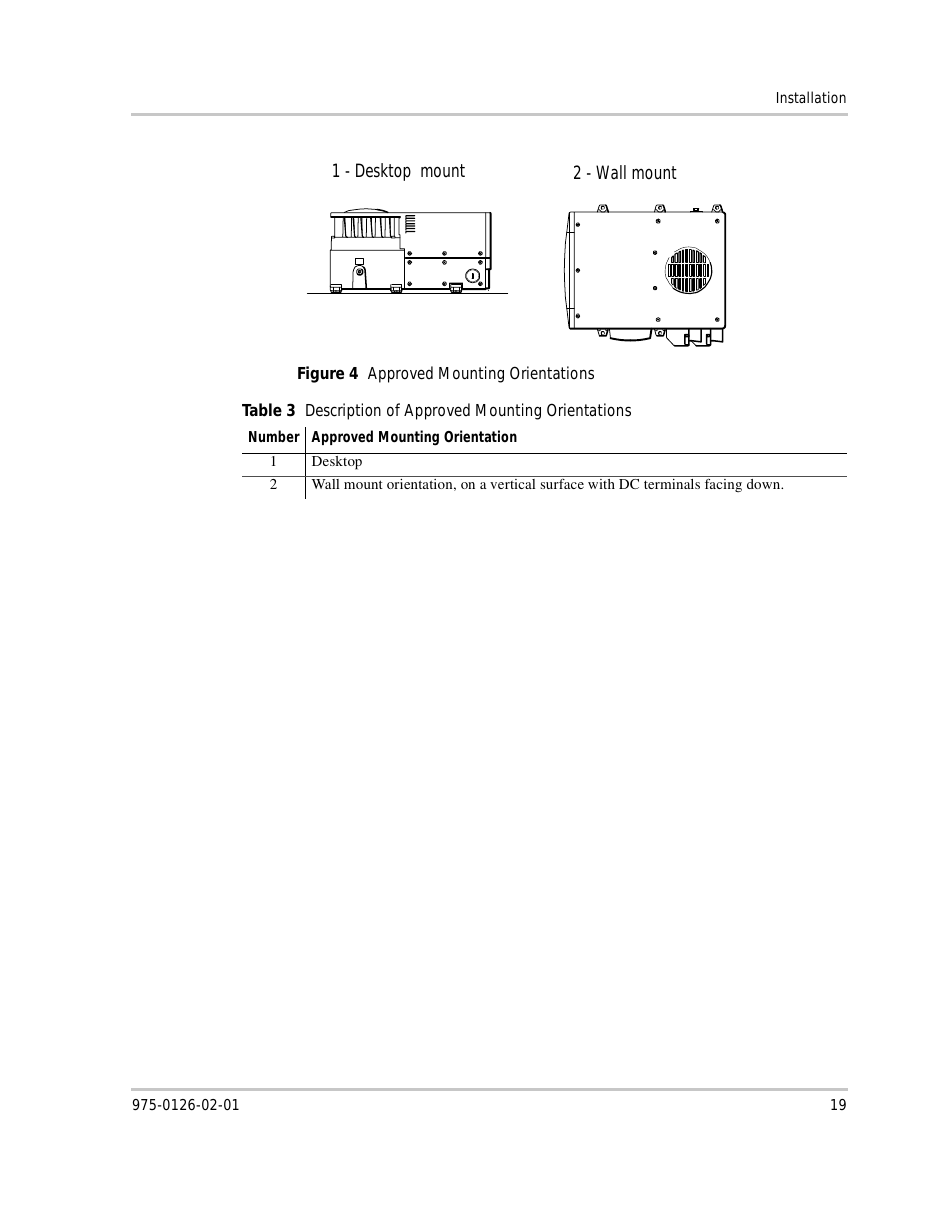

Xantrex MS2000 – Drawing (ec75005045c5_S19-63 S. 19)
Drawing · ec75005045c5_S19-63 · S. 19

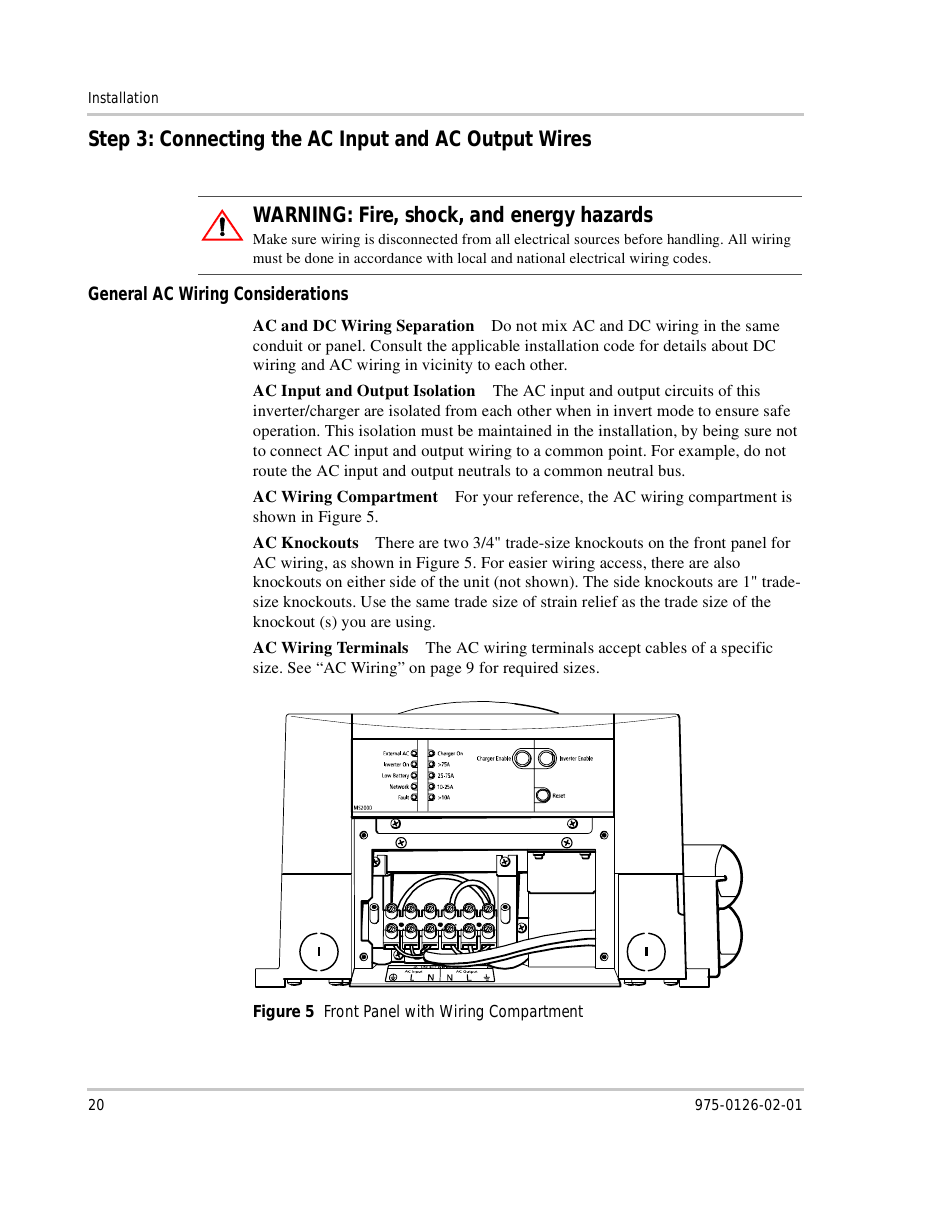

Xantrex MS2000 – Drawing (ec75005045c5_S19-63 S. 20)
Drawing · ec75005045c5_S19-63 · S. 20
Xantrex MS2000 – Drawing (ec75005045c5_S19-63 S. 21)
Drawing · ec75005045c5_S19-63 · S. 21

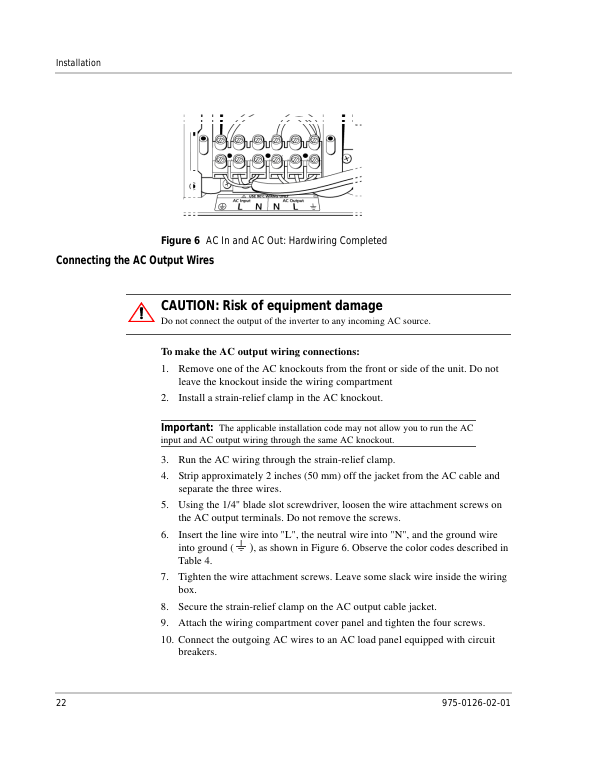

Xantrex MS2000 – Page preview (ec75005045c5_S19-63 S. 22)
Page preview · ec75005045c5_S19-63 · S. 22

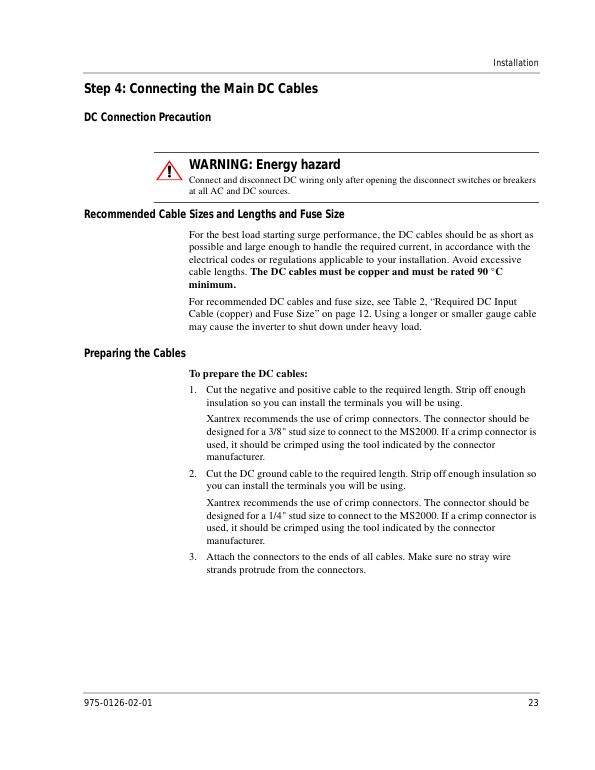

Xantrex MS2000 – Page preview (ec75005045c5_S19-63 S. 23)
Page preview · ec75005045c5_S19-63 · S. 23

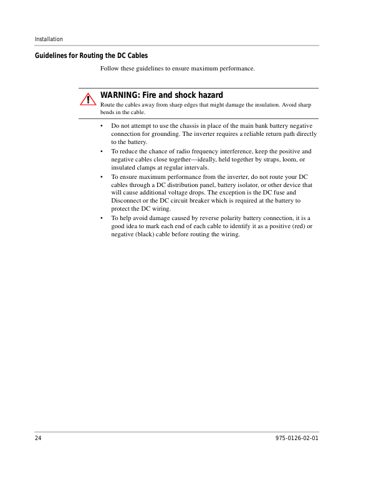

Xantrex MS2000 – Page preview (ec75005045c5_S19-63 S. 24)
Page preview · ec75005045c5_S19-63 · S. 24

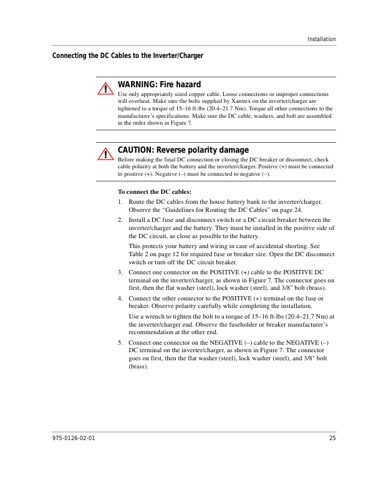

Xantrex MS2000 – Page preview (ec75005045c5_S19-63 S. 25)
Page preview · ec75005045c5_S19-63 · S. 25
Source: Xantrex MS2000 datasheet, p. 1
