Xantrex

975-0291-01-01

Battery/UPS · Battery & UPS Systems

Class-certified type (DNV register) · technical data sheet not yet verified​⁠​‌‌‌‌⁠⁠​⁠​⁠‍​‍‌‌‍⁠
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Puissance de sortie maximale1 800 W (15 A)
Puissance de sortie continue1440 W (12 A)
Gamme des fréquences d’entrée60 Hz
Rendement de crête88%
Mode d’arrêt du système< 12 W
Mode de veille< 1,5 W
Fréquence de sortie60 Hz / ±1 Hz
Relais de transfert nominal20 A
Délais de transfert C.A. vers onduleur< 40 ms
Temps de qualification C.A.~ 20 secondes
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“L’onduleur peut également utiliser de l’énergie renouvelable, comme des panneaux solaires de 12 V et des petites éoliennes de 12 V, pour recharger les batteries. L’utilisation de sources d’énergie…”

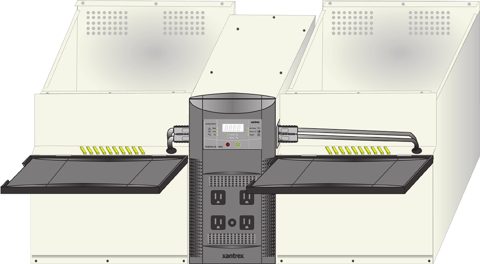

Xantrex 975-0291-01-01 – Photo (5737303f6530_S25-74 S. 25)
Photo · 5737303f6530_S25-74 · S. 25
Xantrex 975-0291-01-01 – Photo (5737303f6530_S25-74 S. 26)
Photo · 5737303f6530_S25-74 · S. 26
Xantrex 975-0291-01-01 – Photo (5737303f6530_S25-74 S. 26)
Photo · 5737303f6530_S25-74 · S. 26
Xantrex 975-0291-01-01 – Photo (5737303f6530_S25-74 S. 26)
Photo · 5737303f6530_S25-74 · S. 26
Xantrex 975-0291-01-01 – Photo (5737303f6530_S25-74 S. 28)
Photo · 5737303f6530_S25-74 · S. 28

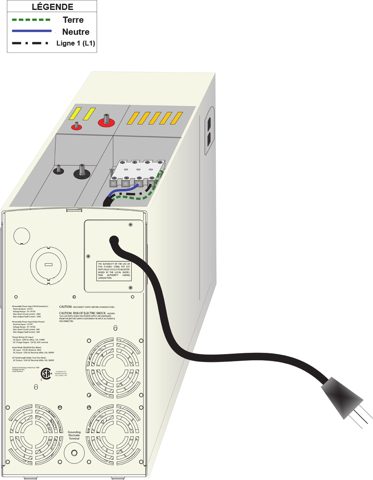

Xantrex 975-0291-01-01 – Photo (5737303f6530_S25-74 S. 29)
Photo · 5737303f6530_S25-74 · S. 29
Xantrex 975-0291-01-01 – Photo (5737303f6530_S25-74 S. 30)
Photo · 5737303f6530_S25-74 · S. 30
Xantrex 975-0291-01-01 – Drawing (5737303f6530_S25-74 S. 25)
Drawing · 5737303f6530_S25-74 · S. 25
Source: Xantrex 975-0291-01-01 datasheet, p. 1
