Library› Navigation› Autopilot & Bridge Systems› Conning Display / IBS› Furuno TZTL12F
Furuno

TZTL12F

Conning Display / IBS · Autopilot & Bridge Systems

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Температура окружающей среды-15 °C ... +55 °C
Относительная влажность95% или менее при 40 ℃
Степень защитыIP56
ЦВЕТ ПОКРЫТИЯN2.5 (неизменный)
ResolutionFWXGA (1366 x 768 pixels)
Brightness1300 cd/m2 (typical)
CertificationsNMEA2000 Certified
Screen Size12.1" Wide
Screen ResolutionWXGA 1280 x 800
Screen Brightness1300 cd/m2 (typical)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A high-performance multifunction display with sunlight viewable multi touch display, enhanced touch gestures, and TimeZero™ Technology for smooth chart operation.

Applications

  • Autopilot integration
  • Instrument display

Features

  • Edge-to-edge glass front
  • Sunlight viewable multi touch display
  • Seamless chart operation
  • Enhanced touch gestures
  • Internal GPS Antenna
  • Fast processor
  • Independent display and operation
  • Full HD HDMI video input

Options

  • Autopilot
  • Instruments
  • Radar
  • Other sensors

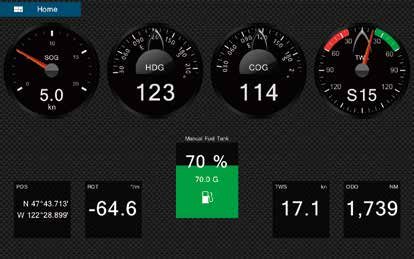

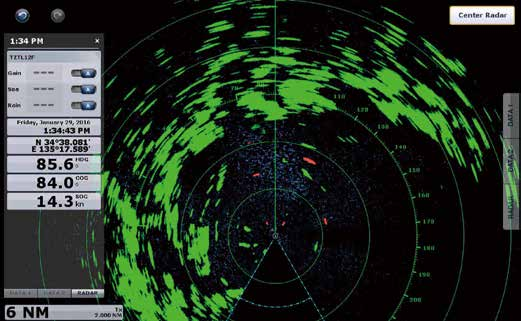

Furuno TZTL12F – Photo (534ca0ff973e_S2-10 S. 2)
Photo · 534ca0ff973e_S2-10 · S. 2
Furuno TZTL12F – Photo (534ca0ff973e_S2-10 S. 2)
Photo · 534ca0ff973e_S2-10 · S. 2
Furuno TZTL12F – Photo (534ca0ff973e_S2-10 S. 2)
Photo · 534ca0ff973e_S2-10 · S. 2
Furuno TZTL12F – Photo (534ca0ff973e_S2-10 S. 2)
Photo · 534ca0ff973e_S2-10 · S. 2
Furuno TZTL12F – Photo (534ca0ff973e_S2-10 S. 2)
Photo · 534ca0ff973e_S2-10 · S. 2
Furuno TZTL12F – Photo (534ca0ff973e_S2-10 S. 3)
Photo · 534ca0ff973e_S2-10 · S. 3
Furuno TZTL12F – Photo (534ca0ff973e_S2-10 S. 3)
Photo · 534ca0ff973e_S2-10 · S. 3
Furuno TZTL12F – Photo (534ca0ff973e_S2-10 S. 3)
Photo · 534ca0ff973e_S2-10 · S. 3
Source: Furuno TZTL12F datasheet, p. 2
