SAILOR / Thrane & Thrane

IV2500

GMDSS VHF Radio · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified​‍⁠⁠‌​‌‍​​‍‌⁠⁠​‍‌‍‌‌
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

AC/DC Power Supply Unit150W
Weight2.6 kg / 5.74 lbs
Frequency Range Voice156.00 ~164.00 MHz
Frequency Range DSC156.525 MHz
Antenna Impedance50 Ω
Channel Spacing25 kHz
Temperature (Oper.)-15°C to +55°C (+5°F to +131°F)
IP ratingIP32
InterfacesEthernet, RS-422, CAN, RS-232
Input Power24 VDC
PTT Handset Weight (HS + wire)0.4 kg / 0.9 lbs
PTT Handset Temperature (Oper.)-15°C to +55°C (+5°F to +131°F)
PTT Handset IP ratingIP32
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

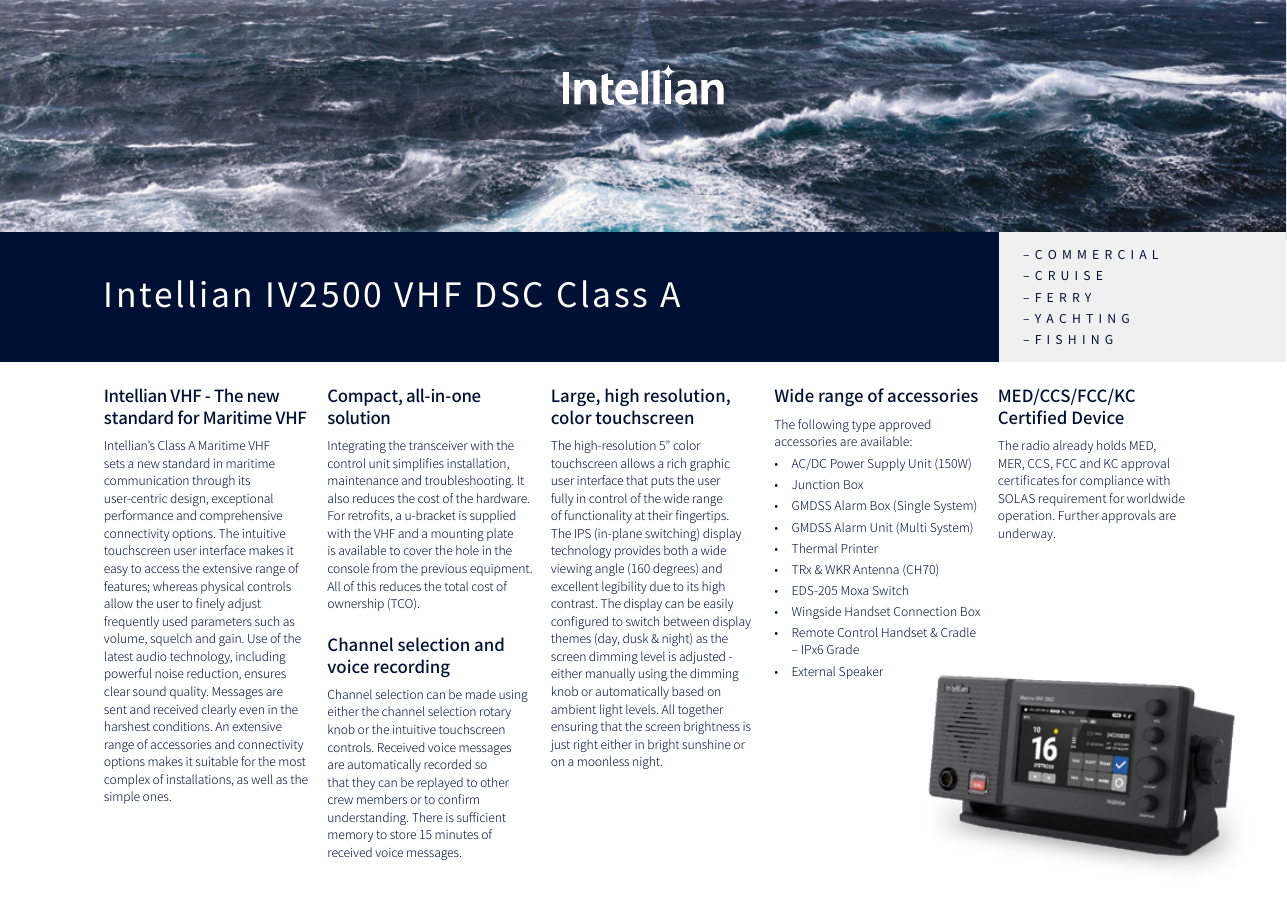

“Intellian’s Class A Maritime VHF sets a new standard in maritime communication through its user-centric design, exceptional performance and comprehensive connectivity options. The intuitive…”

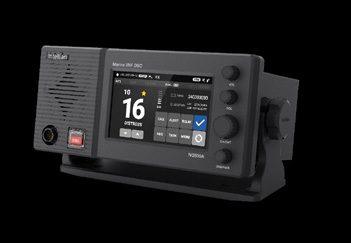

SAILOR / Thrane & Thrane IV2500 – Photo (39dd50bf4895_S1-2 S. 1)
Photo · 39dd50bf4895_S1-2 · S. 1
SAILOR / Thrane & Thrane IV2500 – Drawing (39dd50bf4895_S1-2 S. 1)
Drawing · 39dd50bf4895_S1-2 · S. 1

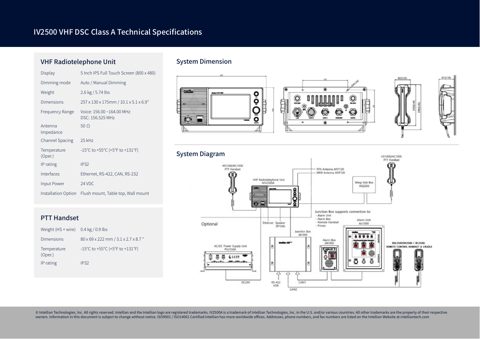

SAILOR / Thrane & Thrane IV2500 – Drawing (39dd50bf4895_S1-2 S. 2)
Drawing · 39dd50bf4895_S1-2 · S. 2
Source: Thrane & Thrane IV2500 datasheet, p. 1
