Library› Navigation› Navigation & Bridge Equipment› GMDSS VHF Radio› Alphatron IC-M506
Alphatron

IC-M506

GMDSS VHF Radio · Navigation & Bridge Equipment

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Audio output power15W
DSC address IDs100
Microphone extension cable length6.1m (20ft)
Frequency range Tx156.025–157.425MHz
Frequency range Rx156.050–163.275MHz
Frequency range CH70156.525MHz
Frequency range AIS1, 2161.975, 162.025MHz
Type of emission16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement13.8V DC (11.7–15.9V DC)
Current drain (at 13.8V DC) Tx 25W output5.5A
Current drain (at 13.8V DC) Rx AF Max External SP5.0A (RX hailer ON)
Current drain (at 13.8V DC) Internal SP1.5A
Operating temperature range–20°C to +60°C; –4°F to +140°F
Antenna impedance50Ω (SO-239)
Weight1400g; 3.09lb
Output power (at 13.8V DC)25W, 1W
Max. frequency deviation±5.0kHz
Frequency tolerance±10ppm
Residual modulationMore than 40dB
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A fixed mount VHF radio with integrated AIS receiver and NMEA 2000 connectivity, used for vessel communication and navigation.

Applications

  • marine communication
  • vessel traffic monitoring

Features

  • integrated AIS receiver
  • NMEA 2000 connectivity
  • active noise cancelling
  • intuitive user interface

Options

  • external hailer horn

Standards

  • ITU-R M493-13
Source: Alphatron IC-M506 datasheet, p. 3

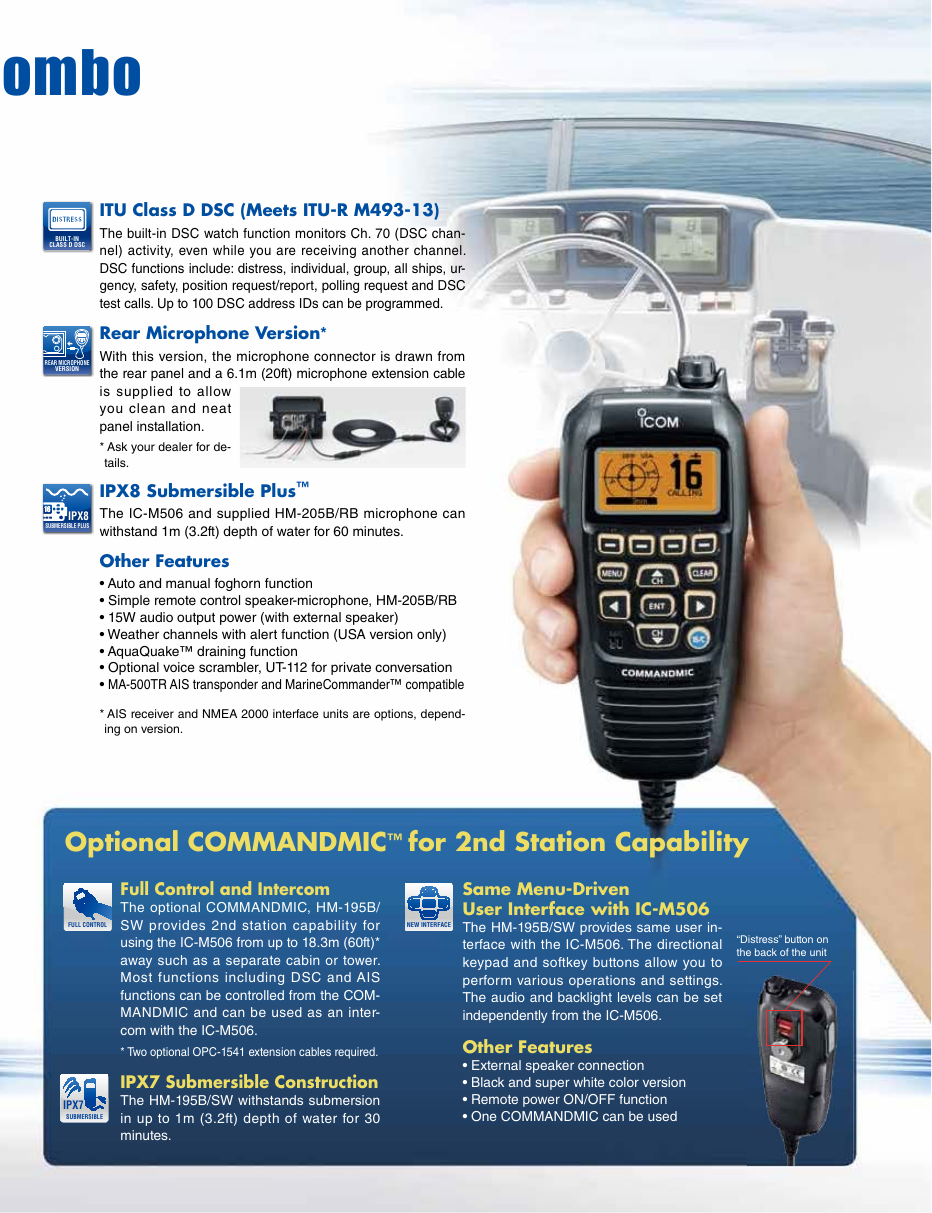

Alphatron IC-M506 – Photo (69bd3a77b818_S2-4 S. 2)
Photo · 69bd3a77b818_S2-4 · S. 2

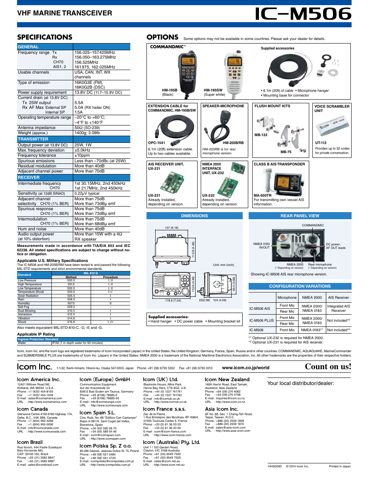

Alphatron IC-M506 – Drawing (69bd3a77b818_S2-4 S. 2)
Drawing · 69bd3a77b818_S2-4 · S. 2

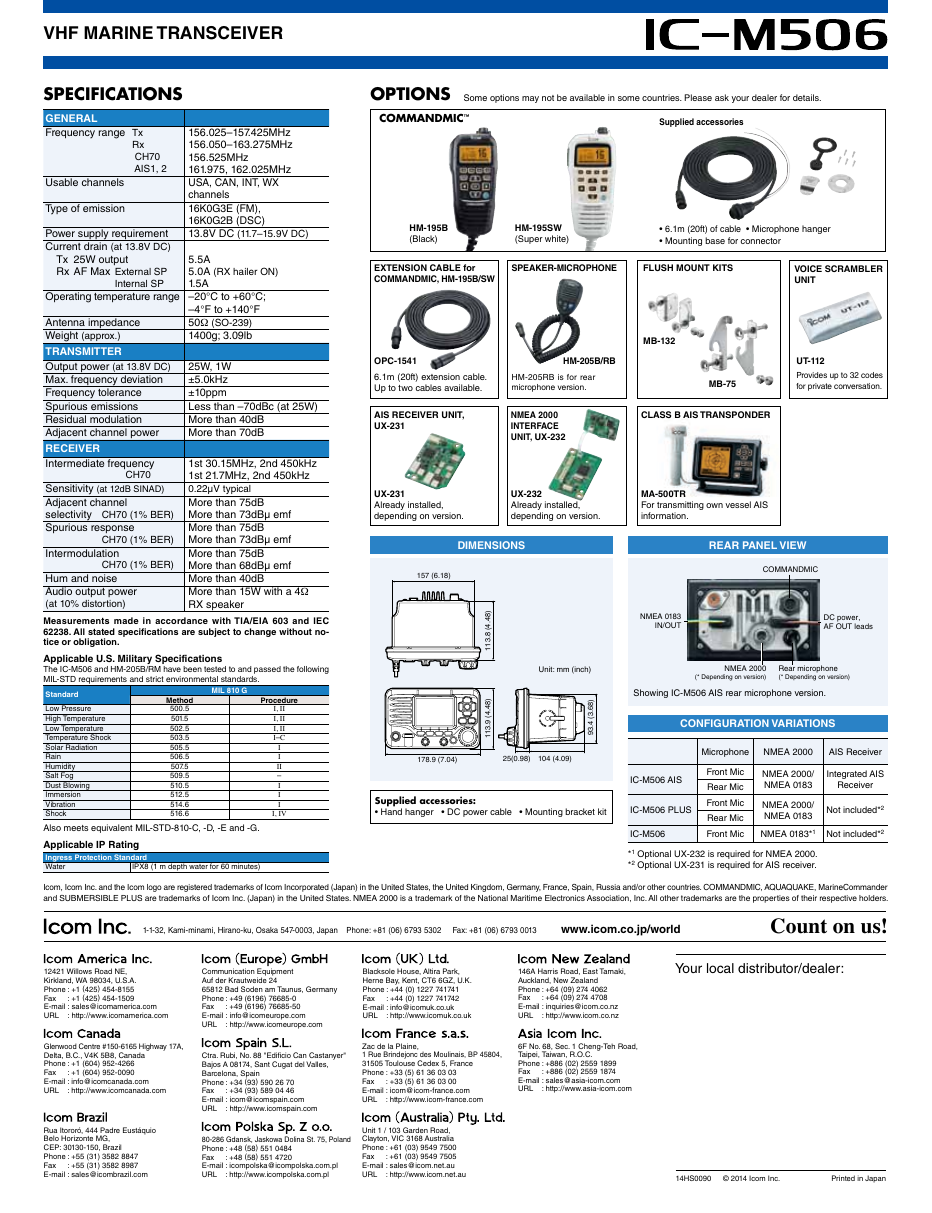

Alphatron IC-M506 – Drawing (69bd3a77b818_S2-4 S. 3)
