Library› Engine Room› Pumps› Ballast Pump› SHURflo 3300-000 12V DC
SHURflo

3300-000 12V DC

Ballast Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Ports½” Internal Pipe Threads, 1” External Hose Barb
Liquid200°F [93°C] Max
Prime4 Feet [1.2 M]
Approx. Net Weight7 Lbs. [3.2 Kg]
Carton Qty.6
Approx. Carton Weight50 Lbs. [15 Kg]
Approx. Carton Size24”L X 18”W X 6”H [61cm x 46cm x 15cm]
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“APPLICATION: The SHURFLO® High Flow Ballast pump was specially designed and developed for high capacity ballast tank applications in ski and wake boats, providing rapid fill and drain rates in a…”

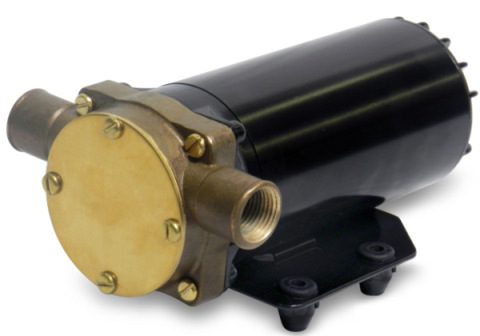

SHURflo 3300-000 12V DC – Photo (eed79287c7ba_S1-1 S. 1)
Photo · eed79287c7ba_S1-1 · S. 1
SHURflo 3300-000 12V DC – Photo (eed79287c7ba_S1-1 S. 1)
Photo · eed79287c7ba_S1-1 · S. 1

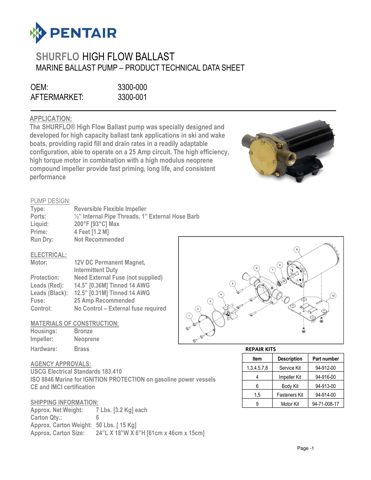

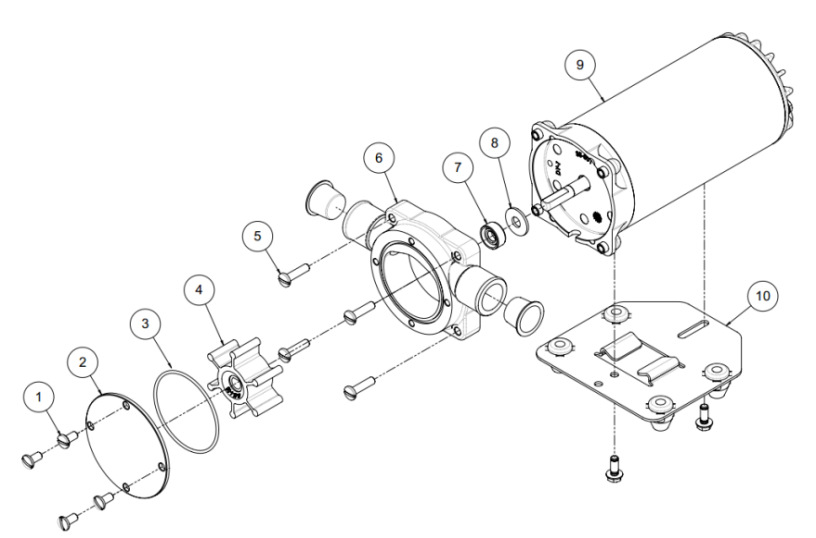

SHURflo 3300-000 12V DC – Drawing (eed79287c7ba_S1-1 S. 1)
Drawing · eed79287c7ba_S1-1 · S. 1

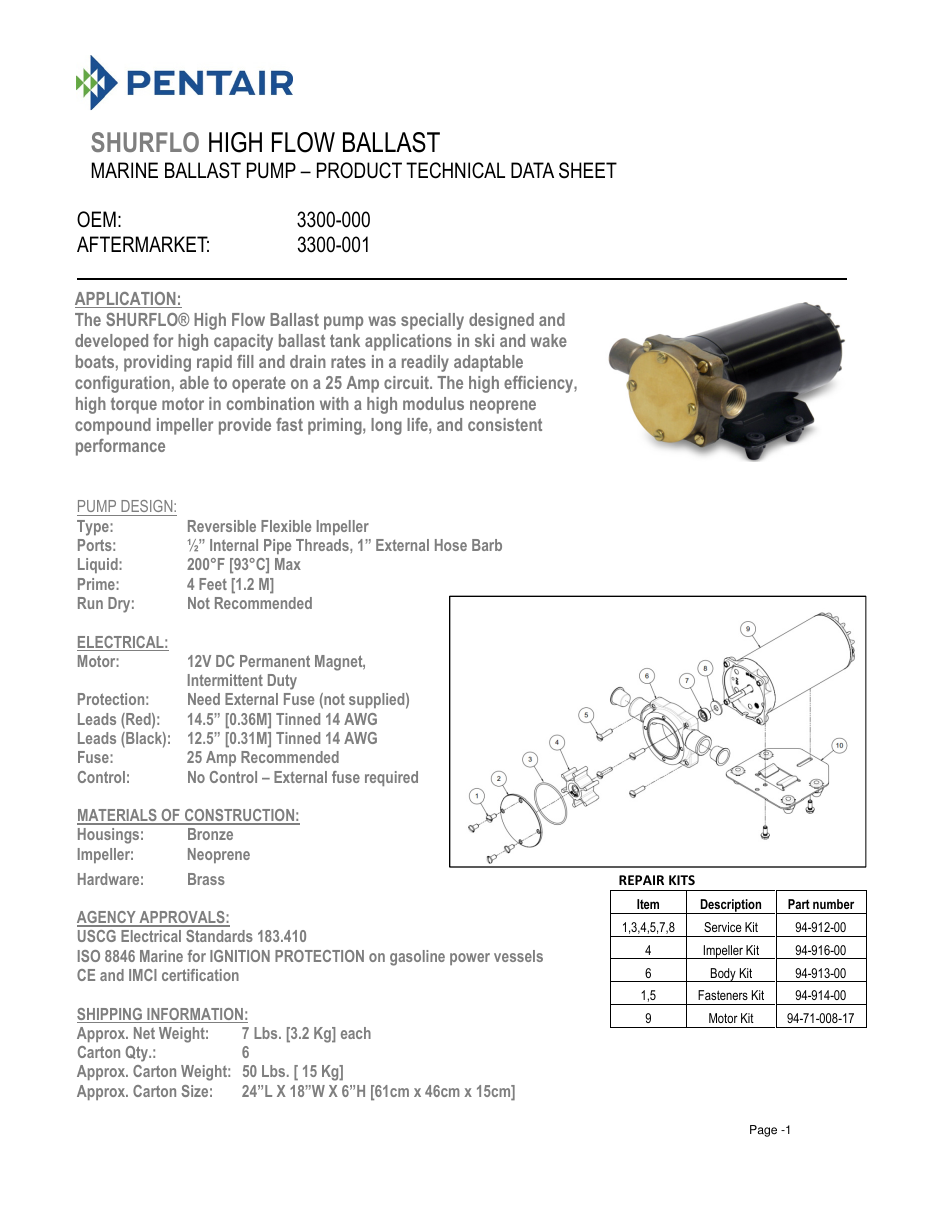

Source: Shurflo 3300-00X High Flow Ballast Pump Data Sheet, p. 1
