Library› Engine Room› Pumps› Centrifugal Pump› DESMI SDS125-315
DESMI

SDS125-315

Centrifugal Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
184 kWPower
1,400 kgWeight
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Length2700 mm🔖
Width800 mm🔖
Height1625 mm🔖
Weight (dry)1400 kg🔖
Weight (full tank)1600 kg🔖
Engine type8061SRI41 24V🔖
Engine manufactureIVECO🔖
Engine effect184 kW at 2860 rpm.🔖
Voltage requirements220 V-O and ground from distribution board for electric pump.🔖
Alarm voltage24V DC alarm voltage from alarm accumulator in distribution board.🔖
Starting voltage24V DC starting voltage from accumulator for manual start🔖
Control voltage24V DC starting and control voltage. From accumulator for automatic start.🔖
Diesel panel voltage220 V🔖
Weight (kg)1400 kg🔖
Power (kW)184 kW🔖
Rated speed2860 rpm🔖
📄
Download datasheet (PDF) (756 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Water-cooled 6-cyl. diesel engine Type: 8061SRI41 24V Manufacture: IVECO Effect: 184 kW at 2860 rpm. Hearing protector is obligatory during operation of diesel driven pump.”

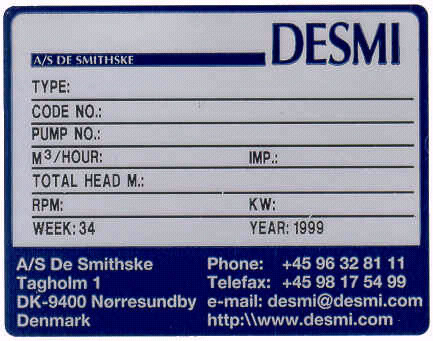

DESMI SDS125-315 – Photo (78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e S. 3)
Photo · 78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e · S. 3

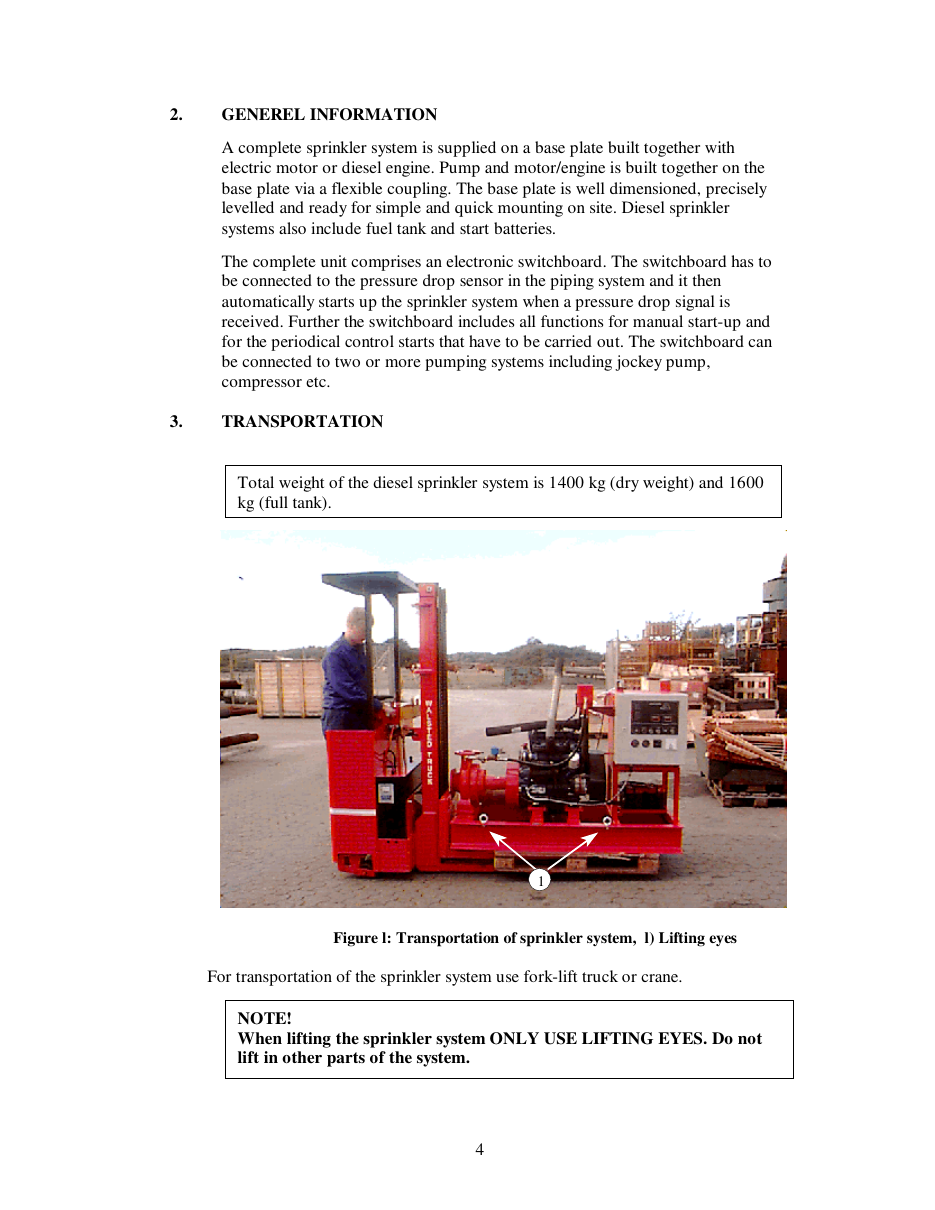

DESMI SDS125-315 – Photo (78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e S. 6)
Photo · 78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e · S. 6

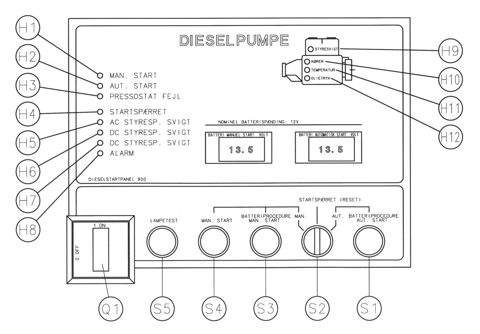

DESMI SDS125-315 – Photo (78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e S. 6)
Photo · 78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e · S. 6

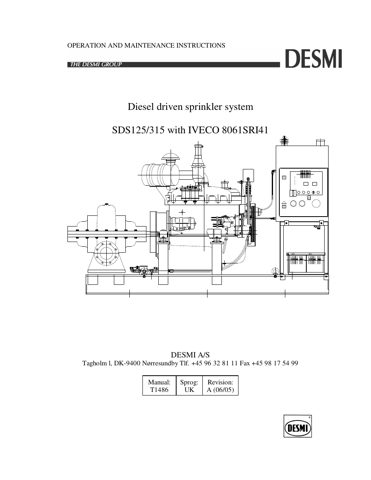

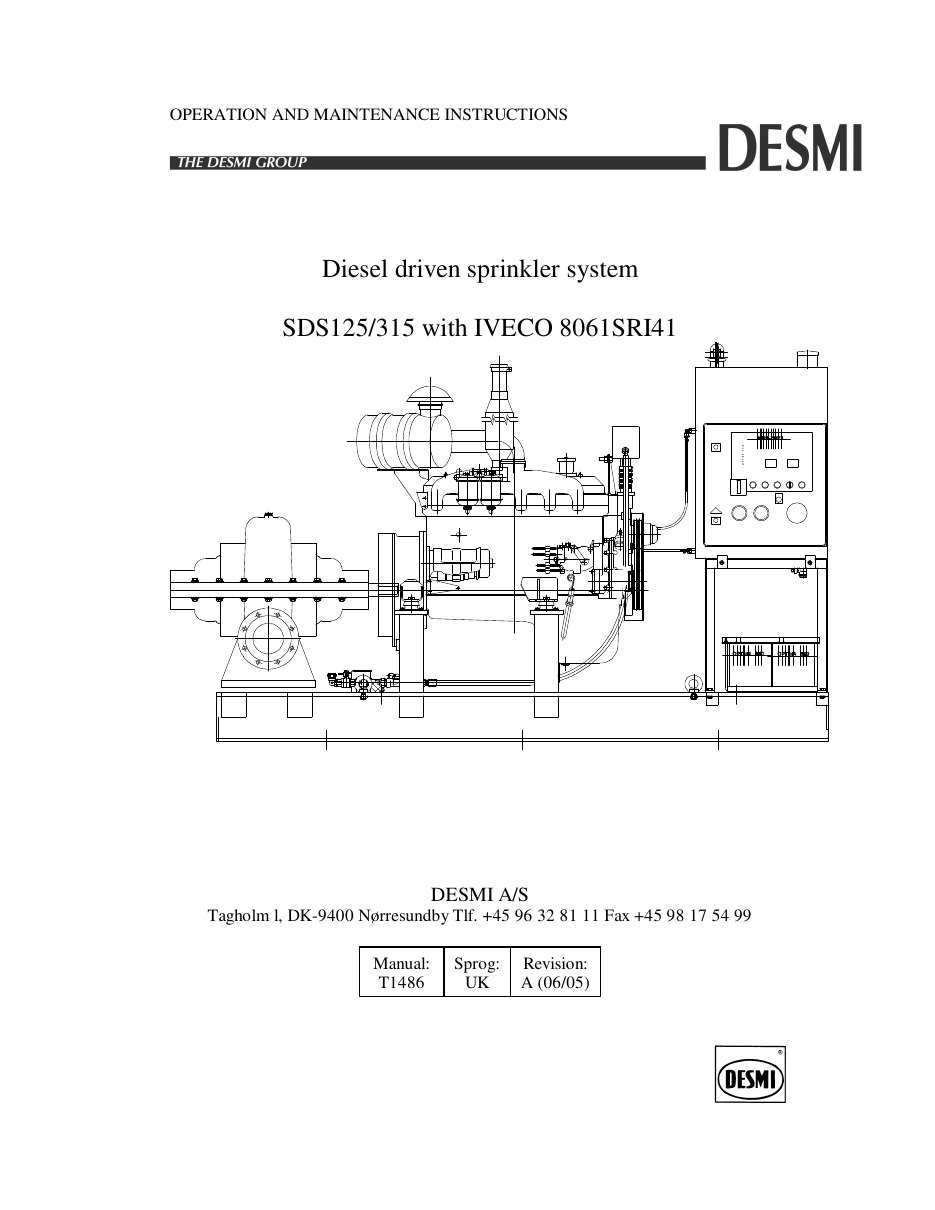

DESMI SDS125-315 – Drawing (78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e S. 1)
Drawing · 78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e · S. 1

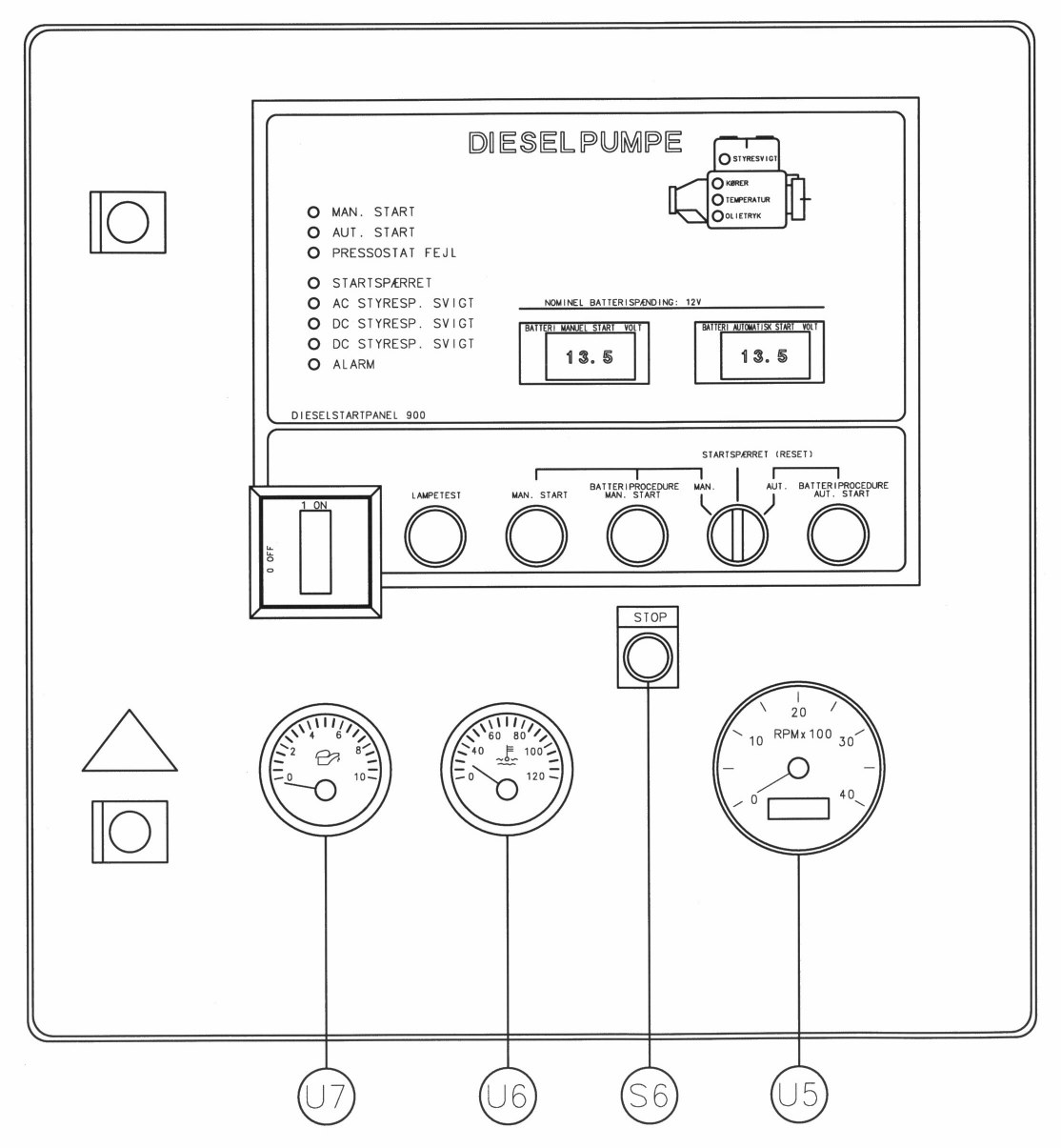

DESMI SDS125-315 – Drawing (78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e S. 4)
Drawing · 78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e · S. 4

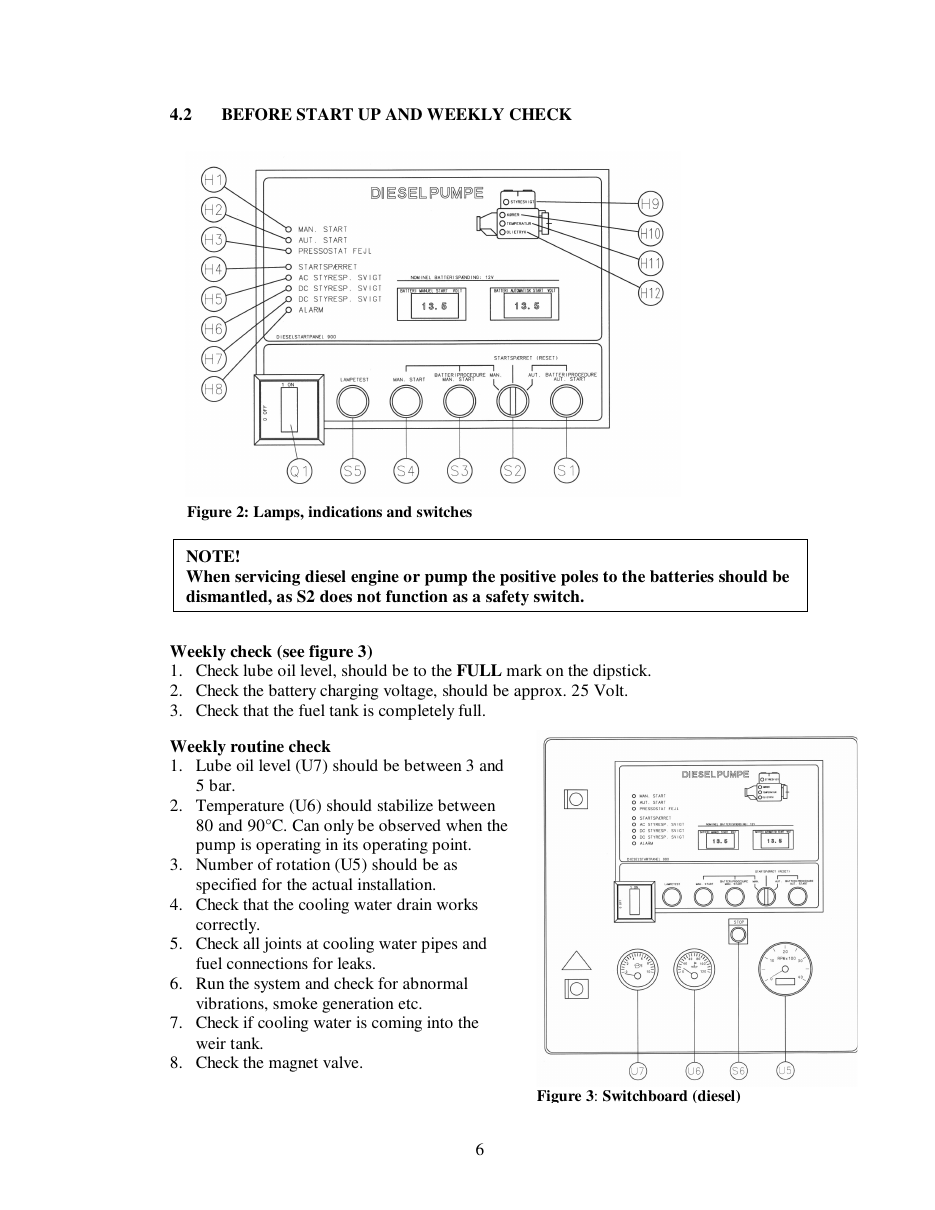

DESMI SDS125-315 – Drawing (78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e S. 6)
Drawing · 78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e · S. 6

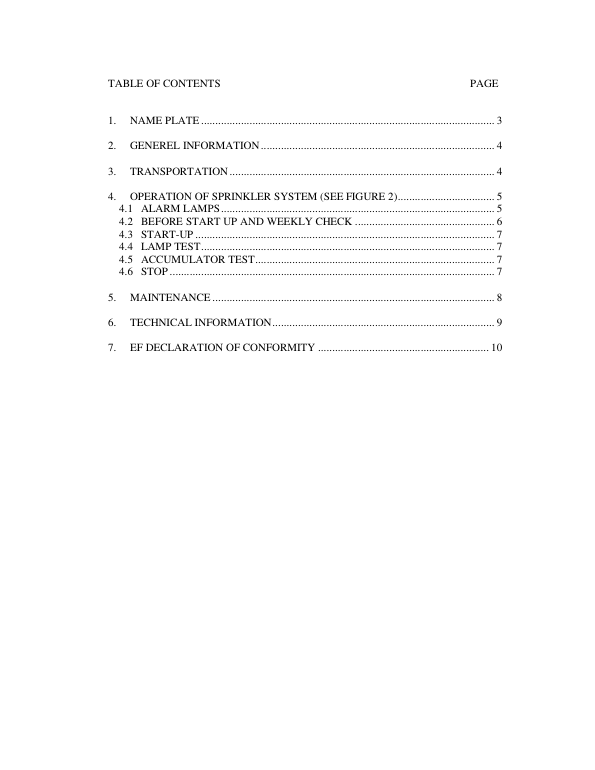

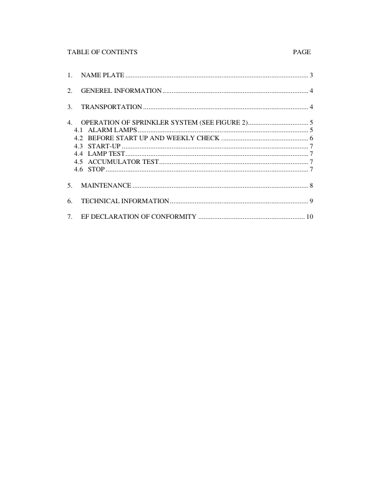

DESMI SDS125-315 – Page preview (78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e S. 2)
Page preview · 78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e · S. 2

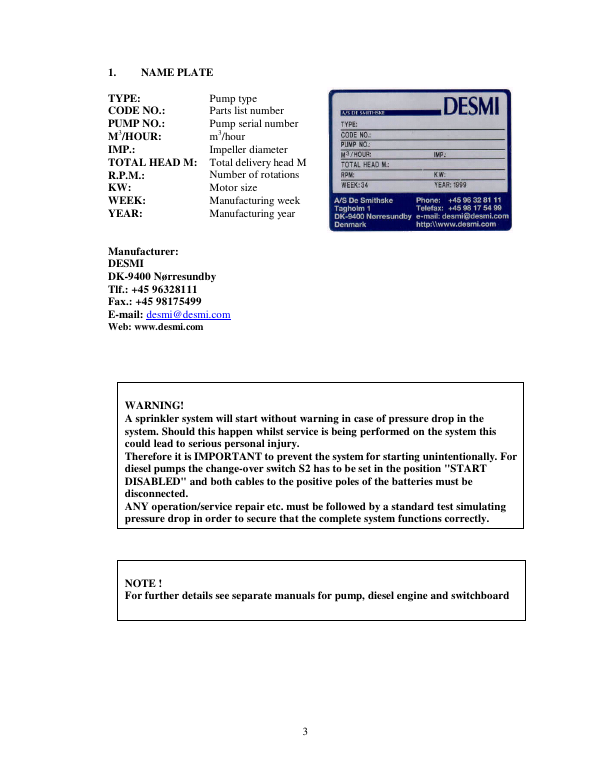

DESMI SDS125-315 – Page preview (78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e S. 3)
Page preview · 78c8c8668fb5932e600a2a7d6a0fba375c4d43581c3ae70d400804d2cbaa122e · S. 3
Source: DESMI SDS125-315 datasheet, p. 1
