Library› Electrical› Electrical Components & Switchgear› Circuit Breaker› Chint Variador de velocidad NVF2G-S
Chint

Variador de velocidad NVF2G-S

Circuit Breaker · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
400 kWPower
380Voltage
Example image: Circuit Breaker — not a photo of this model.

Descarga la ficha técnica y el manual de Variador de velocidad NVF2G-S, junto con los catálogos de productos relacionados de Control industrial de CHINT.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Voltage380~440V🔖
Power (kW)400 KW🔖
Power range1.5KW~400KW kW🔖
Output frequency range0Hz-400Hz🔖
Starting torque150% rated torque at 0.5Hz🔖
Degree of protectionIP20🔖
pdf_Rated working voltage (V)three-phase 380~440V: 380V(-15%)~440V(+15%)
pdf_Power range1.5KW~400KW
pdf_Output frequency range (Hz)0Hz-400Hz
📄
Download datasheet (PDF) (504 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“NVF2G-S VFD 1. Product overview NVF2G-S series is mainly used for variable frequency speed regulation, soft starting, improving operating accuracy, improving power factor, overcurrent, overvoltage,…”

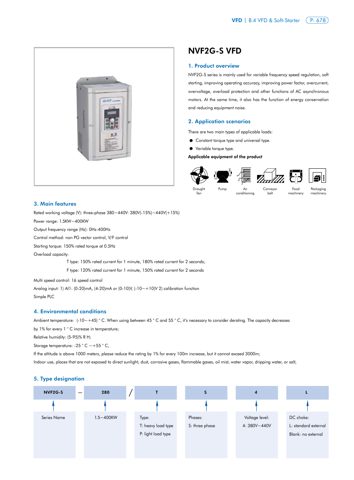

Chint Variador de velocidad NVF2G-S – Drawing (Chint datasheet S. 1)
Drawing · Chint datasheet · S. 1
Chint Variador de velocidad NVF2G-S – Drawing (Chint datasheet S. 5)
Drawing · Chint datasheet · S. 5
Chint Variador de velocidad NVF2G-S – Drawing (Chint datasheet S. 6)
Drawing · Chint datasheet · S. 6

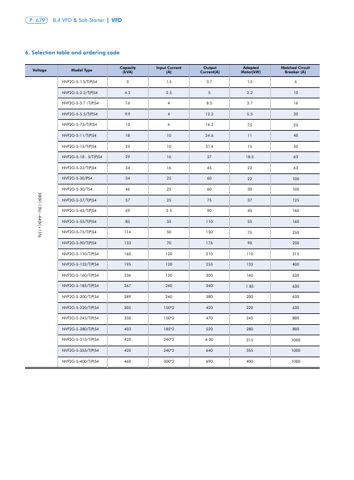

Chint Variador de velocidad NVF2G-S – Page preview (Chint datasheet S. 2)
Page preview · Chint datasheet · S. 2

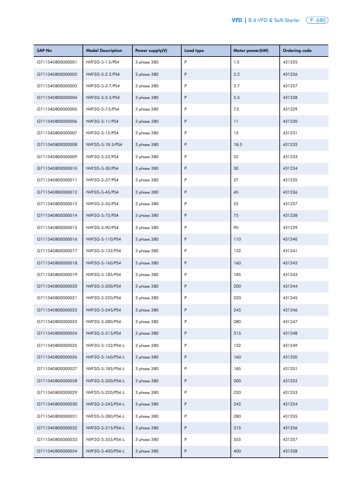

Chint Variador de velocidad NVF2G-S – Page preview (Chint datasheet S. 3)
Page preview · Chint datasheet · S. 3
Chint Variador de velocidad NVF2G-S – Page preview (Chint datasheet S. 4)
Page preview · Chint datasheet · S. 4
Source: Chint Variador de velocidad NVF2G-S datasheet, p. 1
