B1 Series UL489 Miniature Circuit Breaker

Circuit Breaker · Electrical Components & Switchgear

​‍‍‍​​​​​‌⁠‌⁠⁠‍​​‌⁠‌

Download B1 Series UL489 Miniature Circuit Breaker datasheet, manual, and related Final Power Distribution(UL) product catalogs from CHINT Global

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Operating temperature range-22 ºF to 167 ºF (-30 ºC to +75 ºC)🔖
Degree of protectionIP 20🔖
Rated insulation voltage500 Vac🔖
Pdf dimensionsA38
pdf_Under-Voltage Trip 011NC N: UL 489 A: 240 Vac
pdf_DIN Rail 7535 mm A75: 7.5 mm
pdf_UL 489 Accessory DimensionsAlarm/Aux Contact
📄
Download datasheet (PDF) (5498 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

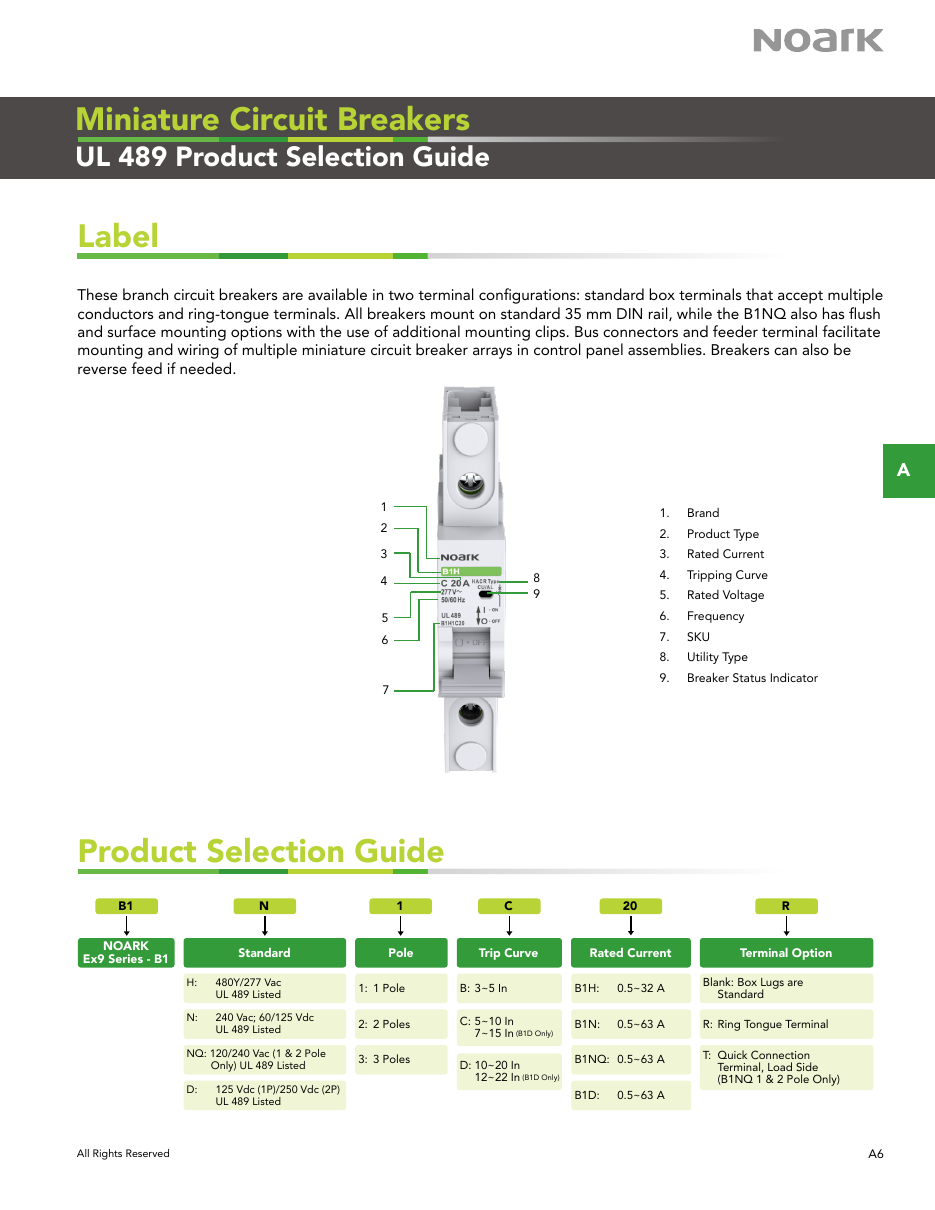

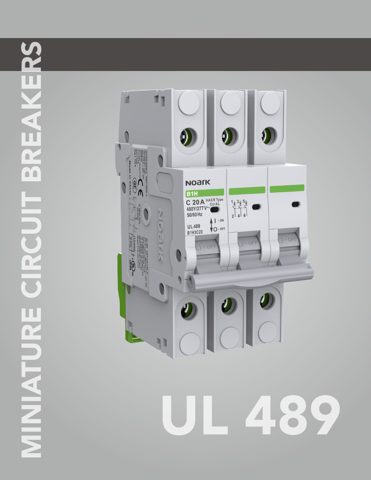

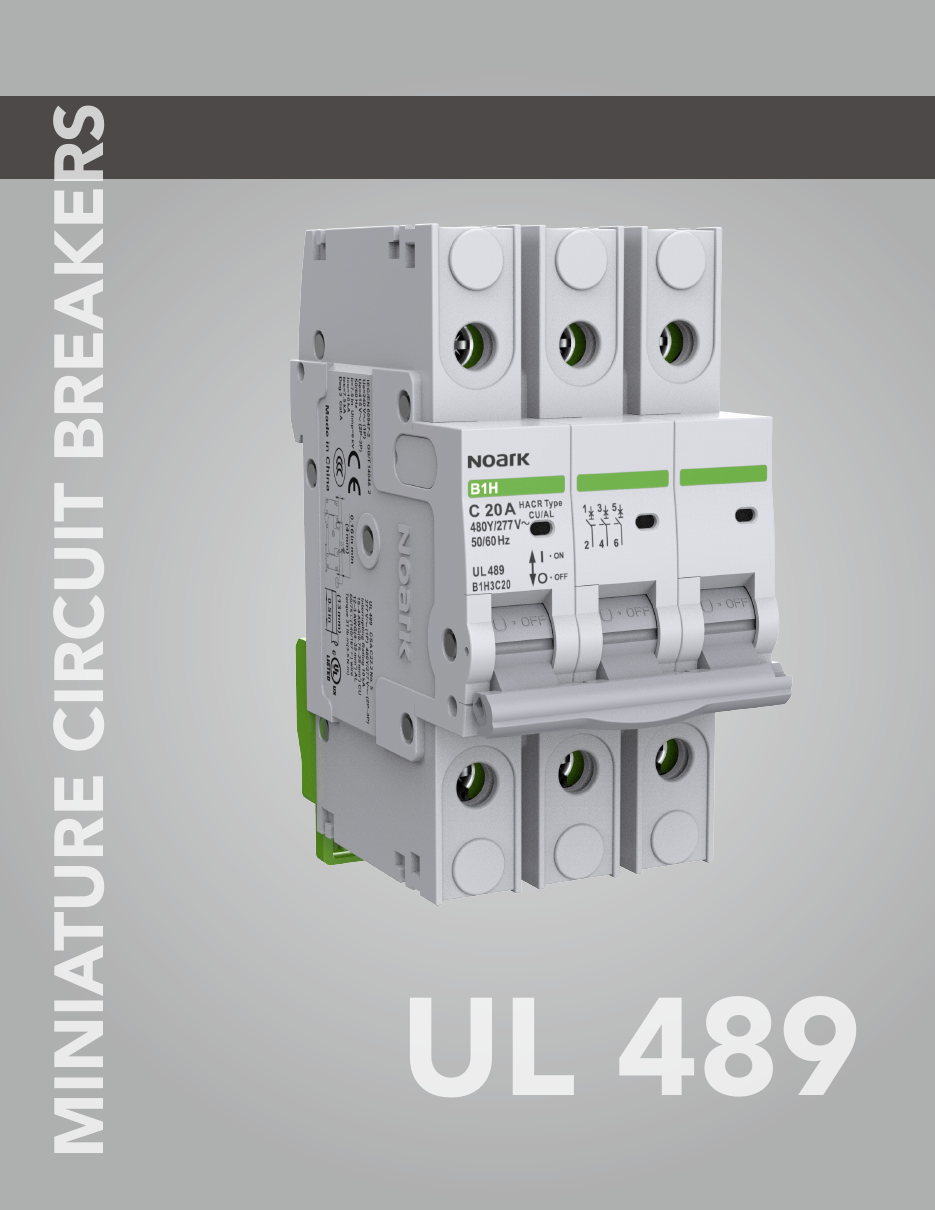

Chint B1 Series UL489 Miniature Circuit Breaker – Drawing (Chint datasheet S. 1)
Drawing · Chint datasheet · S. 1

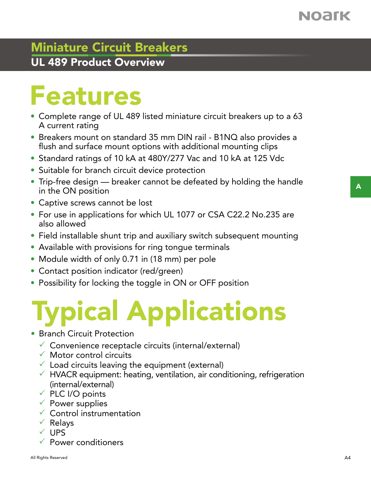

Chint B1 Series UL489 Miniature Circuit Breaker – Drawing (Chint datasheet S. 2)
Drawing · Chint datasheet · S. 2
Chint B1 Series UL489 Miniature Circuit Breaker – Drawing (Chint datasheet S. 4)
Drawing · Chint datasheet · S. 4

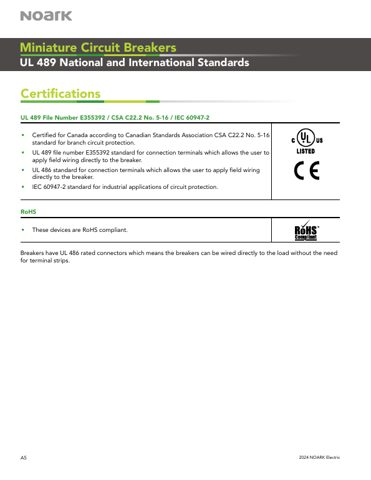

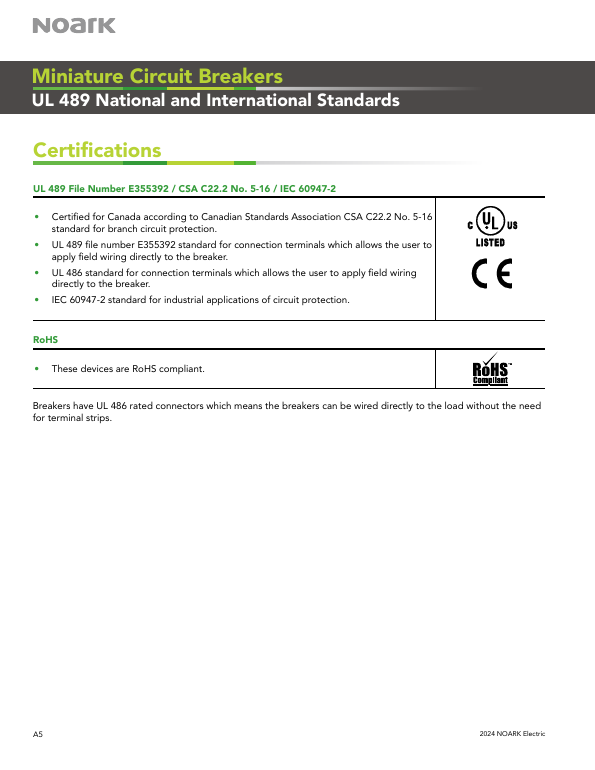

Chint B1 Series UL489 Miniature Circuit Breaker – Page preview (Chint datasheet S. 3)
