Library› Deck› Paint & Coating Systems› Topside Paint› Chugoku Marine Paints UNY MARINE
Chugoku Marine Paints

UNY MARINE

Topside Paint · Paint & Coating Systems

Technical data from manufacturer or class sources · not yet verified by a person

Chugoku Marine Paints UNY MARINE — Polyurethane finish coating for glossy superstructure, deck and fittings finishes.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Coating TypePolyurethane
Voc (g/l)475
Dft microns50
Volume solids pct50
Density1.25 g/mL🔖
Volume solids50(+/-2) volume %🔖
Voc475 g/L🔖
Mixing ratio80 : 20 by volume🔖
📄
Download datasheet (PDF) (80 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“UNY MARINE, based on polyurethane resin, provide excellent gloss retention, durability and chemical resistance, etc. It is suitable for protection of outside of superstructure of steel ships.”

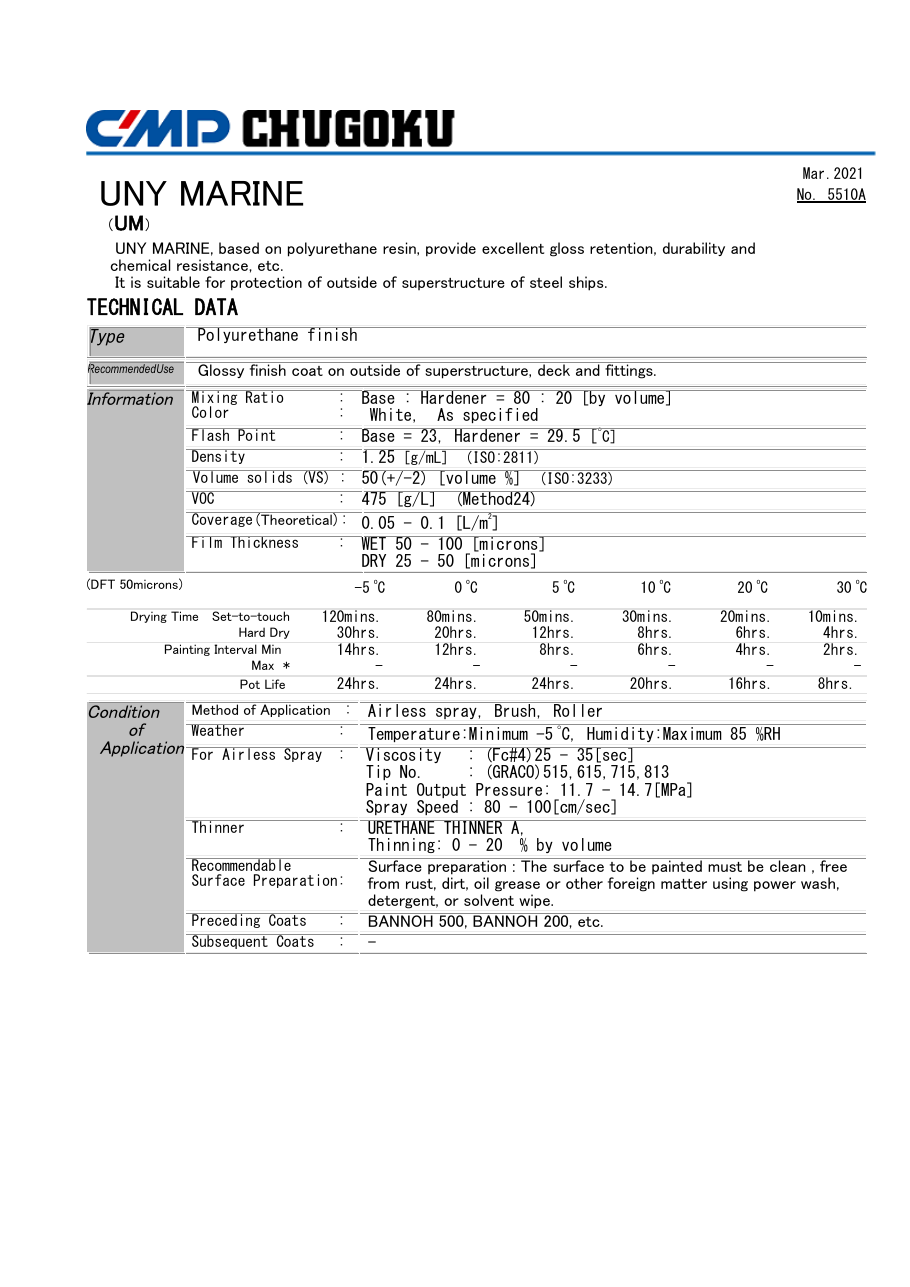

Chugoku Marine Paints UNY MARINE – Drawing (Chugoku Marine Paints datasheet S. 1)
Drawing · Chugoku Marine Paints datasheet · S. 1

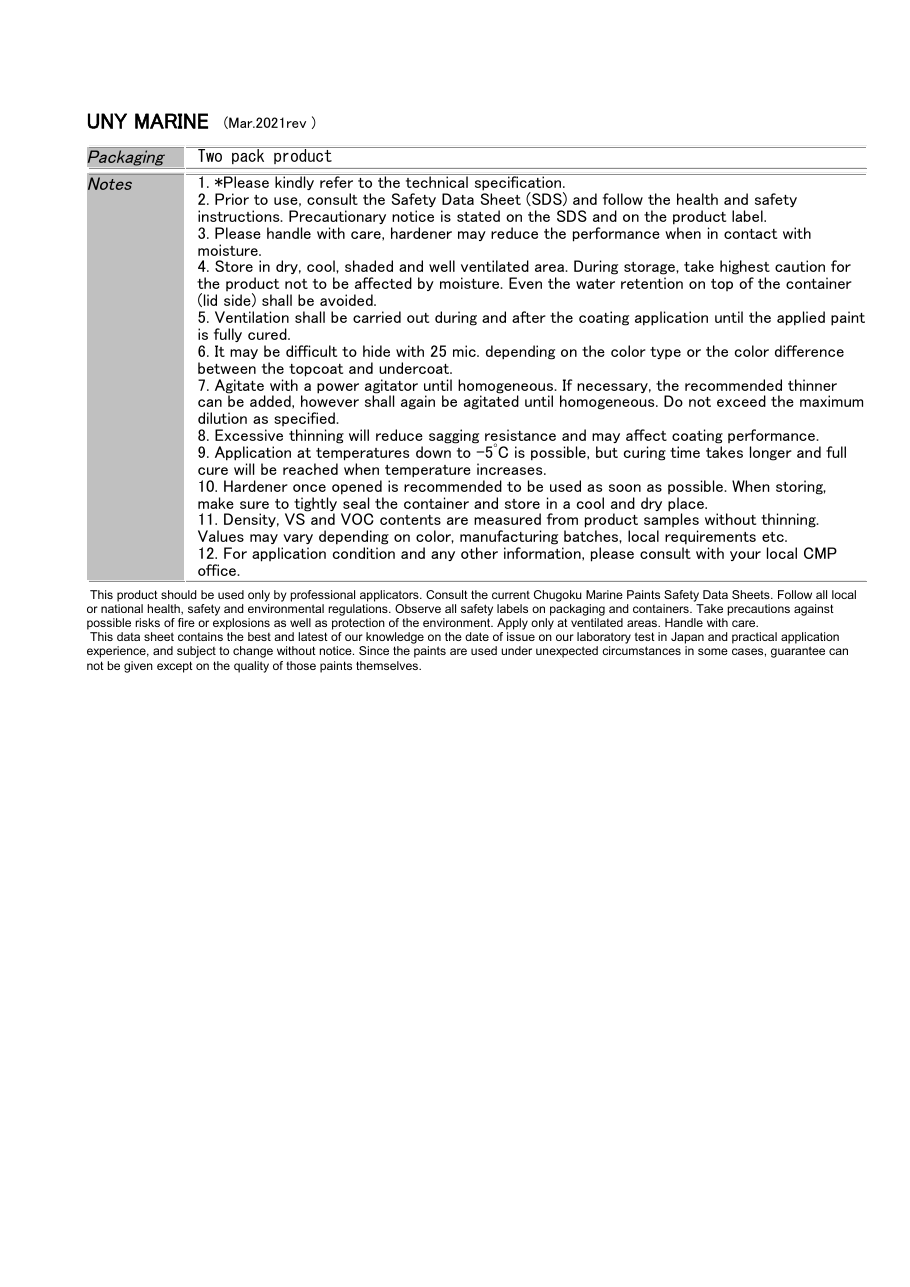

Chugoku Marine Paints UNY MARINE – Drawing (Chugoku Marine Paints datasheet S. 2)
Drawing · Chugoku Marine Paints datasheet · S. 2
Source: Chugoku Marine Paints UNY MARINE datasheet, p. 1
