Library› Cargo› Tanker Cargo Systems› Cargo Manifold Valve› Klinger (KITO/Klinger Sweden) F 31 N KITO VD/TG
Klinger (KITO/Klinger Sweden)

F 31 N KITO VD/TG

Cargo Manifold Valve · Tanker Cargo Systems

Technical data from manufacturer or class sources · not yet verified by a person

Klinger (KITO/Klinger Sweden) F 31 N KITO VD/TG — Tank venting and pressure relief valve for cargo tanks.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeInline venting and vacuum relief valve
SizesDN 80, DN 100, DN 150 (3", 4", 6")
Pressure RatingPN 16
DN 80 SpecsHeight 364mm, Weight 25kg, Setting 1.7-155 mbar
DN 100 SpecsHeight 415mm, Weight 30kg, Setting 1.6-240 mbar
DN 150 SpecsHeight 441mm, Weight 42kg, Setting 1.7-235 mbar
Standard Setting7-30 mbar, adjustable upon request
Standard valve setting7-30 mbar🔖
📄
Download datasheet (PDF) (163 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“________________________________________________________________________________________________________________________________________________”

Klinger (KITO/Klinger Sweden) F 31 N KITO VD/TG – Photo (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Photo · Klinger (KITO/Klinger Sweden) datasheet · S. 1
Klinger (KITO/Klinger Sweden) F 31 N KITO VD/TG – Photo (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Photo · Klinger (KITO/Klinger Sweden) datasheet · S. 1

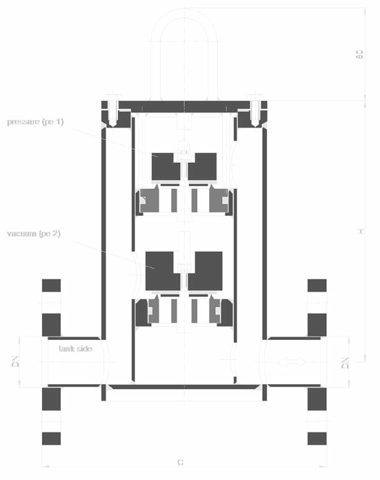

Klinger (KITO/Klinger Sweden) F 31 N KITO VD/TG – Drawing (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Drawing · Klinger (KITO/Klinger Sweden) datasheet · S. 1

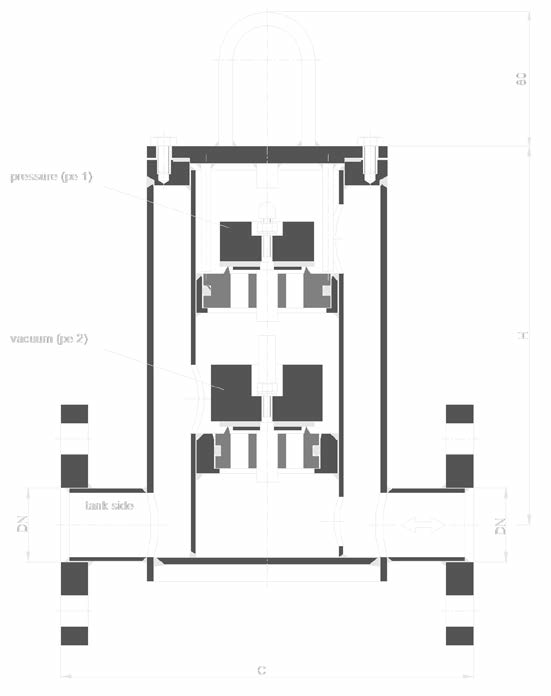

Klinger (KITO/Klinger Sweden) F 31 N KITO VD/TG – Drawing (Klinger (KITO/Klinger Sweden) datasheet S. 1)
Drawing · Klinger (KITO/Klinger Sweden) datasheet · S. 1

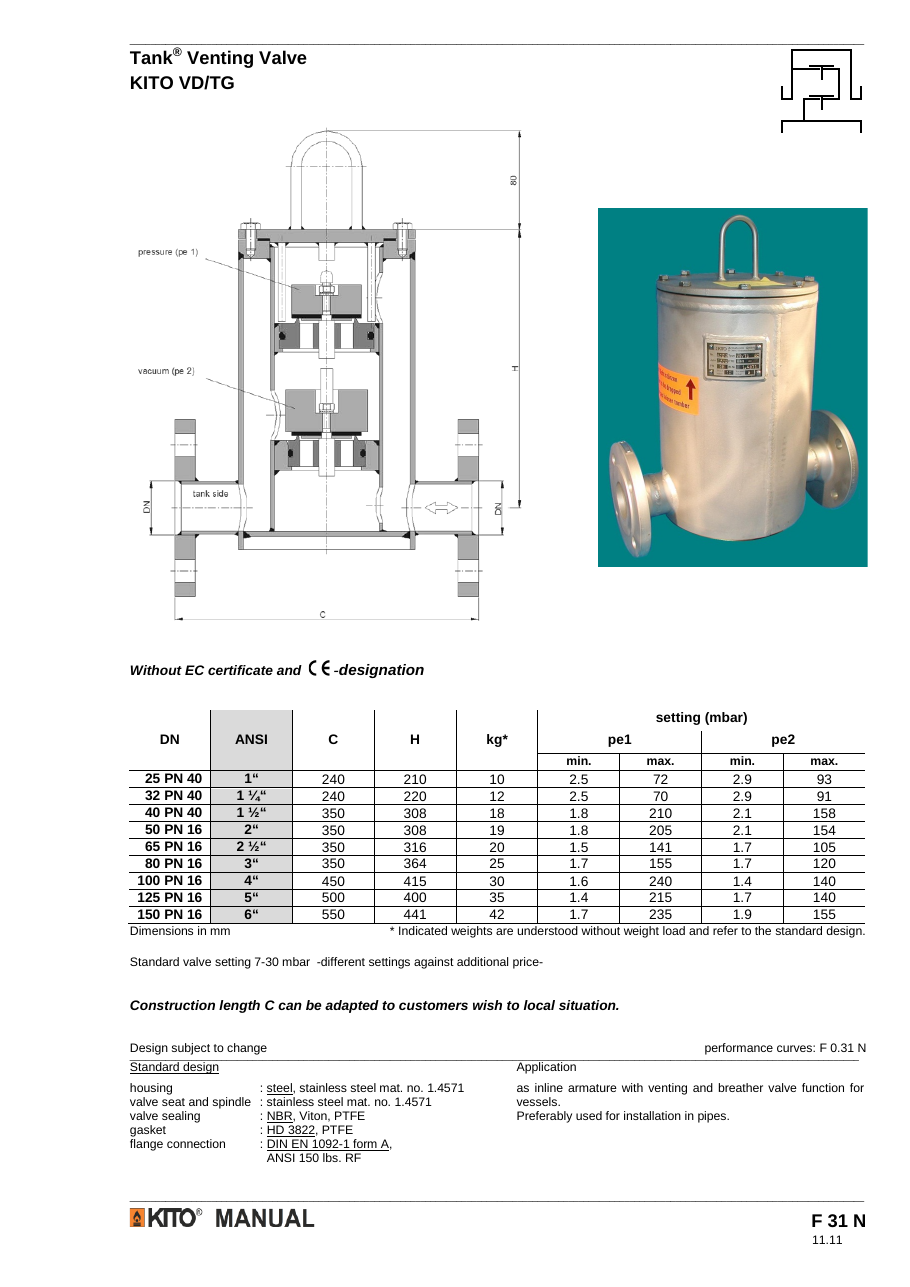

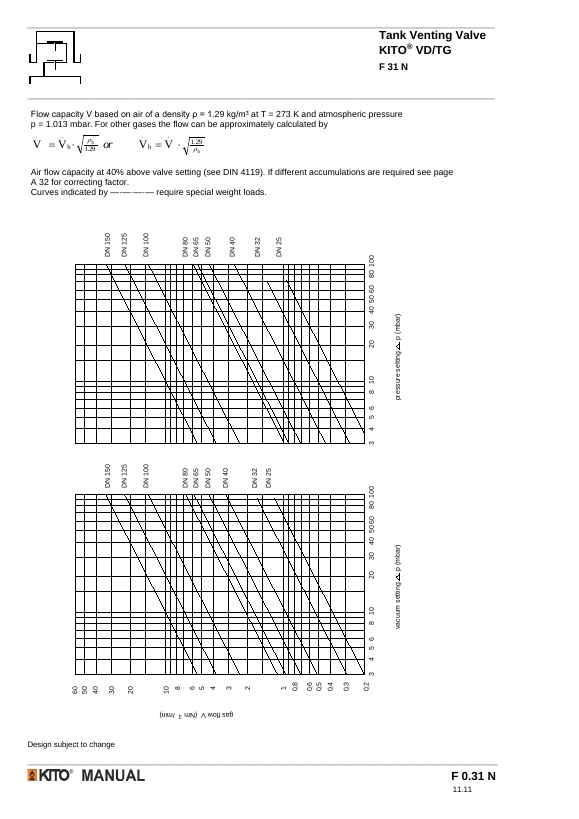

Klinger (KITO/Klinger Sweden) F 31 N KITO VD/TG – Page preview (Klinger (KITO/Klinger Sweden) datasheet S. 2)
Page preview · Klinger (KITO/Klinger Sweden) datasheet · S. 2
Source: TG datasheet, p. 1
