WRV 204

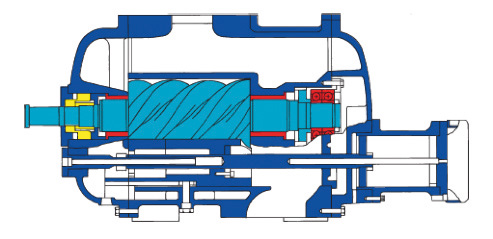

This is a range of oil injected screw compressors. Howden offers the WRV 204 range, which are well-proven, reliable, and versatile, designed for a wide range of applications. The WRV 204 range features double-walled casing construction, contributing to low operating noise and suitability for high-pressure applications. The compressors offer a maximum pressure of 24 bar g (348 psi g) and a minimum flow of 406 sm3/hr (239 CFM), with a maximum flow reaching 2013 sm3/hr (1185 CFM). They operate at a minimum speed of 1500 rpm and a maximum speed of 4500 rpm, with a maximum power output of 766 kW (1028 hp). The WRV 204 range incorporates angular contact or tilted pad thrust bearings and sleeve type journal bearings, known for their long operational lifespan. Optional casing and rotor materials can be selected to match specific project requirements, such as API 619 standards. A variety of standard and zero-emission shaft seal options are available. Howden boasts over 25,000 WRV compressors installed globally.
