Library› Engine Room› Auxiliary Engines› Auxiliary Engine (Generator Set)› Scania Marine DI13 074M
Scania Marine

DI13 074M

Auxiliary Engine (Generator Set) · Auxiliary Engines

Technical data from manufacturer or class sources · not yet verified by a person
323.0 kWPower

Marine vessels often require reliable and efficient engines to handle a range of operational demands, from continuous power generation to propulsion duties. The Scania DI13 074M marine engine is designed to meet these challenges with robust construction and advanced technology. This engine operates within the 1500 to 1800 rpm range, delivering a gross power output of 323 kW at 1500 rpm and 376 kW at 1800 rpm. It features a 12.7-liter displacement, optimized for high torque at low revolutions, with a compression ratio of 16.3:1. The engine is equipped with a Scania Engine Management System (EMS) and electronically controlled unit injectors, ensuring optimal fuel economy and low emissions. It is type-approved by major classification societies and meets IMO Tier II, US Tier 2, and EU Stage IIIA standards. Standard accessories include a turbocharger, fuel pre-filter with water separator, oil cooler, and sea water pump, among others. Optional features like instrumentation, hydraulic pumps, and various PTO configurations allow for flexible and tailored installations.

Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Configuration6-cylinder in-line, 4-stroke
Displacement12.7 liters
Bore x Stroke130 x 160 mm
Power Range323-376 kW (1500-1800 rpm)
Compression Ratio16.3:1
Leistung (kW)323 kW🔖
📄
Download datasheet (PDF) (1423 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“The marine engines from Scania are based on a robust design with a strength optimized cylinder block containing wet cylinder liners that can easily be exchanged. Individual cylinder heads with 4…”

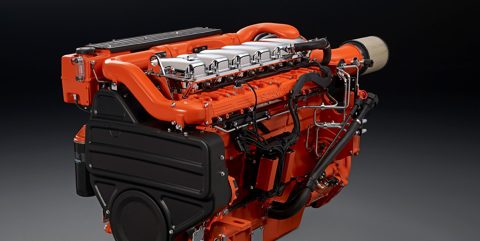

Scania Marine DI13 074M – Photo (Scania Marine datasheet S. 1)
Photo · Scania Marine datasheet · S. 1
Scania Marine DI13 074M – Photo (Scania Marine datasheet S. 1)
Photo · Scania Marine datasheet · S. 1

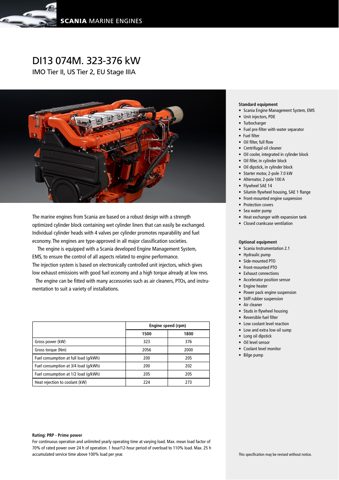

Scania Marine DI13 074M – Drawing (Scania Marine datasheet S. 1)
Drawing · Scania Marine datasheet · S. 1
Scania Marine DI13 074M – Drawing (Scania Marine datasheet S. 2)
Drawing · Scania Marine datasheet · S. 2
Source: Scania Marine DI13 074M datasheet, p. 1
