Volvo Penta

D16 MH (Auxiliary/Genset)

Auxiliary Engine (Generator Set) · Auxiliary Engines

Technical data from manufacturer or class sources · not yet verified by a person​‍‌​‍​‌​⁠‍⁠‌⁠‍​‍‌​‍​
442 kWPower
1,750 kgWeight
Volvo Penta in the SpecCodex register — view brand page →

Volvo Penta D16 MH (Auxiliary/Genset) — Auxiliary power / Genset variable speed.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeIn-line 6-cylinder diesel, twin-turbocharged
Displacement16.12 litre🔖
Bore x Stroke144 x 165 mm
Power368, 405, 442, 479 or 552 kW (variable speed)
ApplicationVariable speed auxiliary/genset
Power (kW)442 kW🔖
Weight (kg)1750 kg🔖
Bore/stroke144/165 mm🔖
Dry weight bobtail HE1750 (3858) kg (lb)🔖
📄
Download datasheet (PDF) (547 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“16 litre, in-line 6 cylinder - Variable engine speed 442, 479 and 552 kW US EPA Tier 3 and CCNR Stage 2 (for IMO NOx Tier II, see separate Product Leaflet)”

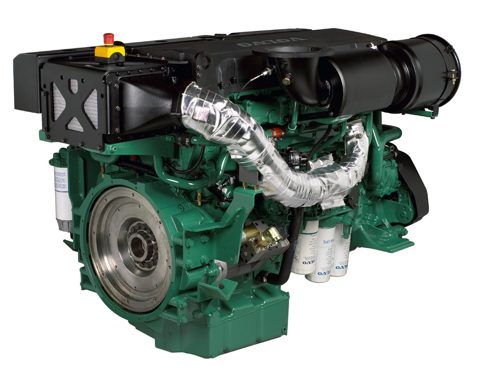

Volvo Penta D16 MH (Auxiliary/Genset) – Photo (Volvo Penta datasheet S. 1)
Photo · Volvo Penta datasheet · S. 1

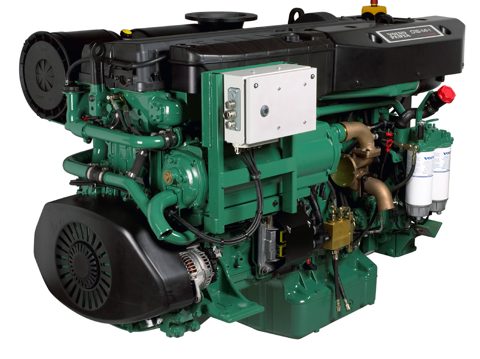

Volvo Penta D16 MH (Auxiliary/Genset) – Photo (Volvo Penta datasheet S. 1)
Photo · Volvo Penta datasheet · S. 1
Volvo Penta D16 MH (Auxiliary/Genset) – Drawing (Volvo Penta datasheet S. 1)
Drawing · Volvo Penta datasheet · S. 1

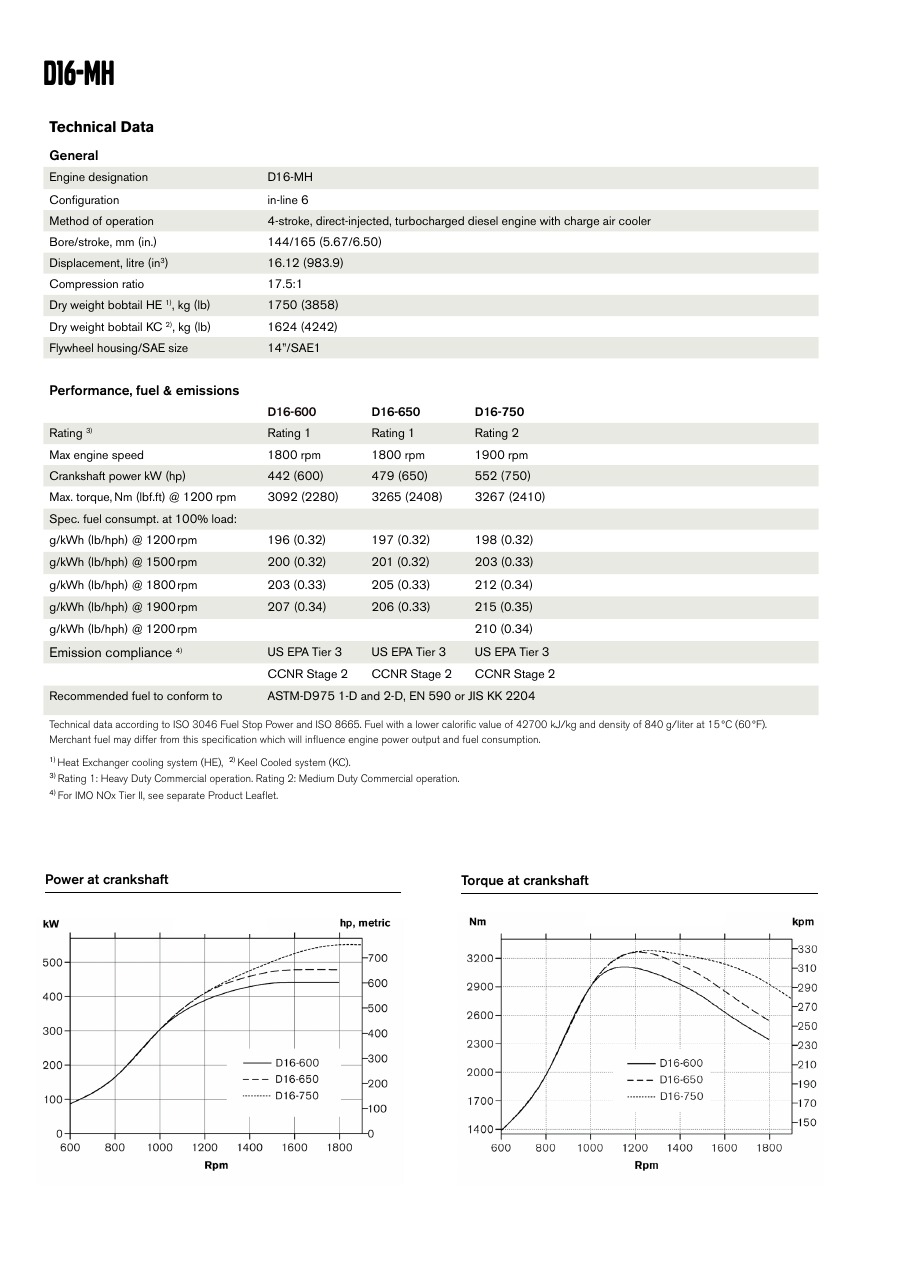

Volvo Penta D16 MH (Auxiliary/Genset) – Drawing (Volvo Penta datasheet S. 2)
Drawing · Volvo Penta datasheet · S. 2
Volvo Penta D16 MH (Auxiliary/Genset) – Drawing (Volvo Penta datasheet S. 3)
Drawing · Volvo Penta datasheet · S. 3
Source: Genset) datasheet, p. 1
