Volvo Penta

D13-900

Auxiliary Engine (Generator Set) · Auxiliary Engines

Technical data from manufacturer or class sources · not yet verified by a person​‍‌​‍​‌​‍⁠⁠‍​‍​‌‍‌‌‍
662 kWPower
1,630 kgWeight
View photo ↗
Volvo Penta in the SpecCodex register — view brand page →

Volvo Penta D13-900 — Large motor yacht / Commercial vessel.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeIn-line 6-cylinder diesel, turbocharged
Displacement12.78 liters
Bore x Stroke131 x 158 mm
Power662 kW (900 hp) @ 2300 rpm
Maximum torque3300 Nm @ 1300 rpm
Power (kW)662 kW🔖
Weight (kg)1630 kg🔖
📄
Download datasheet (PDF) (1437 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Technical data according to ISO 8665. With fuel having an LHV of 42700 kJ/kg and density of 840 g/liter at 15 °C (60 °F). Merchant fuel may differ from this specification which will influence engine…”

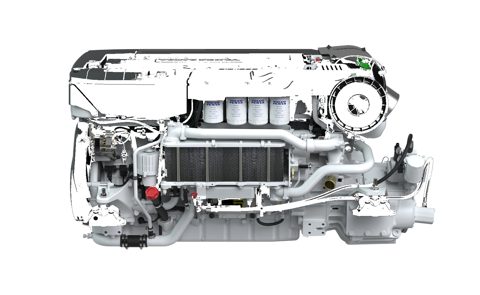

Volvo Penta D13-900 – Photo (Volvo Penta datasheet S. 1)
Photo · Volvo Penta datasheet · S. 1

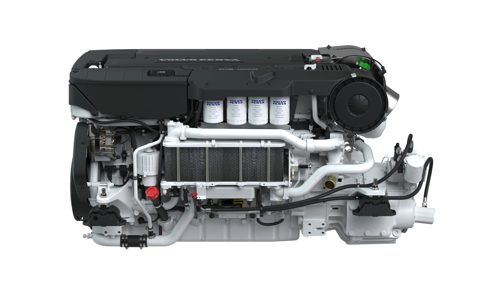

Volvo Penta D13-900 – Photo (Volvo Penta datasheet S. 1)
Photo · Volvo Penta datasheet · S. 1
Volvo Penta D13-900 – Drawing (Volvo Penta datasheet S. 1)
Drawing · Volvo Penta datasheet · S. 1

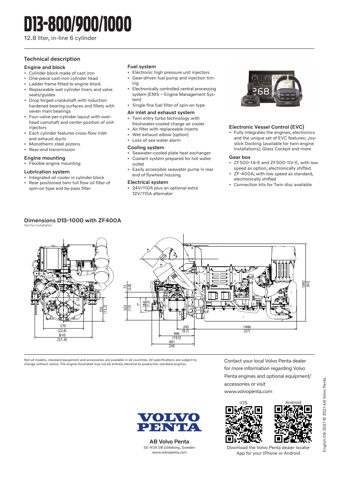

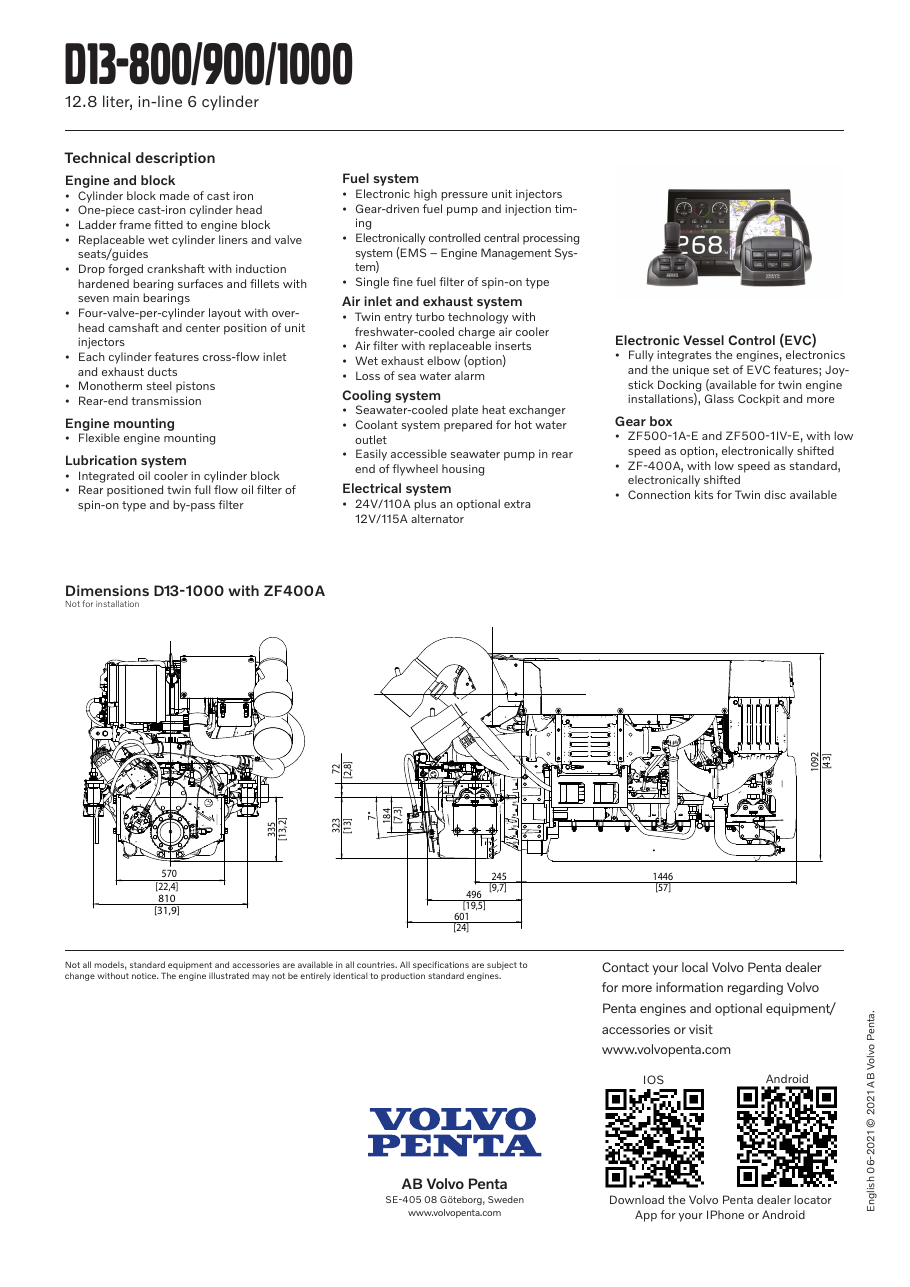

Volvo Penta D13-900 – Drawing (Volvo Penta datasheet S. 2)
Drawing · Volvo Penta datasheet · S. 2
Source: Volvo Penta D13-900 datasheet, p. 1
