D6-435

Auxiliary Engine (Generator Set) · Auxiliary Engines

Technical data from manufacturer or class sources · not yet verified by a person
320 kWPower
View photo ↗
Volvo Penta in the SpecCodex register — view brand page →

The Volvo Penta D6-435 is designed with a focus on reliability and low maintenance requirements. This 6-cylinder diesel engine is equipped with a cast-iron cylinder block and head, integrated cylinder liners, and replaceable valve seats, contributing to its robustness. The hydraulically shifted reverse gear, coupled with a gear technology using bevel gears throughout the gear train, is designed to minimize engine noise and vibration levels, enhancing onboard comfort. The engine's high-efficiency after-cooler, minimal hose setup, and symmetrical design contribute to its compact size despite its large swept volume and high output. It features a common rail fuel injection system controlled by EVC (Electronic Vessel Control), a system that delivers outstanding torque during acceleration with minimal smoke. This, combined with the engine's high load carrying capability, creates a sporty feel and responsive power when needed. The D6-435 produces 320 kW (435 hp) of crankshaft power and complies with IMO NOx limits, EU RCD, and US EPA Tier 2 emission requirements.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeIn-line 6-cylinder diesel, turbocharged
Displacement5.5 liters
Bore x Stroke103 x 110 mm
Power320 kW (435 hp) @ 3500 rpm
Compression ratio17.5:1
Power (kW)320 kW🔖
Puissance au vilebrequin, kW (ch)320 (435)🔖
Puissance à l’hélice, kW (ch)310 (422)🔖
Régime moteur, tr/min3500🔖
Cylindrée, l5.5🔖
Alésage/course, mm103/110🔖
Taux de compression17.5:1🔖
Poids à sec avec HS85AE, kg699🔖
Rapport HS85AE2.52:1🔖
Rapport HS85IVE2.49:1🔖
Kw320🔖
Hp435🔖
Speed (rpm)3500🔖
Regulations1,5🔖
📄
Download datasheet (PDF) (217 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Diesel performance for marine use Volvo Penta’s 6-cylinder D6-435 is developed from the latest design in modern diesel technology. The engine has common rail fuel injection system, double overhead…”

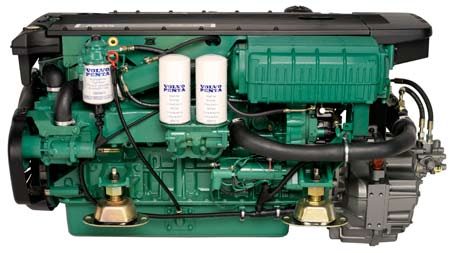

Volvo Penta D6-435 – Photo (Volvo Penta datasheet S. 1)
Photo · Volvo Penta datasheet · S. 1

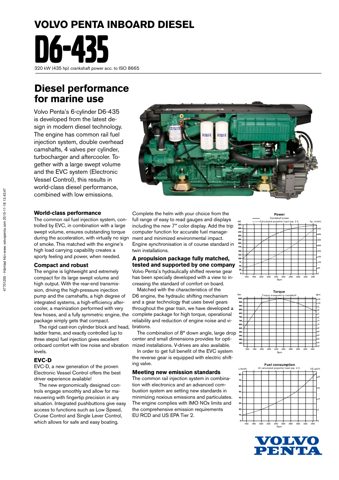

Volvo Penta D6-435 – Drawing (Volvo Penta datasheet S. 1)
Drawing · Volvo Penta datasheet · S. 1

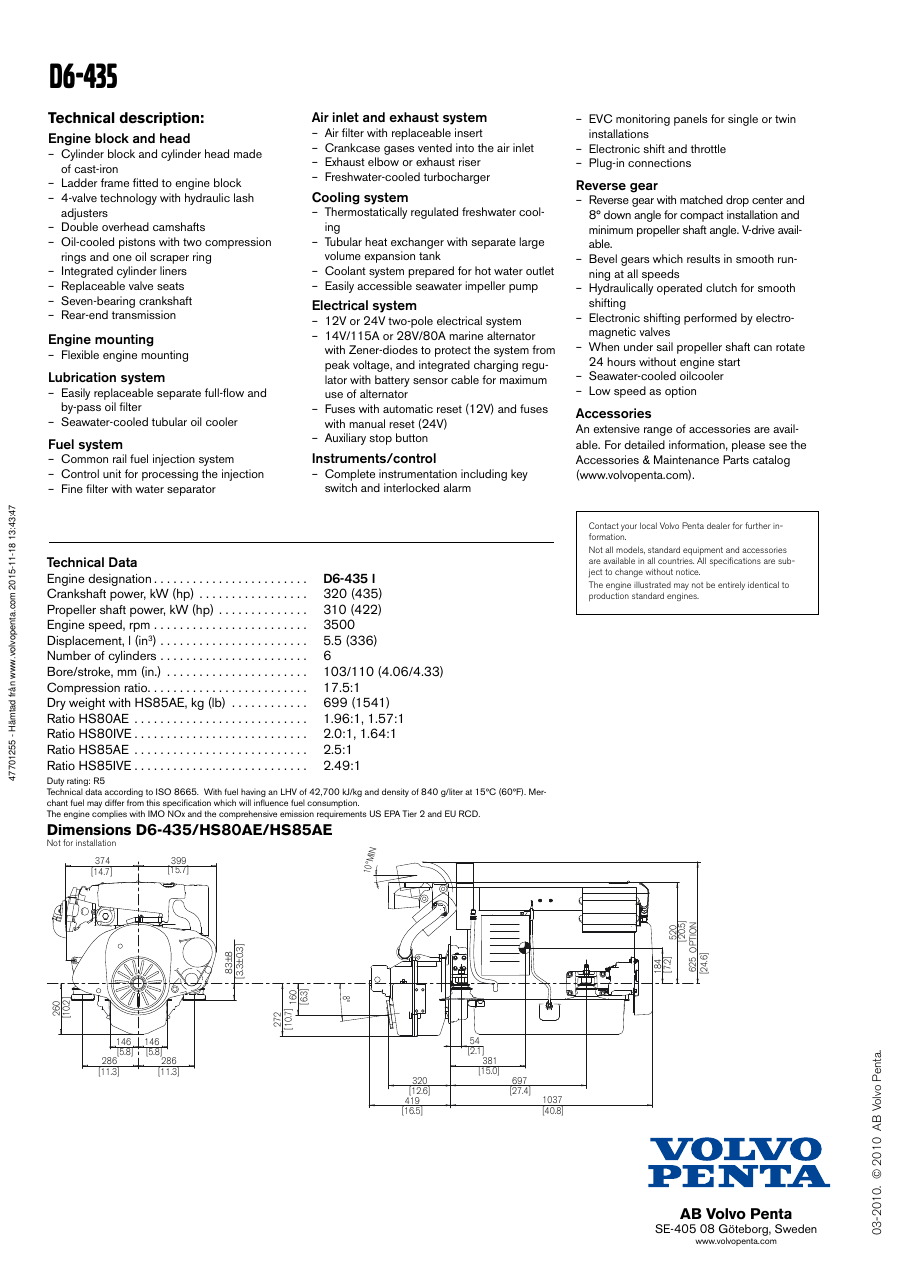

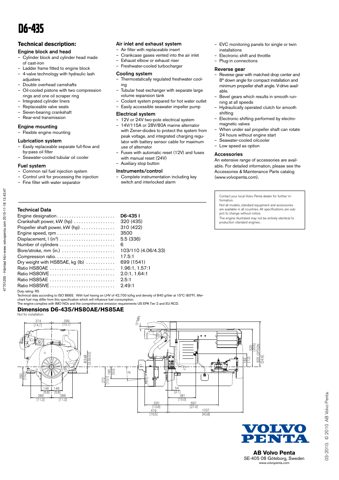

Volvo Penta D6-435 – Drawing (Volvo Penta datasheet S. 2)
Drawing · Volvo Penta datasheet · S. 2
Source: Product Bulletins, p. 1
