Library› Safety & LSA› Fire Detection Systems› Smoke Detector› Hochiki SOE-24H
Hochiki

SOE-24H

Smoke Detector · Fire Detection Systems

Technical data from manufacturer or class sources · not yet verified by a person

Hochiki SOE-24H — Multi-Criteria Smoke/Heat Detector.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypePhotoelectric Smoke + Heat
Voltage24VDC
CertificationUL 268 & UL521 Listed
Operating Voltage Range8-35 VDC🔖
Standby Current59 µA🔖
Fixed Heat Temperature135 °F🔖
Operating Temperature Range0°C ~ 49°C🔖
Dimension3.94” diameter x 2.18” tall in🔖
Weight3.4 oz🔖
📄
Download datasheet (PDF) (552 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“SOE-24H PHOTOELECTRIC SMOKE/HEAT DETECTOR DESCRIPTION The SOE-24H detector is a reliable, high-quality, UL 268 7th Edition listed Photoelectric Smoke/ Heat Detector allowing it to be used in all open…”

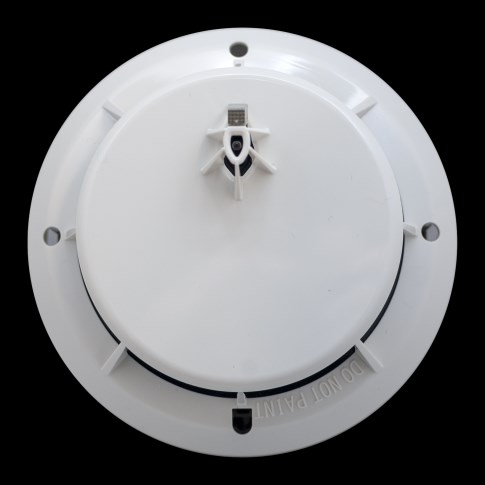

Hochiki SOE-24H – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1
Hochiki SOE-24H – Photo (Hochiki datasheet S. 1)
Photo · Hochiki datasheet · S. 1

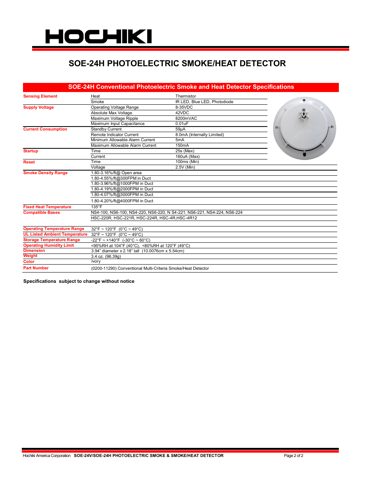

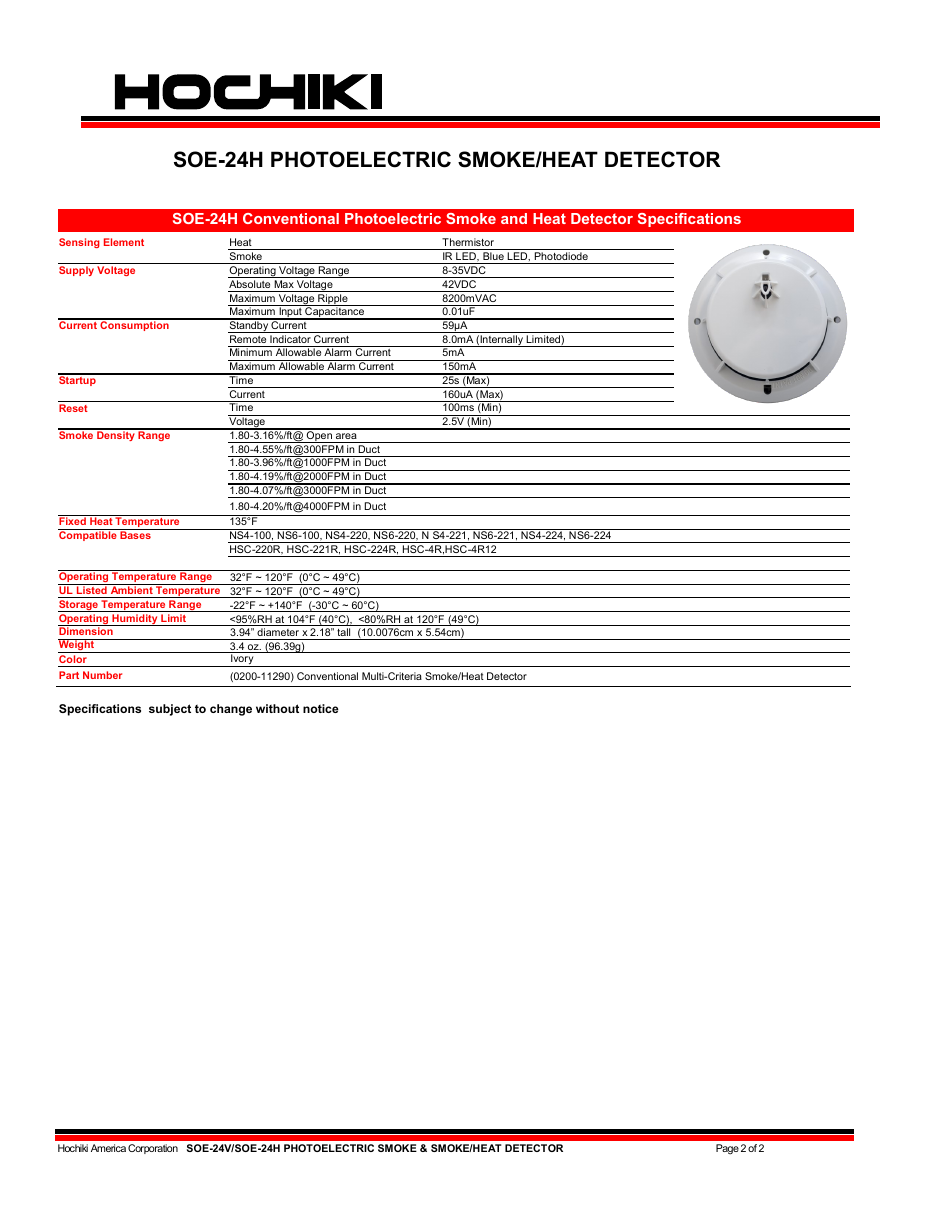

Hochiki SOE-24H – Drawing (Hochiki datasheet S. 2)
Drawing · Hochiki datasheet · S. 2

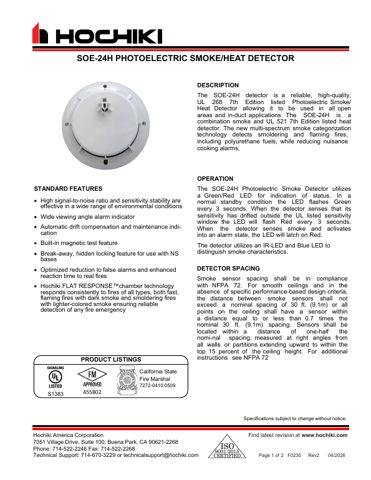

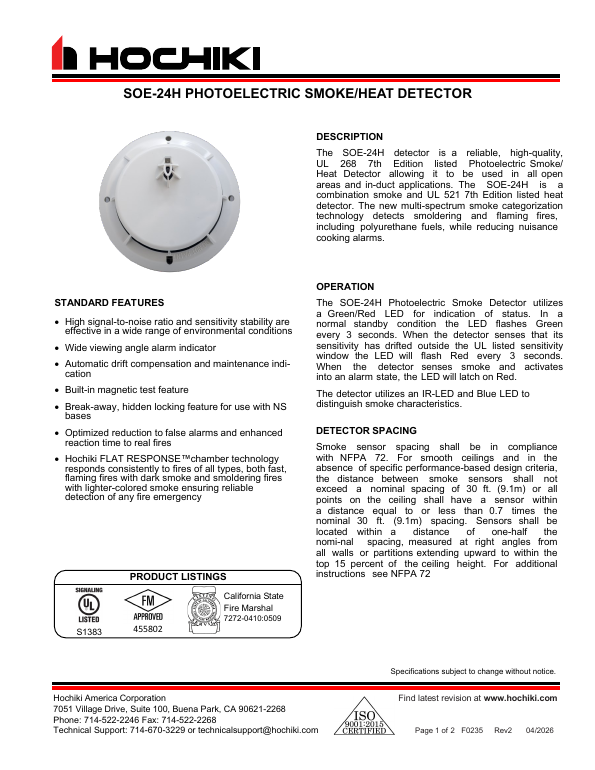

Hochiki SOE-24H – Page preview (Hochiki datasheet S. 1)
Page preview · Hochiki datasheet · S. 1
Source: Hochiki SOE-24H datasheet, p. 1
