Library› Safety & LSA› Fire Detection Systems› Smoke Detector› Autronica BD-200M
Autronica

BD-200M

Smoke Detector · Fire Detection Systems

Technical data from manufacturer or class sources · not yet verified by a person
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Protection RatingIP56
ApplicationSteam saunas and cold storage facilities
FeaturesComplete housing
Working Temperature-30°C to +80°C🔖
Power Supply10-27 VDC🔖
Software Version2.4x🔖
Weight400 g🔖
Voltage10 - 27 VDC🔖
Degree of protectionIP56🔖
Working temperature-30 - +80 °C🔖
ZertifikateEN 54-5🔖
📄
Download datasheet (3 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

BD-200M is a heat detector designed for use in cold areas and rough environments, such as maritime and offshore applications, to detect fire by measuring temperature rise.

Applications

  • kitchens
  • boiler rooms
  • workshops
  • refrigeration rooms

Features

  • Interactive
  • Short circuit isolator in each detector
  • Conforms to EMC directive
  • Automatic addressing

Standards

  • EN 54-5
  • EN 54-17

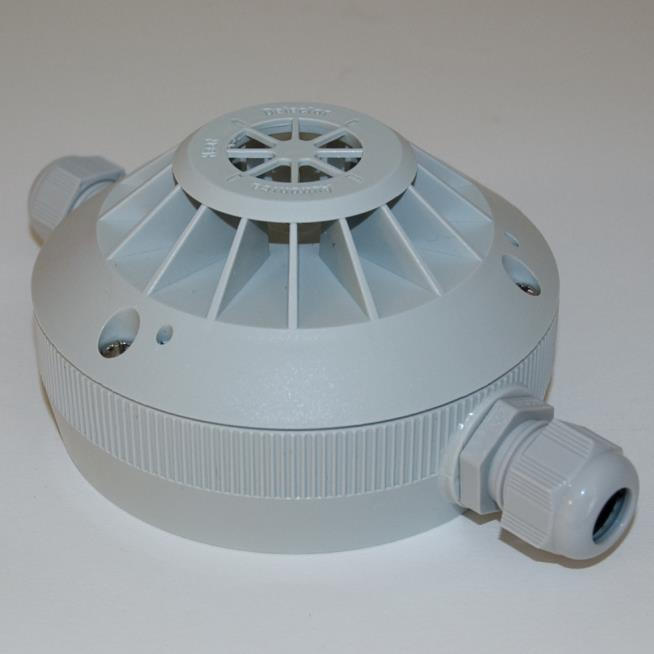

Autronica BD-200M – Photo (7713b40ac546_S1-2 S. 1)
Photo · 7713b40ac546_S1-2 · S. 1

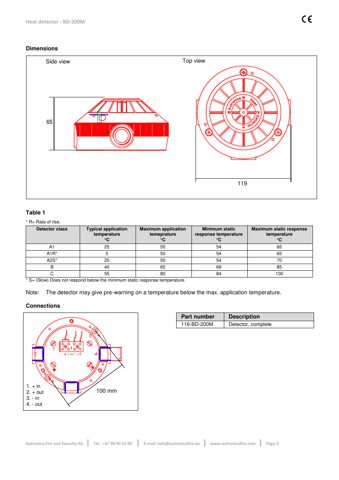

Autronica BD-200M – Drawing (7713b40ac546_S1-2 S. 2)
Drawing · 7713b40ac546_S1-2 · S. 2
Autronica BD-200M – Page preview (7713b40ac546_S1-2 S. 1)
Page preview · 7713b40ac546_S1-2 · S. 1
Source: Autronica BD-200M datasheet, p. 1
