Library› Safety & LSA› Fire Detection Systems› Smoke Detector› Consilium/Salwico CD-PH
Consilium/Salwico

CD-PH

Smoke Detector · Fire Detection Systems

Technical data from manufacturer or class sources · not yet verified by a person
20Voltage
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Model Number5101610-00
Detection TypeOptical smoke + thermal heat
ProtectionShort circuit isolator (SCI)
AlarmsIndividual smoke and heat alarms
SensitivityAdjustable smoke sensitivity
FeaturesLED indicator, BIST (self-test)
Remote OutputFor sounder or remote indication
ConfigurationConfigurable during commissioning
Parallel ConnectionMax 10 CD-PHs between 2 SCIs
SystemSalwico CCP
ComplianceEN54
Spannung20 V🔖
📄
Download datasheet (PDF) (414 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“General Description CD-PH is an analogue addressable combined optical smoke and heat detector provided with short circuit protection (SCI). The short circuit isolator function is fully transparent…”

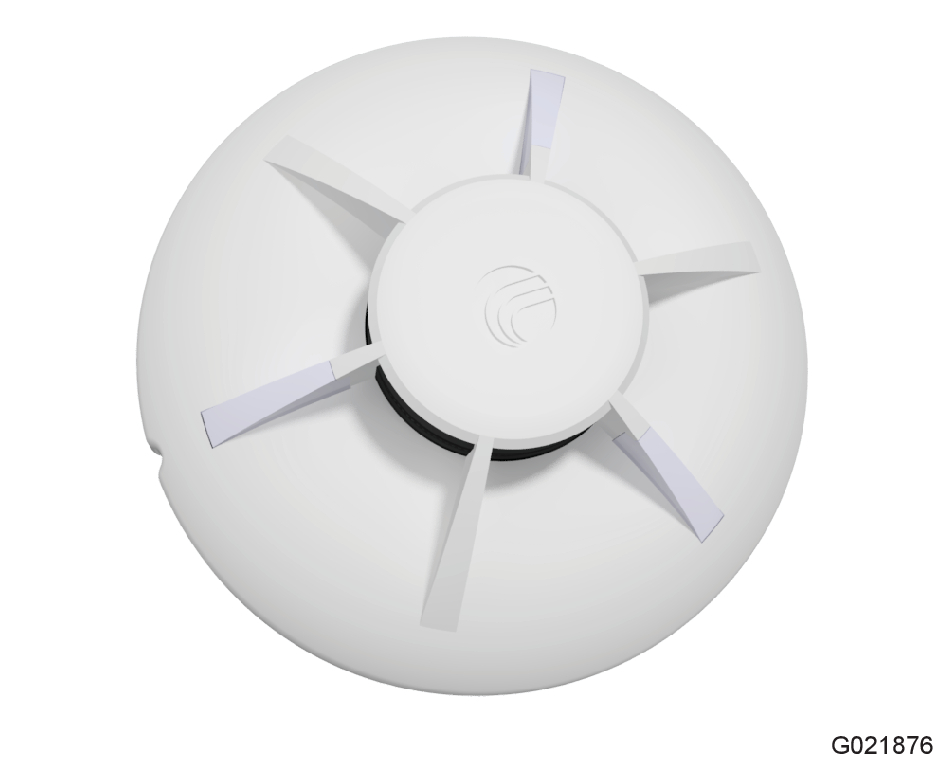

Consilium/Salwico CD-PH – Photo (Consilium/Salwico datasheet S. 1)
Photo · Consilium/Salwico datasheet · S. 1

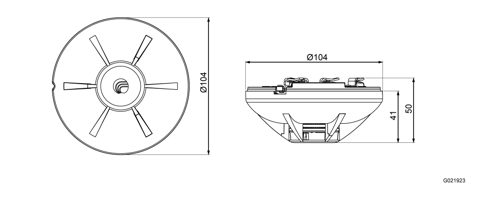

Consilium/Salwico CD-PH – Photo (Consilium/Salwico datasheet S. 3)
Photo · Consilium/Salwico datasheet · S. 3

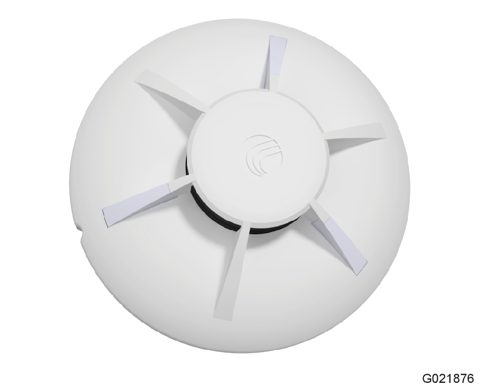

Consilium/Salwico CD-PH – Photo (Consilium/Salwico datasheet S. 1)
Photo · Consilium/Salwico datasheet · S. 1

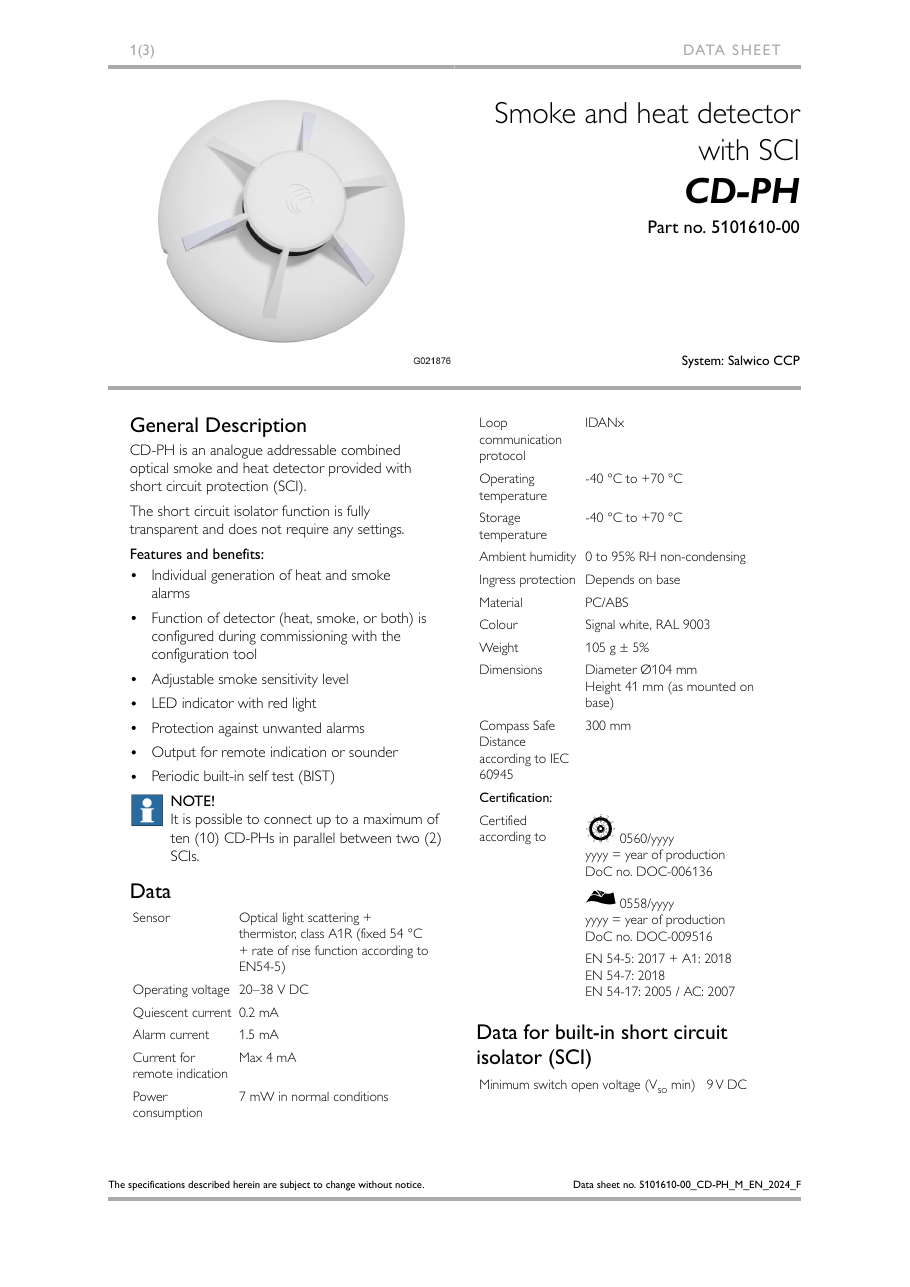

Consilium/Salwico CD-PH – Drawing (Consilium/Salwico datasheet S. 1)
Drawing · Consilium/Salwico datasheet · S. 1

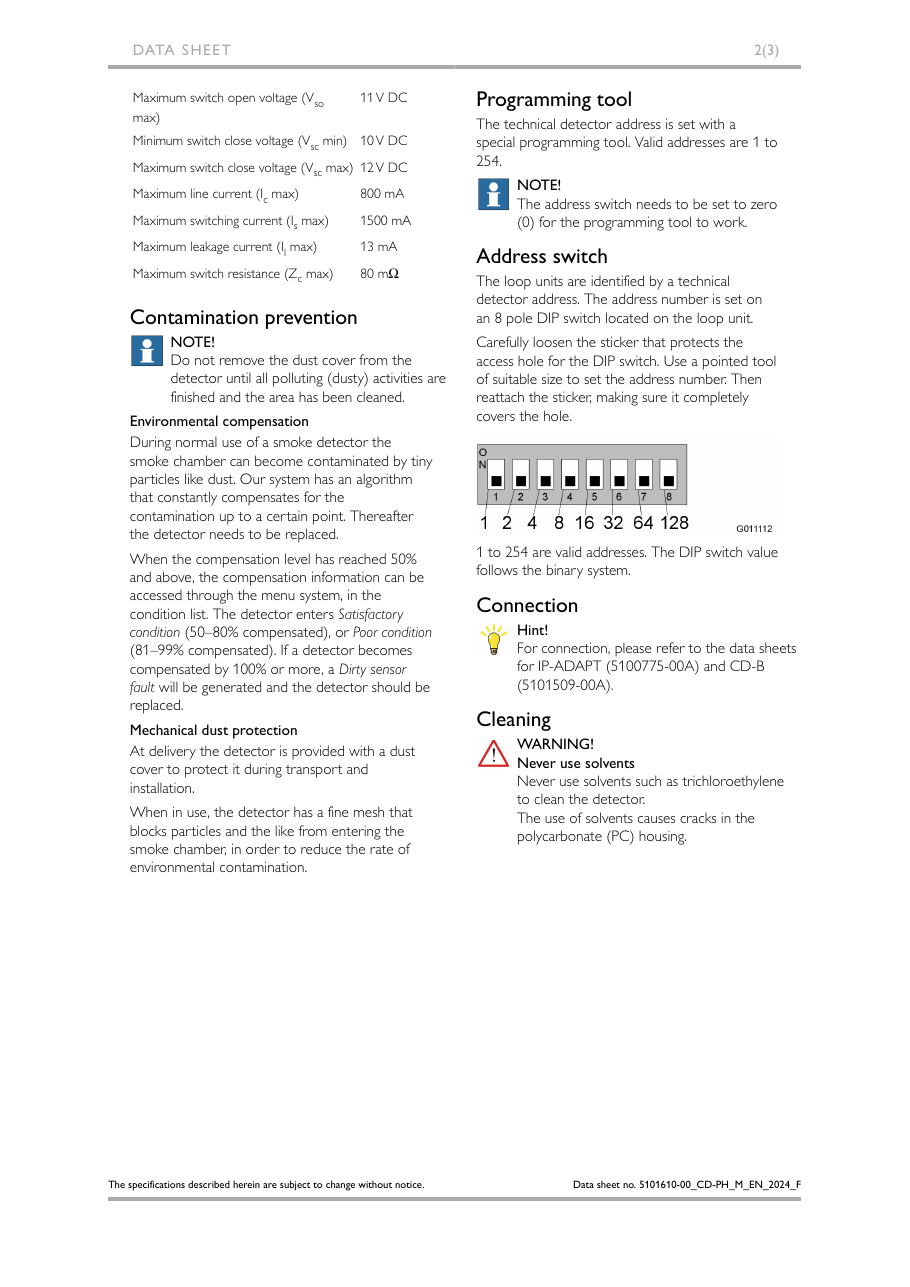

Consilium/Salwico CD-PH – Drawing (Consilium/Salwico datasheet S. 2)
Drawing · Consilium/Salwico datasheet · S. 2

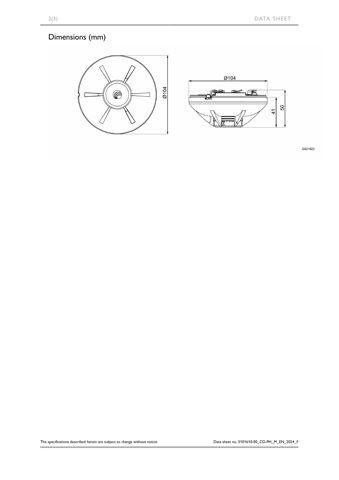

Consilium/Salwico CD-PH – Drawing (Consilium/Salwico datasheet S. 3)
Drawing · Consilium/Salwico datasheet · S. 3
Source: Consilium/Salwico CD-PH datasheet, p. 1
