Library› Safety & LSA› Fixed Fire Suppression› Foam Fire System› Skum/Tyco HIEX
Skum/Tyco

HIEX

Foam Fire System · Fixed Fire Suppression

Technical data from manufacturer or class sources · not yet verified by a person
847Capacity
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

TypeMobile high-expansion foam generator
ConstructionCarbon steel, stainless steel, brass
WeightLightweight design
InstallationEasy field setup
CertificationsUL Listed, CE Marked, FM Approved
Kapazitaet847 m3/min🔖
📄
Download datasheet (PDF) (322 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

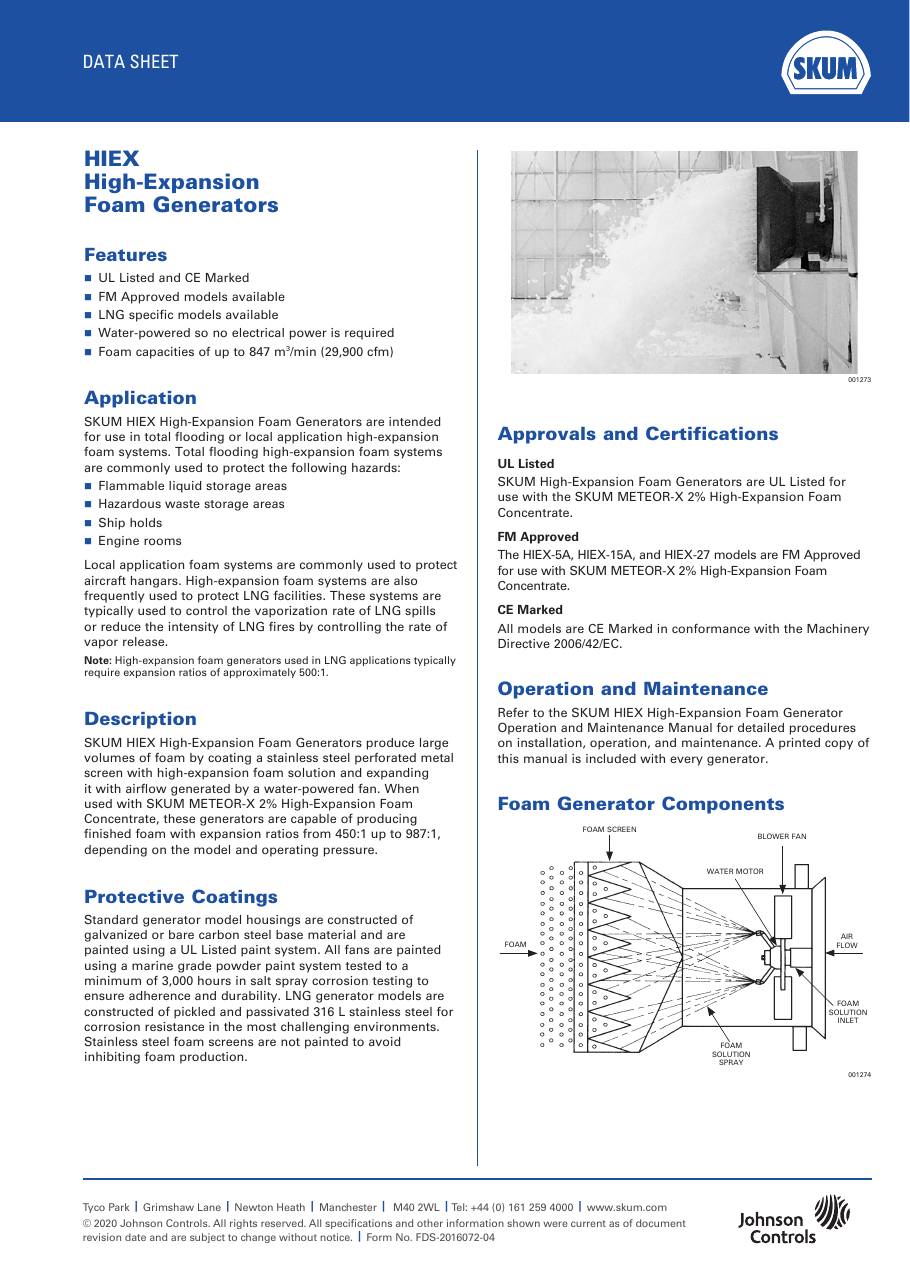

“HIEX High-Expansion Foam Generators Features n UL Listed and CE Marked n FM Approved models available n LNG specific models available n Water-powered so no electrical power is required n Foam…”

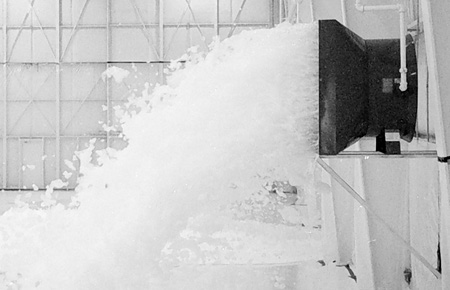

Skum/Tyco HIEX – Photo (Skum/Tyco datasheet S. 1)
Photo · Skum/Tyco datasheet · S. 1
Skum/Tyco HIEX – Photo (Skum/Tyco datasheet S. 1)
Photo · Skum/Tyco datasheet · S. 1
Skum/Tyco HIEX – Photo (Skum/Tyco datasheet S. 6)
Photo · Skum/Tyco datasheet · S. 6
Skum/Tyco HIEX – Drawing (Skum/Tyco datasheet S. 1)
Drawing · Skum/Tyco datasheet · S. 1
Skum/Tyco HIEX – Drawing (Skum/Tyco datasheet S. 4)
Drawing · Skum/Tyco datasheet · S. 4
Skum/Tyco HIEX – Drawing (Skum/Tyco datasheet S. 5)
Drawing · Skum/Tyco datasheet · S. 5
Skum/Tyco HIEX – Page preview (Skum/Tyco datasheet S. 2)
Page preview · Skum/Tyco datasheet · S. 2
Skum/Tyco HIEX – Page preview (Skum/Tyco datasheet S. 3)
Page preview · Skum/Tyco datasheet · S. 3
Source: Skum/Tyco HIEX datasheet, p. 1
