Library› Engine Room› Heat Exchangers› Brazed Plate Heat Exchanger› SWEP FI190
SWEP

FI190

Brazed Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person

SWEP FI190 — Single-circuit condenser for R32, R454B, R290 low-GWP refrigerants.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Capacity range60-150 kW
RefrigerantsLow-GWP: R32, R454B, R290
Número máximo de placas (NoP)140
Volume do canal0.149/0.172 dm³ (0.0053/0.0061 ft³)
Tamanho Máximo da Partícula (mm)0,8
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“SWEP FI190 O FI190 da SWEP é um evaporador de elevada eficiência com circuito único, especialmente (ou particularmente) desenvolvido para aplicações de refrigeração reversível, arrefecido a ar e…”

Features

  • Compact design
  • Next-generation AsyMatrix® plate pattern
  • Improved heat transfer
  • Low refrigerant charge

Options

  • software for advanced calculations
Source: SWEP FI190 datasheet, p. 2

Standards

  • Pressure Equipment Directive
  • Kouatsu-Gas Hoan Kyoukai
Source: SWEP FI190 datasheet, p. 2

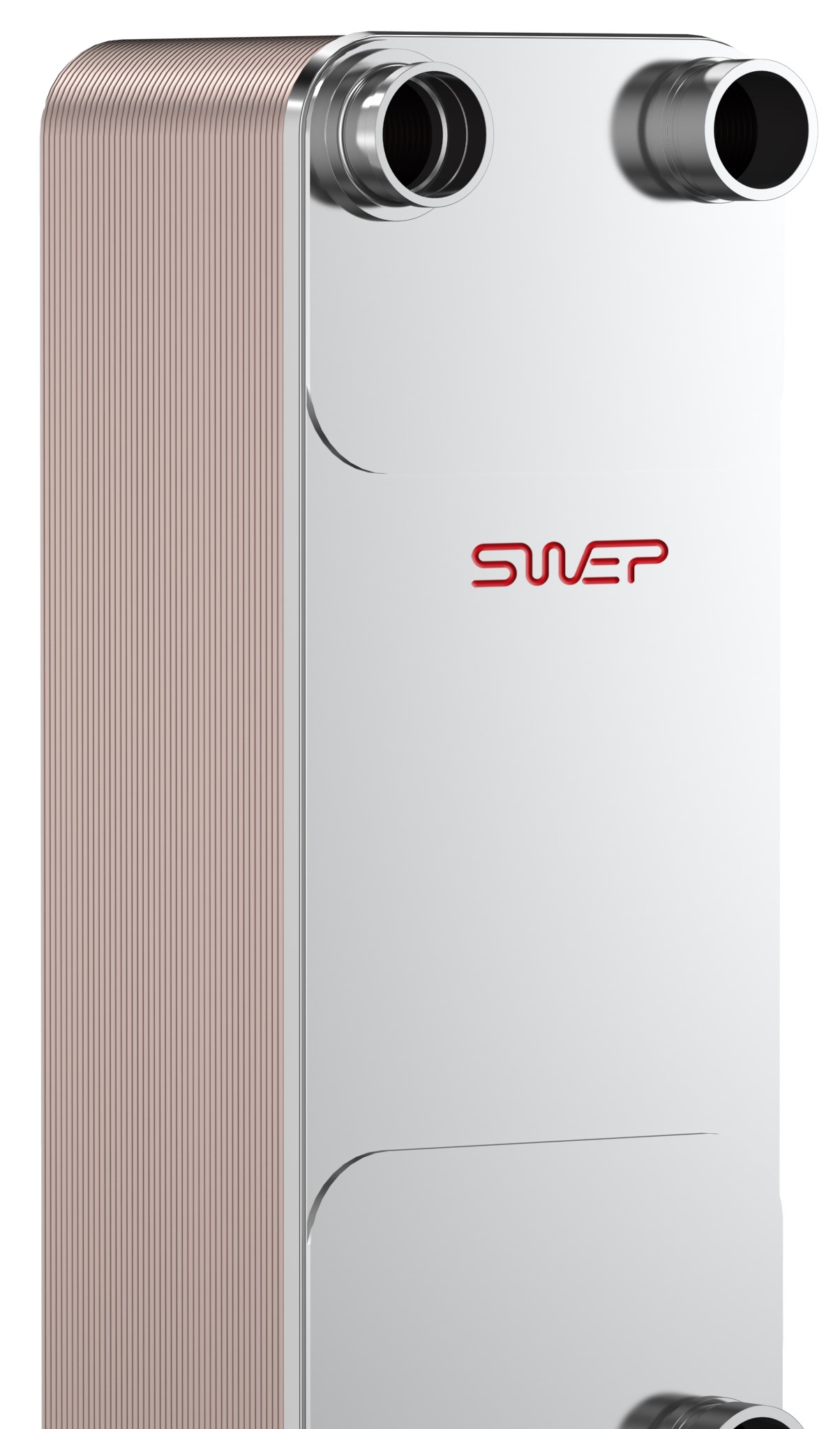

SWEP FI190 – Photo (c00325d5797b_S1-2 S. 1)
Photo · c00325d5797b_S1-2 · S. 1
SWEP FI190 – Photo (c00325d5797b_S1-2 S. 1)
Photo · c00325d5797b_S1-2 · S. 1

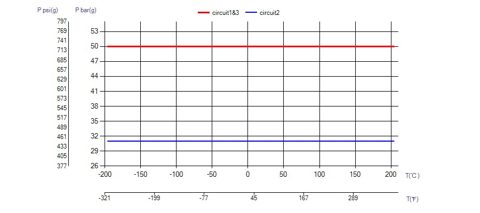

SWEP FI190 – Photo (c00325d5797b_S1-2 S. 2)
Photo · c00325d5797b_S1-2 · S. 2

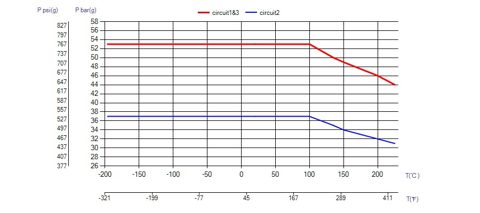

SWEP FI190 – Photo (c00325d5797b_S1-2 S. 2)
Photo · c00325d5797b_S1-2 · S. 2

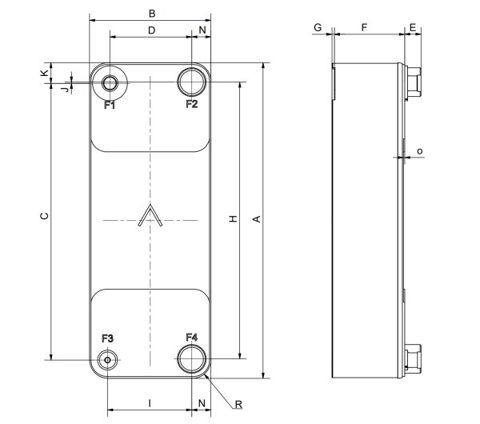

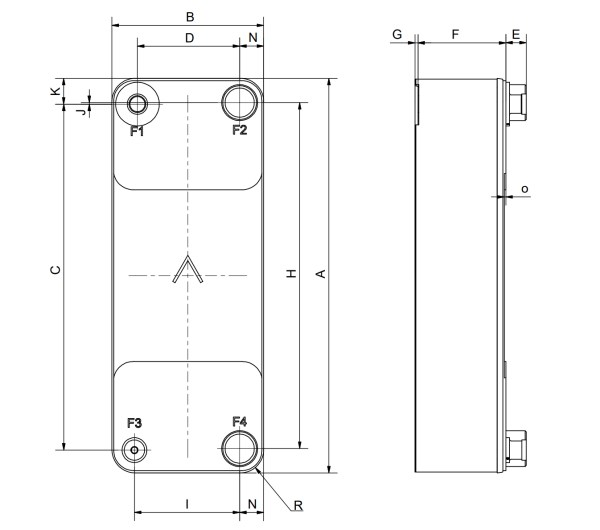

SWEP FI190 – Drawing (c00325d5797b_S1-2 S. 1)
Drawing · c00325d5797b_S1-2 · S. 1
SWEP FI190 – Drawing (c00325d5797b_S1-2 S. 1)
Drawing · c00325d5797b_S1-2 · S. 1

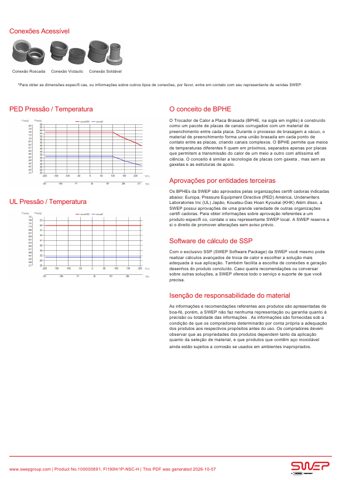

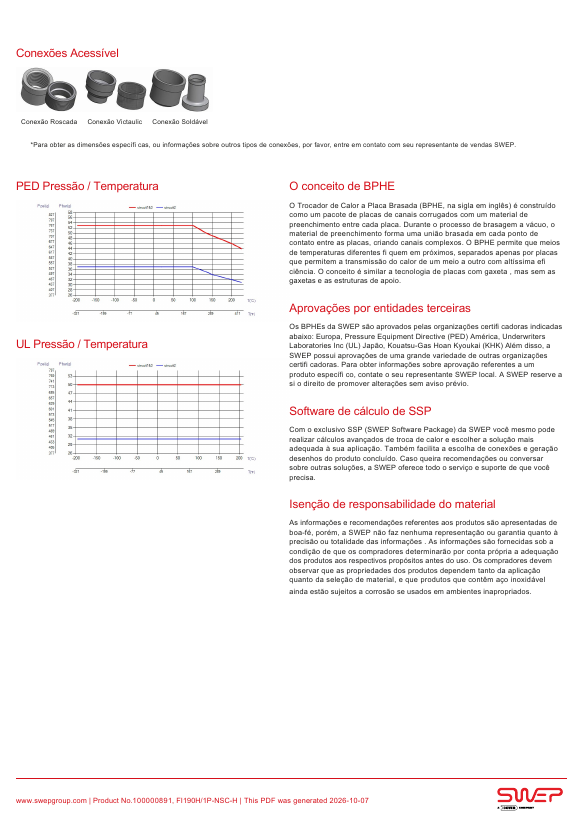

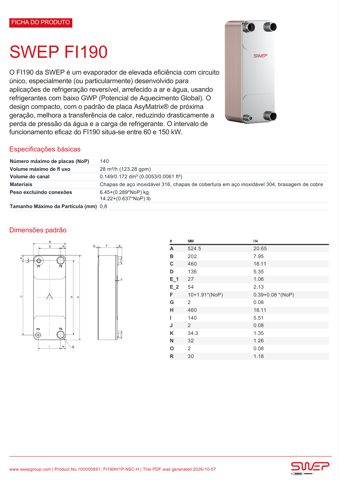

SWEP FI190 – Page preview (c00325d5797b_S1-2 S. 2)
Page preview · c00325d5797b_S1-2 · S. 2

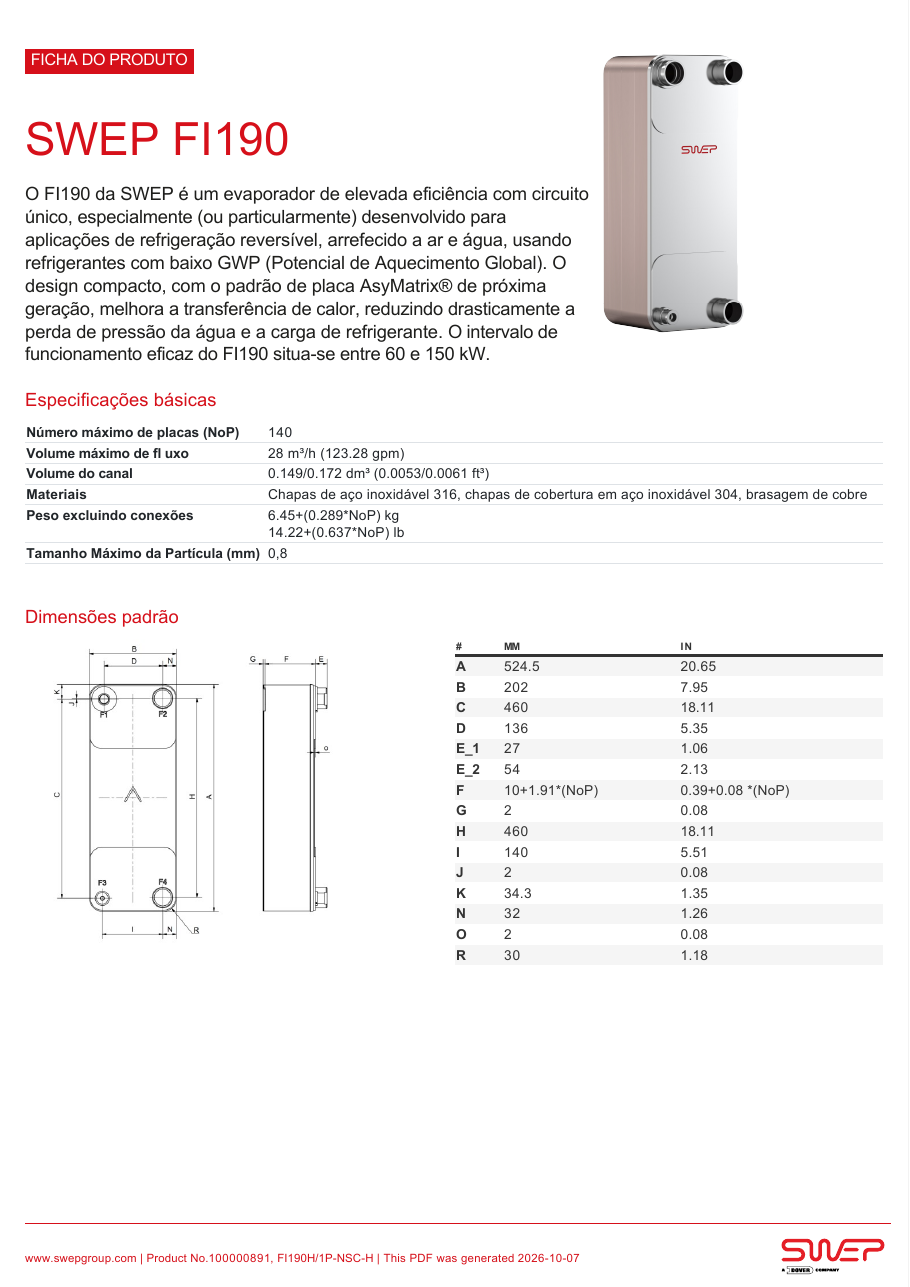

Source: SWEP FI190 datasheet, p. 1
