SWEP

F120T

Brazed Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person​‍‌​​⁠‌​​⁠​​⁠​​‌⁠‌‍‌
27.4Capacity
8.33+(0.424*NoP) kgWeight
A: 525, B: 243, C: 456, D: 174, E_1: 27, E_2: 54, F: 10+2.29*(NoP), G: 4, R: 35Dimensions
View photo ↗

The SWEP F120T is a highly efficient heat exchanger designed with a brazed plate heat exchanger (BPHE) concept. This innovative design features corrugated channel plates that are vacuum brazed, creating complex channels and enhancing heat transfer between media at different temperatures. The compact yet robust construction makes the F120T ideal for applications such as chillers, heat pumps, and economizers. With a maximum of 250 plates, it offers flexibility in flow rates up to 27.4 m³/h (120.64 gpm) and can handle particle sizes up to 18.36+(0.935*NoP) lb (8.33+(0.424*NoP) kg). Its standard dimensions, including A through G and R, allow for precise installation in various systems. The F120T is PED and UL certified, ensuring safety and performance across multiple regions. For detailed connections or specific inquiries, contact a SWEP sales representative.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Capacity27.4 m³/h🔖
DimensionsA: 525, B: 243, C: 456, D: 174, E_1: 27, E_2: 54, F: 10+2.29*(NoP), G: 4, R: 35 mm🔖
Weight (kg)8.33+(0.424*NoP) kg🔖
Maximum number of plates (NoP)250🔖
Material316/316L stainless steel plates, copper brazing🔖
📄
Download datasheet (PDF) (254 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“SWEP F120T The F120T is an evaporator optimized for high performance. It combines compact size and a specially developed plate pattern in a highly efficient heat exchanger with a long thermal length.…”

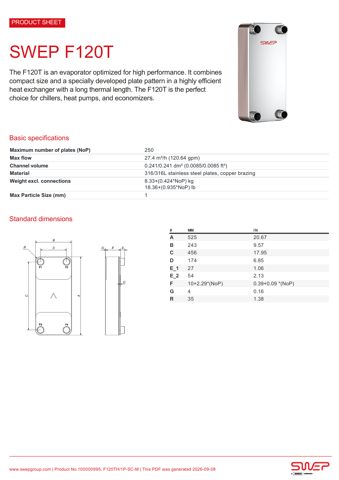

SWEP F120T – Photo (SWEP datasheet S. 1)
Photo · SWEP datasheet · S. 1

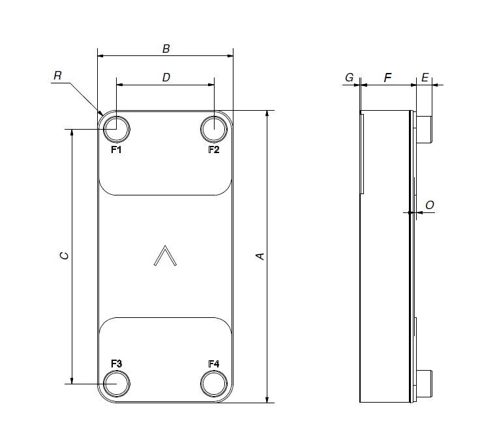

SWEP F120T – Drawing (SWEP datasheet S. 1)
