Library› Engine Room› Heat Exchangers› Brazed Plate Heat Exchanger› SWEP BX8T
SWEP

BX8T

Brazed Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person

SWEP BX8T — Container refrigeration, heat pumps, one-phase and two-phase.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Max number of plates (NoP)60
Port size F1/P116 mm (0.63 in)
Port size F2/P216 mm (0.63 in)
Port size F3/P316 mm (0.63 in)
Port size F4/P416 mm (0.63 in)
Max volume flow4 m³/h (17.6 gpm)
Channel volume (SI)0,039 dm3
Channel volume (US)0.00138 ft3
Pressure550 38 PSI (bar)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The SWEP BX8T is a heat exchanger suitable for various one-phase and two-phase applications in industries such as container refrigeration and heat pumps.

Applications

  • container refrigeration
  • heat pumps

Features

  • X-plates on front and back for structural stability
  • All-Active plate pack maximizes material utilization

Standards

  • EN 13345

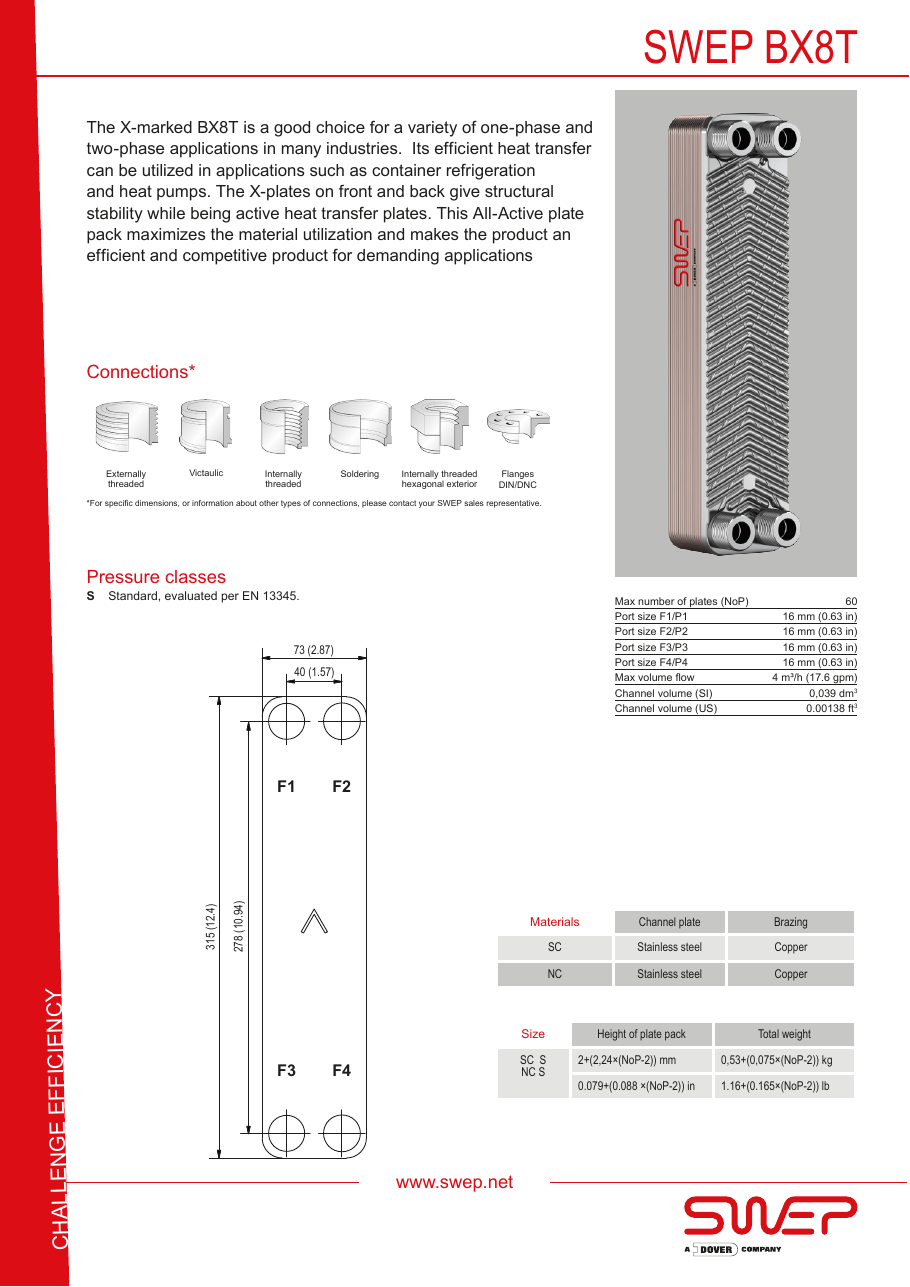

SWEP BX8T – Drawing (73decc63904e_S1-2 S. 1)
Drawing · 73decc63904e_S1-2 · S. 1

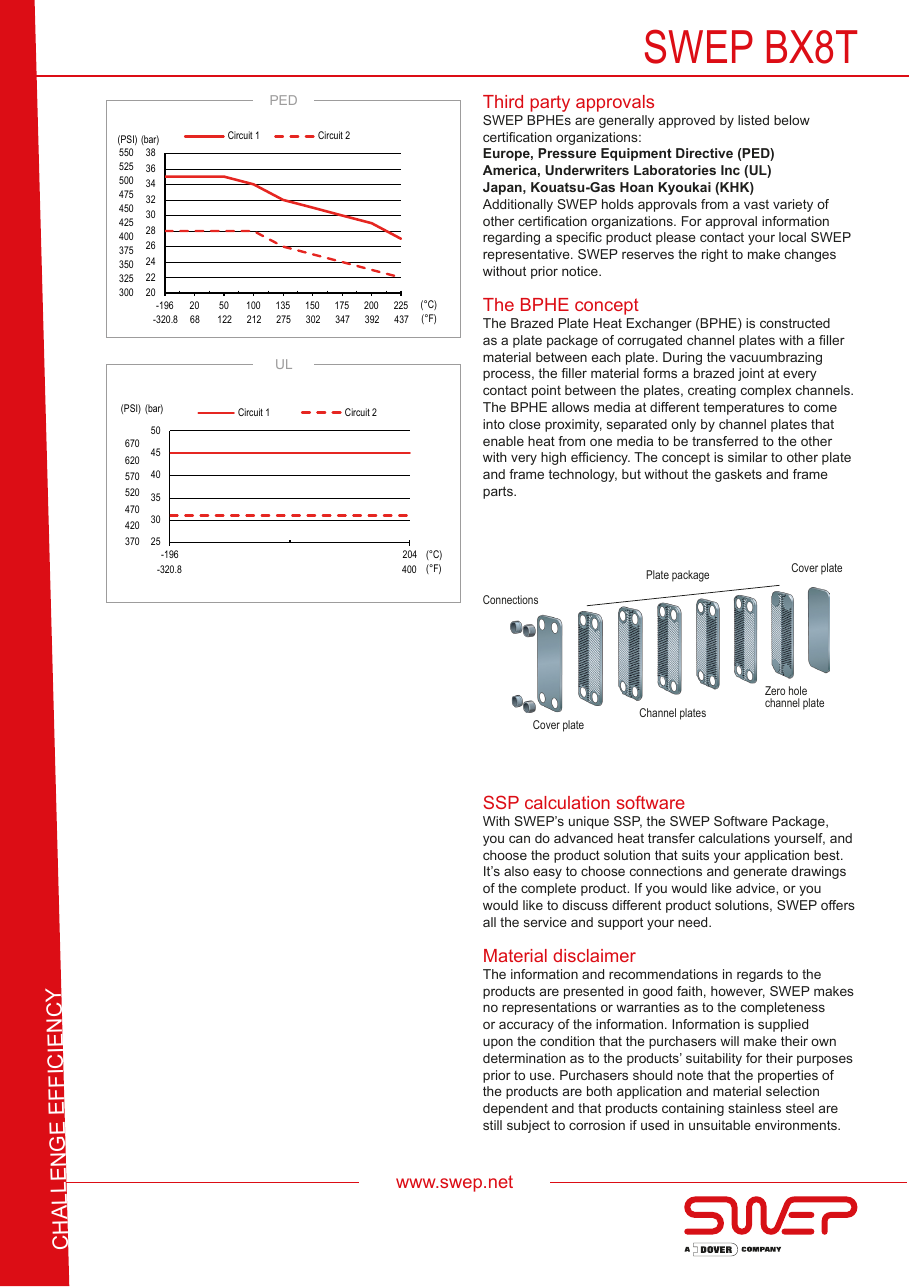

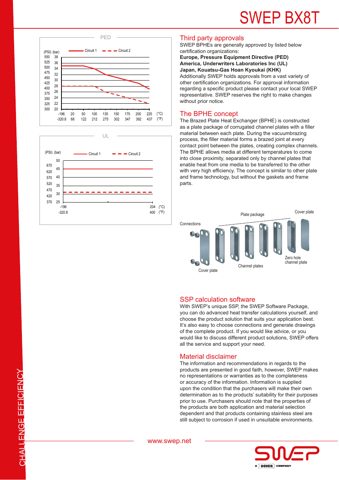

SWEP BX8T – Drawing (73decc63904e_S1-2 S. 2)
Drawing · 73decc63904e_S1-2 · S. 2
Source: SWEP BX8T datasheet, p. 1
