Library› Engine Room› Heat Exchangers› Brazed Plate Heat Exchanger› SWEP B427
SWEP

B427

Brazed Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person

SWEP B427 — Industrial heating, heating substations, fernwaerme-stations.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Plate typesFour different options
ApplicationIndustrial, district heating
Max number of plates (NoP)280
Port size F1/P1100 mm (3.937 in)
Port size F2/P2100 mm (3.937 in)
Port size F3/P3100 mm (3.937 in)
Max volume flow155,5 m³/h (684.2 gpm)
Channel volume (US)0.0143 ft3
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The SWEP B427 is a versatile heat exchanger suitable for various heating and industrial applications.

Applications

  • Heating systems
  • Industrial processes
  • Marine applications

Features

  • Four plate types
  • Handles up to 156 m³/h water flow
  • 4" connections
  • Adaptable for diverse applications

Standards

  • EN 13345

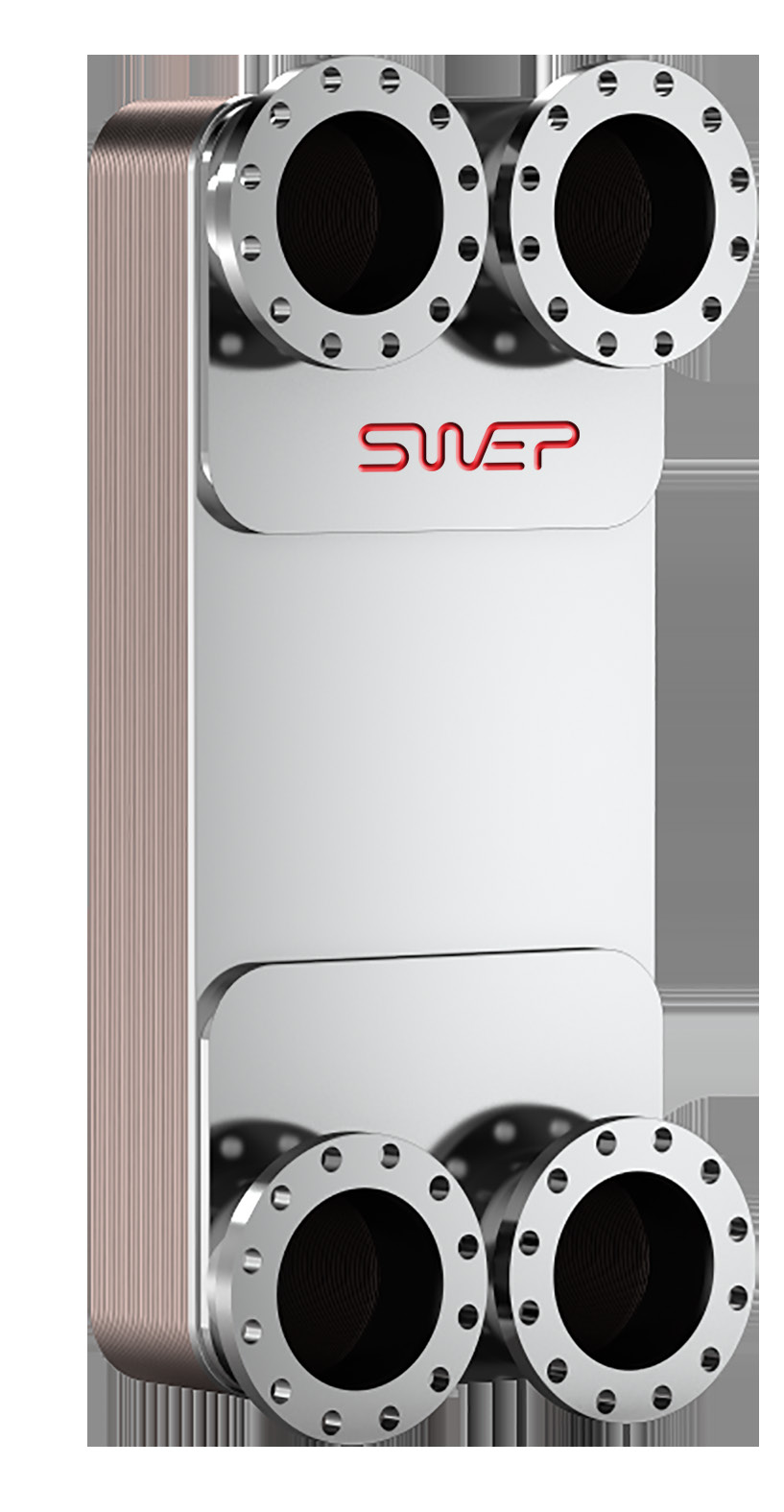

SWEP B427 – Photo (0d79b088b5b9_S1-2 S. 1)
Photo · 0d79b088b5b9_S1-2 · S. 1
SWEP B427 – Photo (0d79b088b5b9_S1-2 S. 1)
Photo · 0d79b088b5b9_S1-2 · S. 1

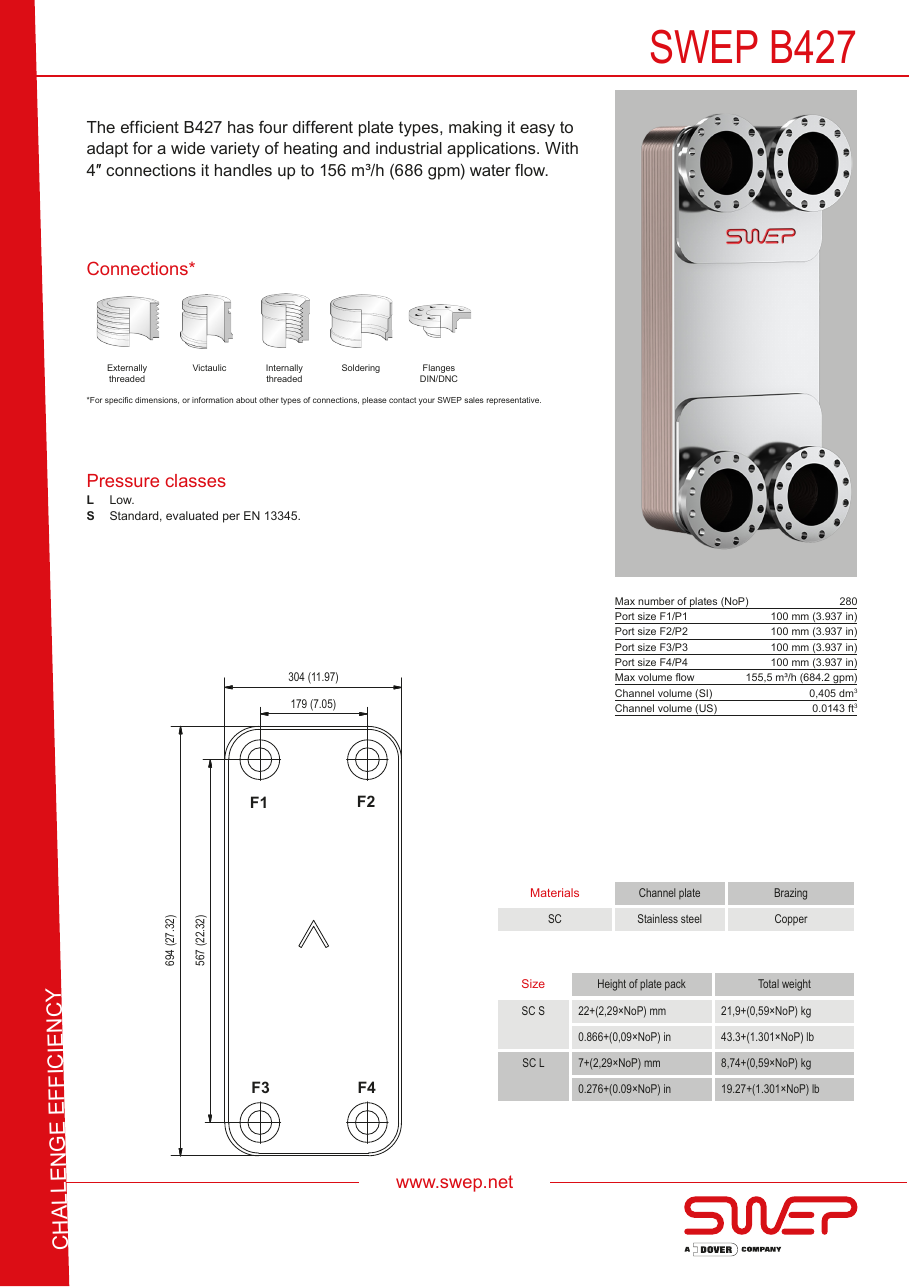

SWEP B427 – Drawing (0d79b088b5b9_S1-2 S. 1)
Drawing · 0d79b088b5b9_S1-2 · S. 1

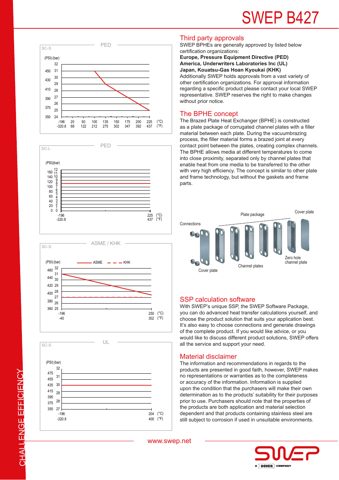

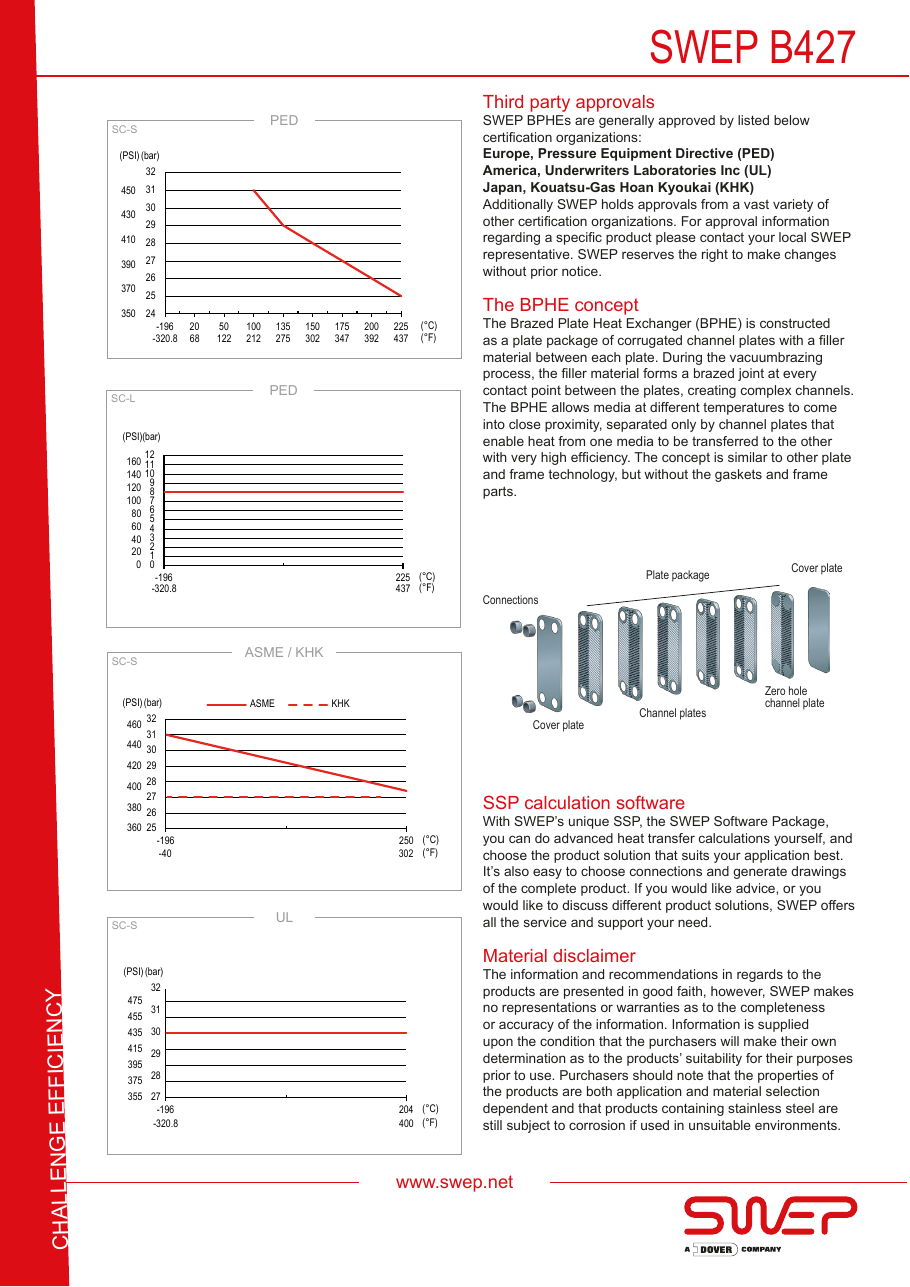

SWEP B427 – Drawing (0d79b088b5b9_S1-2 S. 2)
Drawing · 0d79b088b5b9_S1-2 · S. 2
Source: SWEP B427 datasheet, p. 1
