SWEP

B80

Brazed Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person

SWEP B80 — Small refrigeration, large heat pumps, low pressure loss.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Maximum number of plates (NoP)140
Max flow16.9 m³/h (74.41 gpm)
Channel volume0.107 dm³ (0.0038 ft³)
Material316 stainless steel plates, copper brazing
Weight excl. connections2.09+(0.164*NoP) kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The B80 is a medium-size high-capacity heat exchanger suitable for low-capacity chiller applications and high-performance heat pumps.

Applications

  • Low-capacity chiller applications
  • High-performance heat pumps
  • District heating substations
  • Oil cooler for compressors and hydraulics

Features

  • High-capacity model
  • Wide capacity range
  • 316 stainless steel plates
  • Copper brazing

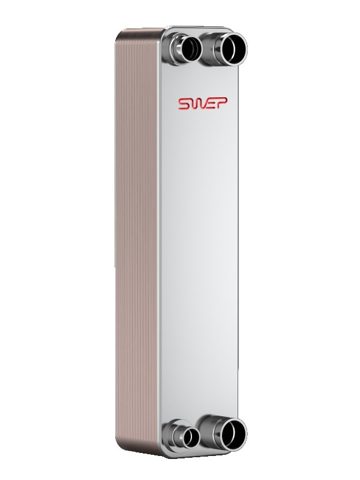

SWEP B80 – Photo (7ec7192c703d_S1-1 S. 1)
Photo · 7ec7192c703d_S1-1 · S. 1
SWEP B80 – Photo (7ec7192c703d_S1-1 S. 1)
Photo · 7ec7192c703d_S1-1 · S. 1

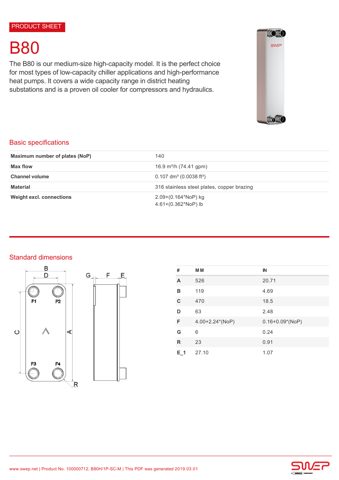

SWEP B80 – Drawing (7ec7192c703d_S1-1 S. 1)
Drawing · 7ec7192c703d_S1-1 · S. 1

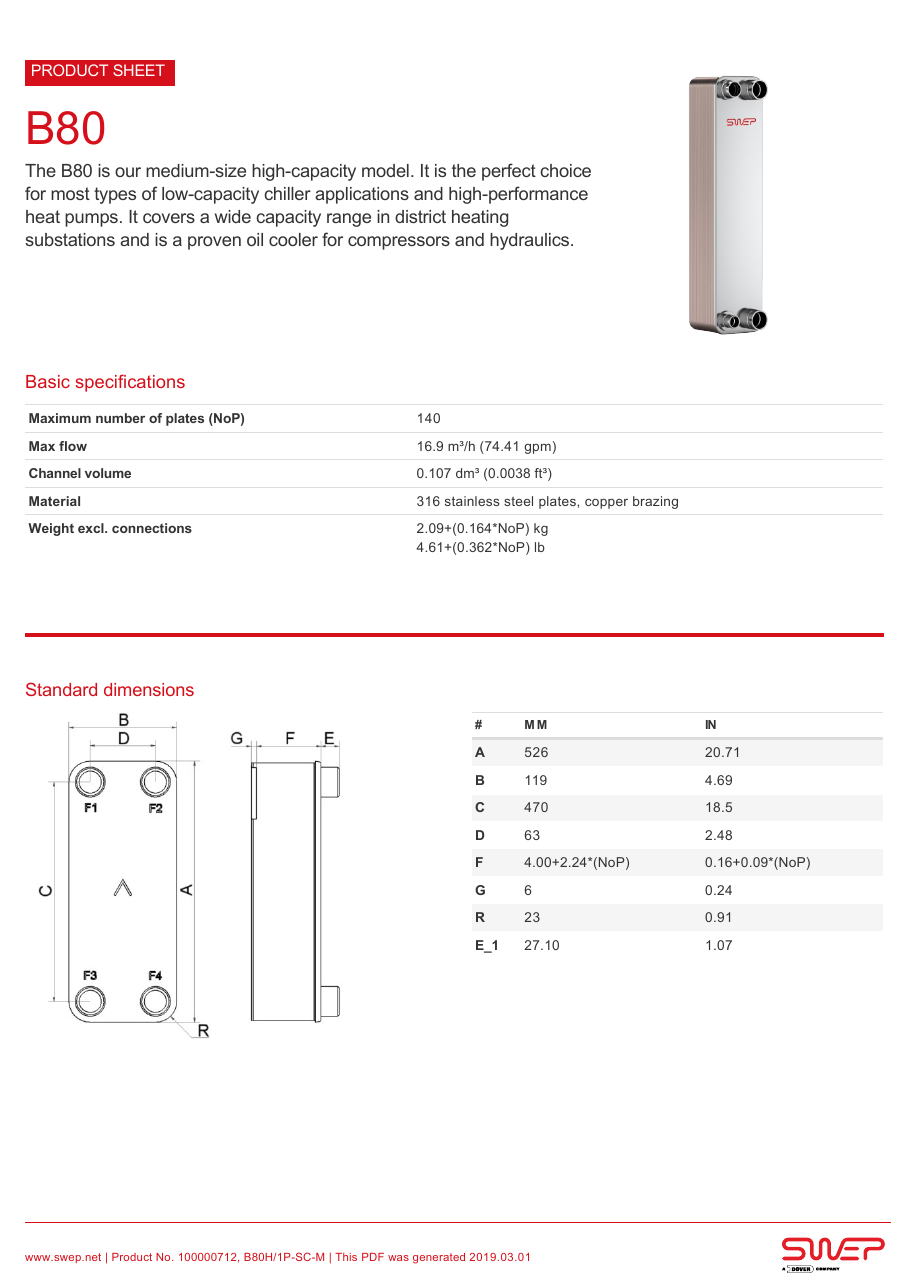

Source: SWEP B80 datasheet, p. 1
