Library› Engine Room› Heat Exchangers› Brazed Plate Heat Exchanger› SWEP B60
SWEP

B60

Brazed Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person

SWEP B60 — Gas/liquid applications with extreme volume differences.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

TypeGas/liquid brazed plate heat exchanger
ApplicationOptimized for high-capacity gas-liquid heat transfer
Max. počet desek (NoP)300
Velikost portu F1/P170 mm (2.756 in)
Velikost portu F2/P255 mm (2.165 in)
Velikost portu F3/P355 mm (2.165 in)
Max. objemový průtok76,2 m³/h (335.3 gpm)
Objem kanálu (SI)0,223 dm3
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“SWEP B60 Optimalizovaný typ B60 je předním produktem na trhu aplikací pro plyn/kapaliny. Nabízí optimální přenos tepla v aplikacích s extrémními rozdíly v objemu média. Asymetrický design kanálkových…”

Features

  • asymmetrical channel plate design
  • suitable for extreme media volume differences

Standards

  • EN 13345

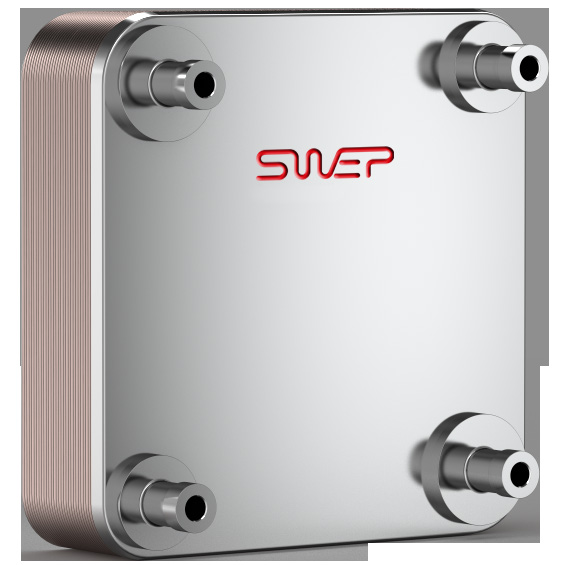

SWEP B60 – Photo (a98699d762b6_S1-1 S. 1)
Photo · a98699d762b6_S1-1 · S. 1
SWEP B60 – Photo (a98699d762b6_S1-1 S. 1)
Photo · a98699d762b6_S1-1 · S. 1
SWEP B60 – Drawing (a98699d762b6_S1-1 S. 1)
Drawing · a98699d762b6_S1-1 · S. 1

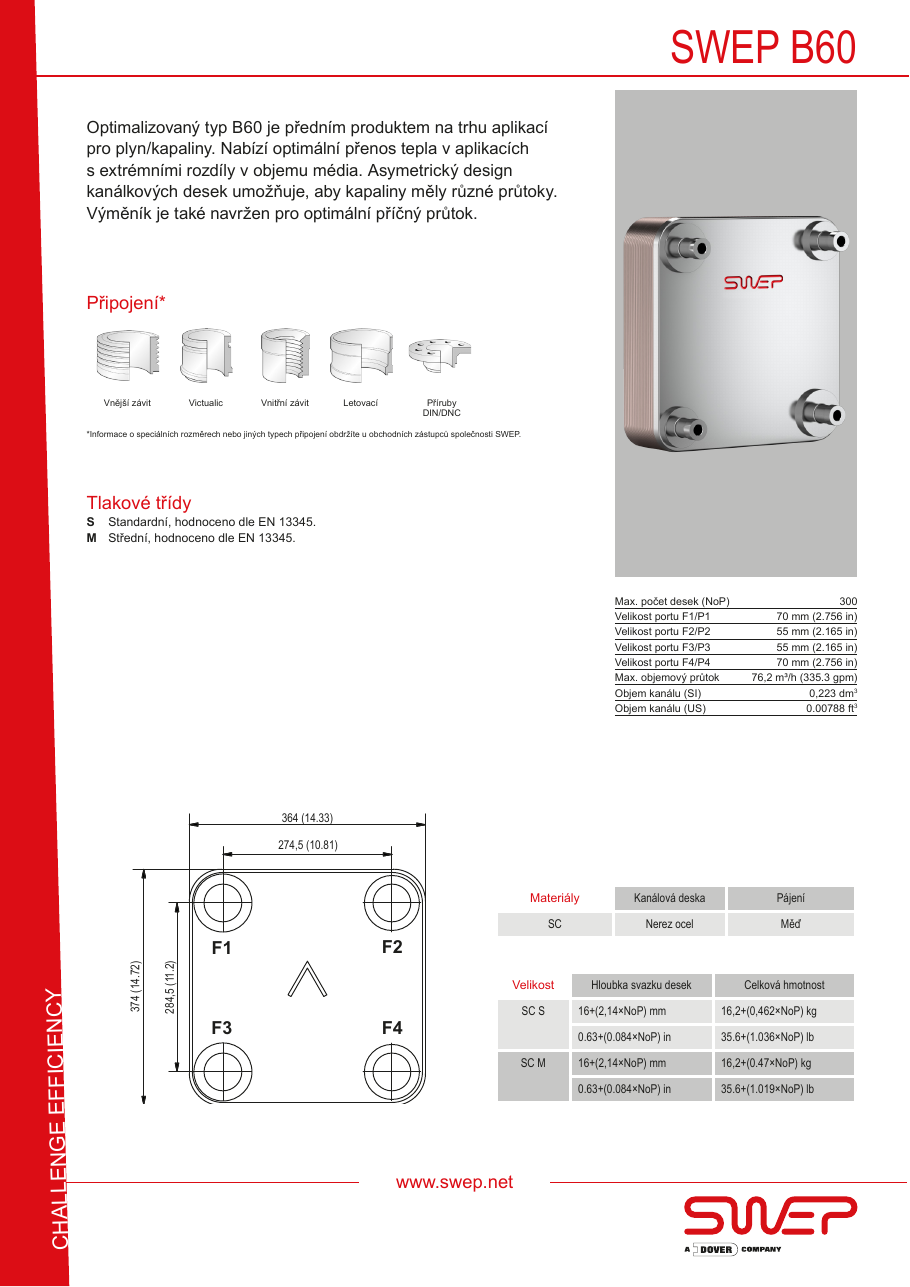

Source: SWEP B60 datasheet, p. 1
