Library› Engine Room› Heat Exchangers› Brazed Plate Heat Exchanger› SWEP B35TDW
SWEP

B35TDW

Brazed Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person

SWEP B35TDW — Heat recovery applications with leak protection.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Número máximo de placas (NoP)260
Volume máximo de fl uxo58 m³/h (255.37 gpm)
Volume do canal0.18/0.18 dm³ (0.0064/0.0064 ft³)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

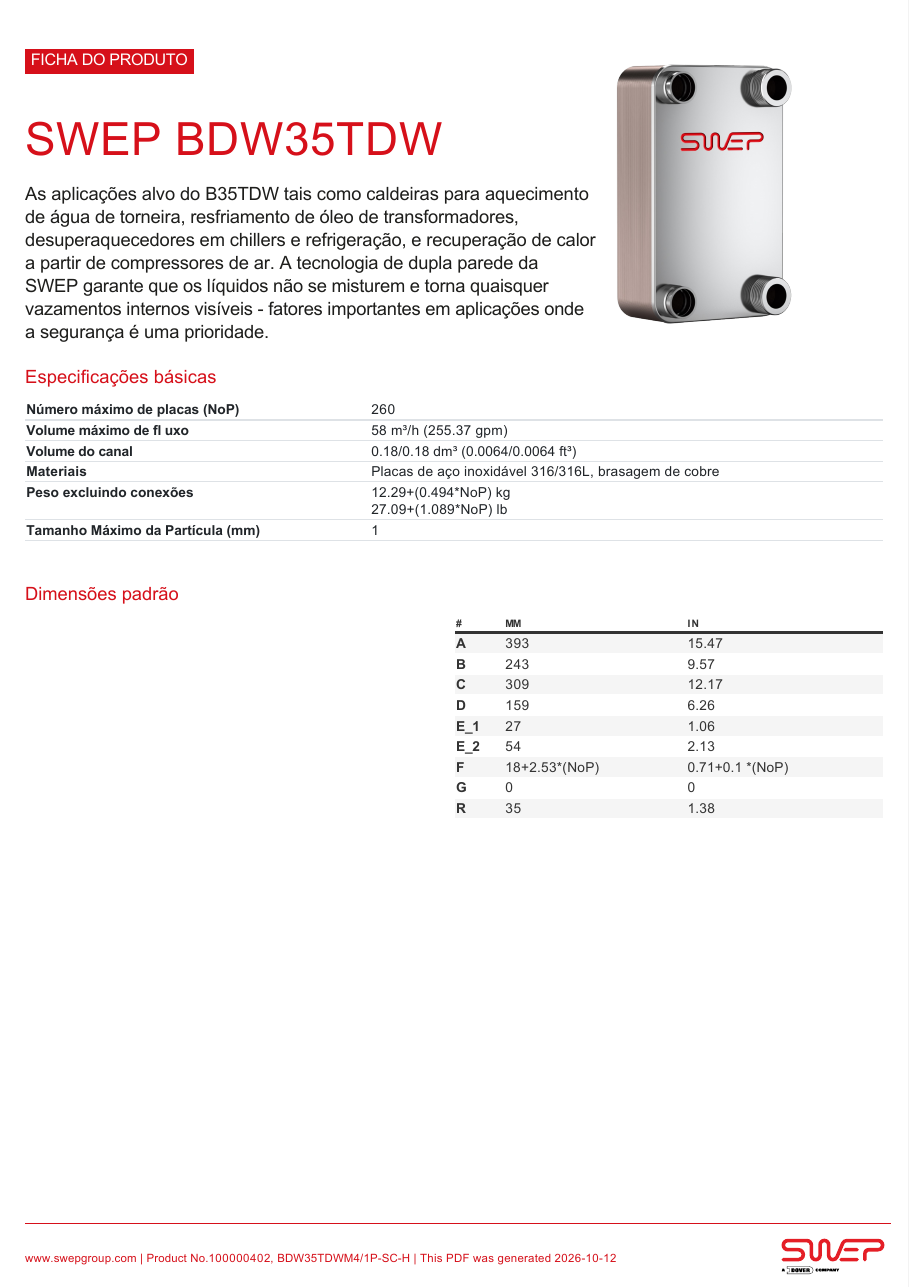

“SWEP BDW35TDW As aplicações alvo do B35TDW tais como caldeiras para aquecimento de água de torneira, resfriamento de óleo de transformadores, desuperaquecedores em chillers e refrigeração, e…”

Features

  • no liquid mixing

Options

  • SSP software for advanced calculations
Source: SWEP B35TDW datasheet, p. 2

Standards

  • PED
  • UL
  • KHK
Source: SWEP B35TDW datasheet, p. 2

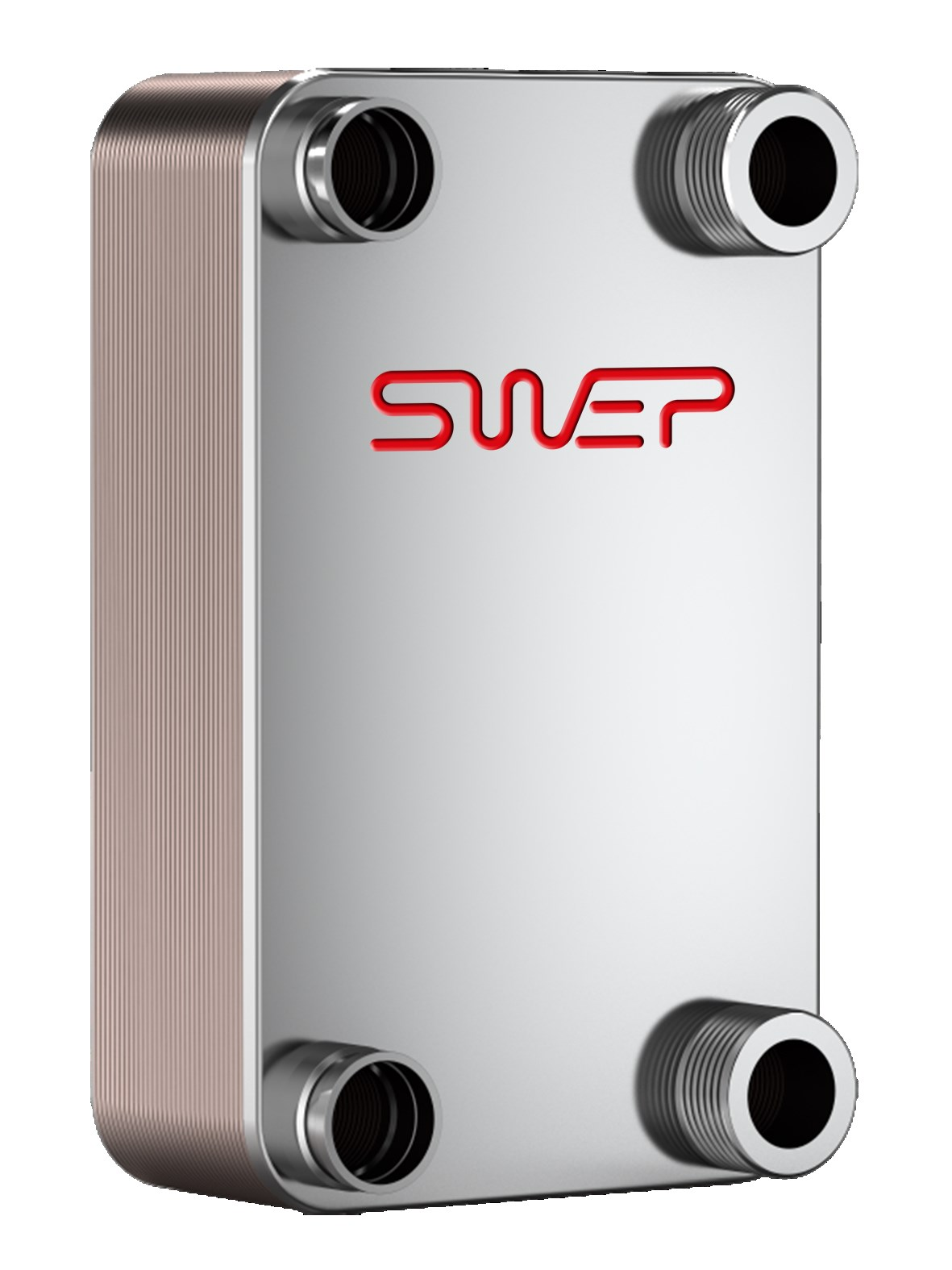

SWEP B35TDW – Photo (1df0489f4329_S1-2 S. 1)
Photo · 1df0489f4329_S1-2 · S. 1
SWEP B35TDW – Photo (1df0489f4329_S1-2 S. 2)
Photo · 1df0489f4329_S1-2 · S. 2
SWEP B35TDW – Photo (1df0489f4329_S1-2 S. 2)
Photo · 1df0489f4329_S1-2 · S. 2
SWEP B35TDW – Drawing (1df0489f4329_S1-2 S. 1)
Drawing · 1df0489f4329_S1-2 · S. 1
SWEP B35TDW – Drawing (1df0489f4329_S1-2 S. 1)
Drawing · 1df0489f4329_S1-2 · S. 1

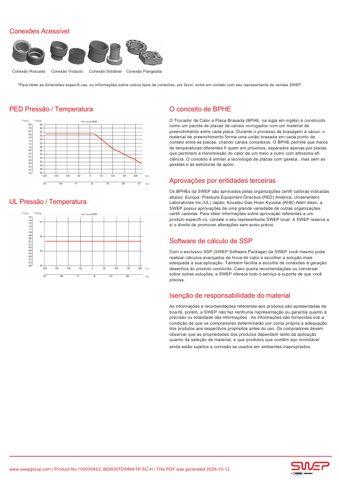

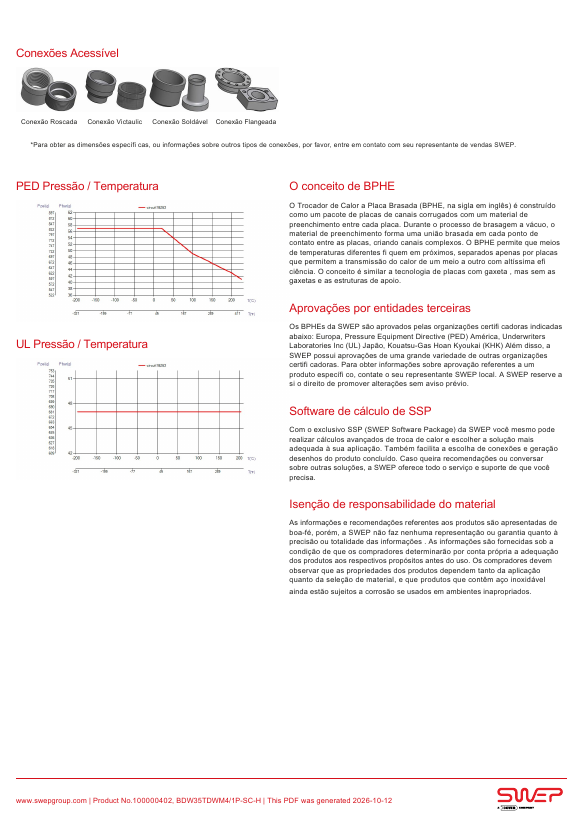

SWEP B35TDW – Page preview (1df0489f4329_S1-2 S. 2)
Page preview · 1df0489f4329_S1-2 · S. 2
Source: SWEP B35TDW datasheet, p. 1
