Library› Engine Room› Heat Exchangers› Brazed Plate Heat Exchanger› SWEP B35
SWEP

B35

Brazed Plate Heat Exchanger · Heat Exchangers

Technical data from manufacturer or class sources · not yet verified by a person

SWEP B35 — Medium capacity one-phase applications, oil cooling.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Max number of plates (NoP)250
Port size F1/P142 mm (1.654 in)
Port size F2/P242 mm (1.654 in)
Port size F3/P342 mm (1.654 in)
Max volume flow27,4 m³/h (120.6 gpm)
Channel volume (SI)0,179 dm3
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The B35 heat exchanger is ideal for various applications, including district heating, heat recovery, combined heat and power, and engine oil and transmission oil cooling.

Applications

  • district heating
  • heat recovery
  • combined heat and power
  • engine oil cooling
  • transmission oil cooling

Features

  • efficient heat transfer
  • low pressure drop
  • up to 2" piping
  • 27 m³/h (118.8 gpm) water flow

Standards

  • EN 13345
SWEP B35 – Photo (28c6b4c1aa79_S1-2 S. 1)
Photo · 28c6b4c1aa79_S1-2 · S. 1

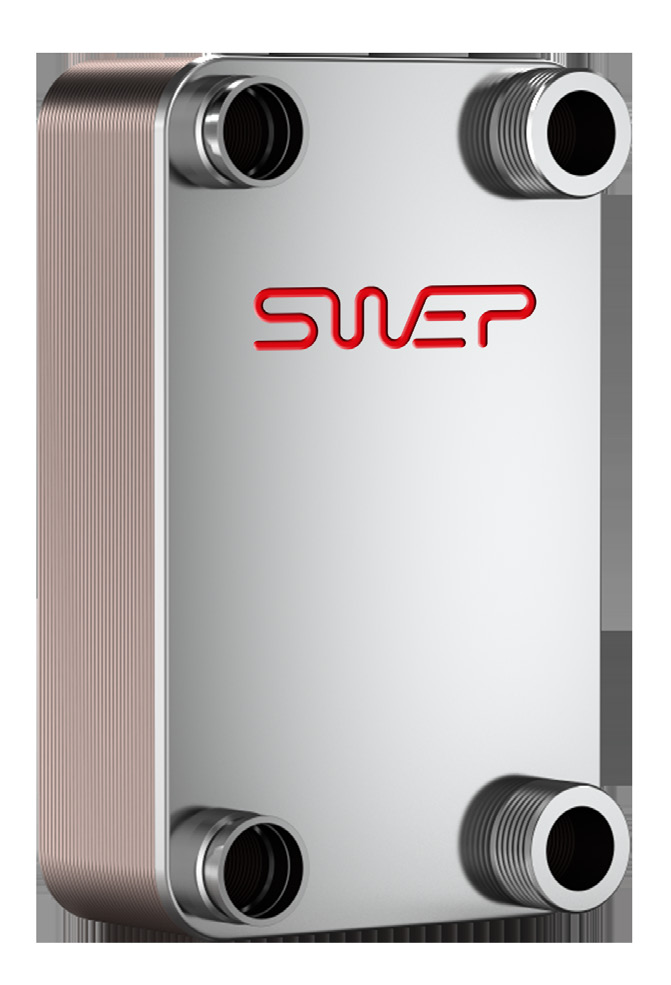

SWEP B35 – Photo (28c6b4c1aa79_S1-2 S. 1)
Photo · 28c6b4c1aa79_S1-2 · S. 1

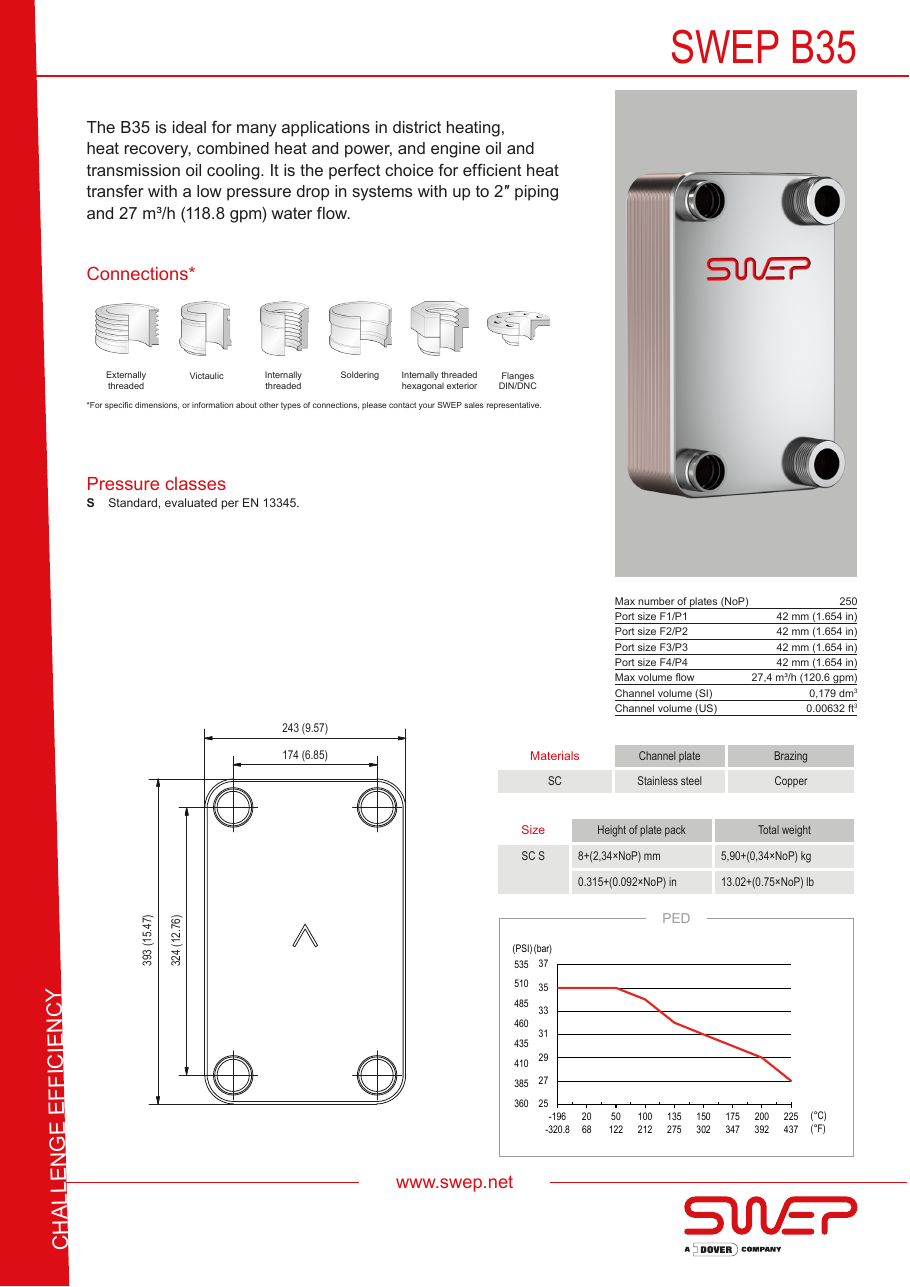

SWEP B35 – Drawing (28c6b4c1aa79_S1-2 S. 1)
Drawing · 28c6b4c1aa79_S1-2 · S. 1

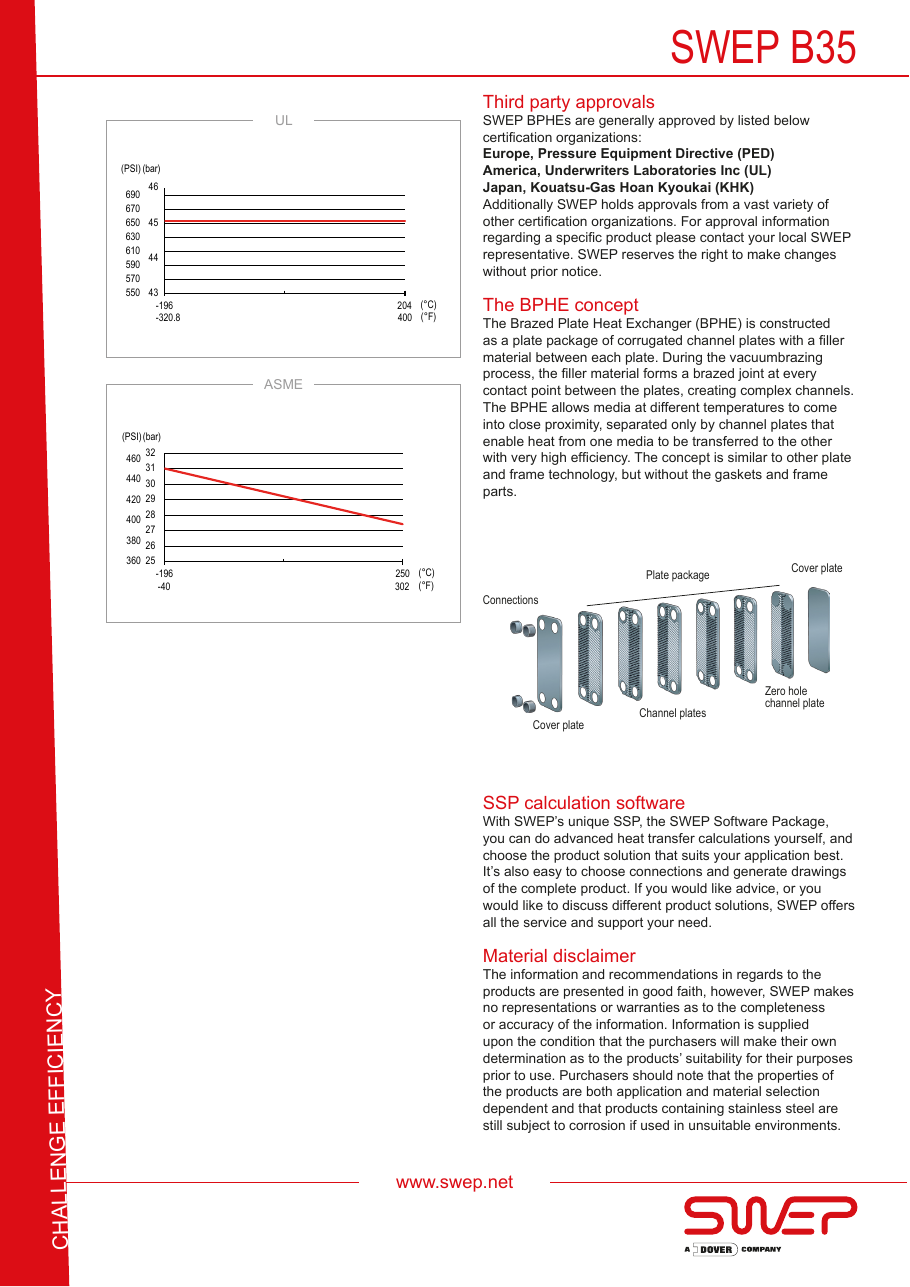

SWEP B35 – Drawing (28c6b4c1aa79_S1-2 S. 2)
Drawing · 28c6b4c1aa79_S1-2 · S. 2
Source: SWEP B35 datasheet, p. 1
