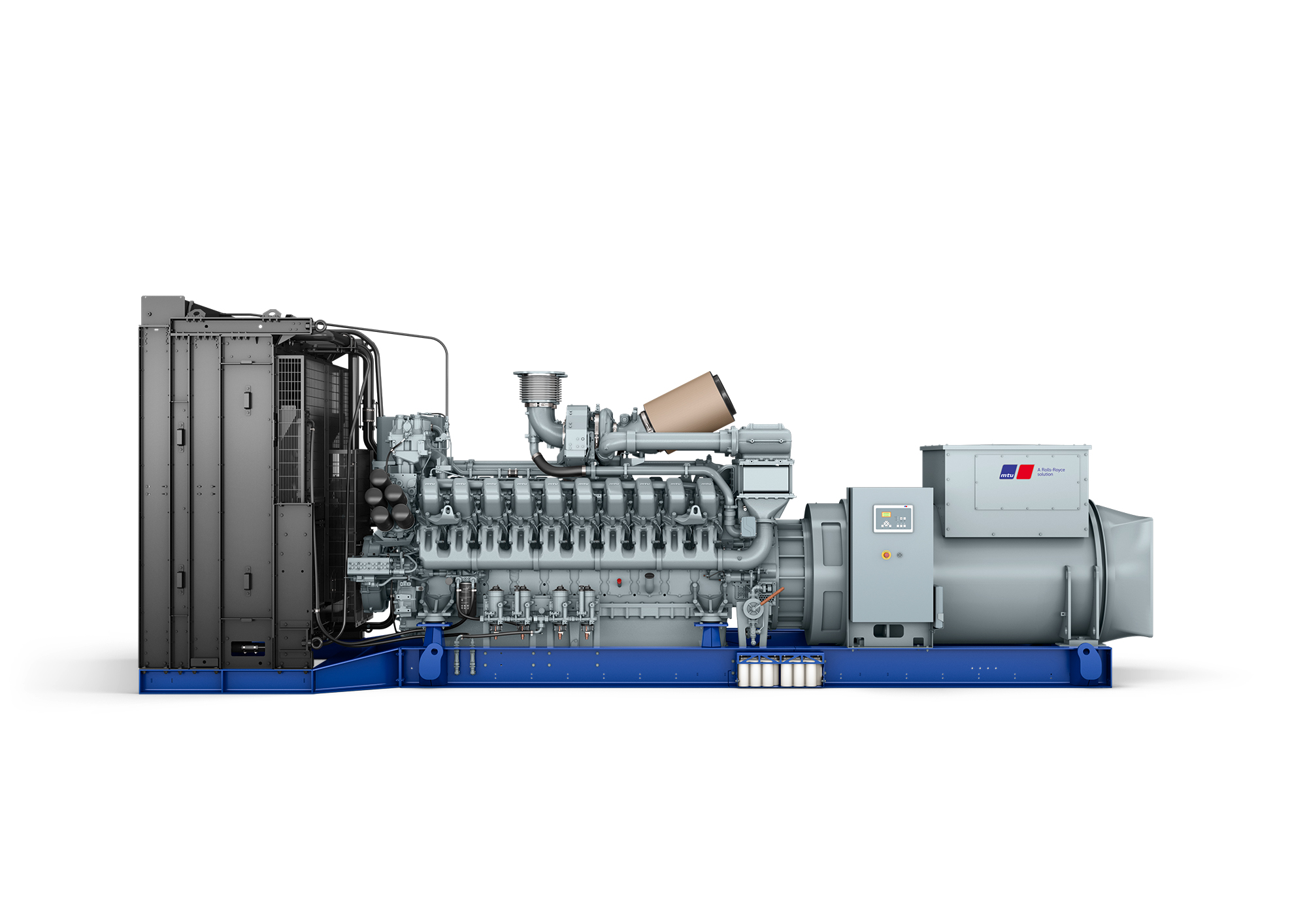

Series 4000 M63 G-20cyl

Common issues

• High-pressure common rail fuel system component failures (injectors, high-pressure pump, pressure sensors) due to MGO's lower lubricity or contamination.
• Turbocharger bearing wear or fouling, especially on multi-turbo configurations, leading to reduced boost and increased exhaust temperatures.
• Engine Control Unit (ECU) or sensor malfunctions, causing erratic operation, alarms, or shutdown due to the sophisticated electronic management system.
• Cooling system inefficiencies: fouling of plate heat exchangers (freshwater/charge air coolers), leaks from seals or hoses, or thermostat issues.
• Excessive lube oil consumption or oil leaks, often from turbocharger seals, valve covers, or crankcase breathers.
• Vibration damper degradation on the crankshaft, leading to increased engine vibration and potential damage to other components.
• Cylinder head issues: valve seat wear, valve guide wear, or injector nozzle carbonization affecting combustion efficiency.
• Starting system failures: starter motor wear, solenoid issues, or battery degradation, critical for auxiliary power.

Inspection checklist

• Fluid Levels & Leaks: Check lube oil, coolant, and fuel levels. Inspect for any visible leaks (oil, fuel, water) around the engine block, sumps, and pipework.
• Filter Condition: Verify differential pressures across lube oil, fuel (primary/secondary), and air filters. Inspect for signs of clogging or damage.
• Turbocharger Inspection: Check for axial and radial play on turbocharger shafts. Look for oil ingress/egress, and inspect compressor and turbine blades for fouling or damage.
• Fuel System Integrity: Visually inspect high-pressure fuel lines for leaks, chafing, or damage. Check common rail pressure sensor and injector connections.
• Cooling System: Inspect heat exchangers (FW, SW, Charge Air) for cleanliness and signs of external/internal fouling. Check pump seals, hose condition, and coolant quality.
• Engine Mounts & Vibration: Assess the condition of anti-vibration mounts for cracking or degradation. Listen for unusual noises and feel for excessive vibration during operation.
• Exhaust System: Inspect exhaust manifold and piping for leaks, cracks, and integrity of insulation. Monitor exhaust gas temperatures and back pressure (if instrumentation available).
• Electrical & Instrumentation: Check wiring harnesses for chafing or damage. Verify sensor connections. Review engine operating parameters (pressures, temperatures, RPM, load) on the local display/MCM against normal ranges.
• Valve Train & Cylinder Heads: Perform a visual inspection of valve covers for leaks. Listen for abnormal valve train noise. (Valve clearance check typically part of scheduled maintenance, not daily inspection).
• Safety Devices: Confirm functionality of emergency stop buttons and verify alarm system operation for critical parameters (e.g., low oil pressure, high coolant temp, overspeed).

Service intervals

Typical wear limits

Ranges are typical for this design class. Always confirm against the manufacturer documentation for your serial number.

Critical spares

• Complete set of fuel filters (primary and secondary)
• Complete set of lube oil filters
• Fuel Injectors (at least 1-2 units, given 20 cylinders)
• Key Sensors (e.g., common rail pressure, engine speed, oil pressure, coolant temperature)
• High-Pressure Fuel Pump (or major repair kit)
• Starter Motor (complete unit or critical components)
• Drive belts (if applicable, though many MTU 4000 use gear drives for pumps)
• Assorted Gaskets and O-rings for common maintenance tasks

Safety

• High-Pressure Fuel System: Common rail systems operate at extreme pressures (up to 2200 bar). Leaks can cause severe injury (skin penetration) or fire. Always depressurize before working on the system.
• Hot Surfaces: Exhaust manifold, turbochargers, and engine block reach very high temperatures. Risk of severe burns. Ensure proper insulation is maintained.
• Rotating Machinery: Flywheel, crankshaft, and turbocharger rotors pose entanglement hazards. Ensure engine is secured against accidental start and guards are in place.
• Electrical Hazards: High voltage from starter motor, alternator, and ECU. Always follow Lock-Out/Tag-Out procedures before electrical work.
• Noise Levels: Engine operation generates high noise levels. Hearing protection is mandatory in the engine room.

Class survey

For an MTU 4000 Series auxiliary engine, a class surveyor will typically focus on: 1. Documentation Review: Verification of engine logbooks, maintenance records, oil analysis reports, fuel quality records, and compliance certificates (e.g., MARPOL Annex VI Tier II). 2. Visual Inspection: Thorough check for general cleanliness, absence of leaks (fuel, oil, water), corrosion, integrity of insulation on hot surfaces, condition of pipework, and electrical wiring. 3. Safety Devices: Functional testing of critical safety shutdowns (overspeed, low lube oil pressure, high coolant temperature) and emergency stop mechanisms. Verification of alarm setpoints. 4. Engine Performance: Observation of engine running parameters (pressures, temperatures, RPM, load, exhaust gas temperatures) during operation to ensure they are within manufacturer's specified limits. 5. Fuel System: Inspection of the high-pressure common rail system for leaks, proper securing of lines, and condition of fuel filters. Verification of fuel supply and return systems. 6. Cooling System: Examination of heat exchangers (FW, SW, Charge Air) for cleanliness and efficiency, pump seals, and overall system integrity. 7. Exhaust System: Inspection for leaks, cracks, proper insulation, and back pressure (if monitored) to ensure compliance with emission regulations. 8. Starting System: Verification of starter motor functionality, battery condition, and charging system. 9. Engine Mounts: Assessment of anti-vibration mounts for signs of degradation, cracking, or excessive compression. 10. General Condition: Overall assessment of the engine's condition, including any signs of excessive vibration, unusual noises, or unauthorized modifications.

Estimated lifetime: 24000-36000 hours before major overhaul (D-service), with proper maintenance and load profile, potentially extending to 40,000+ hours.
