Carbozinc 859

Epoxy Primer · Paint & Coating Systems

Class-certified type (DNV register) · technical data sheet not yet verified​‍​‍‍​​‍‌​⁠⁠⁠‌​‍⁠⁠⁠​

Carboline Carbozinc 859 is listed in this library as a marine epoxy primer in the Paint & Coating Systems / Epoxy Primer category. Equipment of this class is typically installed in the shipboard area serving the paint & coating systems function, with the exact location determined by the vessel arrangement. Its shipboard purpose is to perform the operational duty associated with the vessel's epoxy primer installation. The exact piping, electrical, control, foundation, and accessory arrangement depends on the vessel and the installed configuration. Where adjacent models in the same product family differ in rating, size, materials, control options, certification, or accessories, refer to the manufacturer documentation for the exact model-specific differences.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Surface profile1.0-3.0 mil (25-75 micron)
Dry to recoat30 minutes at 75°F (24°C) and 50% relativ
Low temperature curedown to 35°F (2°C)
Mixing Ratio Part A.35 gallons
Mixing Ratio Part B.20 gallons
Zinc Filler14.6 lbs
Total Zinc Dust in Dry Film81% By Weight
Theoretical Coverage1059 ft²/gal at 1.0 mils (26.0 m²/l at 25 microns)
Dry Temp. Resistance Continuous400°F (204°C)
Dry Temp. Resistance Non-Continuous425°F (218°C)
Dry Film Thickness6 mils
Surface Profile1.0-3.0 mil (25-75 micron)
Product LineCarbozinc
Coating Typeepoxy
Application Methodairless spray
Dft (µm)75
Voc (g/l)300
Overcoating Interval (h)2
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Low VOC organic zinc epoxy steel primer with extremely fast cure-to-topcoat characteristics for in-shop applications and quick turnaround requirements in the field.

Applications

  • industrial markets
  • in-shop applications
  • field applications

Features

  • Meets Class B slip co-efficient and creep testing criteria
  • Rapid cure
  • Low temperature cure
  • Excellent adhesion
  • Protects against undercutting corrosion
  • Field proven primer

Standards

  • SSPC-SP6
  • SSPC-SP2

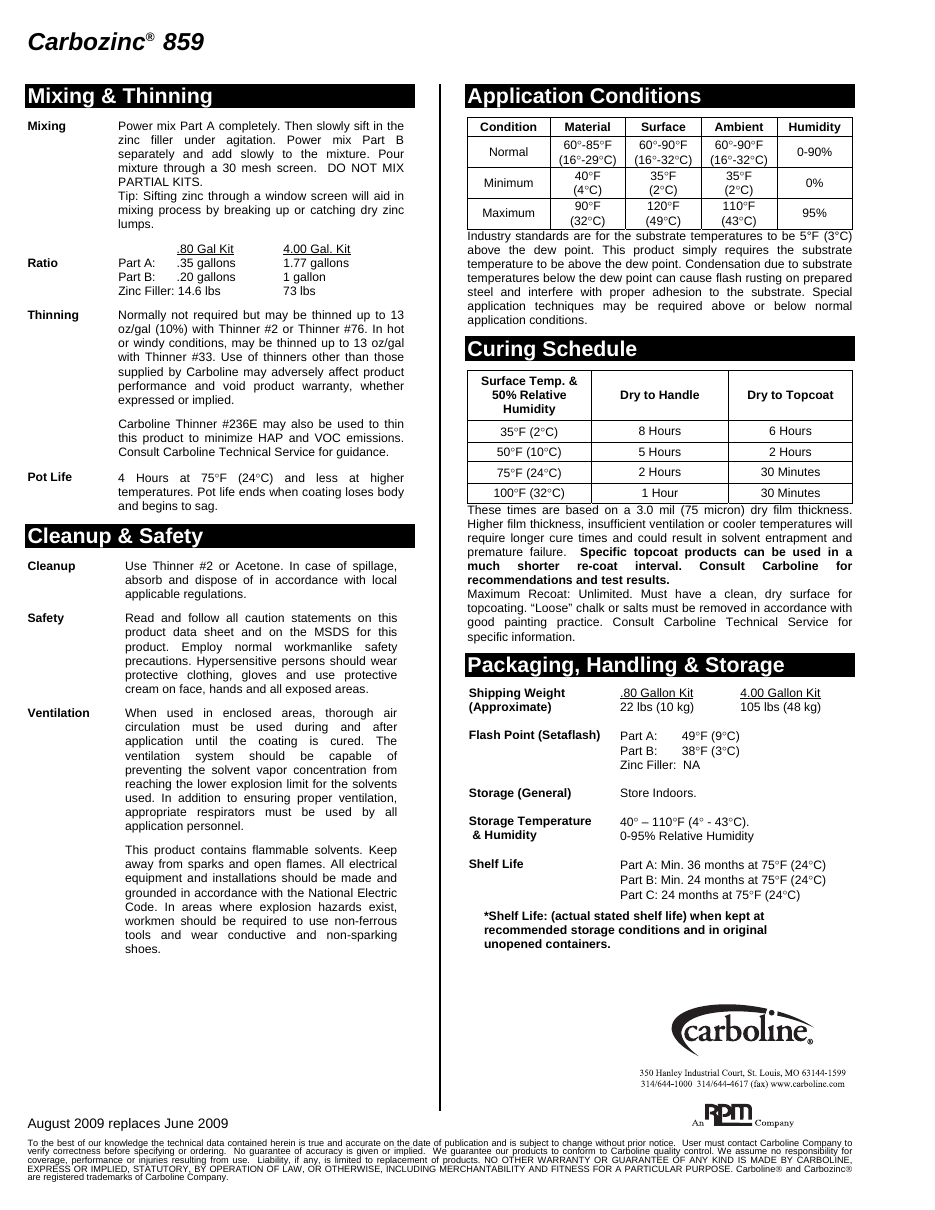

Carboline Carbozinc 859 – Photo (b1fa30b83a50_S1-2 S. 2)
Photo · b1fa30b83a50_S1-2 · S. 2
Carboline Carbozinc 859 – Photo (b1fa30b83a50_S1-2 S. 2)
Photo · b1fa30b83a50_S1-2 · S. 2

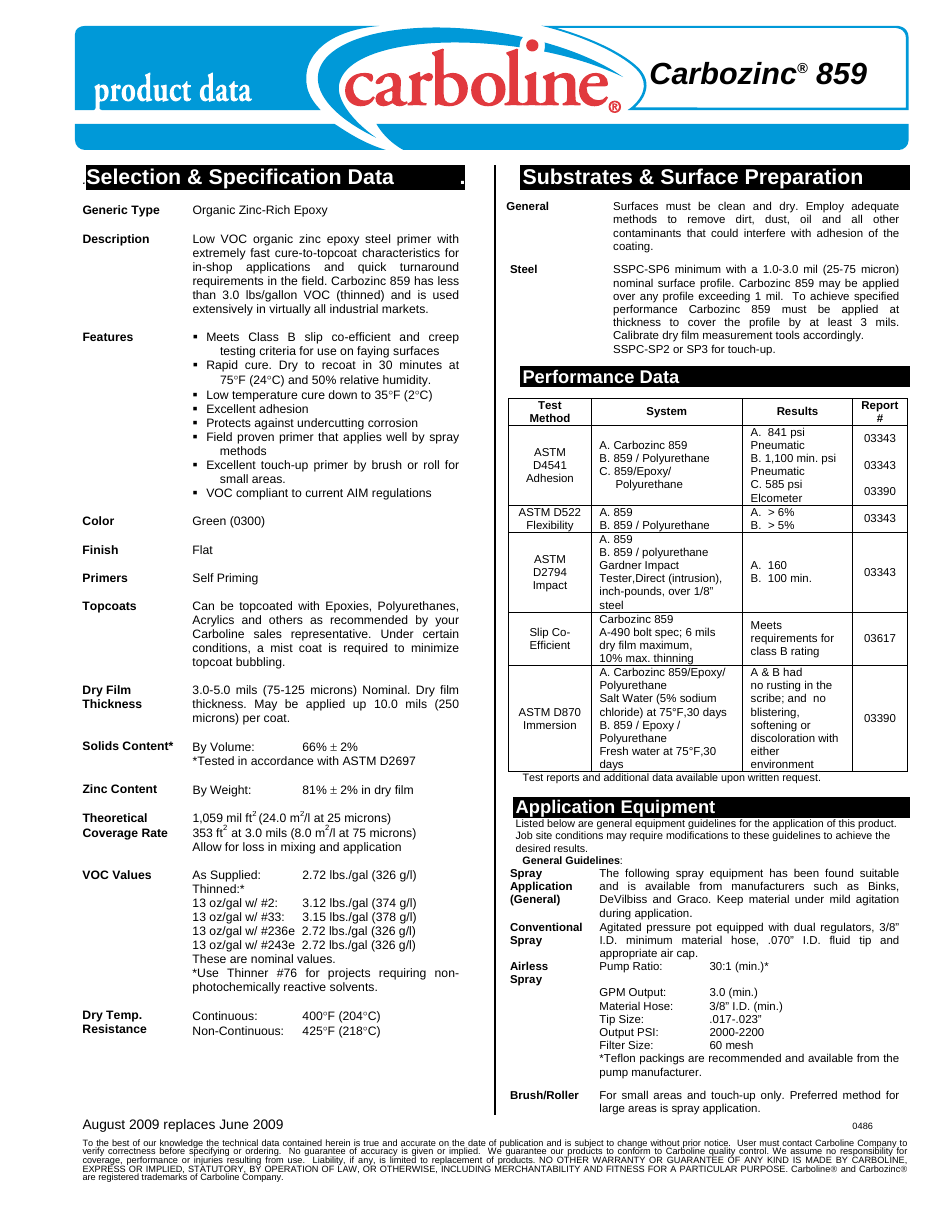

Carboline Carbozinc 859 – Drawing (ae7f77e50c67_S1-2 S. 1)
Drawing · ae7f77e50c67_S1-2 · S. 1
Carboline Carbozinc 859 – Drawing (ae7f77e50c67_S1-2 S. 2)
Drawing · ae7f77e50c67_S1-2 · S. 2
Carboline Carbozinc 859 – Drawing (b1fa30b83a50_S1-2 S. 1)
Drawing · b1fa30b83a50_S1-2 · S. 1
Source: Carboline Carbozinc 859 datasheet, p. 1
