Interchar 212

Fire Retardant Coating · Paint & Coating Systems

Class-certified type (DNV register) · technical data sheet not yet verified

International / AkzoNobel Interchar 212 is a fire retardant coating. It is applied to the vessel structure or equipment surface specified by the coating scheme, such as hull, ballast tank, cargo tank, deck or machinery areas. Its purpose is to protect the substrate against corrosion, fouling, chemicals, weather, slip or fire exposure according to the listed coating type. Performance depends on surface preparation, compatible primer and topcoat layers, application conditions, curing and total coating-system compatibility. The exact product designation distinguishes resin chemistry, service environment and approved coating scheme from neighboring products; refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Volume Solids100%

Typical Thickness2 mm - 8 mm (0.08 - 0.32 inches)

Density1 kg/l (8.3 lb/gal)

CertificationsRecognized by FM Approvals as a Specification Tested Product in accordance with ASTM E119

Working Pot Life120 minutes

Do not apply at steel temperatures below5°C (41°F)

Ambient curing temperatures should be above10°C (50°F)

Pack Size20 kg

Shipping Weight15.98 kg

Product LineInterchar

Coating Typefire

Application Methodairless spray

Dft (µm)500

Voc (g/l)40

Overcoating Interval (h)24

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Interchar 212 is a high performance, solvent-free epoxy intumescent fireproofing coating designed to protect steelwork from cellulosic fires.

Applications

Airport Terminals
Leisure Facilities
Convention Centres
Educational Facilities
Shopping Malls
Industrial Complexes

Features

High performance epoxy intumescent coating
Independently fire tested
Recognised by FM Approvals
Solvent free
Two pack modified epoxy
High build
Spray applied
Excellent corrosion performance

Standards

ASTM E119
UL 263
BS 476 Parts 20-22
GOST
ENV 13381 Pt 4
Australian Standard AS1530.4 (1997)
Korean Standard F 2257

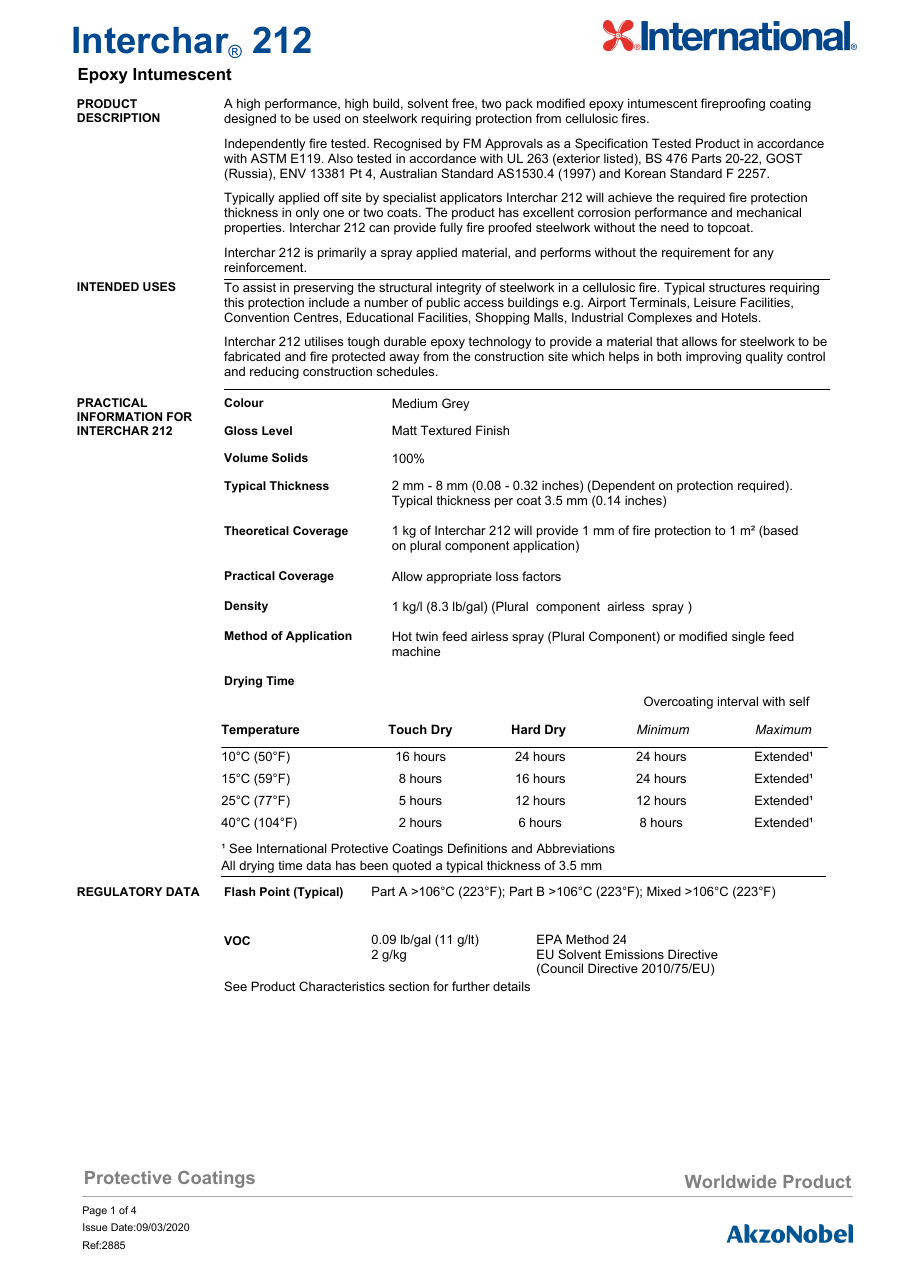

Drawing · 7e3f31a9feca_S1-4 · S. 1

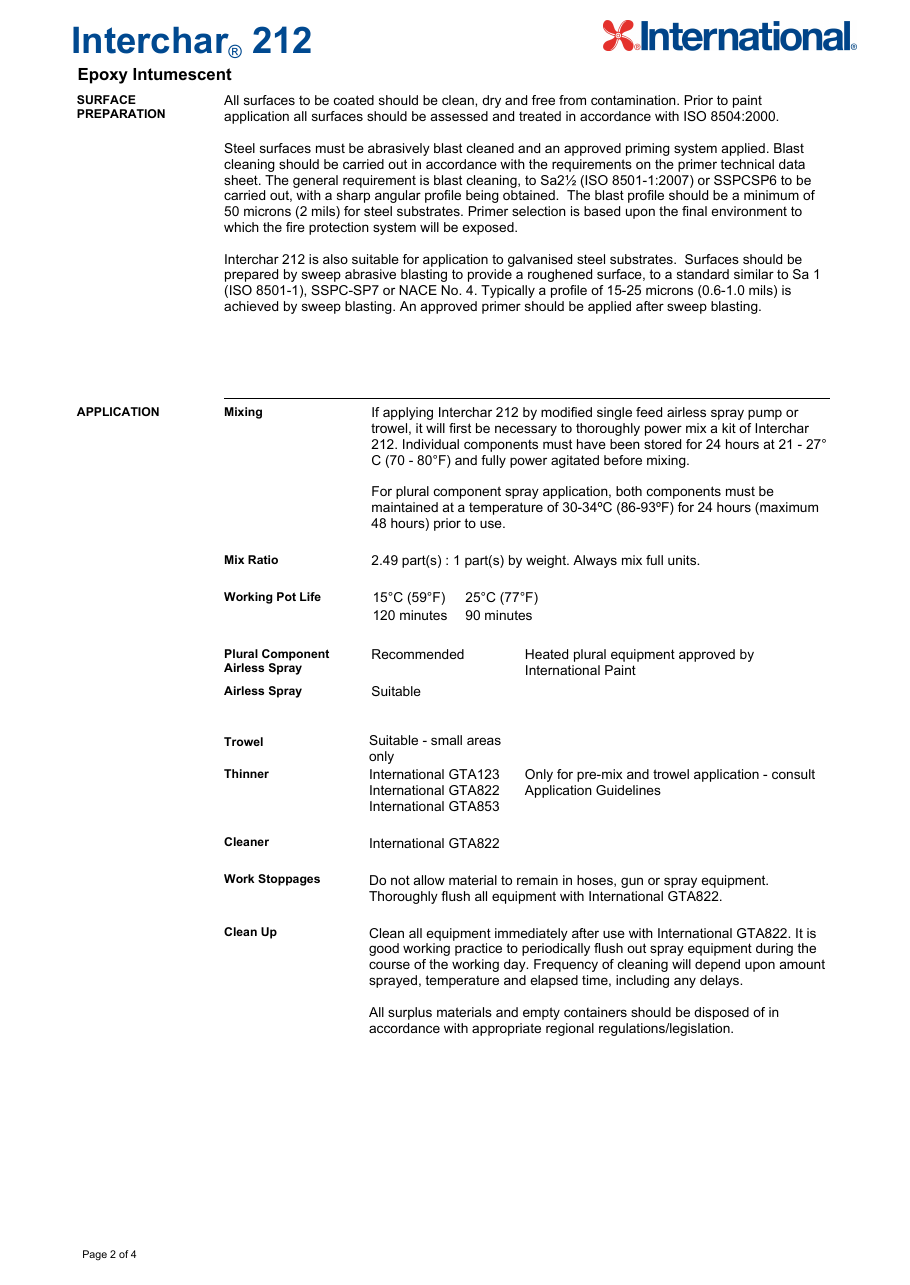

Drawing · 7e3f31a9feca_S1-4 · S. 2

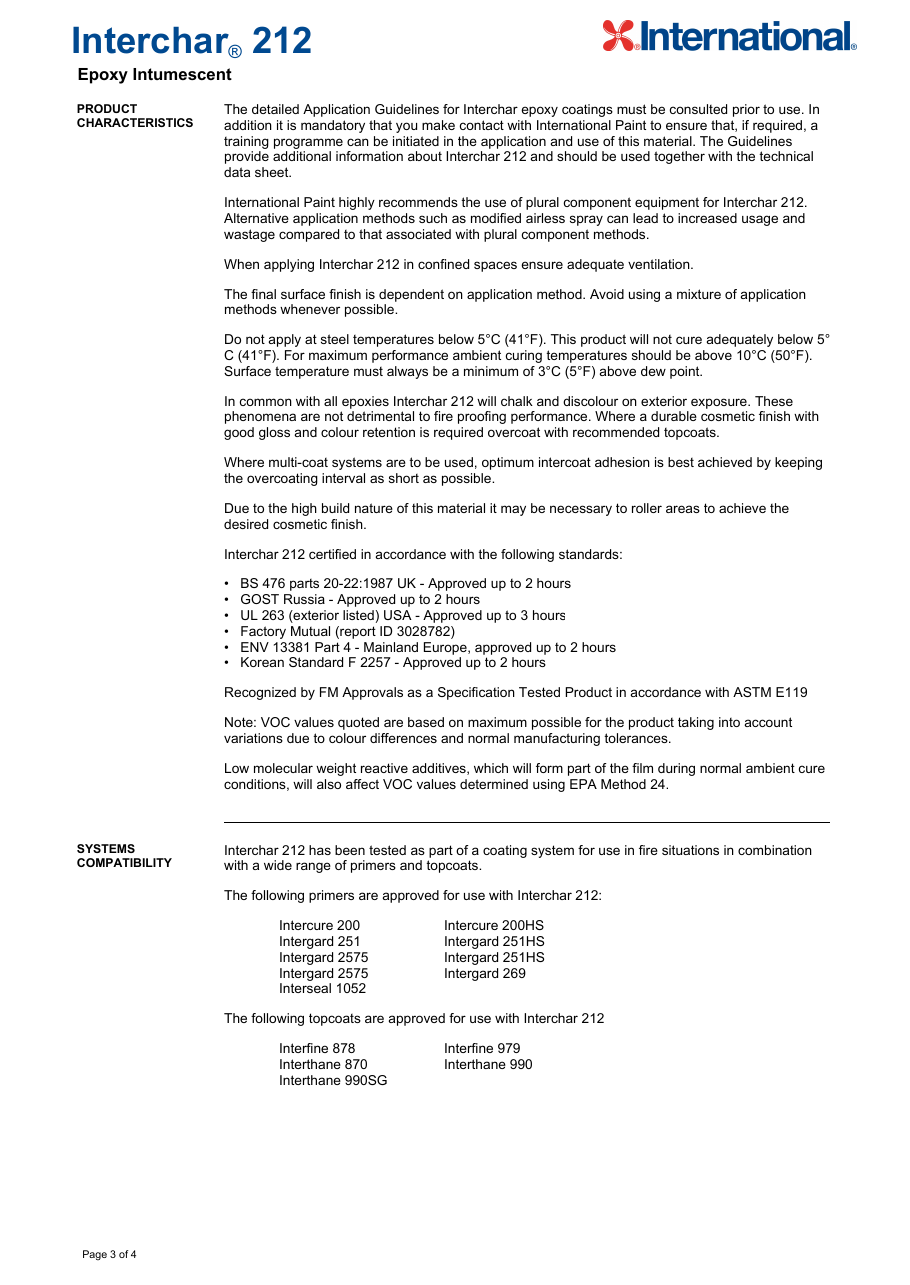

Drawing · 7e3f31a9feca_S1-4 · S. 3

Page preview · 7e3f31a9feca_S1-4 · S. 4

Source: AkzoNobel Interchar 212 datasheet, p. 1

Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Inspect coated surfaces for blistering, rusting, cracking, peeling, mechanical damage and edge breakdown. Identify and remove the cause of moisture, contamination or chemical attack before local repair. Prepare the substrate and apply compatible repair coats according to the approved coating specification. Maintain batch, mixing, curing and environmental records where required by the vessel coating plan. Pay particular attention to welds, edges, drains and high-abrasion zones. Refer to the manufacturer documentation for the exact figure for surface preparation, dry-film thickness, curing and overcoating requirements.

Inspection

Common failures & inspection points

Blistering caused by moisture, osmotic contamination or poor surface preparation, resulting in raised bubbles and localized coating loss
Delamination caused by inadequate surface preparation, contamination or incompatible overcoating, resulting in peeling or loss of adhesion
Underfilm corrosion caused by coating damage, holidays or poor edge coverage, resulting in rust staining and progressive coating breakdown
Cracking or embrittlement caused by excessive film build, aging or substrate movement, resulting in visible cracks and loss of barrier protection
Abrasion, impact or chemical attack caused by service exposure, resulting in worn areas, discoloration or exposed substrate

Spares

Replacement Parts

Spare parts notes

Keep compatible primer, intermediate and topcoat materials required by the vessel coating scheme together with approved thinners, repair materials and application consumables. Coating shelf life and storage conditions must be respected. Do not substitute a different coating chemistry without compatibility and approval checks.
