International / AkzoNobel Interbond 808

International / AkzoNobel Interbond 808 is identified in the source list as a epoxy primer. It is applied to the vessel structure or equipment surface specified by the coating scheme, such as hull, ballast tank, cargo tank, deck or machinery areas. Its purpose is to protect the substrate against corrosion, fouling, chemicals, weather, slip or fire exposure according to the listed coating type. The source record provides no additional model-specific operating figure beyond the listed designation and category. Performance depends on surface preparation, compatible primer and topcoat layers, application conditions, curing and total coating-system compatibility. The exact product designation distinguishes resin chemistry, service environment and approved coating scheme from neighboring products; refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

ColourKRA850-Buff, KRA852-Grey (available in Singapore only), KRA853-Aluminium, KRA854🔖

Part B (Curing Agent)KRA855🔖

Volume Solids82% ±2% (ISO 3233:1998)🔖

Typical Film Thickness300 microns dry (366 microns wet)🔖

Theoretical Coverage2.73 m²/litre at 300 microns dft, allow appropriate loss factors🔖

Flash Point (Typical)Part A 32°C; Part B 58°C; Mixed 33°C🔖

Touch Dry [ISO 9117/3:2010]15 hrs 8 hrs 3.5 hrs 2 hrs🔖

Hard Dry [ISO 9117-1:2009]34 hrs 18 hrs 7 hrs 4 hrs🔖

Walk-on Time44 hrs 21 hrs 8.5 hrs 5 hrs🔖

Before Flooding3 days 2 days 24 hrs 12 hrs🔖

Pot Life2 hrs 100 mins 75 mins 30 mins🔖

Substrate Temperature5°C 15°C 25°C 35°C🔖

Voc220 g/lt as supplied (EPA Method 24)🔖

Product LineInterbond

Coating Typeepoxy

Application Methodairless spray

Dft (µm)200

Voc (g/l)180

Overcoating Interval (h)10

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Interbond 808 is a high performance epoxy coating for use in various marine applications. It is a two-pack epoxy coating with high volume solids and is tolerant of damp surfaces.

Applications

water ballast tanks
cofferdams
void spaces
wet spaces
bilges
crude oil tanks

Features

high performance
epoxy coating
high volume solids
surface tolerant
damp surface tolerant
one or two coat system
airless sprayable

Standards

ISO 3233:1998
EPA Method 24
Chinese National Standard GB23985

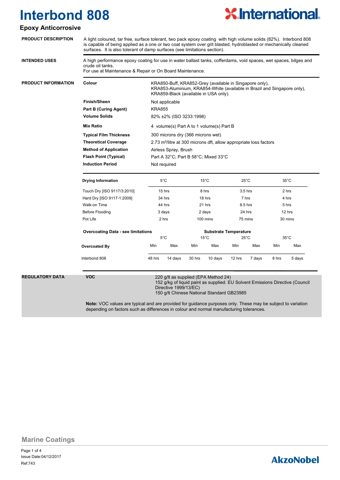

Drawing · 82da0c258177_S1-1 · S. 1

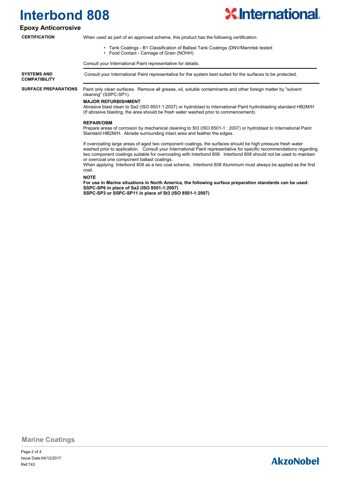

Drawing · 33c8d4428cc3_S1-3 · S. 2

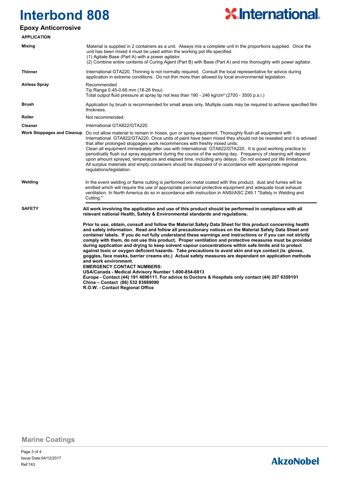

Drawing · 33c8d4428cc3_S1-3 · S. 3

Source: AkzoNobel Interbond 808 datasheet, p. 1

Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Service notes

Inspect coated surfaces for blistering, rusting, cracking, peeling, mechanical damage and edge breakdown. Identify and remove the cause of moisture, contamination or chemical attack before local repair. Prepare the substrate and apply compatible repair coats according to the approved coating specification. Maintain batch, mixing, curing and environmental records where required by the vessel coating plan. Pay particular attention to welds, edges, drains and high-abrasion zones. Refer to the manufacturer documentation for the exact figure for surface preparation, dry-film thickness, curing and overcoating requirements.

Inspection

Common failures & inspection points

Blistering caused by moisture, osmotic contamination or poor surface preparation, resulting in raised bubbles and localized coating loss
Delamination caused by inadequate surface preparation, contamination or incompatible overcoating, resulting in peeling or loss of adhesion
Underfilm corrosion caused by coating damage, holidays or poor edge coverage, resulting in rust staining and progressive coating breakdown
Cracking or embrittlement caused by excessive film build, aging or substrate movement, resulting in visible cracks and loss of barrier protection
Abrasion, impact or chemical attack caused by service exposure, resulting in worn areas, discoloration or exposed substrate

Spares

Replacement Parts

Spare parts notes

Keep compatible primer, intermediate and topcoat materials required by the vessel coating scheme together with approved thinners, repair materials and application consumables. Coating shelf life and storage conditions must be respected. Do not substitute a different coating chemistry without compatibility and approval checks.
