Library› Deck› Paint & Coating Systems› Epoxy Primer› PPG / Sigma Coatings SigmaPrime 200

SigmaPrime 200

Epoxy Primer · Paint & Coating Systems

Class-certified type (DNV register) · technical data sheet not yet verified

PPG / Sigma Coatings SigmaPrime 200 — Paint & Coating Systems. As an Epoxy Primer, it is normally installed on the hull, ballast or cargo tank, deck or structural surface identified by the listed coating type. In that role, its primary purpose is to protect the substrate against corrosion, fouling, cargo exposure, weathering or fire as applicable. Antifouling, epoxy, ballast-tank, cargo-tank, anti-slip and fire-retardant coatings have different chemistry and service exposure, so surface preparation and overcoating requirements are product-specific. For exact ratings, dimensions, settings, capacities, materials and variant-specific limits, refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Mass density1.3 kg/l
Mixing ratio by volume (base to hardener)80:20
TypeZinc Rich Epoxy Primer
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Universal epoxy anticorrosive primer, based upon pure epoxy technology.

Applications

  • ballast tanks
  • topside
  • superstructure
  • cargo oil tanks
  • cargo holds

Features

  • Excellent anticorrosive properties and water resistance
  • Surface tolerant primer
  • Good chemical resistance
  • Good abrasion resistance for dedicated areas of application
  • Excellent recoatability
  • Suitable for bulk supply and twin feed application

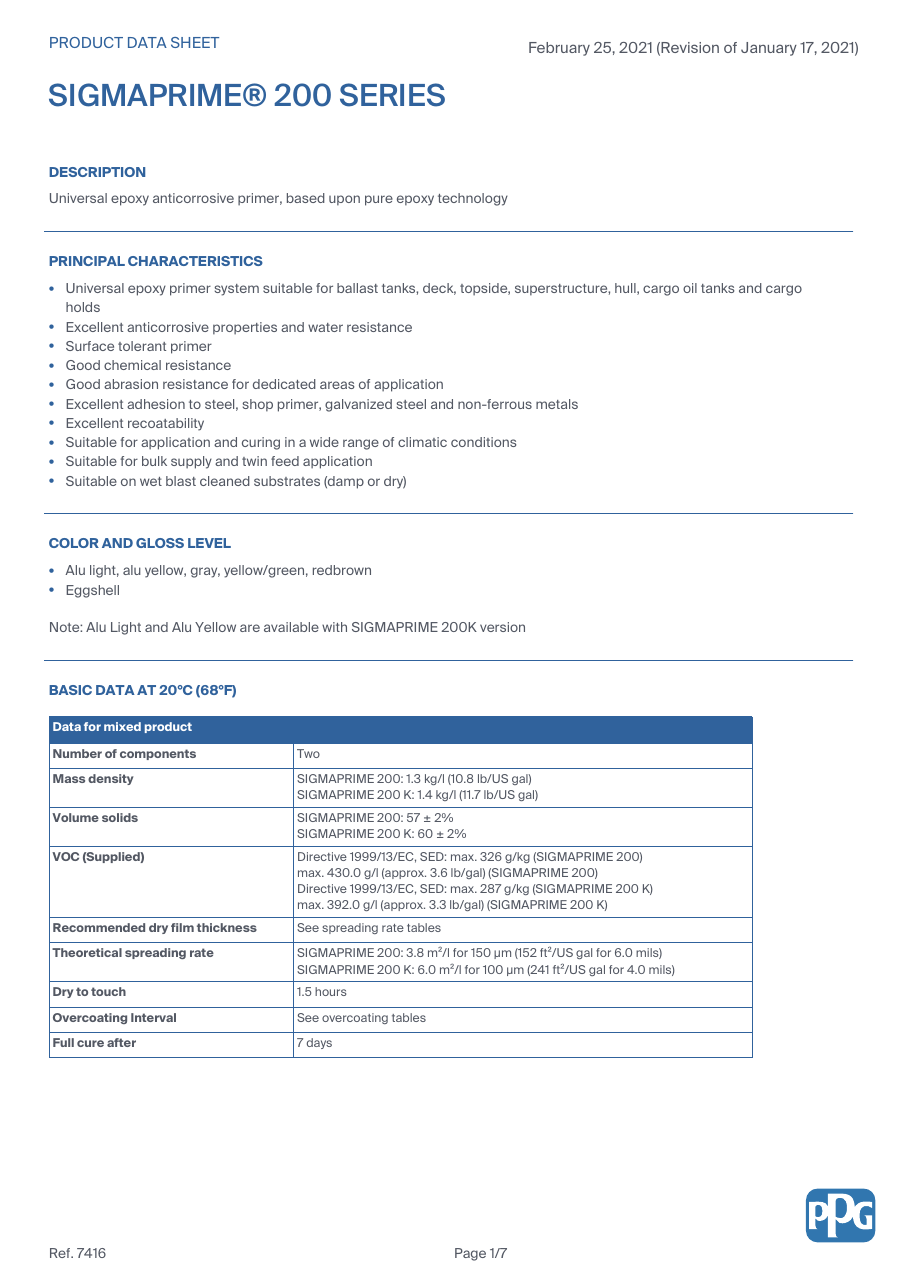

PPG / Sigma Coatings SigmaPrime 200 – Drawing (ef72c687fbf1_S1-6 S. 1)
Drawing · ef72c687fbf1_S1-6 · S. 1

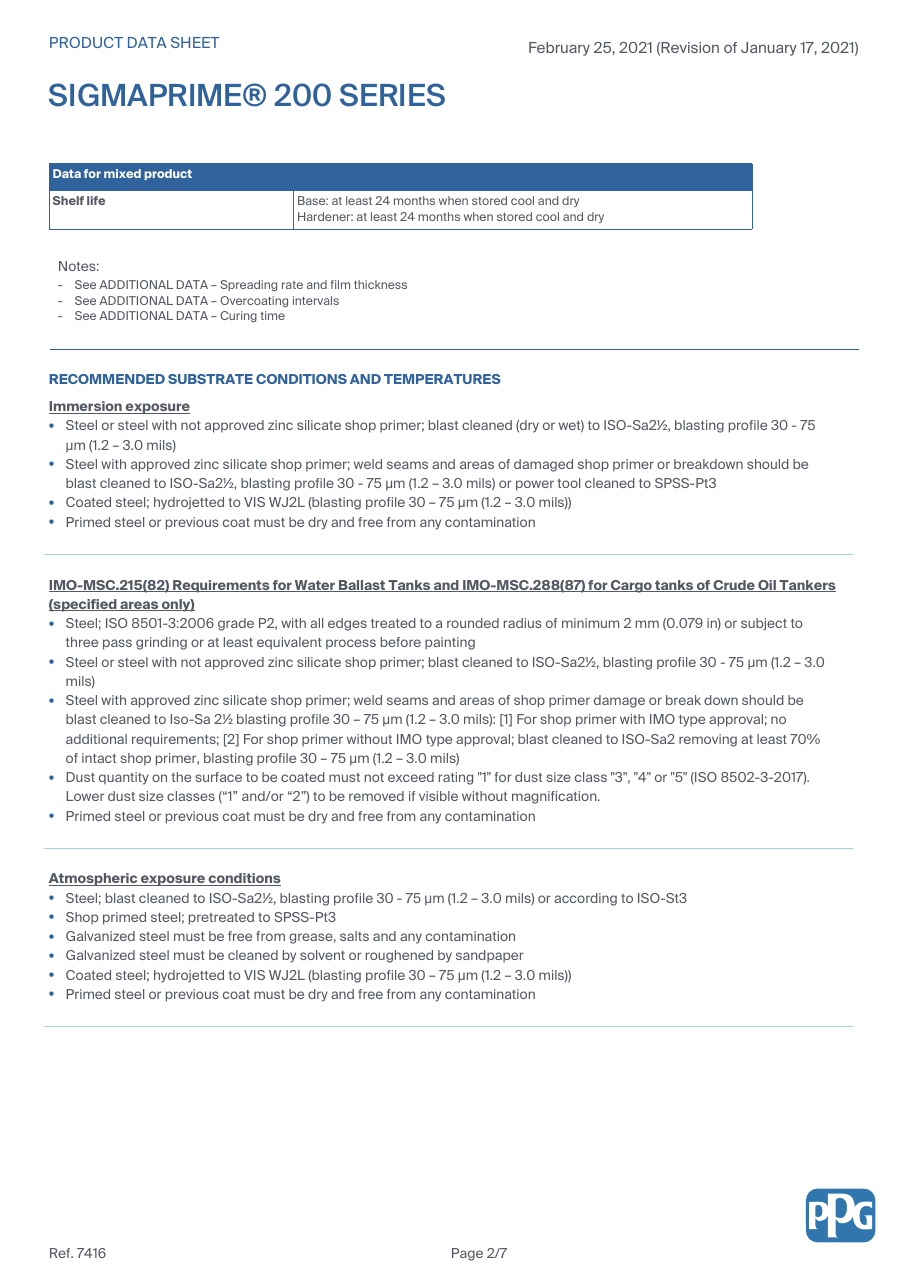

PPG / Sigma Coatings SigmaPrime 200 – Drawing (ef72c687fbf1_S1-6 S. 2)
Drawing · ef72c687fbf1_S1-6 · S. 2

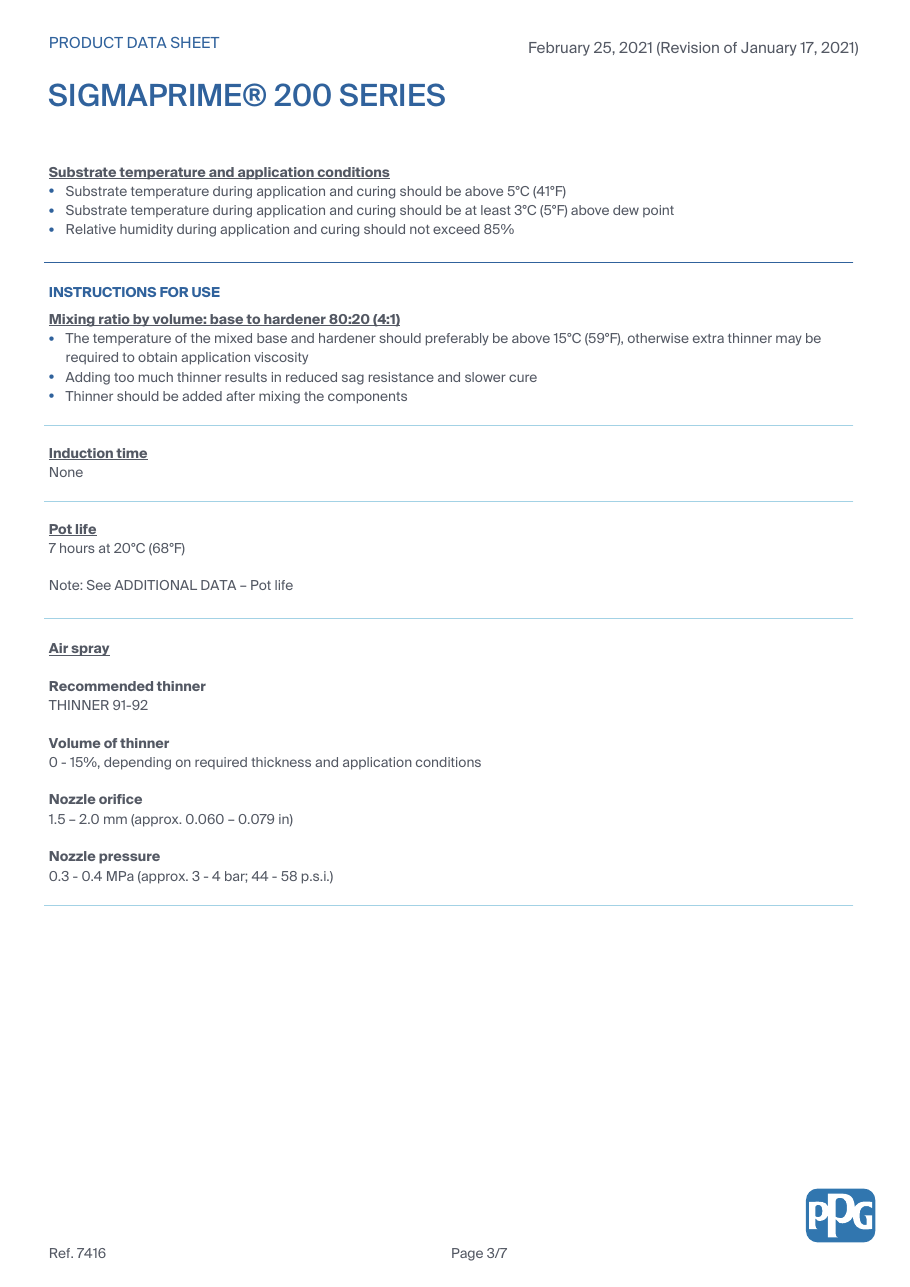

PPG / Sigma Coatings SigmaPrime 200 – Drawing (ef72c687fbf1_S1-6 S. 3)
Drawing · ef72c687fbf1_S1-6 · S. 3

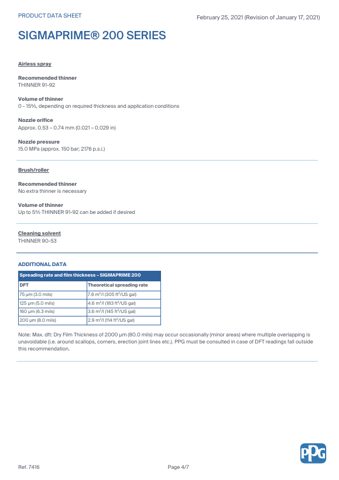

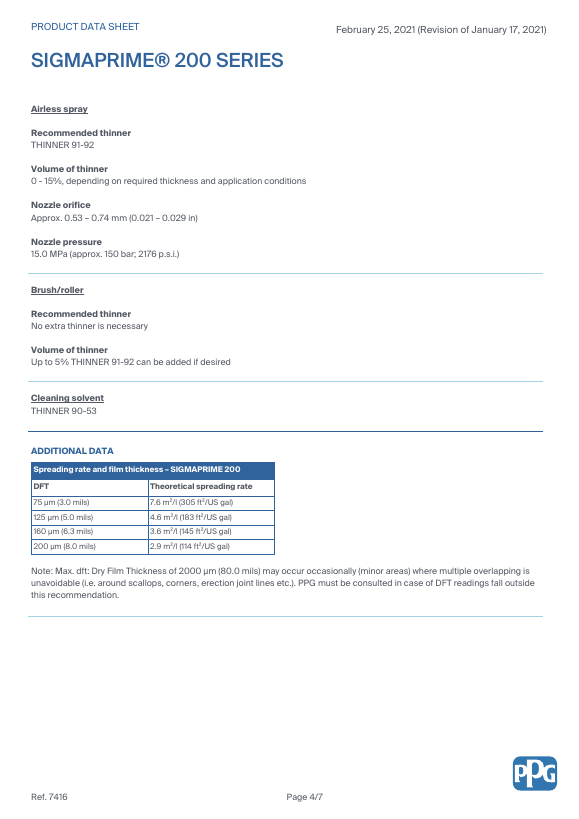

PPG / Sigma Coatings SigmaPrime 200 – Page preview (ef72c687fbf1_S1-6 S. 4)
Page preview · ef72c687fbf1_S1-6 · S. 4

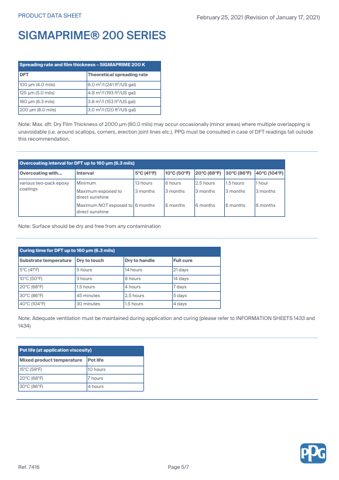

PPG / Sigma Coatings SigmaPrime 200 – Page preview (ef72c687fbf1_S1-6 S. 5)
Page preview · ef72c687fbf1_S1-6 · S. 5

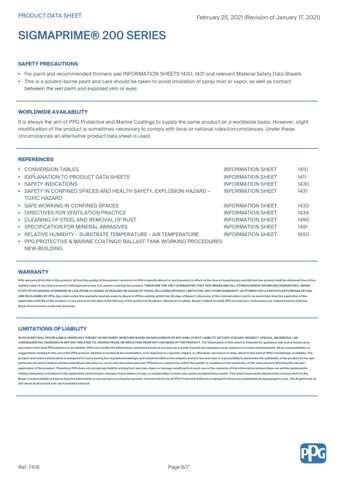

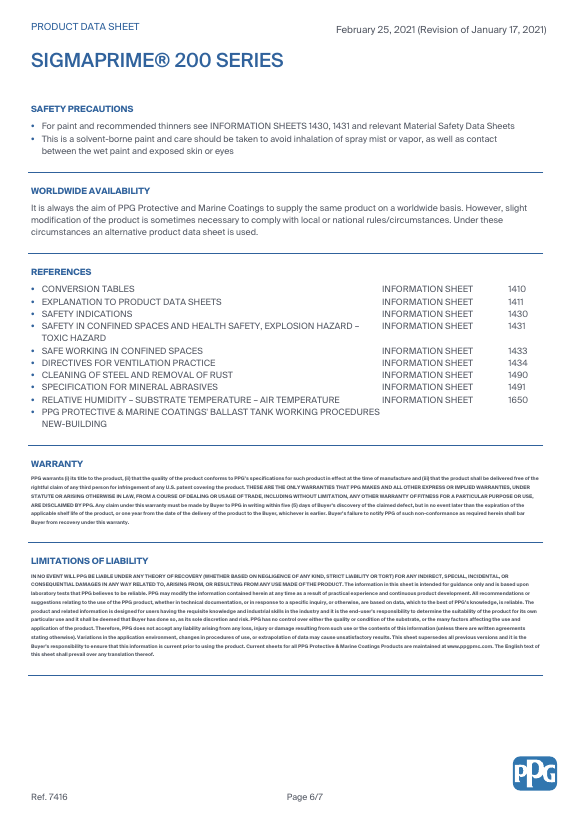

PPG / Sigma Coatings SigmaPrime 200 – Page preview (ef72c687fbf1_S1-6 S. 6)
Page preview · ef72c687fbf1_S1-6 · S. 6
Source: Sigma Coatings SigmaPrime 200 datasheet, p. 1
Service

Service notes.

What our service work and the manufacturer documentation say about keeping this model running.

Inspect coating continuity, adhesion, cracking, blistering, rusting and mechanical damage. Review surface preparation and application records where available and determine whether failure is local or systemic. Repair only with compatible products and approved preparation. Refer to the coating manufacturer's documentation for the exact figure for film thickness, mixing, cure and environmental limits.

Inspection

Common failures & inspection points

Spares

Replacement Parts

Spare parts notes

Keep compatible touch-up coating, approved thinner or cleaner, repair primers and application consumables in accordance with the vessel coating maintenance plan.
