RPU-160

Heading Control System · Autopilot & Bridge Systems

Class-certified type (DNV register) · technical data sheet not yet verified

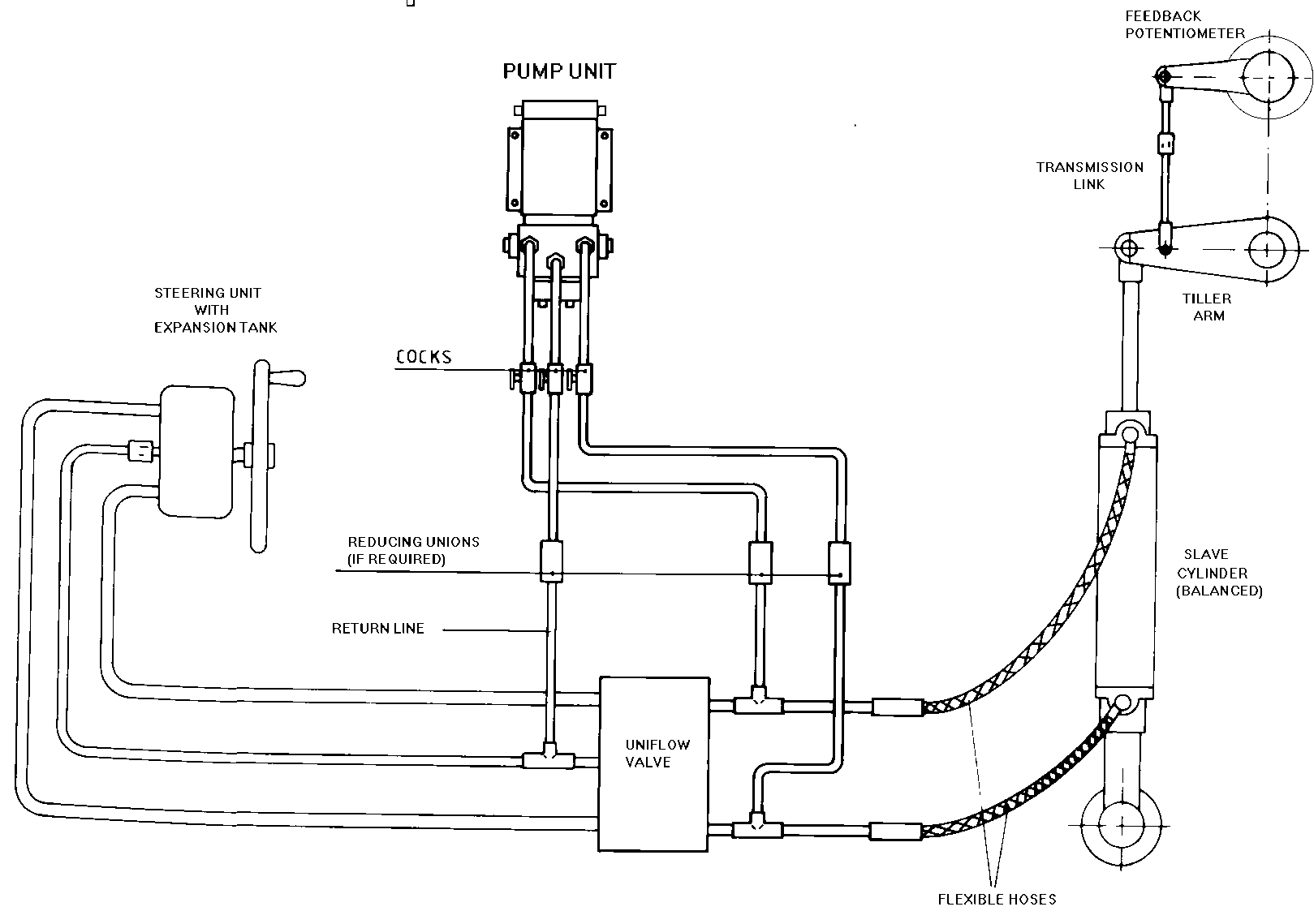

Example image: Heading Control System — not a photo of this model.

Simrad RPU-160 is a autopilot or heading-control system (Autopilot & Bridge Systems / Heading Control System). It is normally installed at the bridge steering console with interfaces to steering and heading sensors. It is intended to control rudder commands so the vessel follows the selected heading or track mode. The meaning of any embedded size or rating code should be confirmed in manufacturer documentation. In service it interfaces with navigation sensors, bridge displays, ship power supply, data networks and alarms relevant to the equipment function.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Flow rate at 10 bar1600 cm3/min
Max. pressure60 bar
Power consumption3-10 A
Ram capacity min160 cm3
Ram capacity max550 cm3
TypeHydraulic Drive Unit
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Hydraulic steering systems are now being used in every category of vessel. In many respects hydraulic steering is preferable to mechanical steering. Hydraulic systems normally comprise of two main…”

Simrad RPU-160 – Photo (e1f3f21e6680_S4-36 S. 32)
Photo · e1f3f21e6680_S4-36 · S. 32

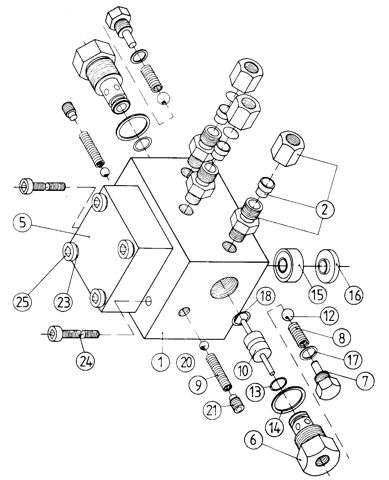

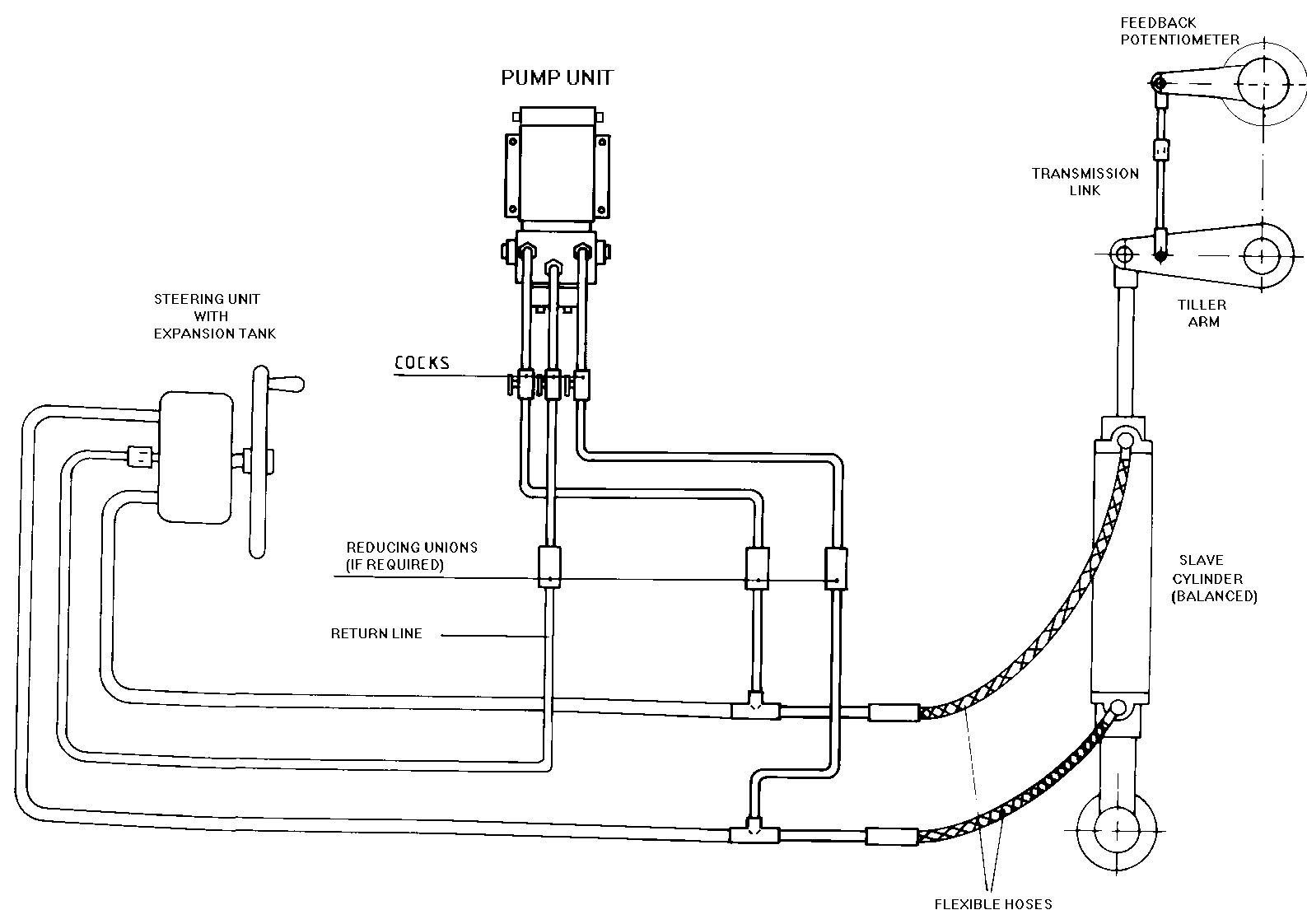

Simrad RPU-160 – Drawing (e1f3f21e6680_S4-36 S. 20)
Drawing · e1f3f21e6680_S4-36 · S. 20
Simrad RPU-160 – Drawing (e1f3f21e6680_S4-36 S. 20)
Drawing · e1f3f21e6680_S4-36 · S. 20

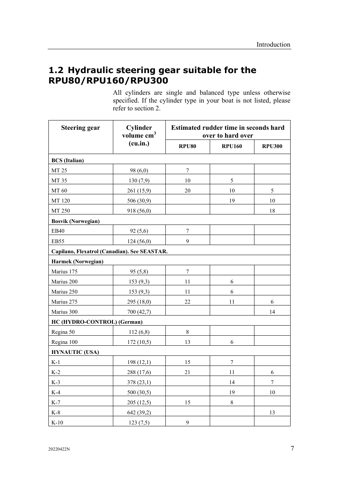

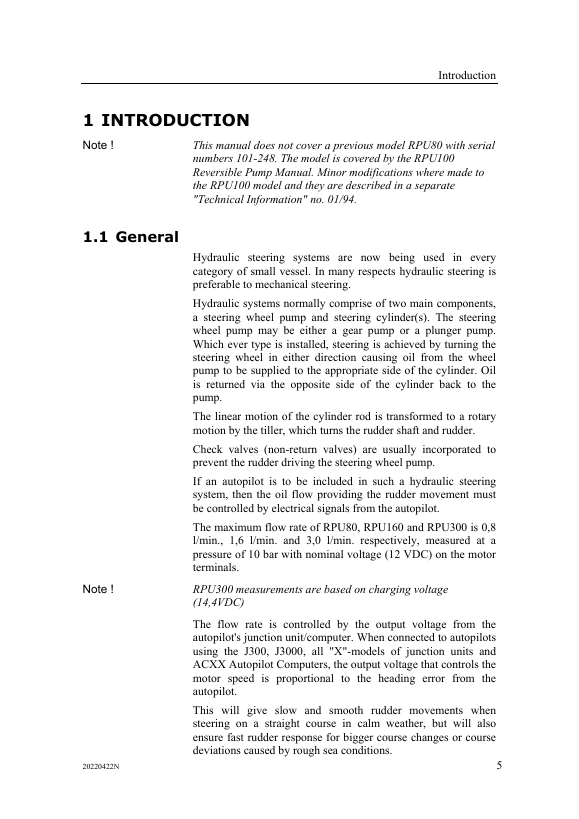

Simrad RPU-160 – Drawing (e1f3f21e6680_S4-36 S. 5)
Drawing · e1f3f21e6680_S4-36 · S. 5
Simrad RPU-160 – Drawing (e1f3f21e6680_S4-36 S. 6)
Drawing · e1f3f21e6680_S4-36 · S. 6

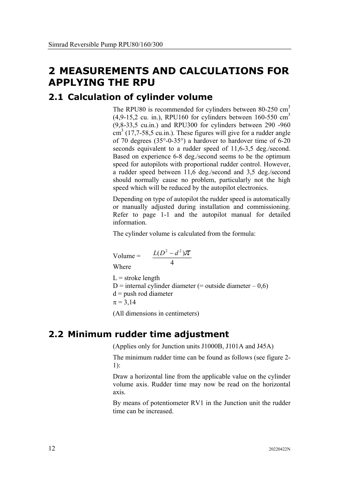

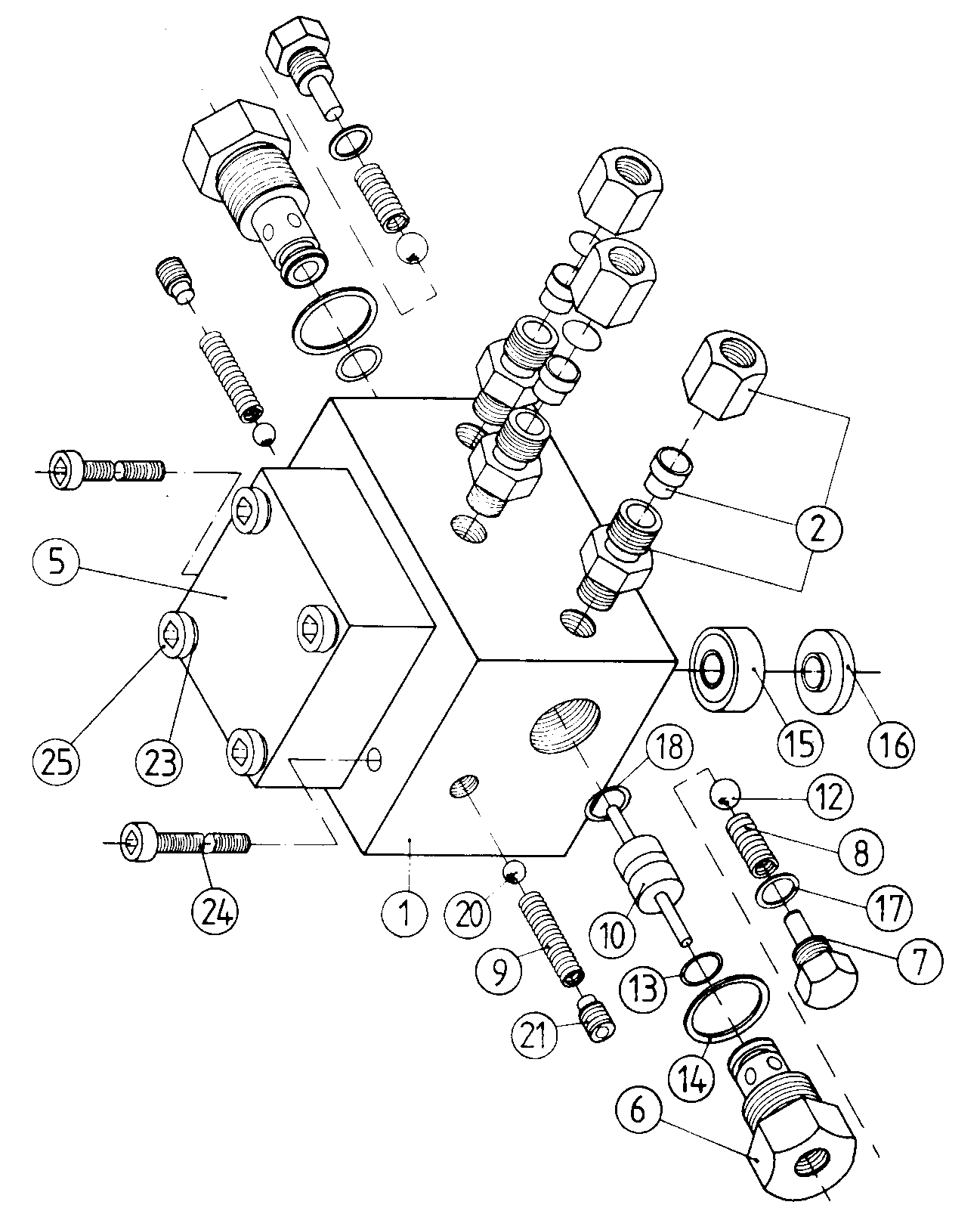

Simrad RPU-160 – Drawing (e1f3f21e6680_S4-36 S. 11)
Drawing · e1f3f21e6680_S4-36 · S. 11

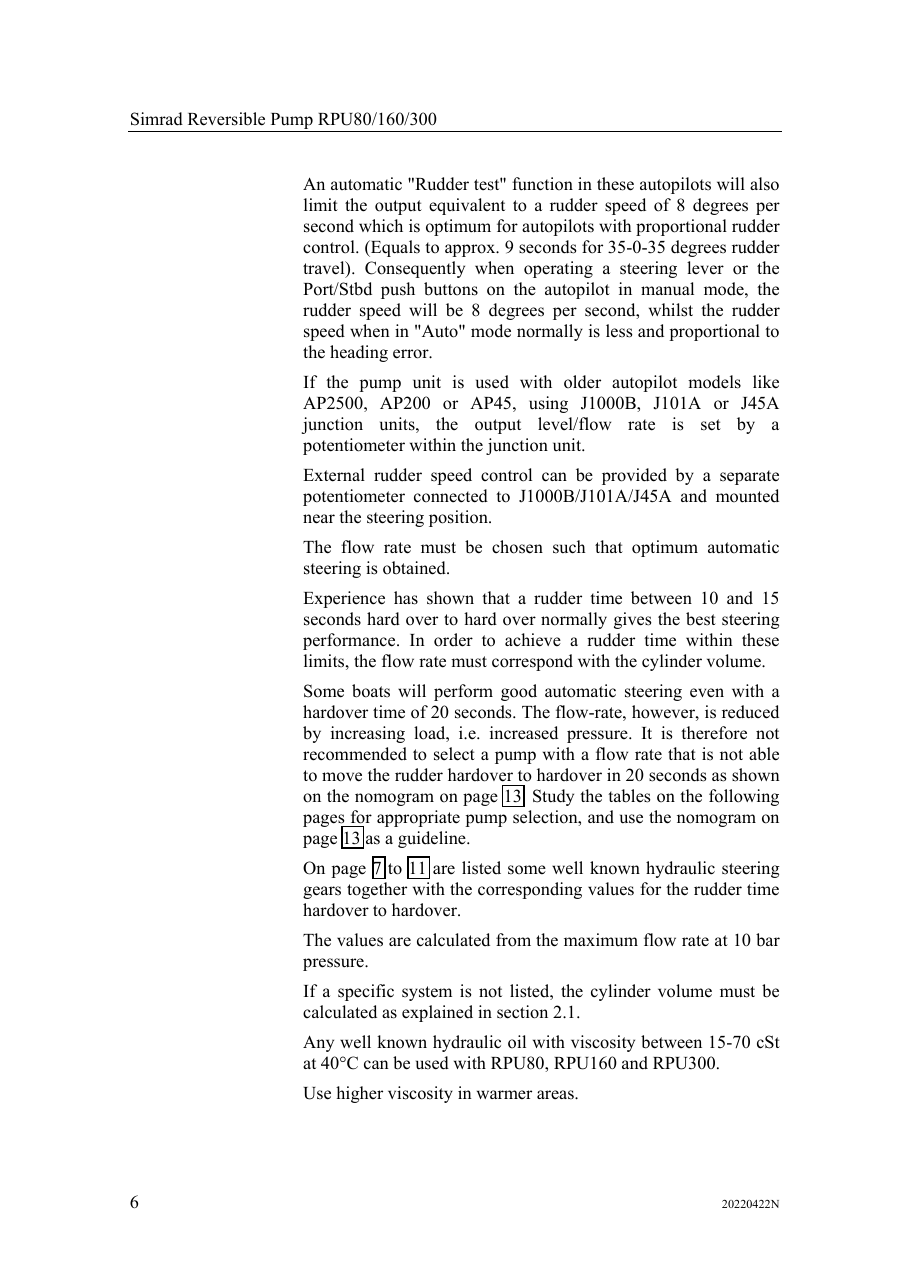

Simrad RPU-160 – Page preview (e1f3f21e6680_S4-36 S. 4)
Page preview · e1f3f21e6680_S4-36 · S. 4

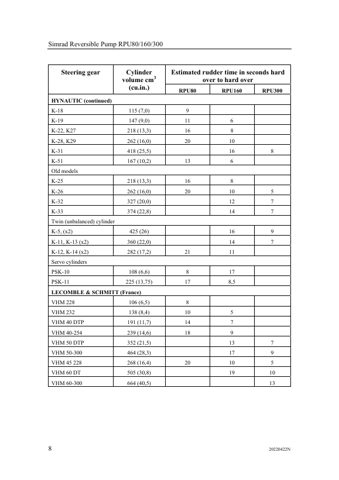

Simrad RPU-160 – Page preview (e1f3f21e6680_S4-36 S. 7)
