Echo Sounder

What sets an echo sounder apart from other depth instruments

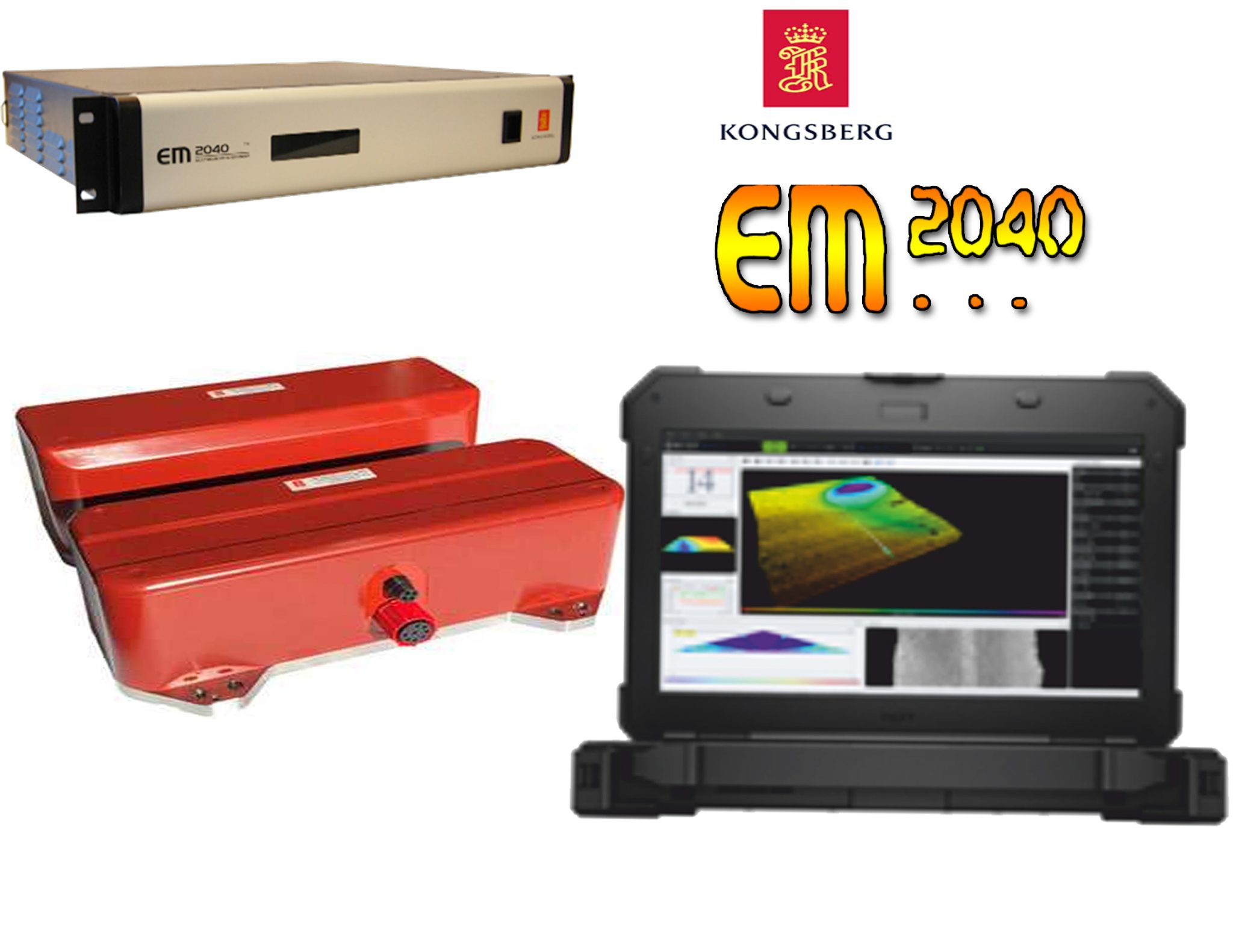

An echo sounder measures depth by timing the return of an acoustic pulse from a transducer mounted in the hull to the seabed and back. The instrument does not measure position or speed; it only reports the water column beneath (or, for multibeam, beside) the ship. On a merchant vessel the transducer is usually a single-beam unit sending one narrow vertical pulse, reporting one depth value. A multibeam echo sounder fires a fan of beams across the ship's track in a single ping, producing a swath of depth points instead of a line. That difference in beam geometry is what separates a bridge navigation instrument from a hydrographic survey tool, even though both work on the same time-of-flight principle.

Main components

Transducer

Piezoelectric element in a sea chest or hull fitting, below the waterline, often with a retractable fairing so it can be serviced without dry-docking on larger ships.

Transceiver / transmitter-receiver unit

Generates the excitation pulse, amplifies the return echo, and passes a digitised signal to the processing unit.

Display and processing unit

Shows depth as a numeric readout and/or a scrolling depth trace, and on SOLAS-class units drives an audible/visual shallow-water alarm.

Keel offset and draught correction

Set at commissioning so the reported figure matches depth below keel, below transducer, or below the waterline, whichever the operator has selected — a frequent source of confusion during pilotage.

Selection and sizing

• Operating frequency: high frequency (150-200 kHz) for coastal and harbour work with fine resolution in shallow water; low frequency (10-50 kHz) for deep-sea sounding where high frequency signals attenuate before reaching the bottom.
• Maximum sounding depth required for the trade the ship runs in.
• Single beam versus multibeam — multibeam is only justified where swath coverage is the actual deliverable, such as dredging support or survey work, not general navigation.
• Integration: NMEA output to the ECDIS and VDR, since a standalone display with no data output no longer meets modern bridge integration expectations.

Regulations and class

SOLAS Chapter V, Regulation 19, requires an echo sounding device on ships of specified sizes as part of the mandatory navigational equipment carriage requirements. Class societies survey the unit as part of the periodic navigation equipment survey, checking calibration against a known depth and confirming alarm function. There is no IMO type-approval regime specific to echo sounders in the way there is for GMDSS equipment, but the transducer installation itself is often subject to class approval of the hull penetration.

Typical faults

What to look for in a supplier

• Type approval certificate covering the specific SOLAS carriage requirement, not just a generic marine mark.
• Availability of a retractable transducer fairing if the ship needs to service the unit afloat.
• Documented NMEA 0183/2000 output list matching what the ECDIS and VDR actually require.
• Spares support for the transducer specifically, since it is the component most likely to need replacement after grounding contact or cavitation damage.

Check the draught correction setting every time the loading condition changes materially — a depth-below-keel reading that was accurate light-loaded can be dangerously optimistic once the ship is down to her marks.
