Eaton Marine

DILM7 690V Marine

Motor Starter / Contactor · Motor Control

Class-certified type (DNV register) · technical data sheet not yet verified
3.5 kWPower
0 kgWeight

Eaton Marine DILM7 690V Marine — Motor Control. It is normally installed in a motor-control centre, switchboard or automation cabinet. Its primary purpose is to start, protect, control or coordinate shipboard electrical machinery and generation. Conventional starters and power-management systems differ in scope, but both rely on dependable control power, switching devices, measurements and interlocks. For exact ratings, dimensions, settings, capacities, materials and variant-specific limits, refer to the manufacturer documentation for the exact figure.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Weight (kg)0.285 kg
Conventional thermal current Ith (AC-1, open, 40 °C)22 A
Power (kW)3.5 kW
Motor Power (kW)7
Breaking Capacity (kA)50
Protection ClassIP55
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Schockfestigkeit (IEC/EN 60068-2-27) bei Tischmontage Halbsinusstoß 10 ms Hauptschaltglieder Schließer Hilfsschaltglieder”

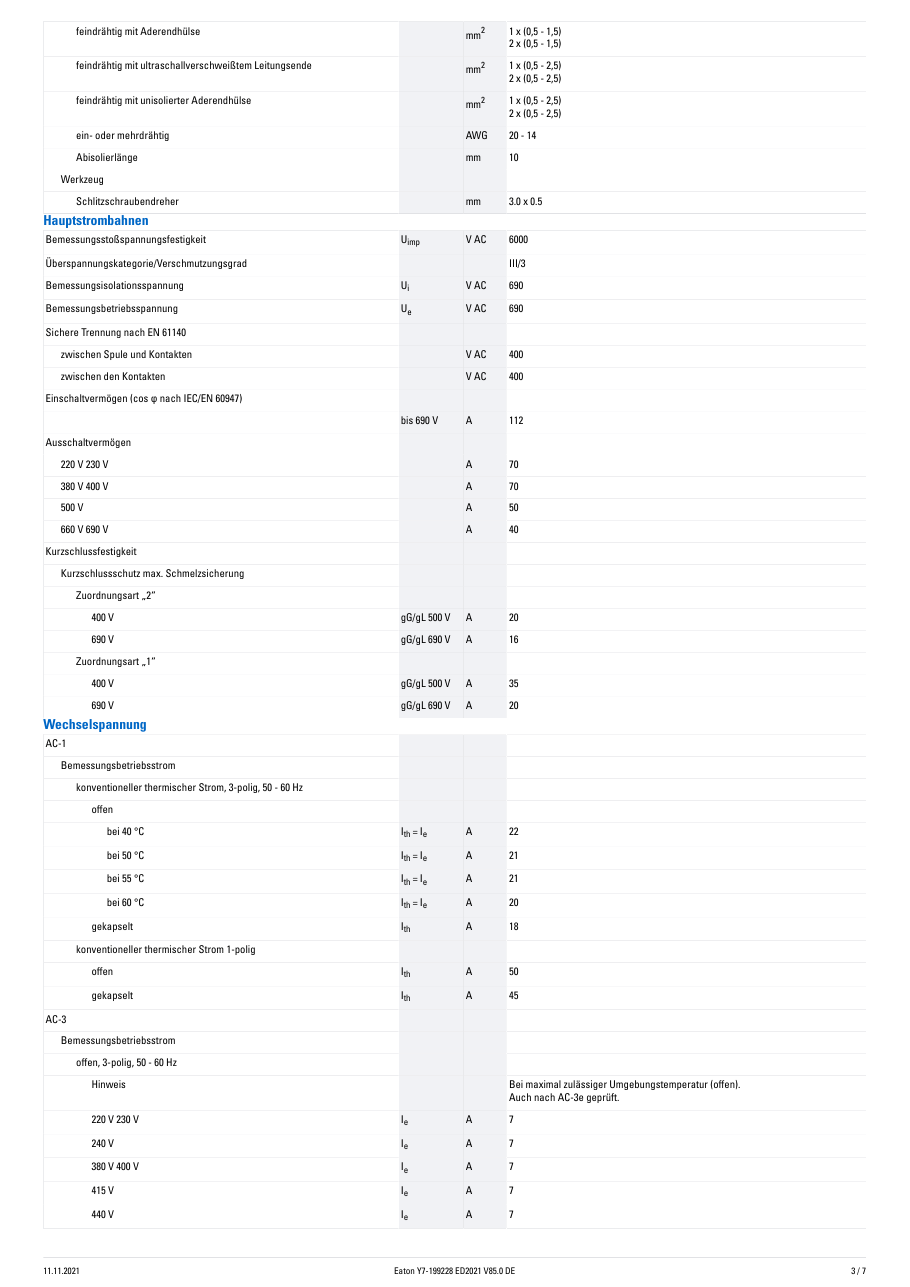

Eaton Marine DILM7 690V Marine – Drawing (bc756f2c571f_S2-6 S. 2)
Drawing · bc756f2c571f_S2-6 · S. 2

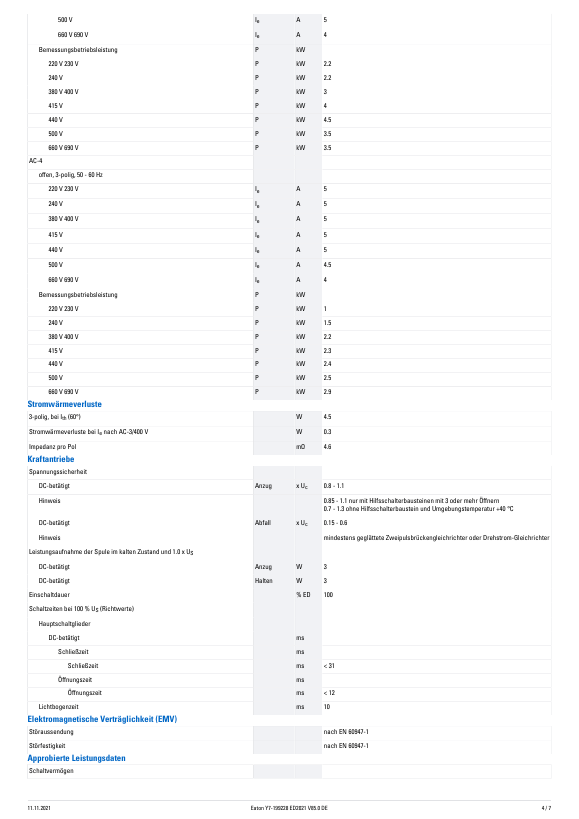

Eaton Marine DILM7 690V Marine – Drawing (bc756f2c571f_S2-6 S. 5)
Drawing · bc756f2c571f_S2-6 · S. 5

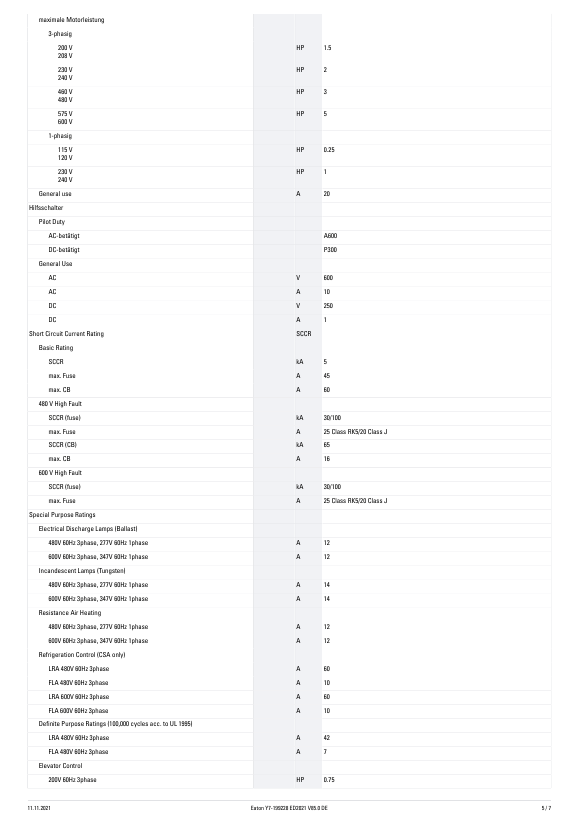

Eaton Marine DILM7 690V Marine – Page preview (bc756f2c571f_S2-6 S. 3)
Page preview · bc756f2c571f_S2-6 · S. 3

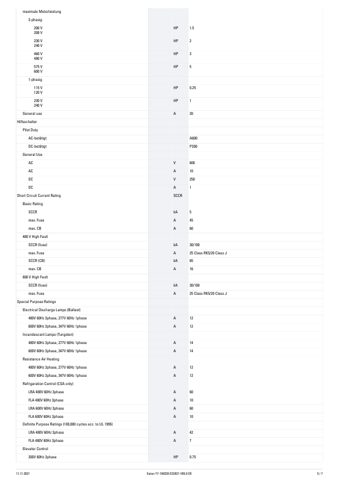

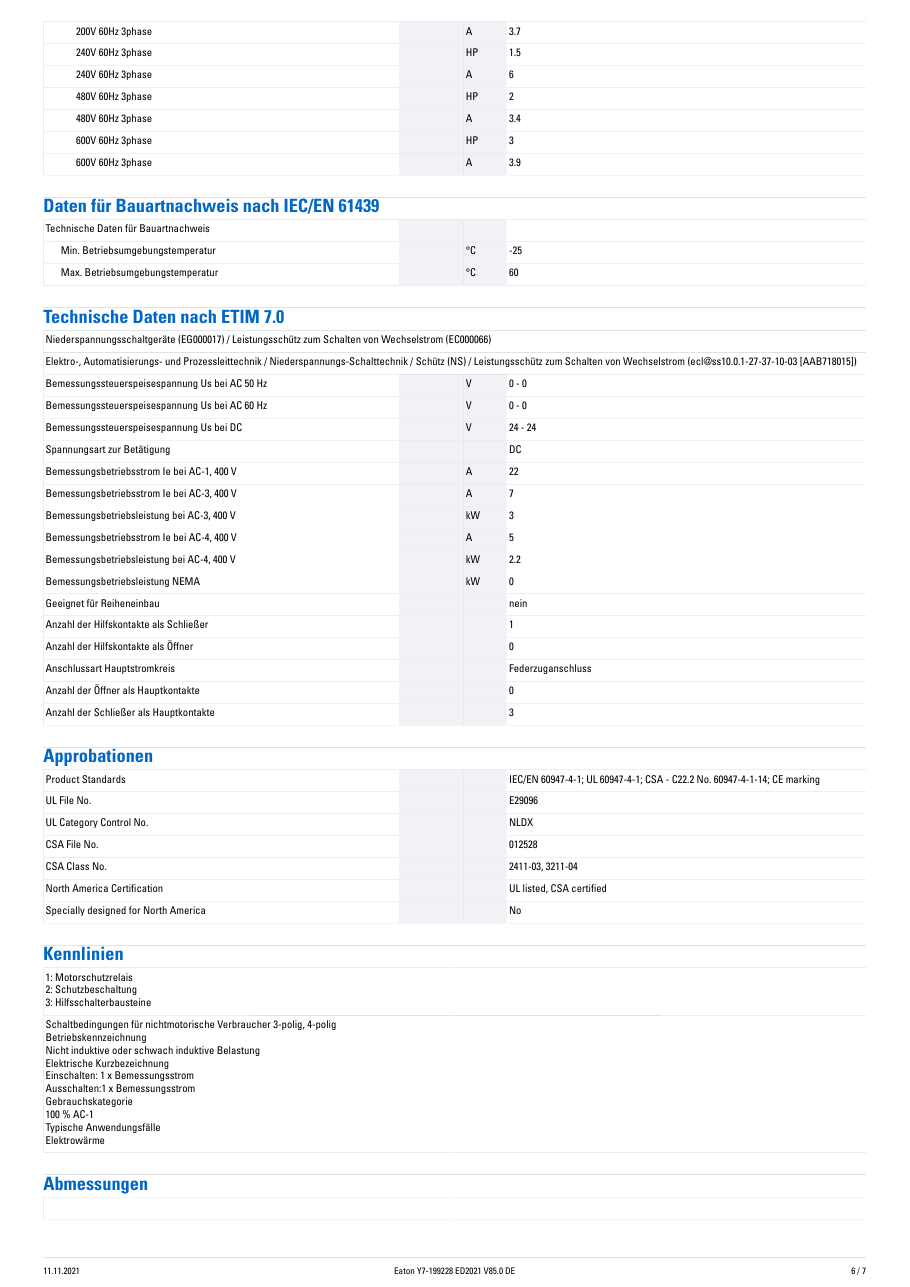

Eaton Marine DILM7 690V Marine – Page preview (bc756f2c571f_S2-6 S. 4)
