Wärtsilä

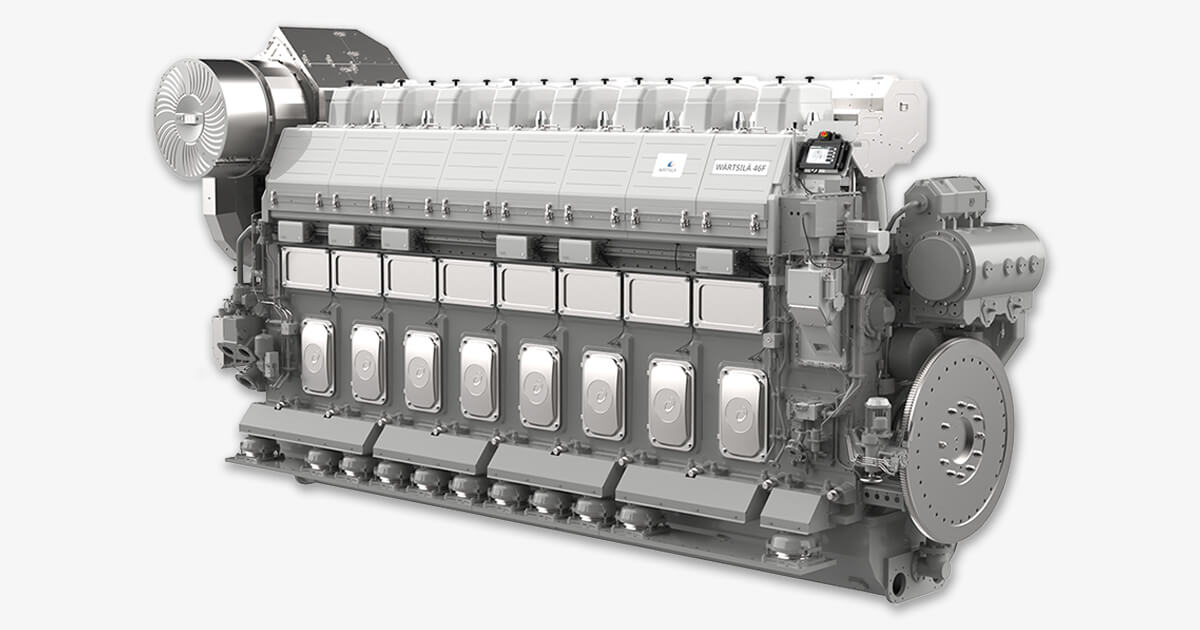

Wärtsilä 9LW46F
The Wärtsilä 9LW46F is a medium‑speed, 9‑cylinder, common‑rail diesel engine delivering about 1 200 kW per cylinder at 600 rpm, designed for main propulsion on large merchant ships.
9450.0 kW
Power
Engine Specifications
9
Cylinders
460 mm
Bore
580 mm
Stroke
Components & Design
Component data being added…
Technical Data
Hubraum pro Zylinder
96,4 Liter
Leistung pro Zylinder (46F)
1200 kW @ 600 rpm
SFOC (Specific Fuel Oil Consumption)
170-173 g/kWh ISO
Ventile
2 inlet valves, 2 exhaust valves per cylinder
Kraftstoffeinspritzung
Direkte Einspritzung (Twin-Pump)
Aufladung
Turbolader mit Ladeluftkühlung
Betriebsstunden Feldhistorie
7,200,000+ hours since 2004
Gewicht 6L46
95 Tonnen
Gewicht 12V46F
177 Tonnen
Gewicht 16V46
214 Tonnen
configuration
L
rpm
600
fuel type
HFO/MGO
technology
Medium-Speed Common Rail
displacement l per cyl
96.4
🤖 Ask about this model
One free question — answered like a marine engineer. No account needed.
Common failures & inspection points
Failing exhaust valves due to corrosion on valve stem, caused by inferior fuel quality. A documented case: all four valves fractured
Turbocharger damage from debris from valve failures. Secondary damage from exhaust valve leakage that introduces cooling water into cylinder (identifiable
Cylinder liner wear and scoring: inspections required every 4–8 weeks, regular measurement of ring coating thickness and groove tightness. Early detec
Piston crown wear: measurement of piston crown and shaft height necessary to determine replacement. Inspection required if piston falls below scavenge port
Engine bearing monitoring: continuous temperature monitoring of lubricant and crankshaft bearings necessary. Three-section engine design enables p
Type-general inspection and maintenance points for this equipment category — not model-specific.
