Library› Engine Room› Main Engines (2-Stroke)› Main Engine 2-Stroke› WinGD X82-2.0 Two-Stroke Engine
WinGD

X82-2.0 Two-Stroke Engine

Main Engine 2-Stroke · Main Engines (2-Stroke)

Class-certified type (DNV register) · technical data sheet not yet verified

The WinGD X82-2.0 is a large low-speed two-stroke marine diesel engine for direct-drive main propulsion. It is part of the X82 platform with electronically controlled fuel injection and exhaust valve actuation, designed for big deep-sea ships. The engine is listed as still in production.

Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

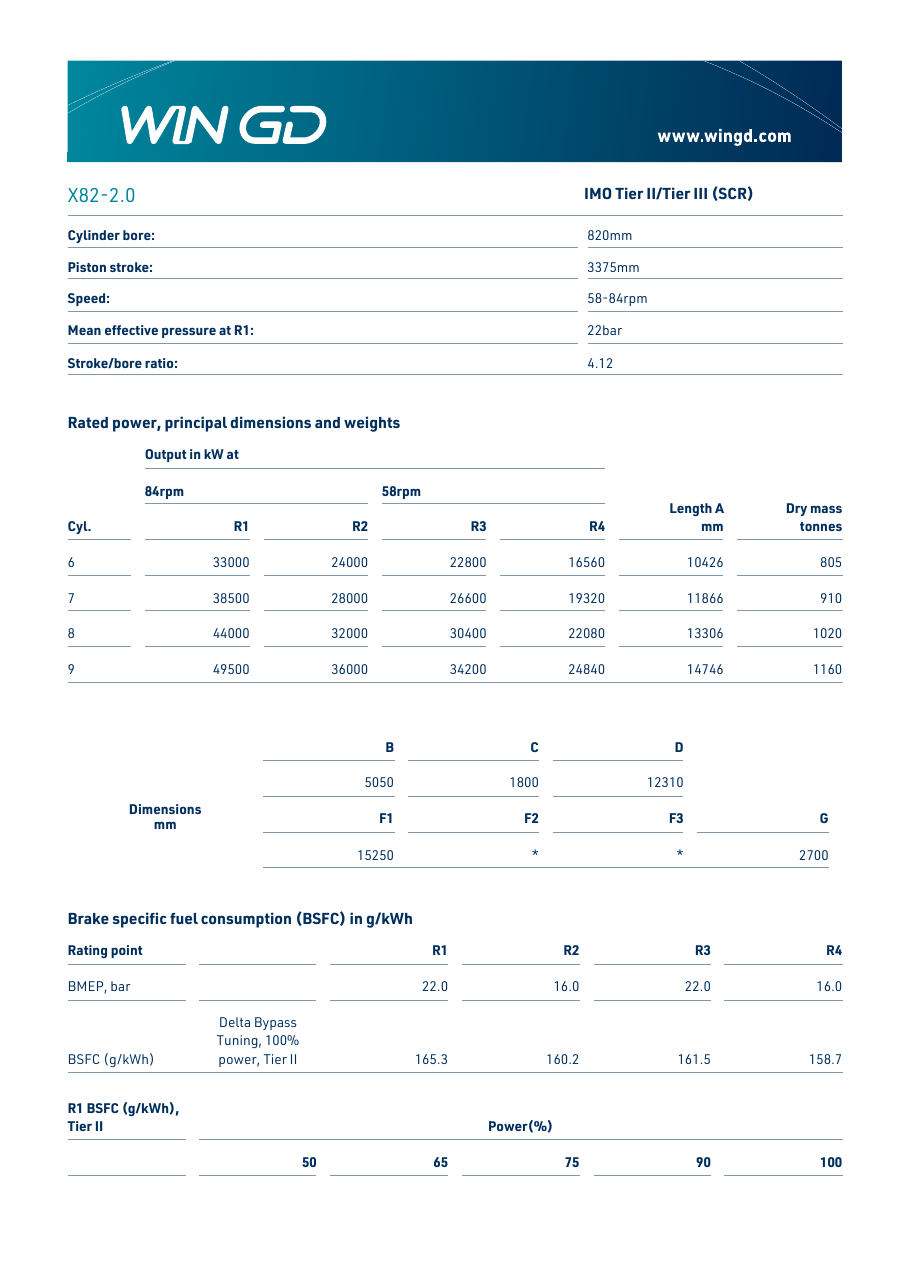

Bore820 mm🔖
Stroke3,375 mm🔖
Power (MCR)5,500 kW/cylinder🔖
Speed (MCR)84 rpm🔖
Mean effective pressure22.0 bar🔖
📄
Download datasheet (PDF) (219 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

This page describes the cooling water system arrangement for the X82-2.0 engine.

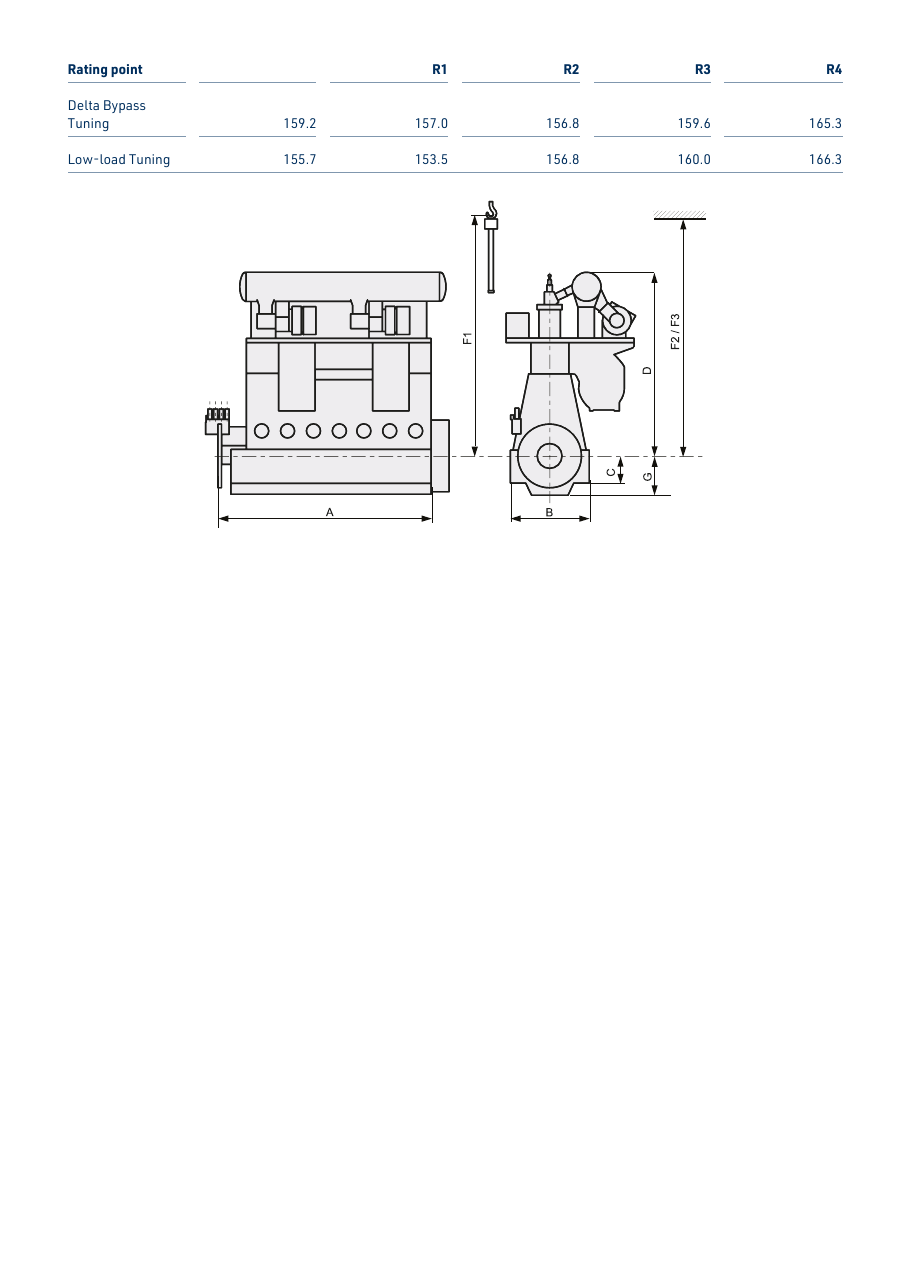

WinGD WinGD X82-2.0 Two-Stroke Engine – Drawing (549e7300a07b6b012ec38498b521e9cbcccd5de0e61200d0b73ecd449b975f90 S. 1)
Drawing · 549e7300a07b6b012ec38498b521e9cbcccd5de0e61200d0b73ecd449b975f90 · S. 1
WinGD WinGD X82-2.0 Two-Stroke Engine – Drawing (549e7300a07b6b012ec38498b521e9cbcccd5de0e61200d0b73ecd449b975f90 S. 2)
Drawing · 549e7300a07b6b012ec38498b521e9cbcccd5de0e61200d0b73ecd449b975f90 · S. 2

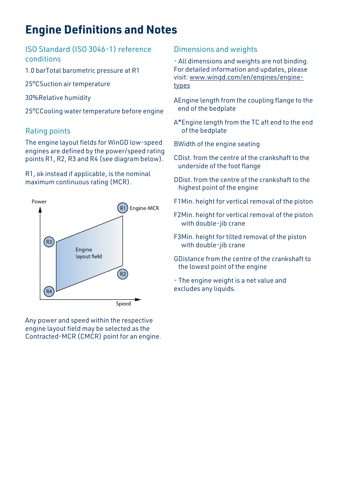

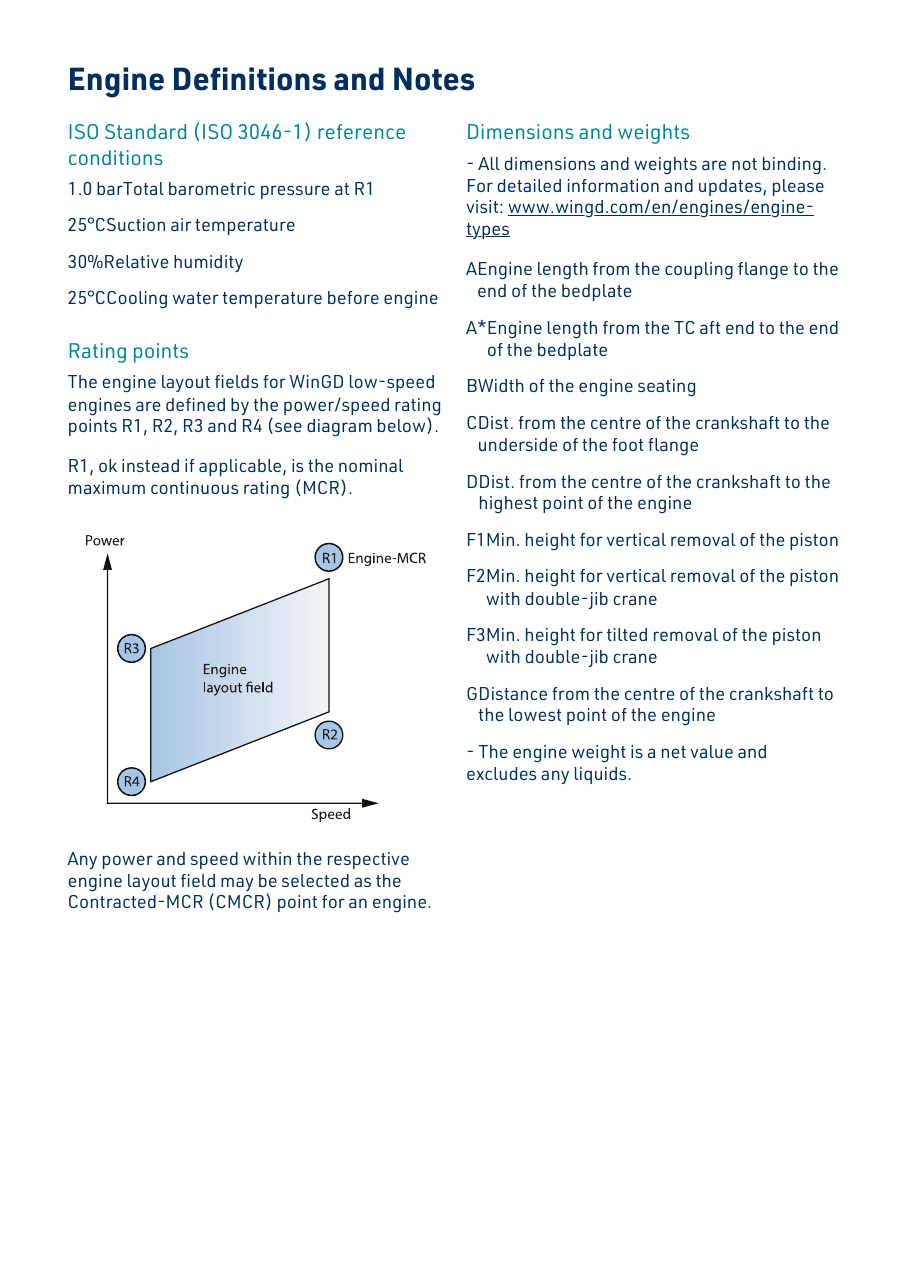

WinGD WinGD X82-2.0 Two-Stroke Engine – Drawing (549e7300a07b6b012ec38498b521e9cbcccd5de0e61200d0b73ecd449b975f90 S. 3)
Drawing · 549e7300a07b6b012ec38498b521e9cbcccd5de0e61200d0b73ecd449b975f90 · S. 3

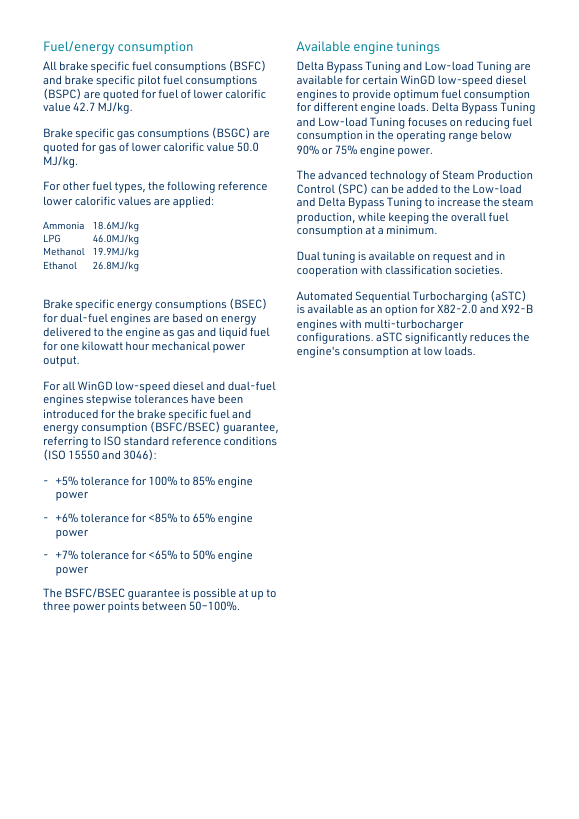

WinGD WinGD X82-2.0 Two-Stroke Engine – Page preview (549e7300a07b6b012ec38498b521e9cbcccd5de0e61200d0b73ecd449b975f90 S. 4)
Page preview · 549e7300a07b6b012ec38498b521e9cbcccd5de0e61200d0b73ecd449b975f90 · S. 4
Source: WinGD (Winterthur Gas & Diesel) WinGD X82-2.0 Two-Stroke Engine datash, p. 82
