Minimax

MX-1230

Fixed Gas Extinguishing System · Fixed Fire Suppression

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Fixed Gas Extinguishing System — not a photo of this model.

MX-1230 by Minimax GmbH. DNV MER certificate MERB00004G7.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Minimum and Maximum Agent Storage Temperatures:0 °F to 122 °F (-18 °C to 50 °C)
Minimum and Maximum Temperatures of Protected Spaces per UL and FM:60 °F to 80 °F (15.6 °C to 26.7 °C)
Fill Density:Min. 25 lb/ft3 (400 kg/m3), Max. 74.9 lb/ft3 (1200 kg/m3) at 69.8 °F (21 °C)
Working Pressure:360 psi (25 bar) or 725 (50 bar) at 70 °F (21 °C)
Max. Working Pressure:508 psi (35 bar) or 870 (60 bar) at 122 °F (50 °C)
Response Pressure at Bursting Disc for 360 psi (25 bar) System:900 psi (62 bar ) at 68 °F (20 °C)
Response Pressure at Bursting Disc for 725 psi (50 bar) System:1276 psi (88 bar) for 2” valves, 1291 psi (89 bar) for 1-1/2” valves at 68 °F (2
Agent:FK-5-1-12 (NovecTM 1230)
Maximum Pressure:725 psi (50 bar)

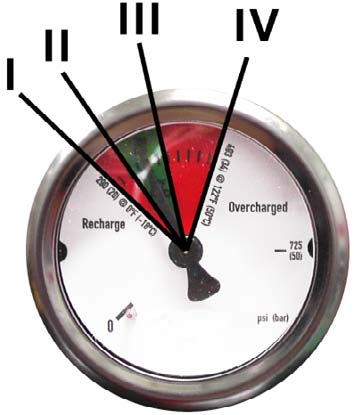

Indicating Range:0 to 508 psi (35 bar)
Gauge Nominal Size:2” (50 mm)
Accuracy Class:1.6
Cylinder:Welded Steel, Powder Coated Red, DOT Standard 4BW-500 or Seamless Steel, Powder
Protective Neck Ring:AISI 1015 Hot Rolled Steel, Powder Coated Black
Protective Cylinder Cap:AISI 1026, Hot Rolled Steel, Powder Coated Black
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Minimax MX 1230 Fire Extinguishing System uses 3MTM NovecTM 1230 extinguishing fluid to put out fires.

Minimax MX-1230 – Photo (c7d7786a0107_S1-6 S. 1)
Photo · c7d7786a0107_S1-6 · S. 1

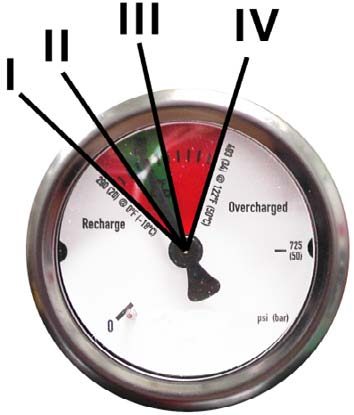

Minimax MX-1230 – Photo (c7d7786a0107_S1-6 S. 2)
Photo · c7d7786a0107_S1-6 · S. 2

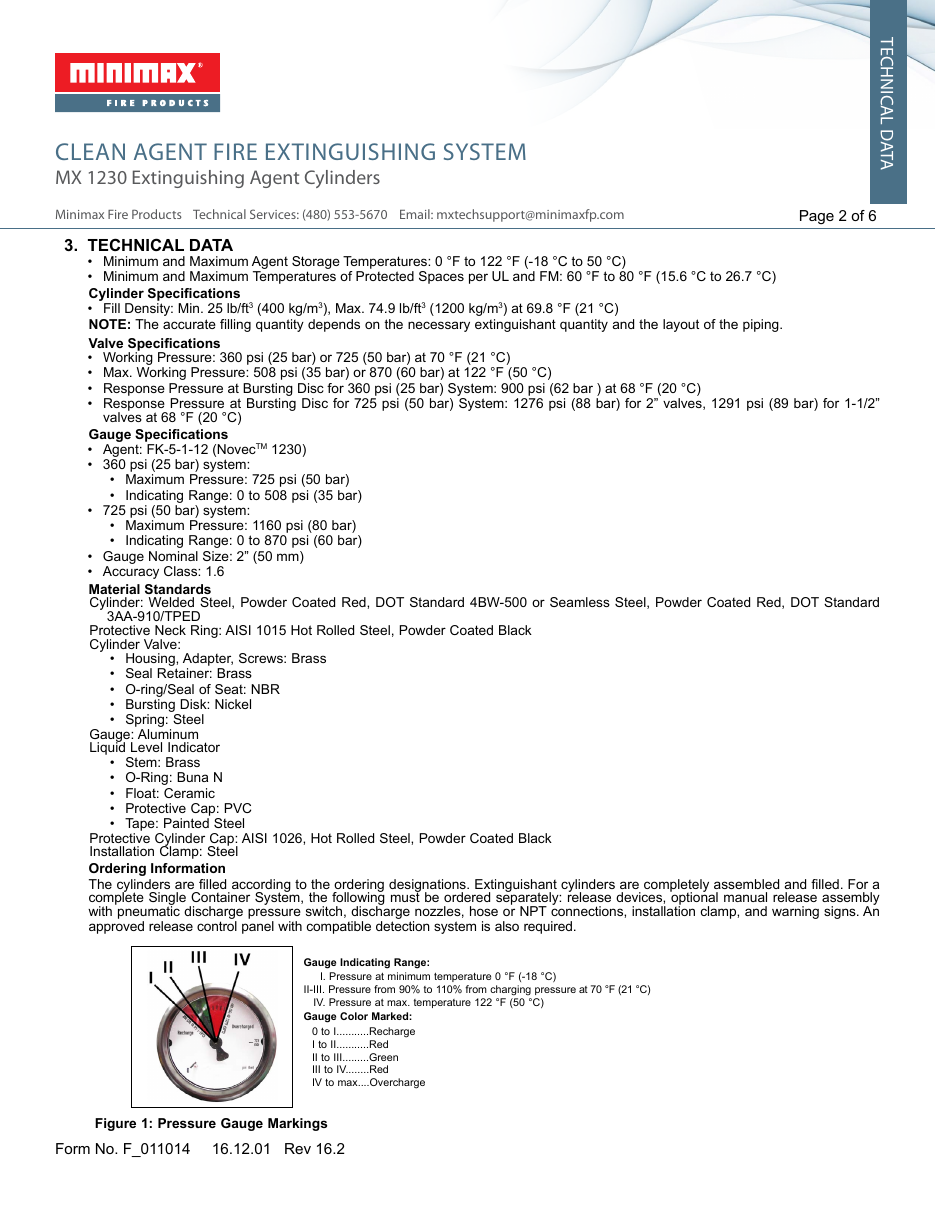

Minimax MX-1230 – Photo (c7d7786a0107_S1-6 S. 3)
Photo · c7d7786a0107_S1-6 · S. 3

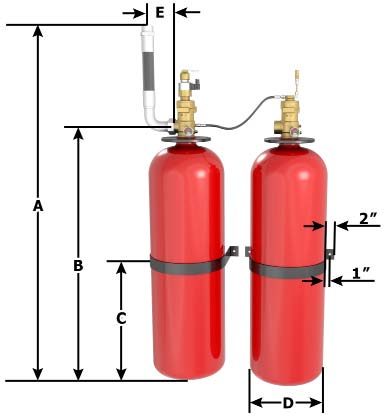

Minimax MX-1230 – Photo (c7d7786a0107_S1-6 S. 4)
Photo · c7d7786a0107_S1-6 · S. 4

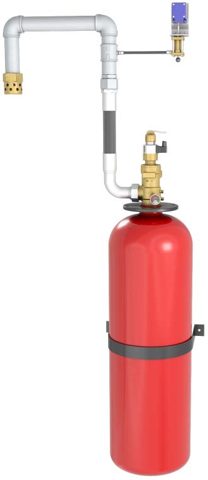

Minimax MX-1230 – Photo (c7d7786a0107_S1-6 S. 5)
Photo · c7d7786a0107_S1-6 · S. 5
Minimax MX-1230 – Photo (c7d7786a0107_S1-6 S. 6)
Photo · c7d7786a0107_S1-6 · S. 6
Minimax MX-1230 – Drawing (c7d7786a0107_S1-6 S. 1)
Drawing · c7d7786a0107_S1-6 · S. 1
Minimax MX-1230 – Drawing (c7d7786a0107_S1-6 S. 2)
Drawing · c7d7786a0107_S1-6 · S. 2

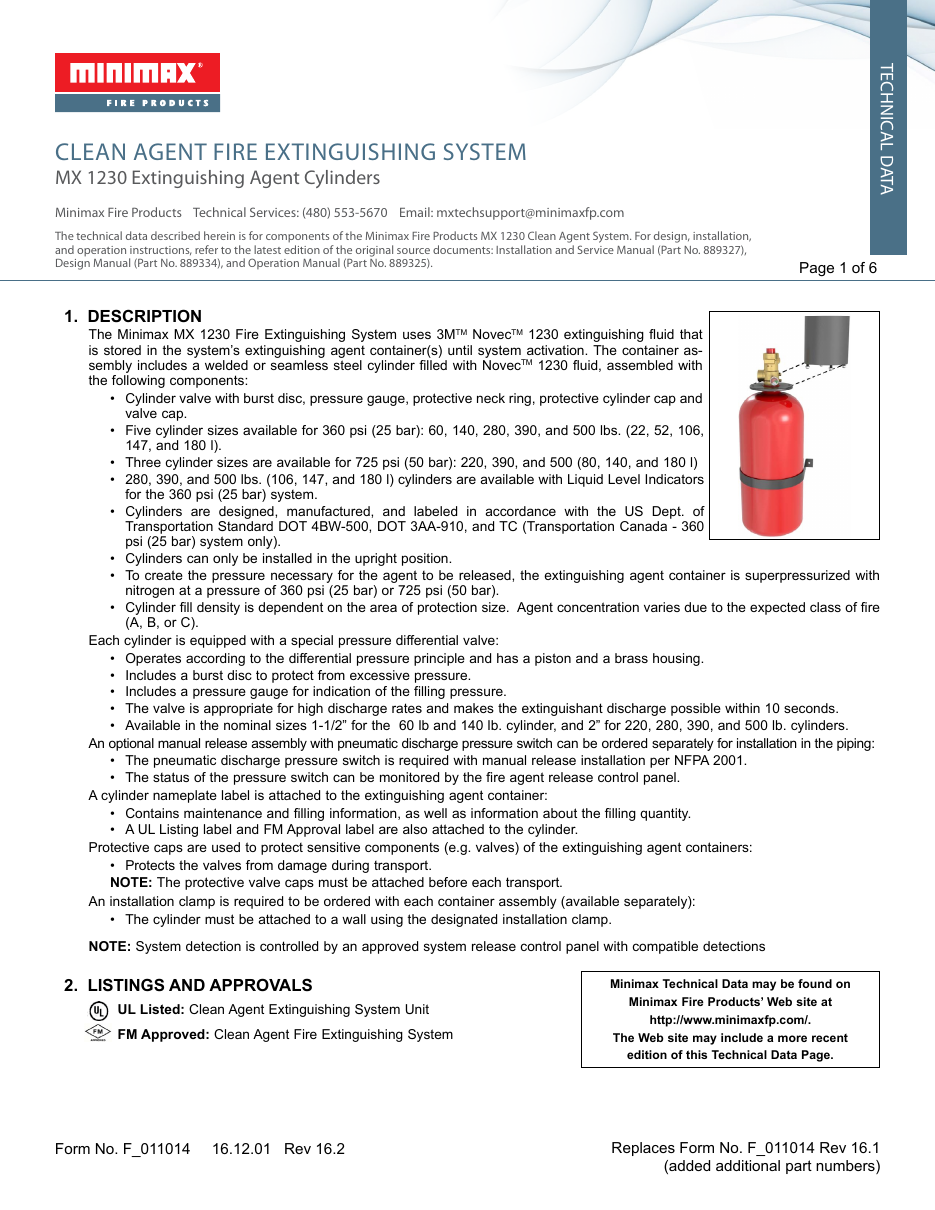

Source: Minimax MX-1230 datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateMERB00004G7
