Modine Thermal Systems (Wuxi) Co. Ltd

QDKR

Rotary Vane Steering Gear · Steering Gear

Class-certified type (DNV register) · technical data sheet not yet verified

QDKR by Modine Thermal Systems (Wuxi) Co. Ltd. DNV TA certificate TAP000003W.

Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Motor/generator cooler for air cooling via circulating water, designed for mechanical cleaning and various water conditions.

Applications

  • Shipboard cooling systems
  • Marine electrical systems

Features

  • Removable headers for cleaning
  • Double tube design
  • Material selection based on water conditions
  • Drain and venting plugs
  • Mechanically expanded tubes for optimal heat transfer
  • Vibration and shock resistant
  • Approved by ABS, LR, CCS, RINA, DNV and BV

Options

  • Customized cleaning brushes

Standards

  • PED 2014/68/EC

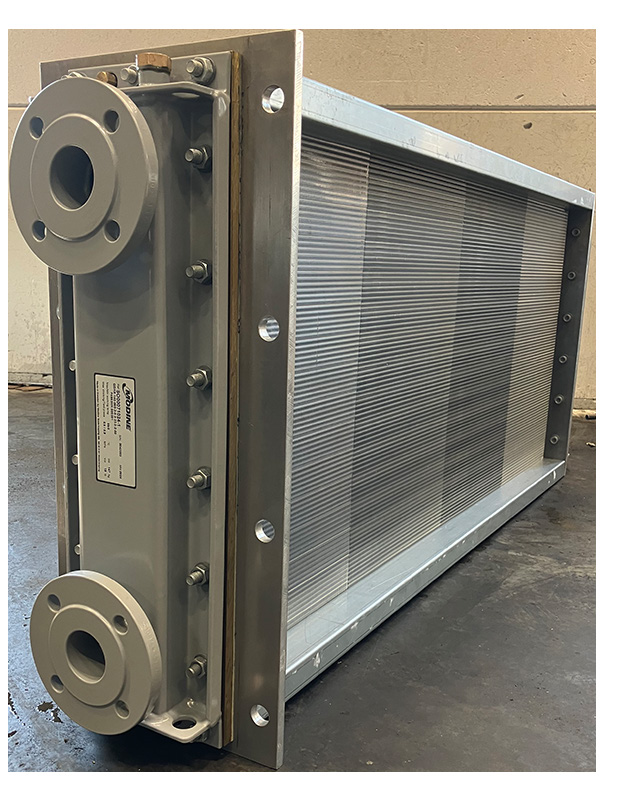

Modine Thermal Systems (Wuxi) Co. Ltd QDKR – Photo (1ab96bd81439_S1-2 S. 1)
Photo · 1ab96bd81439_S1-2 · S. 1
Modine Thermal Systems (Wuxi) Co. Ltd QDKR – Photo (1ab96bd81439_S1-2 S. 1)
Photo · 1ab96bd81439_S1-2 · S. 1

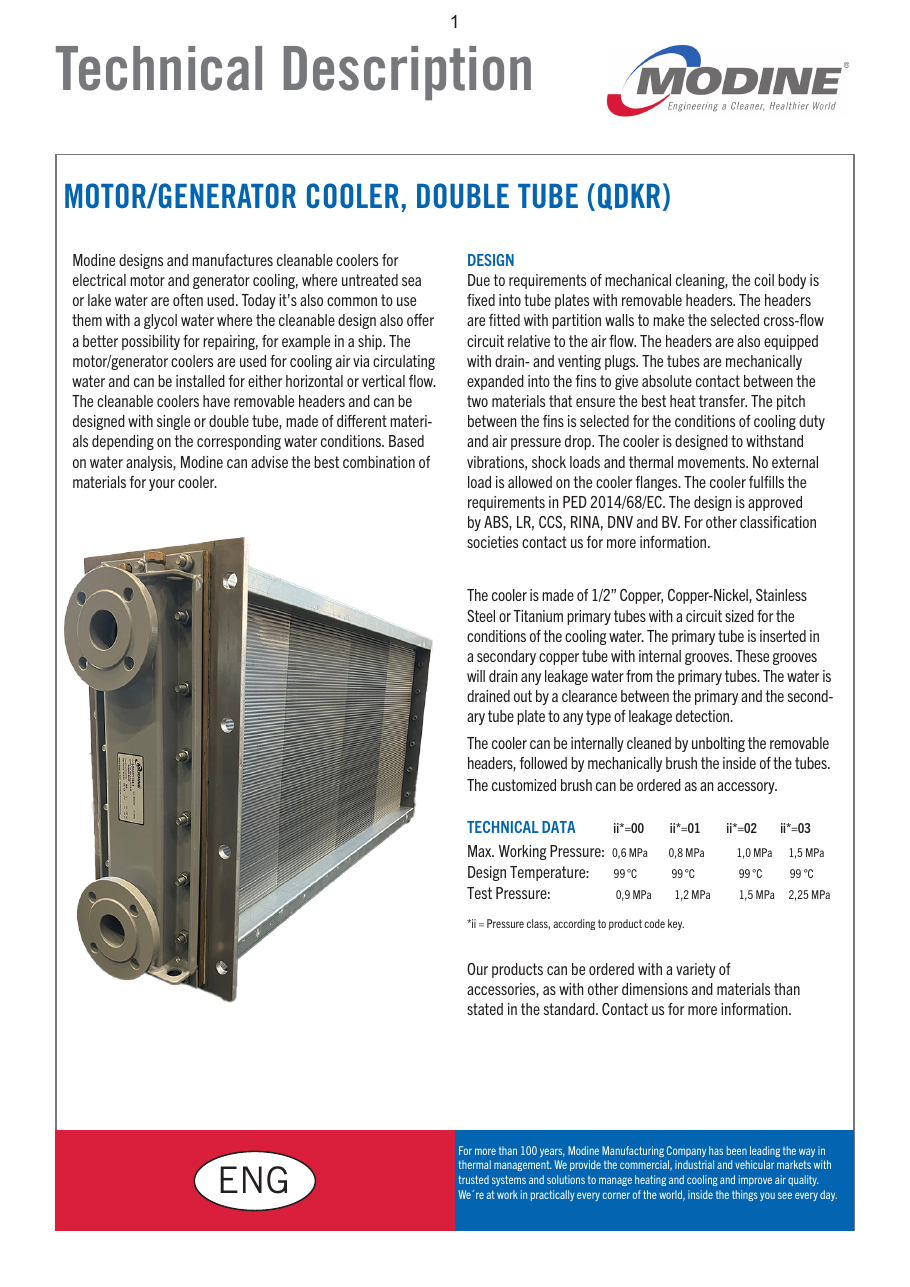

Modine Thermal Systems (Wuxi) Co. Ltd QDKR – Drawing (1ab96bd81439_S1-2 S. 1)
Drawing · 1ab96bd81439_S1-2 · S. 1

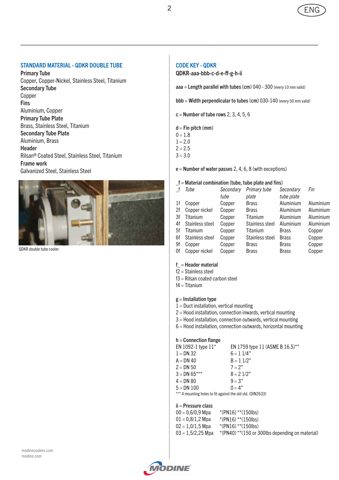

Modine Thermal Systems (Wuxi) Co. Ltd QDKR – Drawing (1ab96bd81439_S1-2 S. 2)
Drawing · 1ab96bd81439_S1-2 · S. 2
Source: Modine Thermal Systems (Wuxi) Co. Ltd QDKR datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAP000003W
Open the certificate at DNV
