ITW Welding

Cromarod 316LP

General Welding Consumables · Welding Consumables

Class-certified type (DNV register) · technical data sheet not yet verified

Cromarod 316LP by ITW Welding AB. DNV TA certificate TAW00004XZ.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Ferrite contentFN 4 (WRC-92)
Scaling temperatureApprox. 850 °C in air.
Redrying temperature350 °C, 2h
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Cromarod 316LP is a stainless steel electrode designed for welding thin-walled pipelines in the chemical and papermaking industries.

Applications

  • chemical process
  • papermaking

Features

  • fully-positional
  • rutile flux coated
  • good arc stability
  • weld pool control
  • restriking characteristics
  • suitable for vertical and overhead welding
  • ideal for cramped and difficult site conditions

Standards

  • EN 1600
  • AWS A5.4
  • ISO 3581-A
ITW Welding Cromarod 316LP – Photo (d7bd9332fd95_S1-1 S. 1)
Photo · d7bd9332fd95_S1-1 · S. 1
ITW Welding Cromarod 316LP – Drawing (d7bd9332fd95_S1-1 S. 1)
Drawing · d7bd9332fd95_S1-1 · S. 1

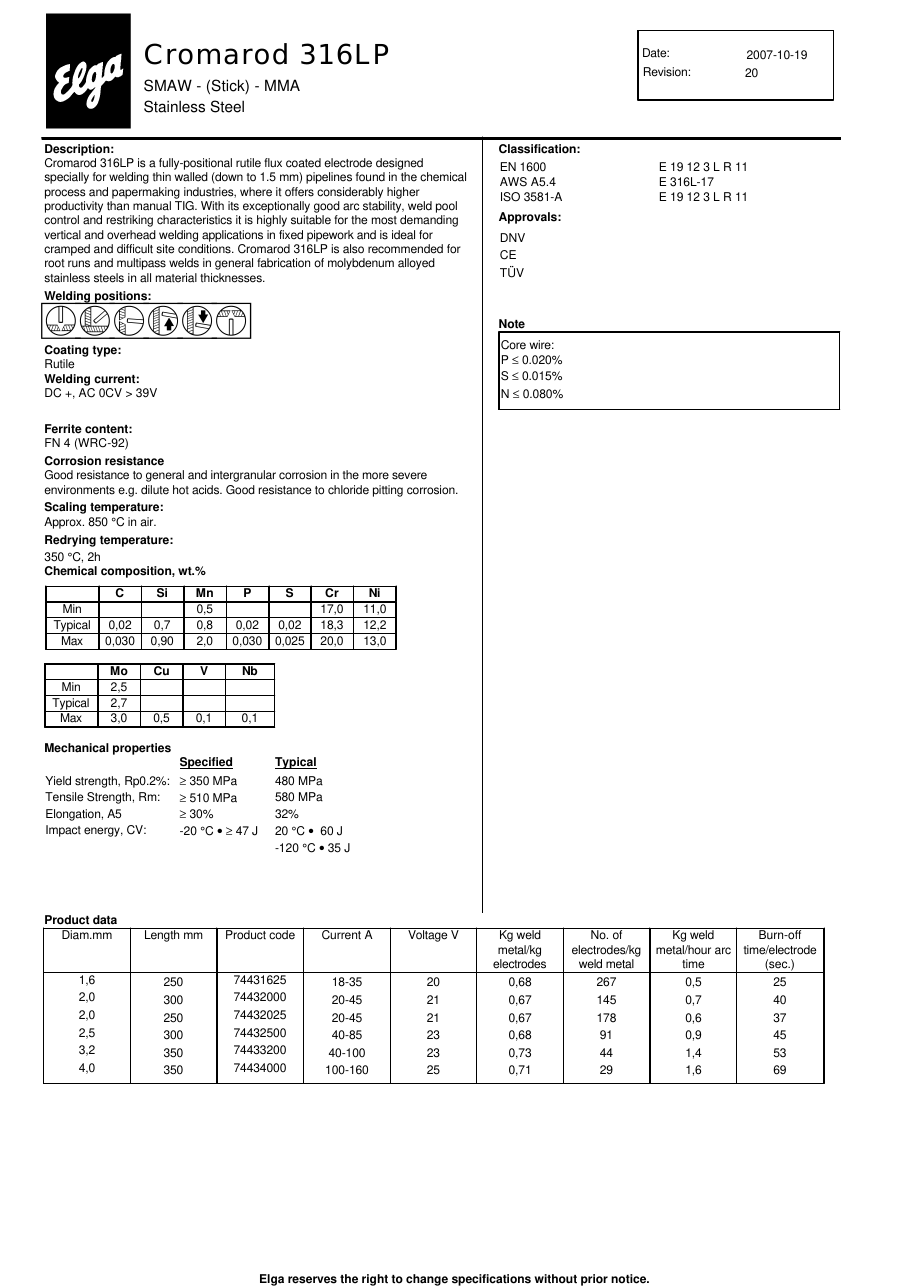

Source: ITW Welding Cromarod 316LP datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAW00004XZ
Open the certificate at DNV
