CrInoxTIG 316LSi / I1

General Welding Consumables · Welding Consumables

Class-certified type (DNV register) · technical data sheet not yet verified

CrInoxTIG 316LSi / I1 by ITW Welding AB. DNV TA certificate TAW00005RB.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Yield strength Re (typical)400 MPa
Tensile strength Rm (typical)585 MPa
Available diameters1,0 - 3,2 mm
Shielding gas flow6-12 l/min
Manufacturer documentation

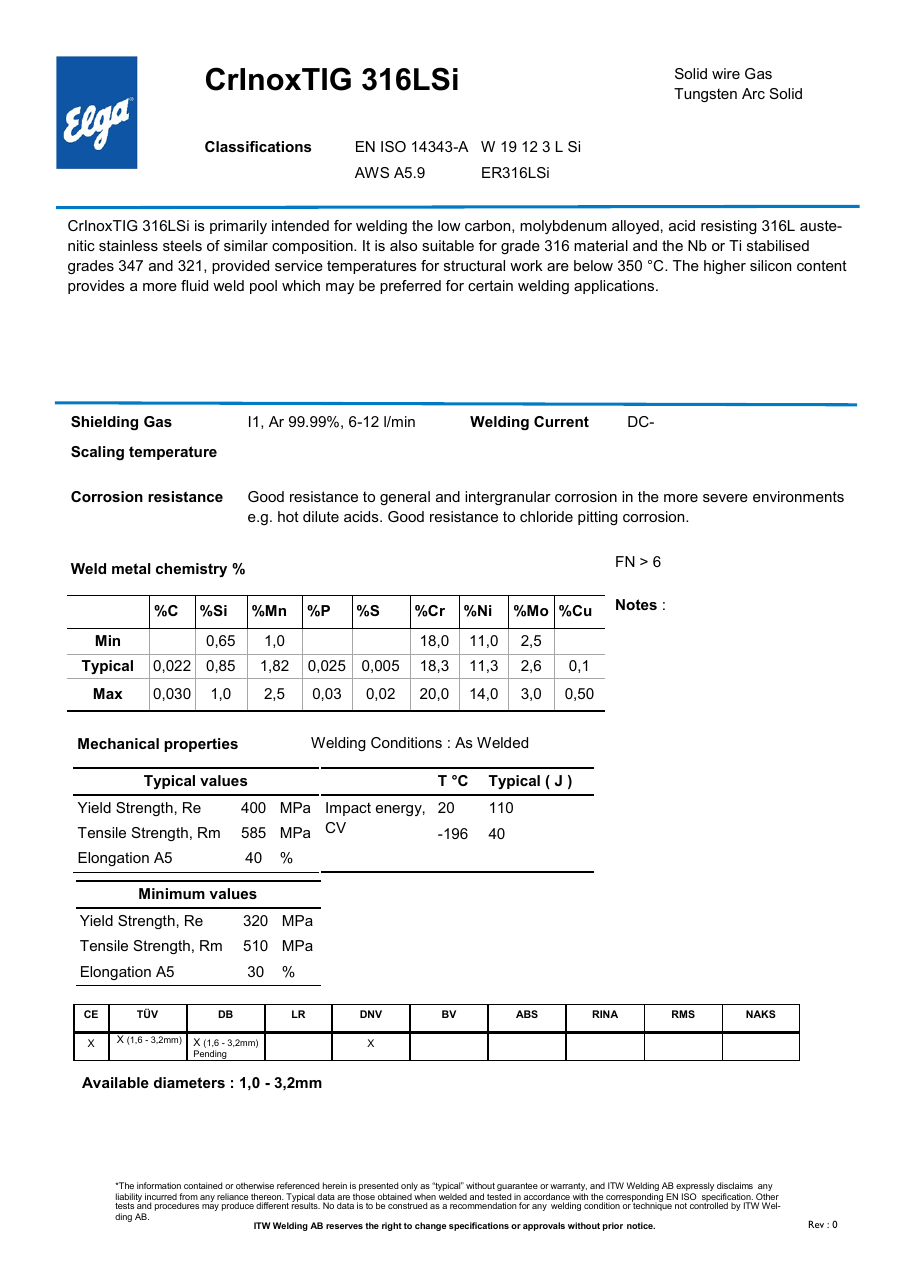

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

CrInoxTIG 316LSi is a solid wire welding electrode primarily used for welding low carbon, molybdenum alloyed, acid resisting 316L austenitic stainless steels.

Standards

  • EN ISO 14343-A W 19 12 3 L Si
  • AWS A5.9 ER316LSi

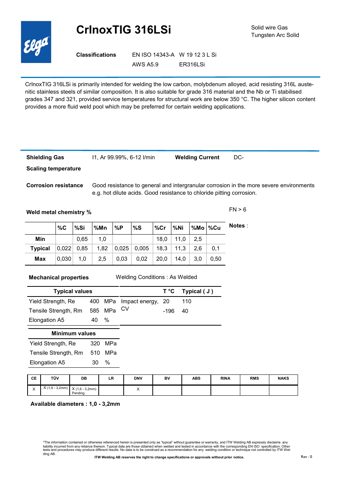

ITW Welding AB CrInoxTIG 316LSi / I1 – Drawing (a7f4f2169ddc_S1-1 S. 1)
Drawing · a7f4f2169ddc_S1-1 · S. 1
Source: I1 datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAW00005RB
Open the certificate at DNV
