Library› Electrical› Cable & Wiring› Power Cable (0.6/1 kV)› Rudolf Hensel GmbH HENSOMASTIK 5 KS
Rudolf Hensel GmbH

HENSOMASTIK 5 KS

Power Cable (0.6/1 kV) · Cable & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Power Cable (0.6/1 kV) — not a photo of this model.

The Hensel HENSOMASTIK 5 KS is a fire protective system for cables, certified by DNV, listed here as a 0.6/1 kV power cable protection product. It is applied to cable runs to improve their fire resistance and limit flame spread along cable bundles in vessel installations.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Fire resistance classEI 60 – EI 120
Application temperature+ 10 °C to + 30 °C
Temperature range- 20 °C to + 50 °C
Max. aperture size (one fitted board)800 x 600 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

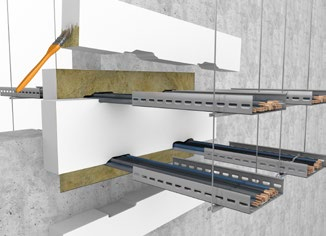

HENSOMASTIK® HENSOTHERM® cable grommets are used for routing cables in walls and floors.

Applications

  • Cables
  • Cable bundles
  • Cable trays

Features

  • Multiple variants in walls and floors
  • Solution for excessive cable occupation (> 60 %)
  • No additional reveal frame needed
  • Suitable for irregular aperture geometries
  • Suitable for single sided access
  • Variant for restricted spaces
  • Installation requires only screws and mineral fibre boards
  • Fire resistance class up to EI 120

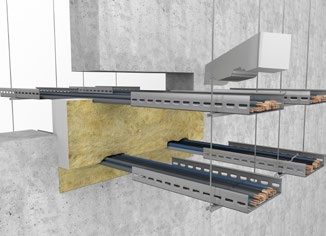

Rudolf Hensel GmbH HENSOMASTIK 5 KS – Photo (be1fa8ecc0c1_S2-5 S. 2)
Photo · be1fa8ecc0c1_S2-5 · S. 2

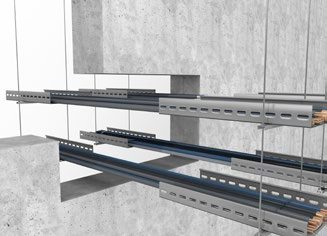

Rudolf Hensel GmbH HENSOMASTIK 5 KS – Photo (be1fa8ecc0c1_S2-5 S. 2)
Photo · be1fa8ecc0c1_S2-5 · S. 2

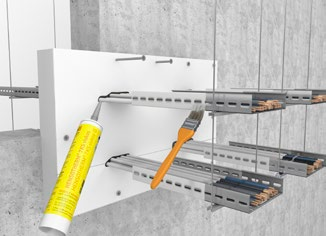

Rudolf Hensel GmbH HENSOMASTIK 5 KS – Photo (be1fa8ecc0c1_S2-5 S. 2)
Photo · be1fa8ecc0c1_S2-5 · S. 2

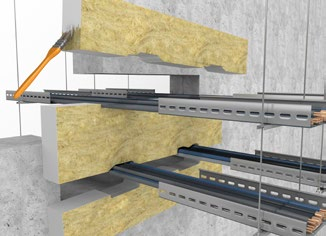

Rudolf Hensel GmbH HENSOMASTIK 5 KS – Photo (be1fa8ecc0c1_S2-5 S. 2)
Photo · be1fa8ecc0c1_S2-5 · S. 2

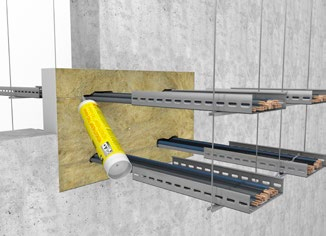

Rudolf Hensel GmbH HENSOMASTIK 5 KS – Photo (be1fa8ecc0c1_S2-5 S. 2)
Photo · be1fa8ecc0c1_S2-5 · S. 2

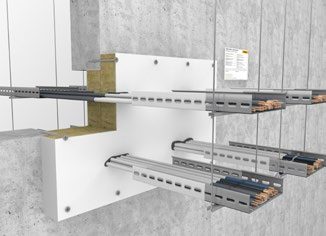

Rudolf Hensel GmbH HENSOMASTIK 5 KS – Photo (be1fa8ecc0c1_S2-5 S. 2)
Photo · be1fa8ecc0c1_S2-5 · S. 2

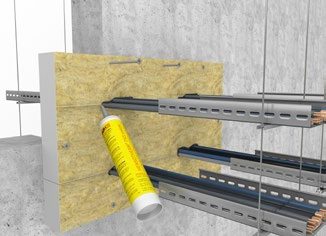

Rudolf Hensel GmbH HENSOMASTIK 5 KS – Photo (be1fa8ecc0c1_S2-5 S. 3)
Photo · be1fa8ecc0c1_S2-5 · S. 3

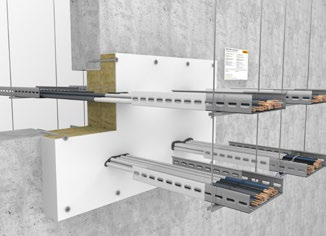

Rudolf Hensel GmbH HENSOMASTIK 5 KS – Photo (be1fa8ecc0c1_S2-5 S. 3)
Photo · be1fa8ecc0c1_S2-5 · S. 3
Source: Rudolf Hensel GmbH HENSOMASTIK 5 KS datasheet, p. 2
Classification

DNV type approval

Listed in the DNV Approval Finder at the time we recorded it. The certificate is issued by DNV, not by us; check its current status at DNV.

CertificateTAE00001K2
Open the certificate at DNV
