Library› Electrical› Cable & Wiring› Power Cable (0.6/1 kV)› AmerCable -309VFD
AmerCable

-309VFD

Power Cable (0.6/1 kV) · Cable & Wiring

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Nominal Weight368
Resistance0.708 ohms/1000ft
Reactance0.036 ohms/1000ft
Grounding14 x3
In Free Air65 Ampacity
In Cable Tray55 Ampacity
In Conduit48 Ampacity
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

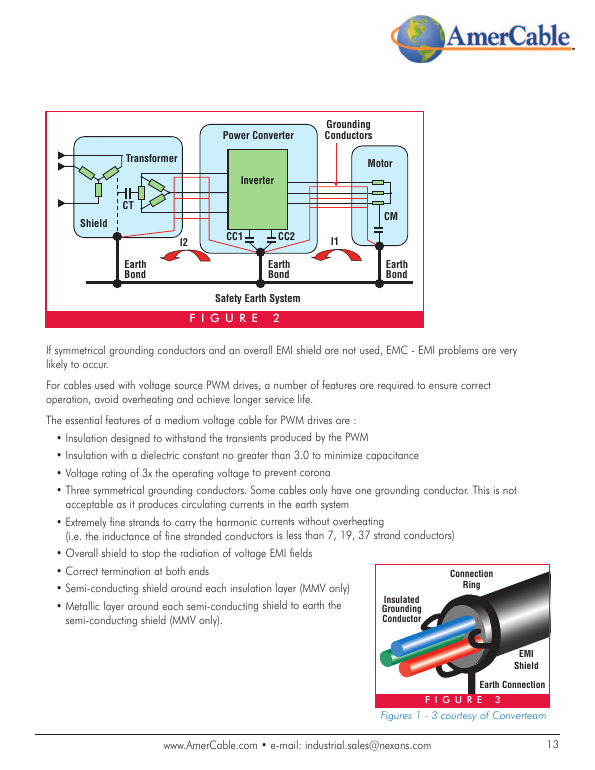

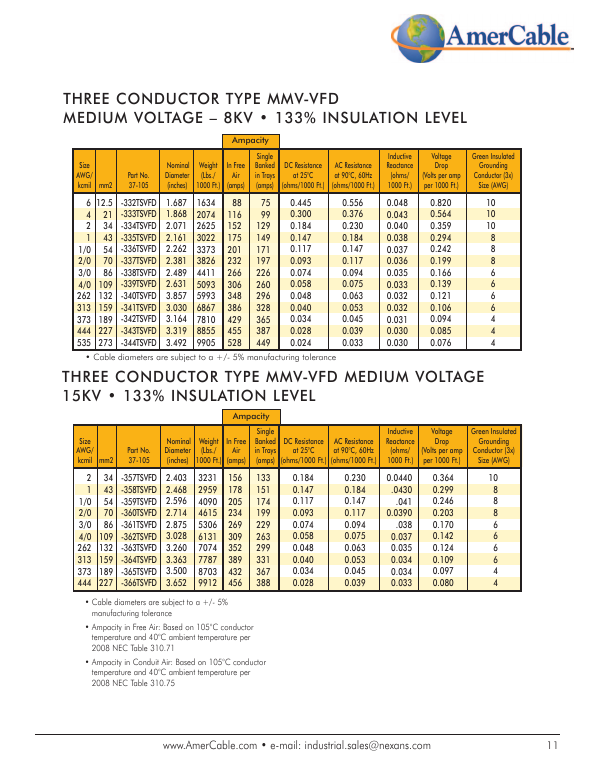

“DC AC Nominal Weight Resistance Resistance Diameter (lbs/ at 25°C 90°C, 60Hz (inches) 1000ft) (ohms/1000ft) (ohms/1000ft)”

AmerCable -309VFD – Drawing (53138474681b_S5-16 S. 5)
Drawing · 53138474681b_S5-16 · S. 5

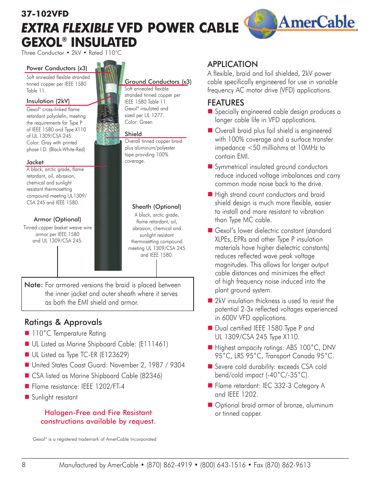

AmerCable -309VFD – Drawing (53138474681b_S5-16 S. 6)
Drawing · 53138474681b_S5-16 · S. 6

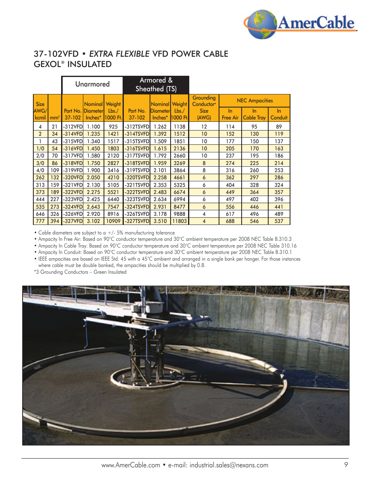

AmerCable -309VFD – Drawing (53138474681b_S5-16 S. 7)
Drawing · 53138474681b_S5-16 · S. 7

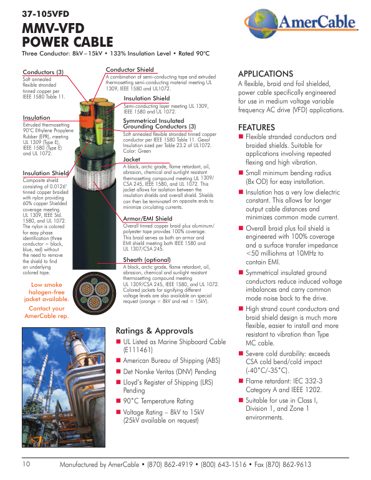

AmerCable -309VFD – Page preview (53138474681b_S5-16 S. 8)
Page preview · 53138474681b_S5-16 · S. 8
AmerCable -309VFD – Page preview (53138474681b_S5-16 S. 9)
Page preview · 53138474681b_S5-16 · S. 9

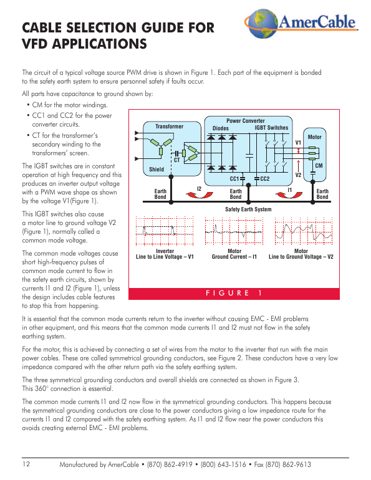

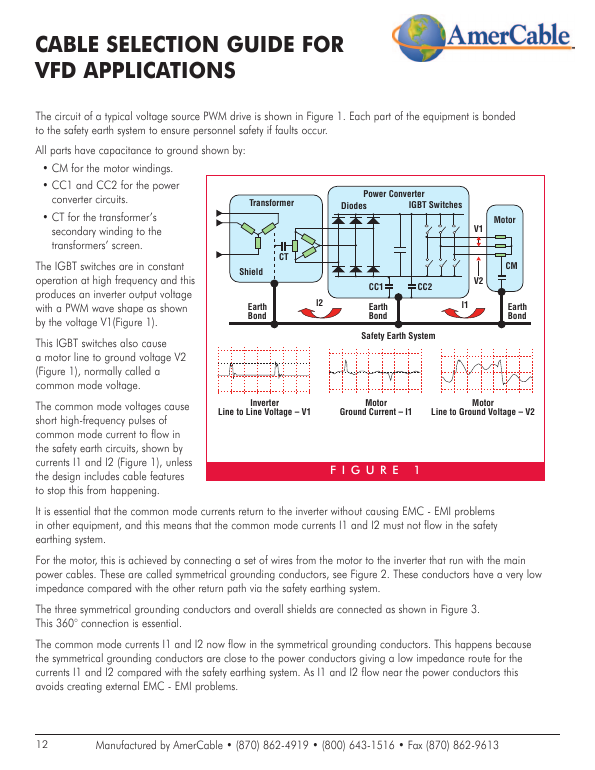

AmerCable -309VFD – Page preview (53138474681b_S5-16 S. 10)
Page preview · 53138474681b_S5-16 · S. 10
AmerCable -309VFD – Page preview (53138474681b_S5-16 S. 11)
Page preview · 53138474681b_S5-16 · S. 11
Source: AmerCable -309VFD datasheet, p. 1
