Library› Deck› Paint & Coating Systems› Topside Paint› KCC Corporation, Ulsan Plant KOREPOX H.B. EH3000
KCC Corporation, Ulsan Plant

KOREPOX H.B. EH3000

Topside Paint · Paint & Coating Systems

Class-certified type (DNV register) · technical data sheet not yet verified

KOREPOX H.B. EH3000 by KCC Corporation, Ulsan Plant. DNV TA certificate TAK0000101.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Solids by VolumeApprox. 100 % (Determined by ISO 3233)
Flash Point>101°C / 213°F (Closed cup)
Dry Film Thickness160
Wet Film Thickness160
Theoretical Spreading Rate6.25 ㎡/L
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Korepox H.B. EH3000 is a two-component, solvent-free epoxy coating with excellent resistance to seawater, crude oil, fuel oil, and abrasion. It is used for anti-corrosion and anti-abrasion protection of steel structures in harsh environments.

Applications

  • Water ballast tank
  • Underwater hull outside
  • Cargo holds
  • Exposed parts of ship
  • Crude oil tanks
  • Fuel oil tanks

Features

  • Self-priming
  • Anti-corrosive

Standards

  • IMO Compliance

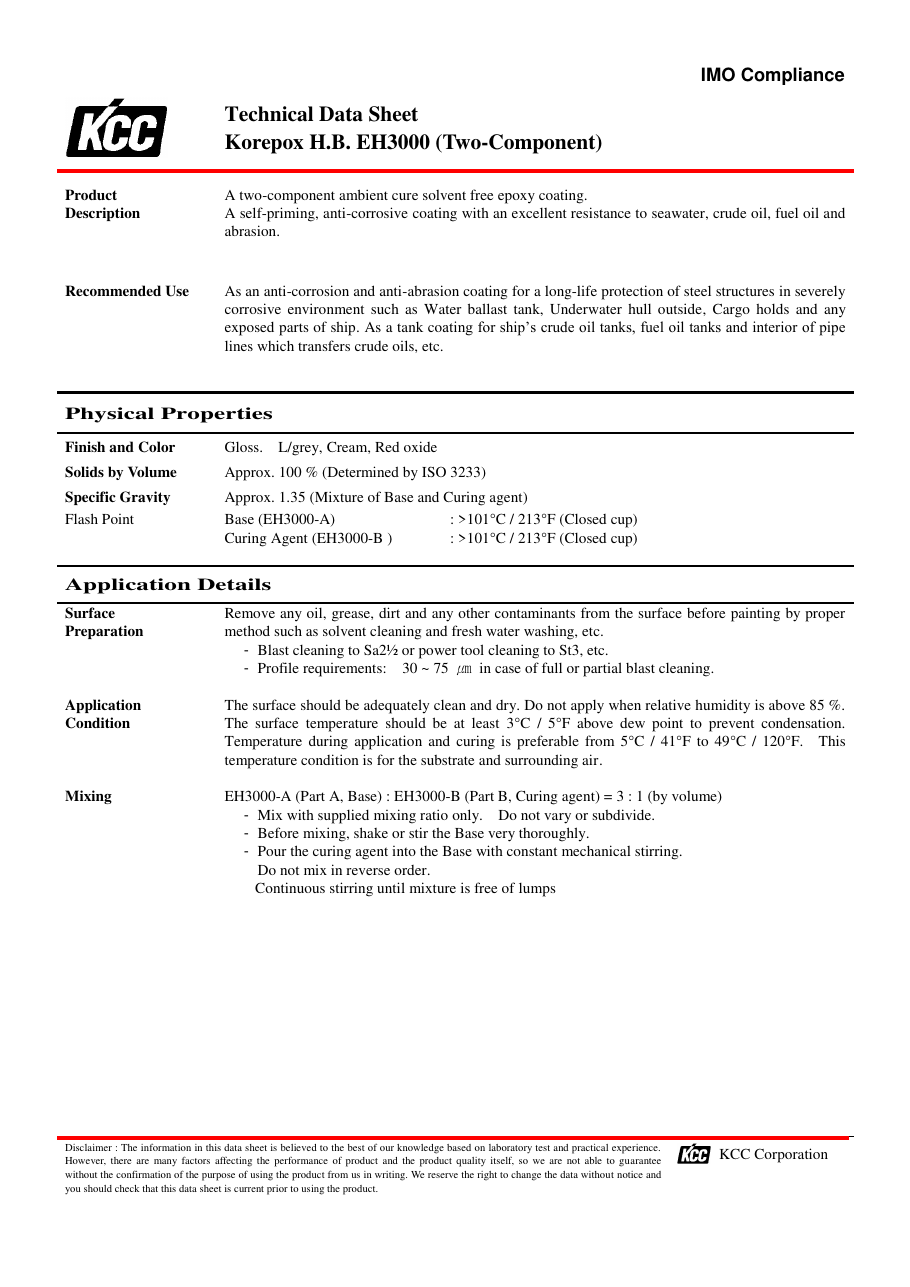

KCC Corporation, Ulsan Plant KOREPOX H.B. EH3000 – Drawing (9df620651380_S1-2 S. 1)
Drawing · 9df620651380_S1-2 · S. 1
KCC Corporation, Ulsan Plant KOREPOX H.B. EH3000 – Drawing (9df620651380_S1-2 S. 2)
Drawing · 9df620651380_S1-2 · S. 2
Source: KCC Corporation, Ulsan Plant KOREPOX H.B. EH3000 datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAK0000101
Open the certificate at DNV
