Library› Safety & LSA› Fire Detection Systems› Flame Detector› Tyco Fire & Security FV411F, FV412F, FV413F
Tyco Fire & Security

FV411F, FV412F, FV413F

Flame Detector · Fire Detection Systems

Class-certified type (DNV register) · technical data sheet not yet verified
18 to 30Voltage

FV411F, FV412F, FV413F by Tyco Fire & Security GmbH. DNV TA certificate TAA000022G.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Max range (0.1 m2 n-heptane)65 m
Voltage18 to 30 VDC
Current consumption8 mA quiescent 20 mA Alarm
Operating temp-40°C to +80°C
EnclosureIP 66
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

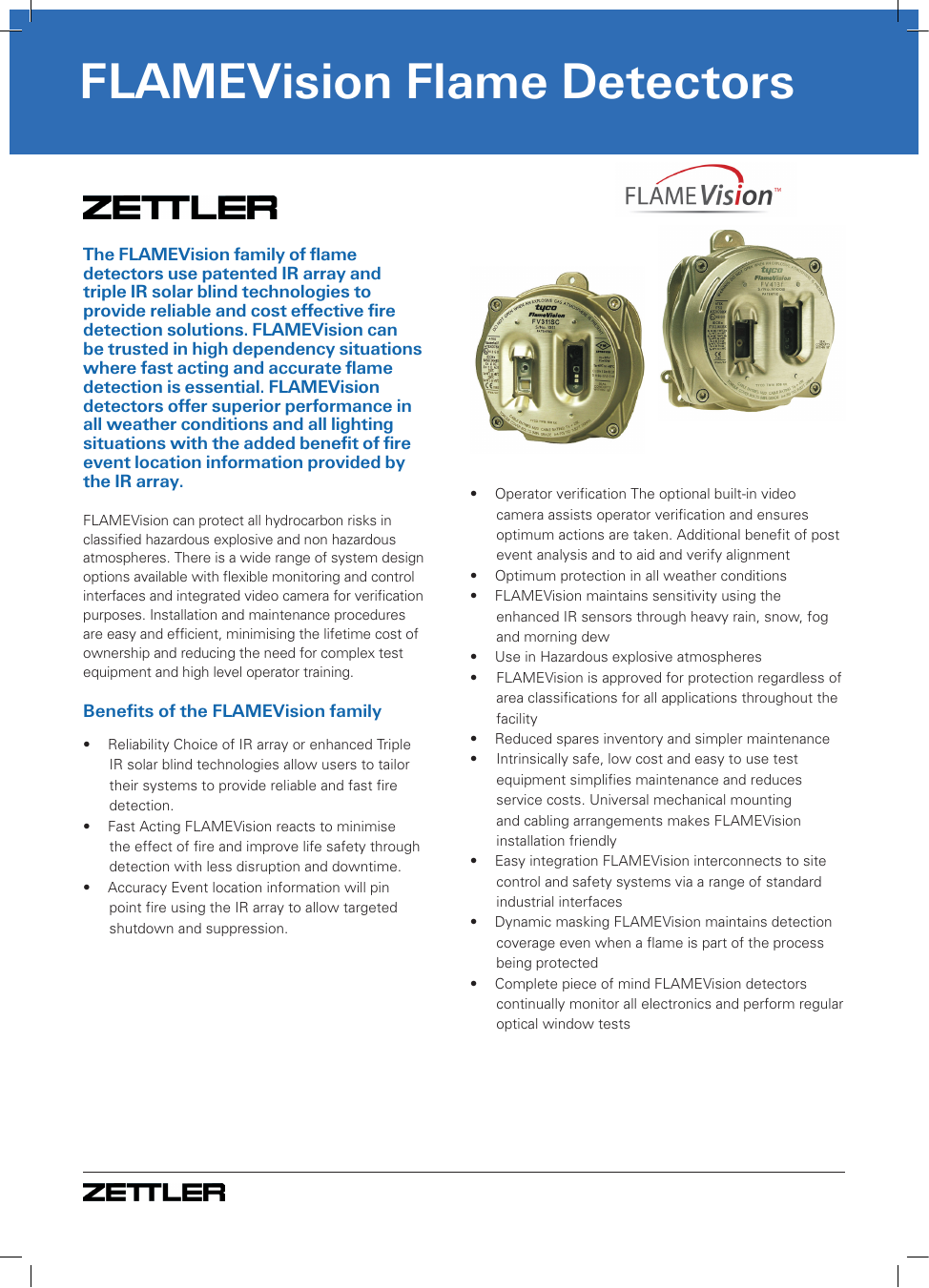

The FLAMEVision family of flame detectors use patented IR array and triple IR solar blind technologies to provide reliable and cost effective fire detection solutions.

Applications

  • hydrocarbon risks
  • hazardous explosive atmospheres
  • non hazardous atmospheres

Features

  • reliable and fast fire detection
  • superior performance in all weather conditions
  • fire event location information
  • operator verification
  • optimum protection in all weather conditions
  • use in Hazardous explosive atmospheres
  • reduced spares inventory and simpler maintenance

Options

  • dynamic masking
  • complete piece of mind

Standards

  • EN54-10:2002 + A1:2005

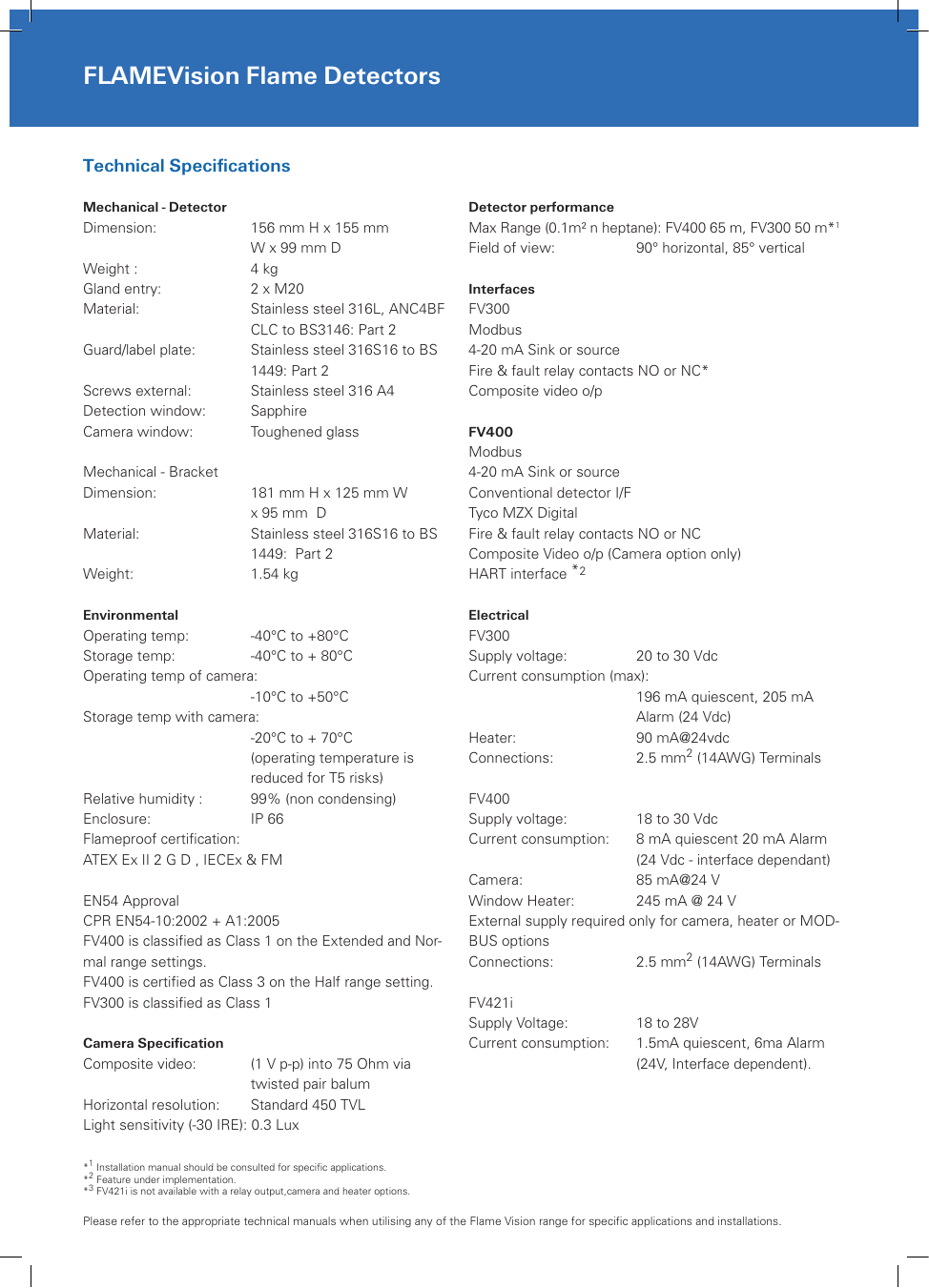

Source: Tyco Fire & Security FV411F, FV412F, FV413F datasheet, p. 3

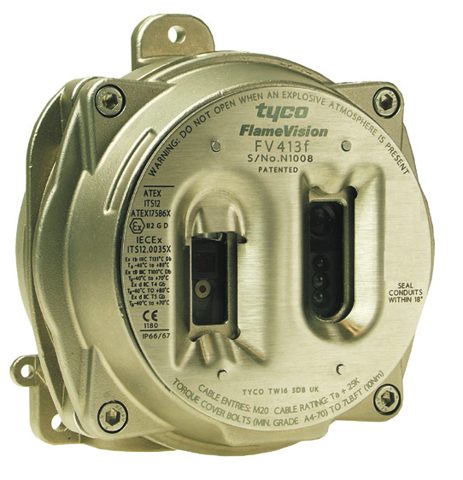

Tyco Fire & Security FV411F, FV412F, FV413F – Photo (7d5970ca1641_S1-3 S. 1)
Photo · 7d5970ca1641_S1-3 · S. 1
Tyco Fire & Security FV411F, FV412F, FV413F – Photo (7d5970ca1641_S1-3 S. 1)
Photo · 7d5970ca1641_S1-3 · S. 1
Tyco Fire & Security FV411F, FV412F, FV413F – Photo (7d5970ca1641_S1-3 S. 2)
Photo · 7d5970ca1641_S1-3 · S. 2
Tyco Fire & Security FV411F, FV412F, FV413F – Photo (7d5970ca1641_S1-3 S. 2)
Photo · 7d5970ca1641_S1-3 · S. 2
Tyco Fire & Security FV411F, FV412F, FV413F – Drawing (7d5970ca1641_S1-3 S. 1)
Drawing · 7d5970ca1641_S1-3 · S. 1

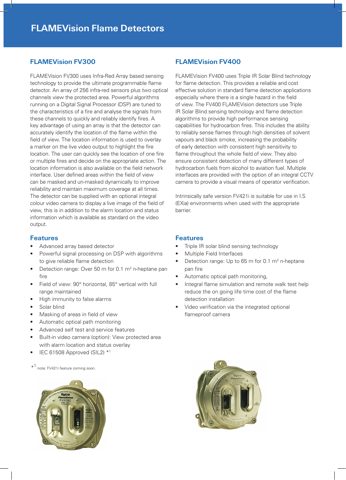

Tyco Fire & Security FV411F, FV412F, FV413F – Drawing (7d5970ca1641_S1-3 S. 2)
Drawing · 7d5970ca1641_S1-3 · S. 2

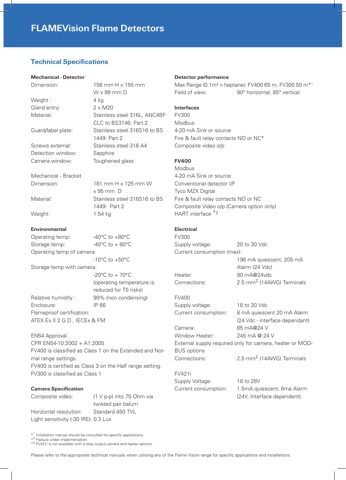

Tyco Fire & Security FV411F, FV412F, FV413F – Drawing (7d5970ca1641_S1-3 S. 3)
Drawing · 7d5970ca1641_S1-3 · S. 3
Source: Tyco Fire & Security FV411F, FV412F, FV413F datasheet, p. 1
Classification

DNV type approval

Verified against the DNV Approval Finder — the certificate below is issued by DNV, not by us.

CertificateTAA000022G
Open the certificate at DNV
